DOOR

TSB Revision

BODY

42-43

SYMPTOM PROCEDURES

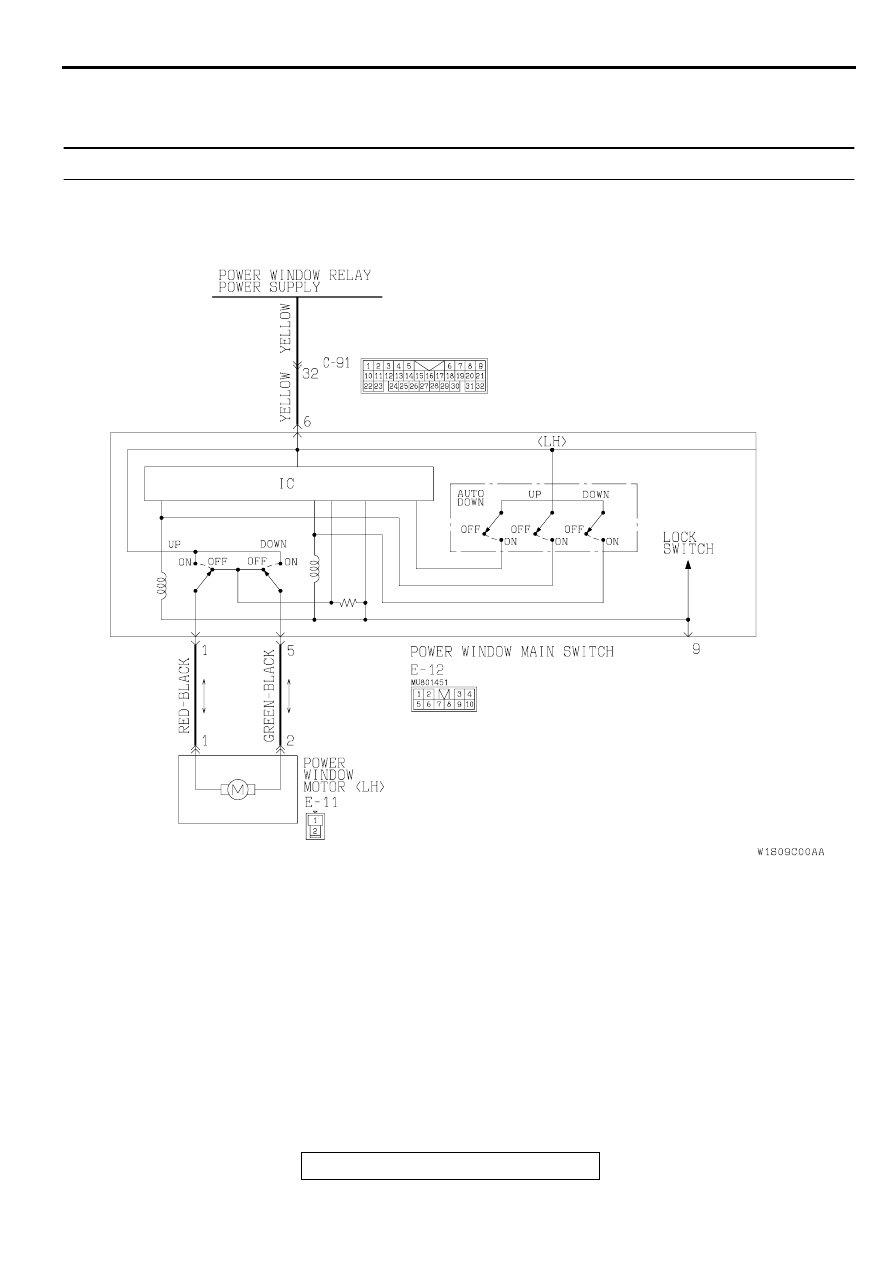

INSPECTION PROCEDURE 1: Only the door window <LH> does not open and close.

AC003727

Power Window Motor <LH> Drive Circuit

AB

<ECLIPSE>

DOOR

TSB Revision

BODY

42-44

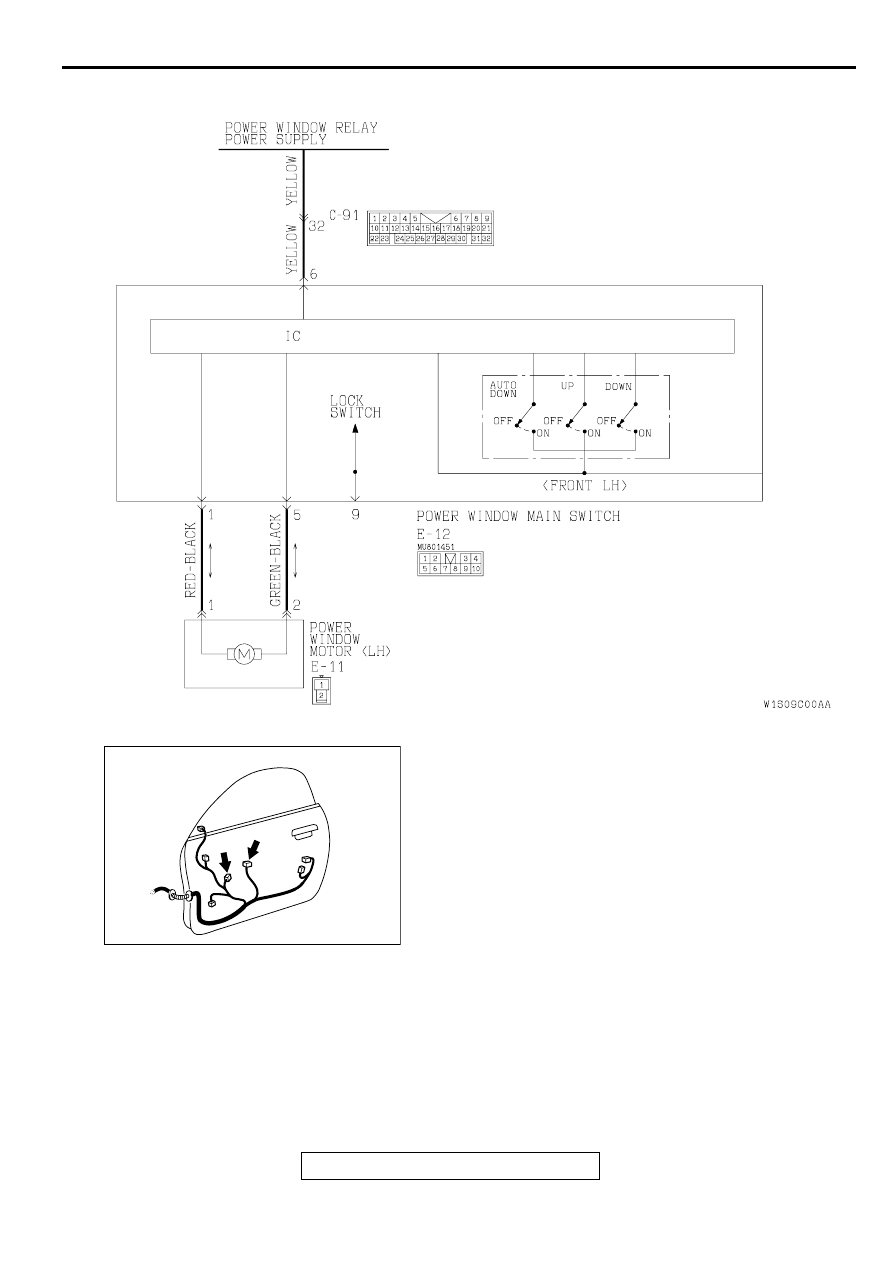

CIRCUIT OPERATION

When the power window switch is operated up or
down, the operation side relay turns on, the
power window motor operates, and opens or
closes the door window <LH>.

TECHNICAL DESCRIPTION (COMMENT)

The cause may be a malfunction of the power
window motor <LH> drive circuit.

TROUBLESHOOTING HINTS

Malfunction of the power window relay.

Malfunction of the ETACS-ECU.

Damaged harness wires or connectors.

AC003735

:

<ECLIPSE SPYDER>

AB

AC001794

E-11

E-12

CONNECTORS: E-11, E-12

<DRIVER'S SIDE>

AB

DOOR

TSB Revision

BODY

42-45

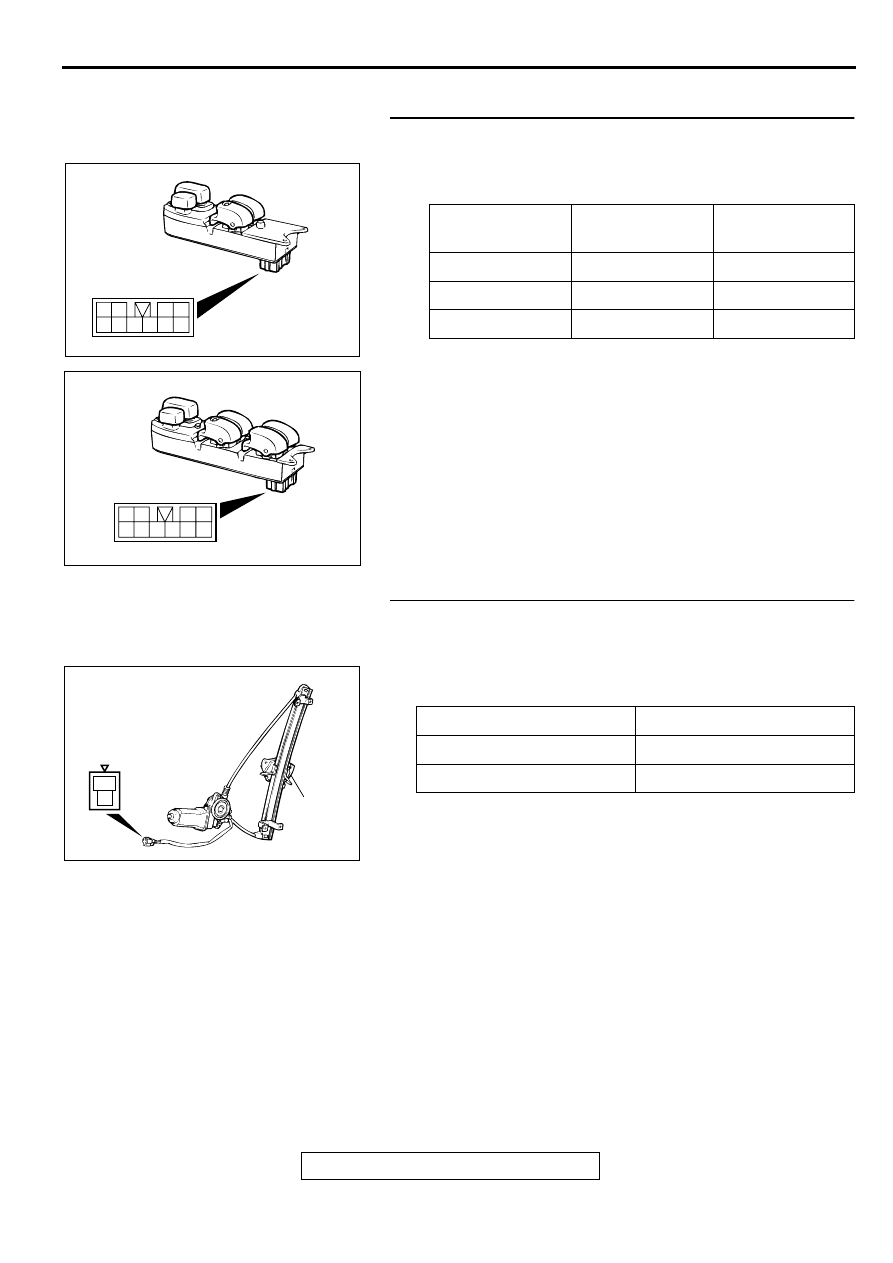

DIAGNOSIS

STEP 1. Check the power window main switch continuity.
(1) Remove the power window main switch. (Refer to

P.42-71

.)

(2) Check the continuity when the power window main switch is

turned to the UP position or DOWN position.

Q: Is the power window main switch damaged?

YES : Replace it, then go to Step 4.
NO :  Go to Step 2.

STEP 2. Check the front power window motor <LH>
operation.
(1) Remove the power window motor <LH>. (Refer to

P.42-74

.)

(2) Connect a battery directly to the motor terminals and check

that the motor runs smoothly.

Q: Is the front power window motor <LH> damaged?

YES : Replace it, then go to Step 4.
NO :  Go to Step 3.

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

UP

 6, 5

 9

Continuity

OFF

 5

 9

Continuity

DOWN

 9, 5

 6

Continuity

AC000463

1 2

3 4

5 6 7 8 9 10

AB

<ECLIPSE>

AC003390

1 2

3 4

5 6 7 8 9 10

<ECLIPSE SPYDER>

AB

TESTER CONNECTION

SLIDER POSITION

1

Battery(+), 2

Battery(-)

UP

2

Battery(+), 1

Battery(-)

DOWN

AC000798

2

1

SLIDER

AB

DOOR

TSB Revision

BODY

42-46

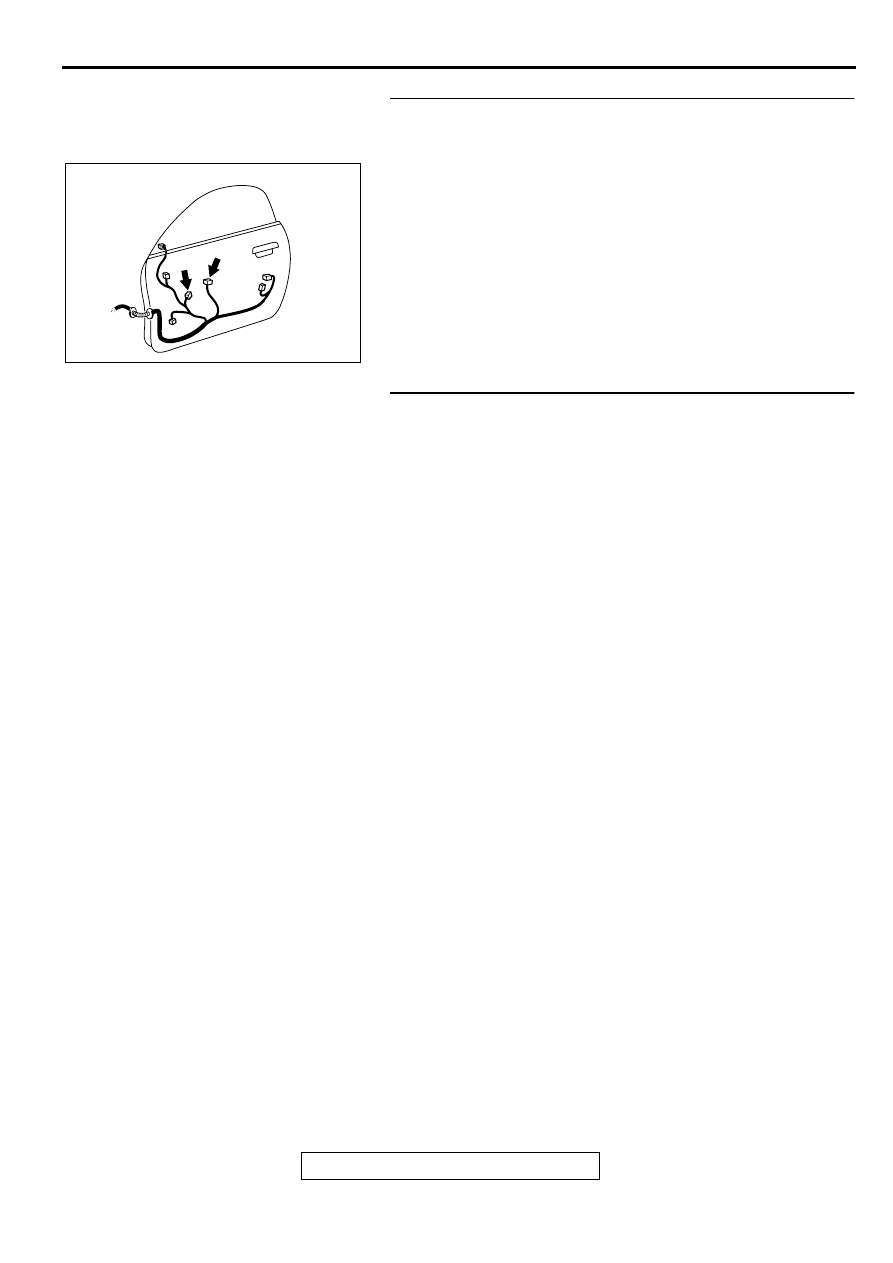

STEP 3. Check the harness wires between power window
main switch connector E-12 and power window motor
<LH> connector E-11.
Q: Are there any damaged wires between power window

main switch connector E-12 and power window motor
<LH> connector E-11?
YES :
Repair them, then go to Step 4.
NO :  Go to Step 4.

STEP 4. Check symptoms

Q: Does the door window <LH> open and close normally?

YES : This diagnosis is complete.
NO :  Return to Step 1.

AC001794

E-11

E-12

CONNECTORS: E-11, E-12

<DRIVER'S SIDE>

AB
