GENERAL DESCRIPTION

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

35C-3

System Check Sound
When starting the engine and moving the vehicle for
the first time after startup, a thudding sound can
sometimes be heard coming from the engine
compartment. This is a normal sound during the ABS
and TCL unit self-check.

ABS Operation Sounds and Sensations
During normal operation, the ABS makes several
sounds that may seem unusual at first:
A whining sound is caused by the ABS hydraulic unit
motor.

AC004380 AB

1

2

3

4

5

6

7

6

7

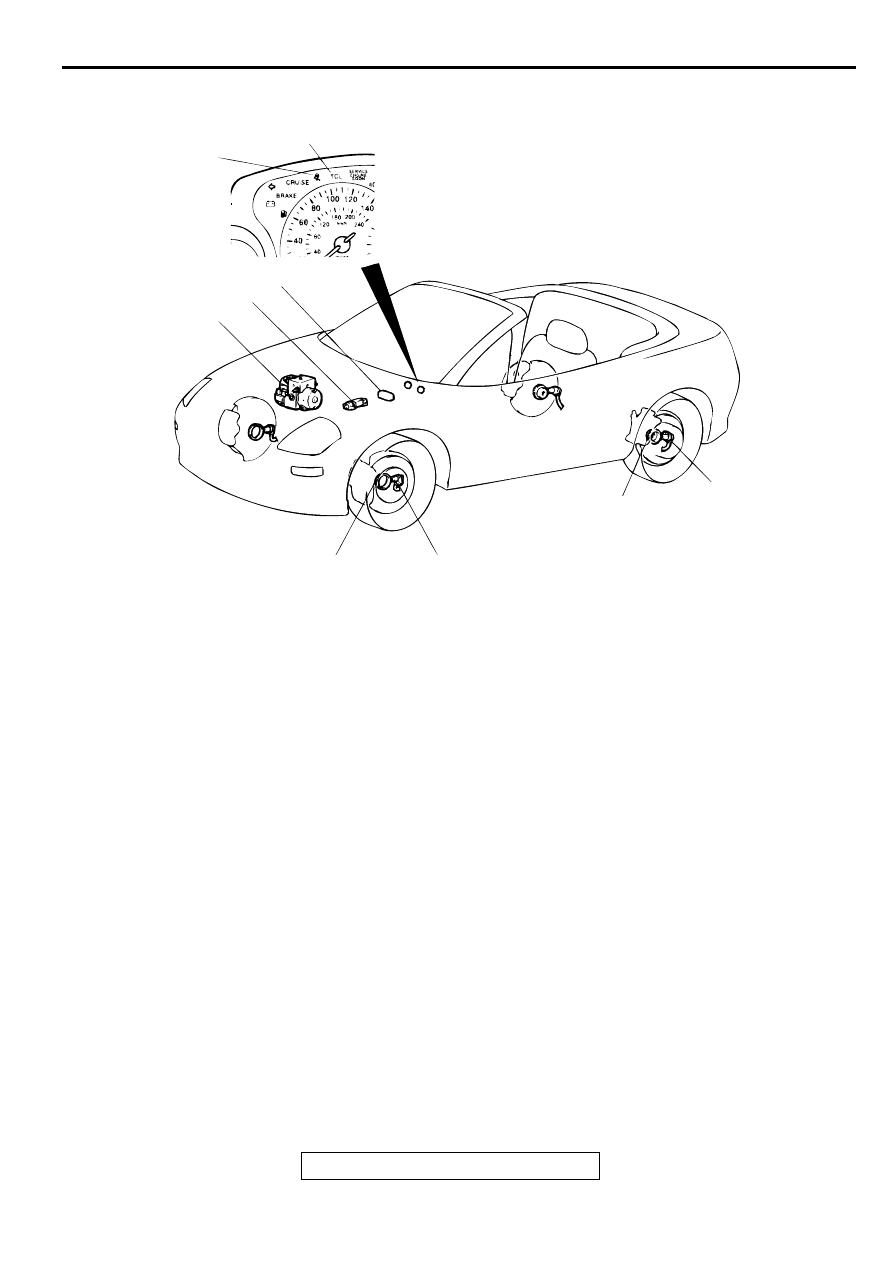

<ECLIPSE SPYDER>

1. HYDRAULIC UNIT (INTEGRATED

WITH ABS-ECU)

2. STOPLIGHT SWITCH
3. DATA LINK CONNECTOR

4. TCL INDICATOR LIGHT
5. TCL WARNING LIGHT
6. ABS ROTOR
7. WHEEL SPEED SENSOR

TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

35C-4

TR A C TIO N  C O N TR O L SYSTEM  (TC L) D IA G N O SIS

TCL DIAGNOSTIC TROUBLE CODE DETECTION CONDITIONS

M1354003500048

TCL diagnostic trouble codes (TCL DTCs) are set
under different conditions, depending on the
malfunction detected. Most TCL DTCs will only be
set during vehicle operation. Some TCL DTCs will
also be set during the TCL self-check immediately
after the engine is started. When you check if an TCL
DTC will be displayed again after the DTC has been

erased, you should recreate the TCL DTC set
conditions. Depending on the detection timing and
set conditions for the specific TCL DTC, you must
either drive the vehicle or turn the engine off and
restart it. To set the proper conditions for that DTC
again, refer to "TCL DTC SET CONDITIONS" for
each TCL DTC that you are trying to reset.

TCL DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1354000400042

Refer to GROUP 35B, Diagnosis

−

 ABS Diagnostic

Troubleshooting Strategy

P.35B-3

.

TCL TROUBLE CODE DIAGNOSIS

M1354000500050

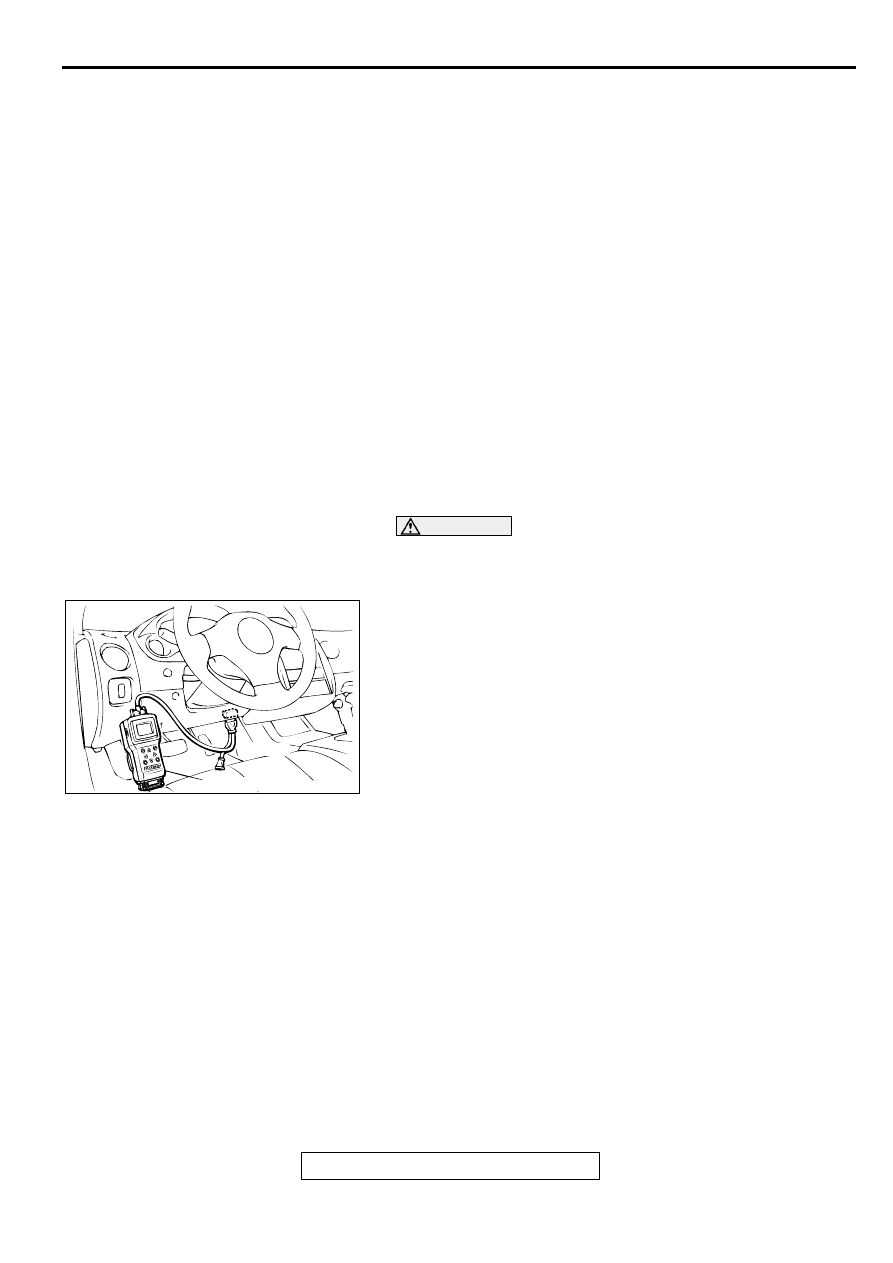

Retrieving TCL Diagnostic Trouble Codes

USING SCAN TOOL MB991502

Required Special Tool:

•

MB991502: Scan Tool (MUT-II)

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOOK" (OFF) position before
connecting or disconnecting the scan tool MB991502.
1. Connect scan tool MB991502 to the data link connector.

2. Turn the ignition switch to the "ON" position.

3. Use scan tool MB991502 to check for TCL diagnostic

trouble codes.

4. Turn the ignition switch to the "LOCK" (OFF) position.

5. Disconnect scan tool MB991502.

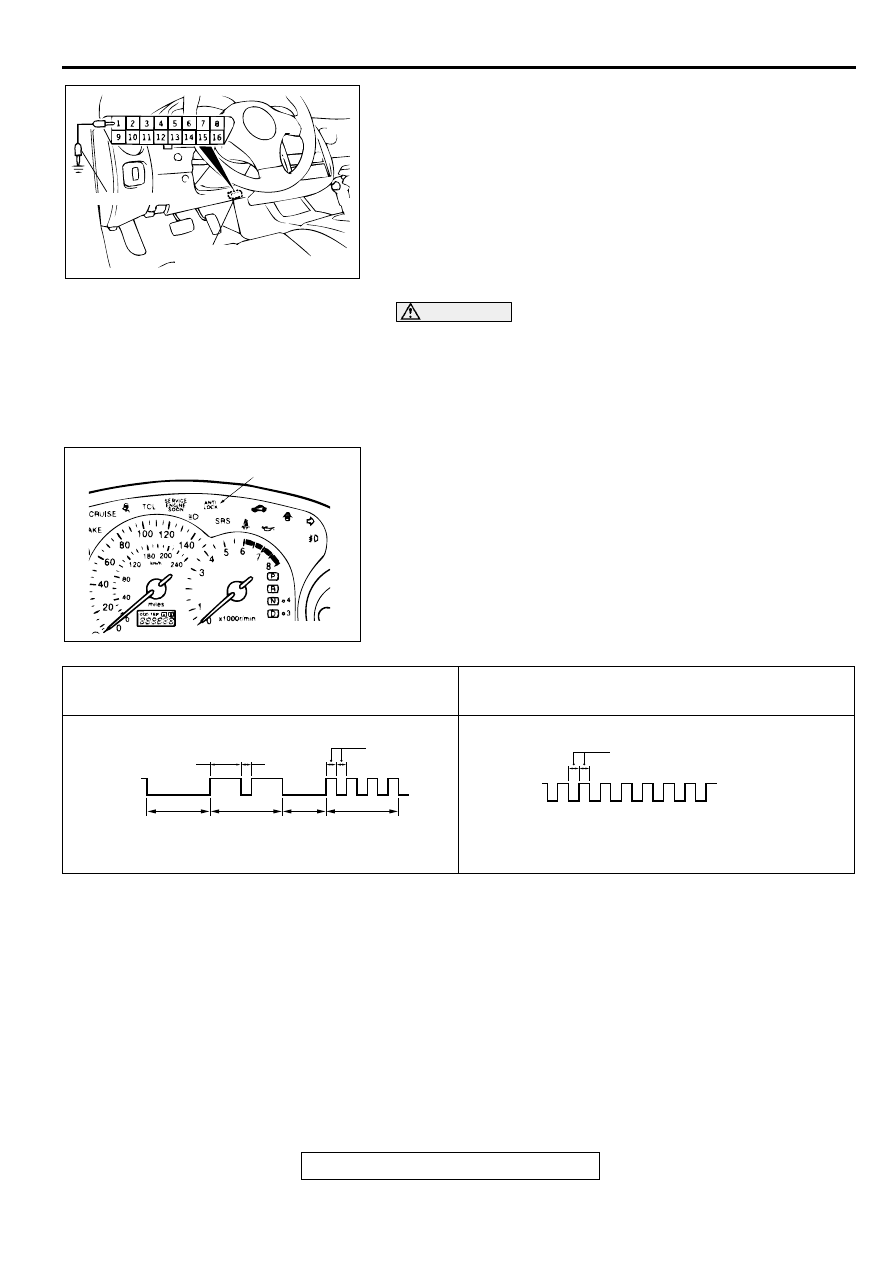

USING THE ABS WARNING LIGHT AND SPECIAL TOOL
MB991529

NOTE: The TCL system is controlled by the ABS-ECU. TCL
diagnostic trouble codes are also indicated by flashing of the
ABS warning light.

Required Special Tool:

•

MB991529: Diagnostic Trouble Code Check Harness

AC001252AF

16 PIN

MB991502

TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

35C-5

1. Use special tool MB991529 to ground number 1 terminal of

the data link connector.

CAUTION

Do not depress the brake pedal after the ignition switch is
turned "ON." If the brake pedal is depressed while the ABS
is inoperative and the ignition switch is "ON," the ABS
warning light will remain on. Because of this, diagnostic
trouble codes will not be read out.
2. Turn the ignition switch to the "ON" position.
3. Read out a diagnostic trouble code by observing how the

warning light flashes.

4. Disconnect special tool MB991529.

Erasing TCL Diagnostic Trouble Codes

USING SCAN TOOL MB991502

Required Special Tool:

•

MB991502: Scan Tool (MUT-II)

AC002241AB

MB991529

DATA LINK
CONNECTOR

AC004361AB

ABS WARNING LIGHT

WHEN THE DIAGNOSTIC TROUBLE CODE NO. 24
IS OUTPUT

WHEN NO DIAGNOSTIC TROUBLE CODE IS
OUTPUT

ACX01777

ILLUMINATED

SWITCHED
OFF

PAUSE
TIME 3s

TENS
SIGNAL

PLACE
DIVISION
2s

UNITS
SIGNAL

1.5s

0.5s

0.5s

AB

ACX01778

ILLUMINATED

SWITCHED
OFF

0.25s

AB

TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

35C-6

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOOK" (OFF) position before
connecting or disconnecting the scan tool MB991502.
1. Connect scan tool MB991502 to the data link connector.

2. Turn the ignition switch to the "ON" position.

3. Use scan tool MB991502 to erase ABS diagnostic trouble

codes.

4. Turn the ignition switch to the "LOCK" (OFF) position.

5. Disconnect scan tool MB991502.

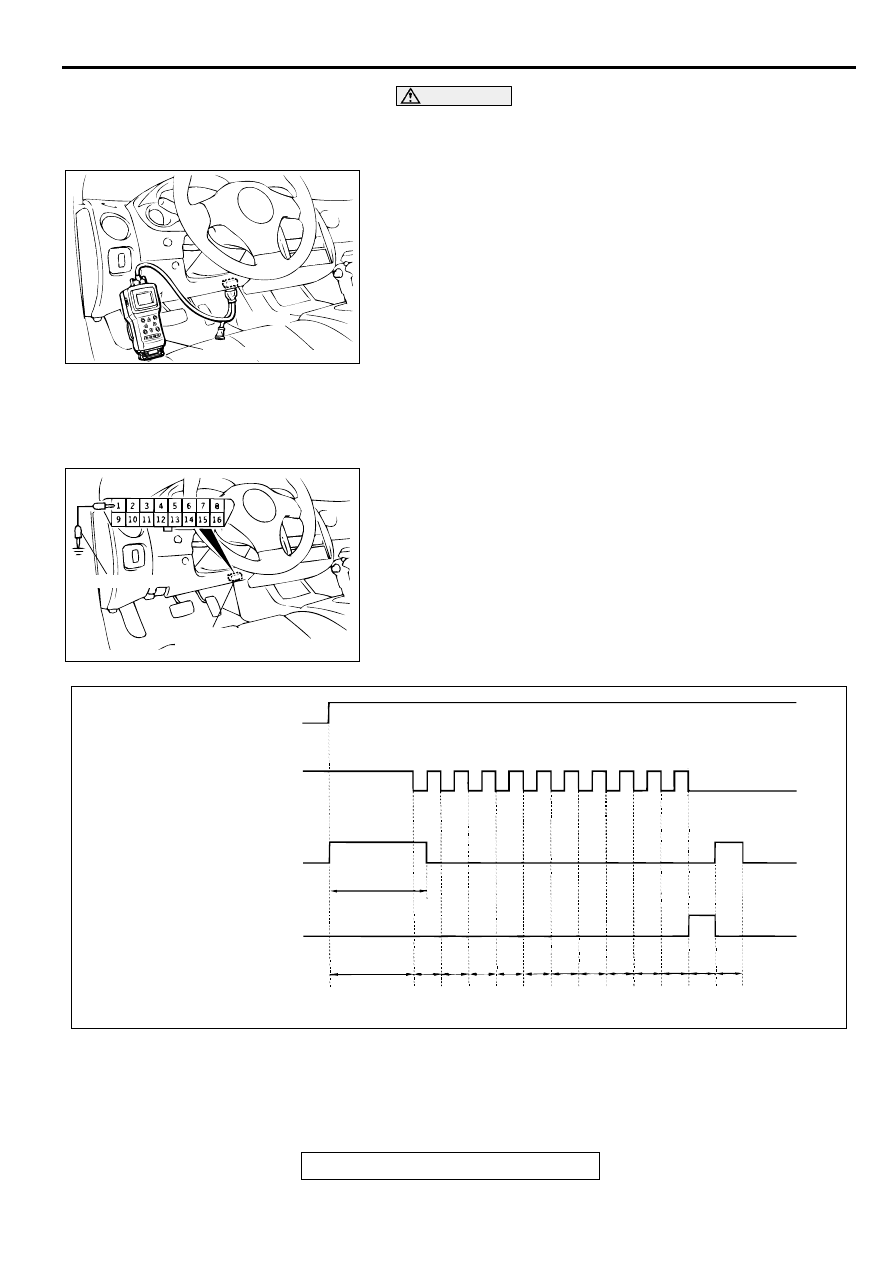

BY SPECIAL OPERATION FOR BRAKE PEDAL

Required Special Tool:

•

MB991529: Diagnostic Trouble Code Check Harness

1. Use special tool MB991529 to ground number 1 terminal of

the data link connector.

NOTE: If the ABS-ECU functions have stopped due to the
fail-safe function, the diagnostic code cannot be erased.

2. Depress the brake pedal and hold it.

3. Turn the ignition switch to the "ON" position.

4. After turning the ignition switch to the "ON," release the

pedal within three seconds. Repeat this process of pressing
and releasing the brake pedal 10 continuous times.

AC001252AF

16 PIN

MB991502

AC002241AB

MB991529

DATA LINK
CONNECTOR

AC000937

IGNITION SWITCH

ON

OFF

STOPLIGHT SWITCH

ON

OFF

ABS WARNING LIGHT

ON

OFF

DIAGNOSTIC TROUBLE
CODE MEMORY

3 s

WITHIN
3 s

WITH-
IN 1 s

WITH-
IN 1 s

WITH-
IN 1 s

WITH-
IN 1 s

WITH-
IN 1 s

WITH-
IN 1 s

WITH-
IN 1 s

WITH-
IN 1 s

WITH-
IN 1 s

WITH-
IN 1 s

1 s

1 s

ERASING
COMPLETED

AB

1ST

2ND

3RD

4TH

5TH

6TH

7TH

8TH

9TH

10TH
