Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 572

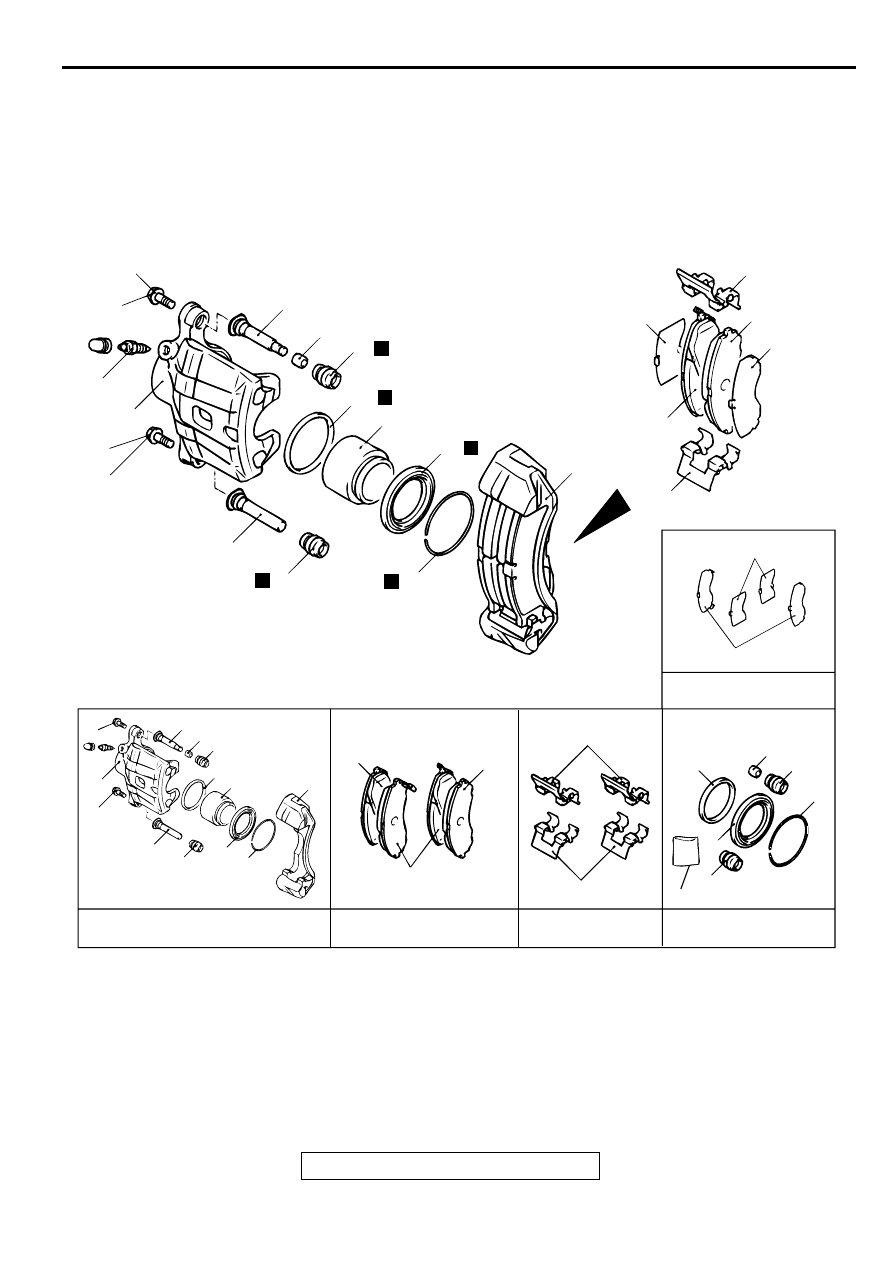

FRONT DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-37

DISASSEMBLY AND ASSEMBLY

M1351006200092

AC000910

BRAKE CALIPER KIT

PAD SET

SHIM KIT

SEAL AND BOOT
REPAIR KIT

AD

74 ± 10 N·m
54 ± 8 ft-lb

74 ± 10 N·m
54 ± 8 ft-lb

7.9 ± 0.9 N·m
70 ± 8 in-lb

CLIP KIT

18

18

18

15

17

16

13

14

12

9

N

18

5

N

3

2

11

1

10

5

N

8

N

7

N

6

4

11

2 3

10

5

9

8

7

6

4

1

5

12

15

13141716

1617

14

9 3 5

5 7

6

GREASE

<2.4L ENGINE>

13

CALIPER ASSEMBLY
DISASSEMBLY STEPS

>>A<<

1. GUIDE PIN

>>A<<

2. LOCK PIN
3. BUSHING
4. CALIPER SUPPORT, PAD, CLIP

AND SHIM ASSEMBLY

5. PIN BOOT
6. BOOT RING

<<A>>

7. PISTON BOOT

<<A>>

8. PISTON

<<B>>

9. PISTON SEAL

10. CALIPER BODY
11. BLEEDER SCREW

PAD ASSEMBLY DISASSEMBLY
STEPS

>>A<<

1. GUIDE PIN

>>A<<

2. LOCK PIN
3. BUSHING
4. CALIPER SUPPORT, PAD, CLIP

AND SHIM ASSEMBLY

12. PAD AND WEAR INDICATOR

ASSEMBLY

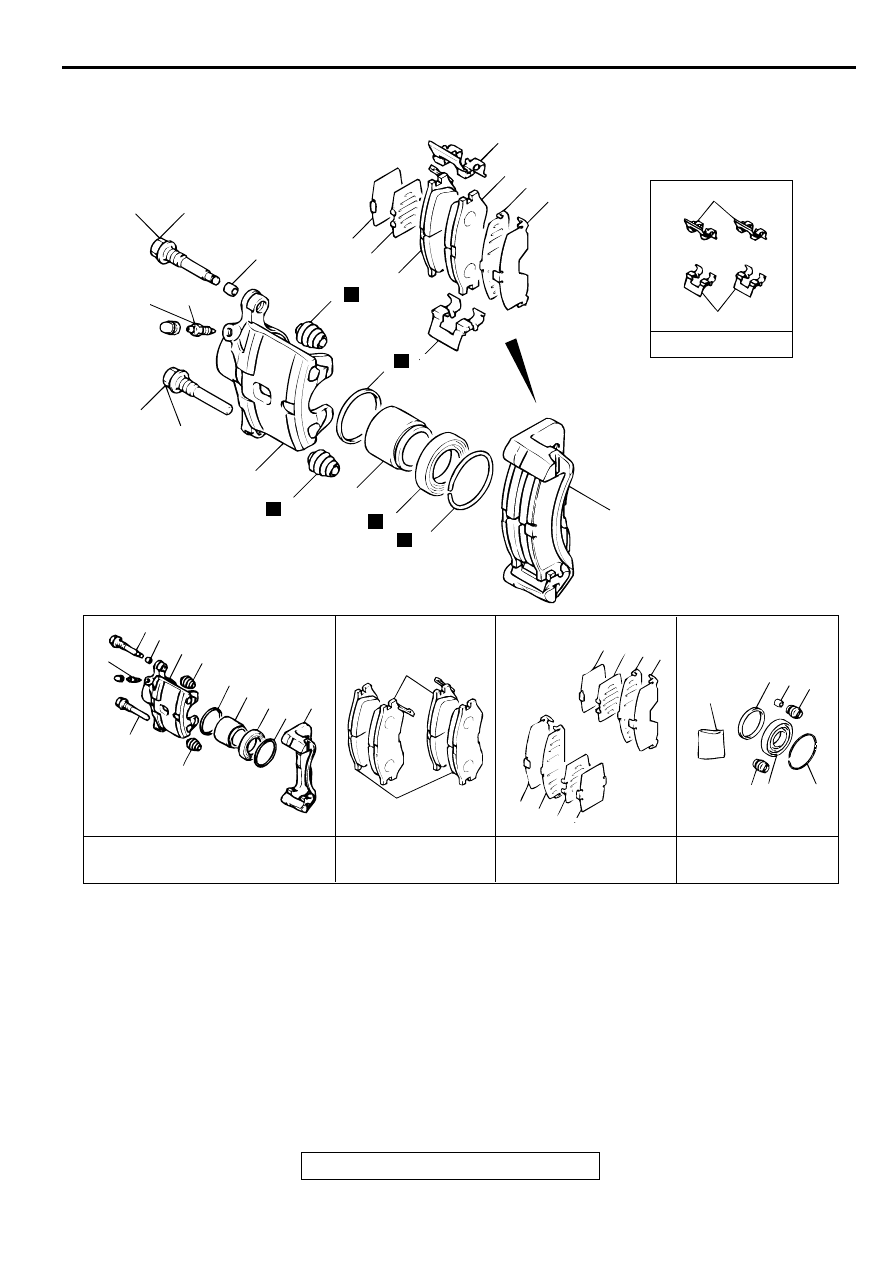

CALIPER ASSEMBLY
DISASSEMBLY STEPS (Continued)

FRONT DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-38

13. INNER SHIM B
14. INNER SHIM A
15. PAD ASSEMBLY
16. OUTER SHIM B
17. OUTER SHIM A
18. CLIP

PAD ASSEMBLY DISASSEMBLY
STEPS (Continued)

AC003817

BRAKE CALIPER KIT

PAD SET

SHIM SET

SEAL AND BOOT
REPAIR KIT

AC

38 ± 4 N·m
28 ± 3 ft-lb

7.9 ± 0.9 N·m
70 ± 8 in-lb

CLIP SET

15

16

13

14

12

9

N

N

3

2

11

1

10

5

N

8

N

7

N

6

4

GREASE

<3.0L ENGINE>

6

16

15

14

9

3

2

11

1

10

5

8

7

6

4

1

6

13

12

13

16

16

10

8

7

6

4

6

1

38 ± 4 N·m
28 ± 3 ft-lb

FRONT DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-39

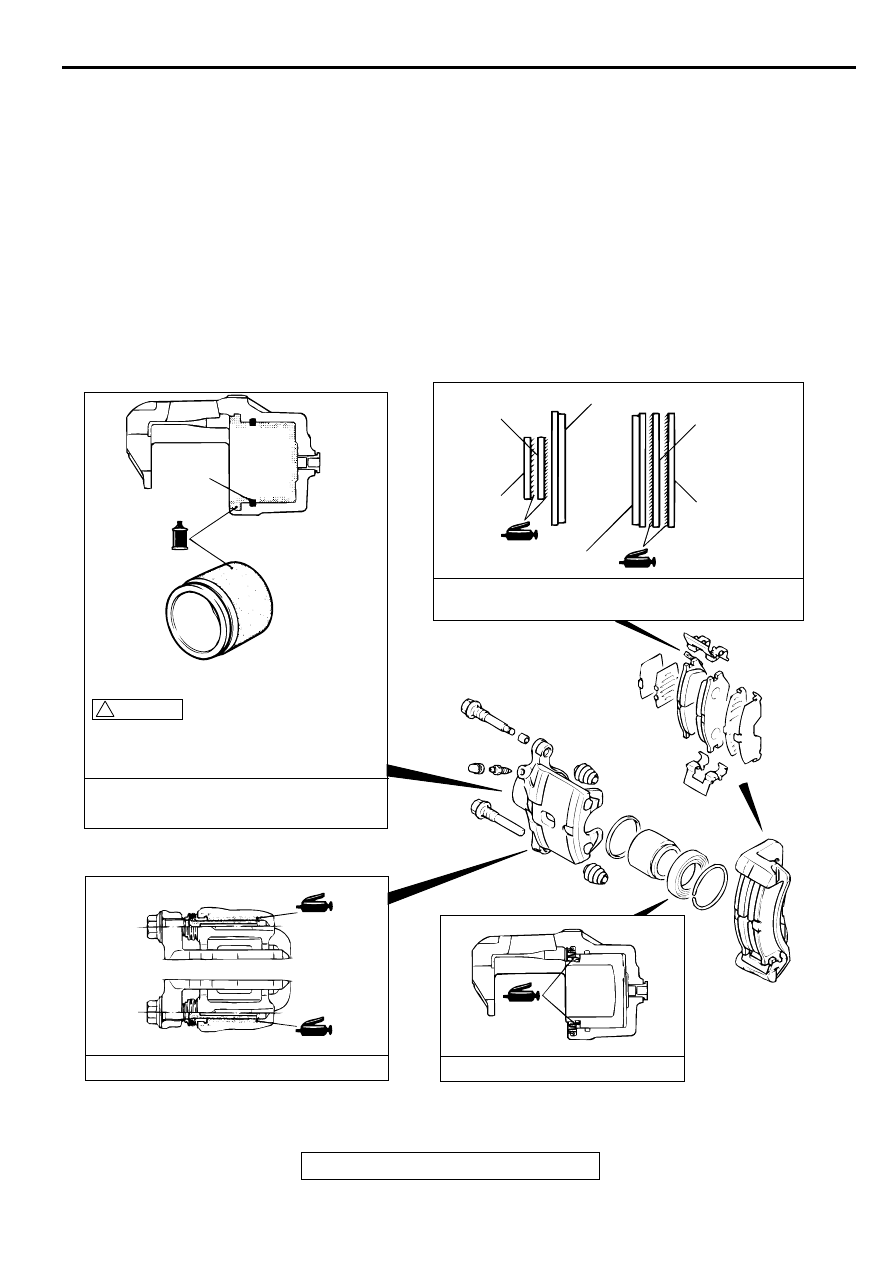

LUBRICATION POINTS

CALIPER ASSEMBLY
DISASSEMBLY STEPS

1. PIN BOLT

>>B<<

2. GUIDE PIN

>>B<<

3. LOCK PIN

>>B<<

4. BUSHING
5. CALIPER SUPPORT, PAD, CLIP

AND SHIM ASSEMBLY

6. PIN BOOT
7. BOOT RING

<<A>>

8. PISTON BOOT

<<A>>

9. PISTON

<<B>>

10. PISTON SEAL
11. CALIPER BODY

PAD ASSEMBLY DISASSEMBLY
STEPS

1. PIN BOLT

>>B<<

2. GUIDE PIN

>>B<<

3. LOCK PIN

>>B<<

4. BUSHING
5. CALIPER SUPPORT, PAD, CLIP

AND SHIM ASSEMBLY

12. PAD AND WEAR INDICATOR

ASSEMBLY

13. PAD ASSEMBLY
14. INNER SHIM
15. OUTER SHIM
16. PAD CLIP

AC000911

PISTON
SEAL

INNER
SHIM A

INNER
SHIM B

OUTER
SHIM A

OUTER
SHIM B

PAD AND WEAR INDICATOR
ASSEMBLY

PAD ASSEMBLY

GREASE: BRAKE GREASE SAE J310, NLGI NO.1

THE PISTON SEAL INSIDE THE SEAL
AND BOOT KIT IS COATED WITH A
SPECIAL GREASE. DO NOT WIPE
THIS GREASE OFF.

BRAKE FLUID: DOT 3 OR DOT 4

GREASE: REPAIR KIT GREASE

GREASE: REPAIR KIT GREASE

AC

   !   CAUTION

<2.4L ENGINE>

FRONT DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-40

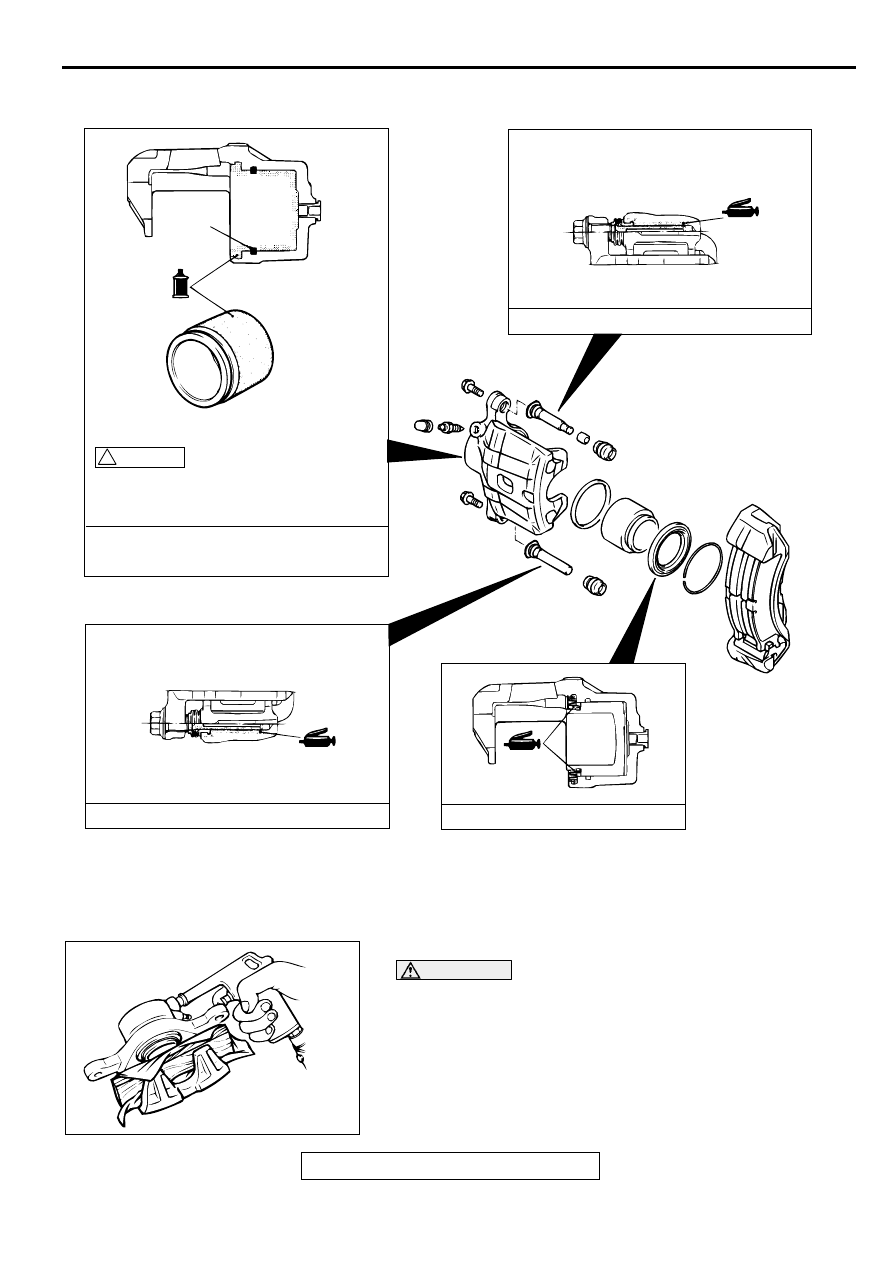

DISASSEMBLY SERVICE POINTS

When disassembling the disc brakes, disassemble both sides
(left and right) as a set.
<<A>> PISTON BOOT/PISTON REMOVAL

CAUTION

Blow air little by little to remove the piston. The piston will
rush out if a force of air is applied suddenly.
Place a piece of wood, etc. against the caliper body as shown.
Blow compressed air through the brake hose to remove the
piston boot and piston.

AC003819

PISTON
SEAL

THE PISTON SEAL INSIDE THE SEAL
AND BOOT KIT IS COATED WITH A
SPECIAL GREASE. DO NOT WIPE
THIS GREASE OFF.

BRAKE FLUID: DOT 3 OR DOT 4

GREASE: REPAIR KIT GREASE

GREASE: REPAIR KIT GREASE

AB

<3.0L ENGINE>

   !   CAUTION

GREASE: REPAIR KIT GREASE

ACX00697
