CROSSMEMBER

TSB Revision

POWER PLANT MOUNT

32-11

CR O SSM EM B ER

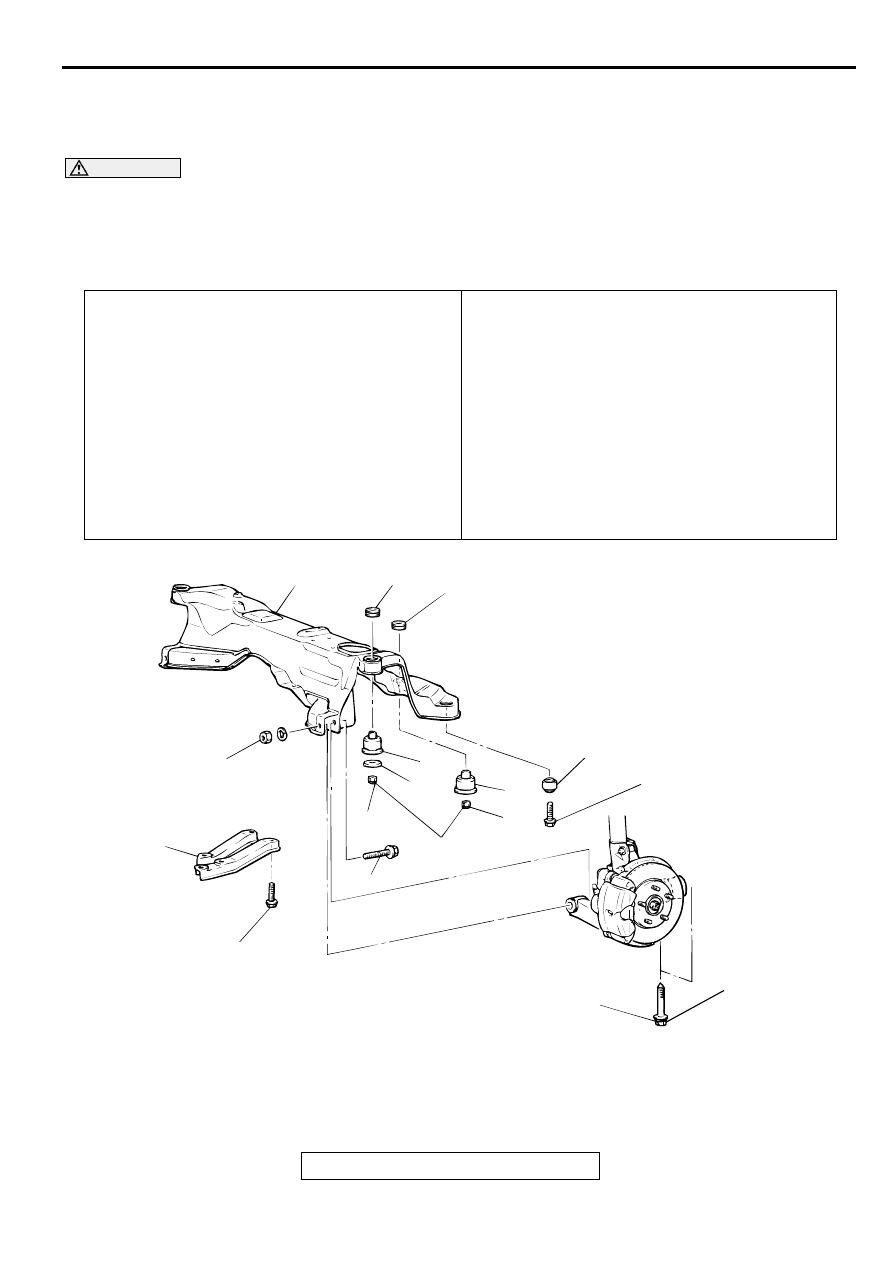

REMOVAL AND INSTALLATION

M1321003200089

CAUTION

*

: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle

on the ground in the unladen condition.

For vehicles with SRS, before removal of steering gear box, refer to GROUP 52B, center the front
wheels and remove the ignition key. Failure to do so may damage the SRS clock spring and render
the SRS system inoperative, risking serious injury.

Pre-removal Operation

Power Steering Fluid Draining (Refer to GROUP 37A, On-
vehicle Service

 Fluid Replacement

P.37A-16

.)

Centermember Removal (Refer to

P.32-9

.)

Front Exhaust Pipe Removal (Refer to GROUP 15,
Exhaust pipe and Main Muffler

P.15-19

 <2.4L Engine>,

P.15-21

 <3.0L Engine>.)

Stabilizer Bar Removal (Refer to GROUP 33A, Stabilizer
Bar

P.33A-17

.)

Rear Roll Stopper Removal (Refer to

P.32-9

.)

Post-installation Operation

Rear Roll Stopper Installation (Refer to

P.32-9

.)

Stabilizer Bar Installation (Refer to GROUP 33A, Stabi-
lizer Bar

P.33A-17

.)

Front Exhaust Pipe Installation (Refer to GROUP 15,
Exhaust Pipe and Main Muffle

P.15-19

<2.4L Engine>,

P.15-21

 <3.0L Engine>.)

Centermember Installation (Refer to

P.32-9

.)

Power Steering Fluid Supplying and Bleeding (Refer to
GROUP 37A, On-vehicle Service

 Fluid Replacement

P.37A-16

.)

Steering Wheel Straight Ahead Position Checking.)

Wheel Alignment Check and Adjustment (Refer to
GROUP 33A, On-vehicle Service

 Front Wheel Align-

ment Check and Adjustment

P.33A-6

.)

AC005142

6

7

8

9

10

4

11

5

4

2

1

108 ± 10 N·m
80 ± 7 ft-lb

108 ± 10 N·m*
80 ± 7 ft-lb*

88 ± 10 N·m
65 ± 7 ft-lb

74 ± 4 N·m
55 ± 3 ft-lb

81 ± 12 N·m
60 ± 9 ft-lb

AB

3

REMOVAL STEPS

1.

STAY <2.4L ENGINE>

2.

LOWER ARM AND
CROSSMEMBER CONNECTION

3.

LOWER ARM MOUNT BOLT

POWER STEERING GEAR BOX
(REFER TO GROUP 37A,
POWER STEERING GEAR BOX

P.37A-23

.)

REMOVAL STEPS (Continued)

CROSSMEMBER

TSB Revision

POWER PLANT MOUNT

32-12

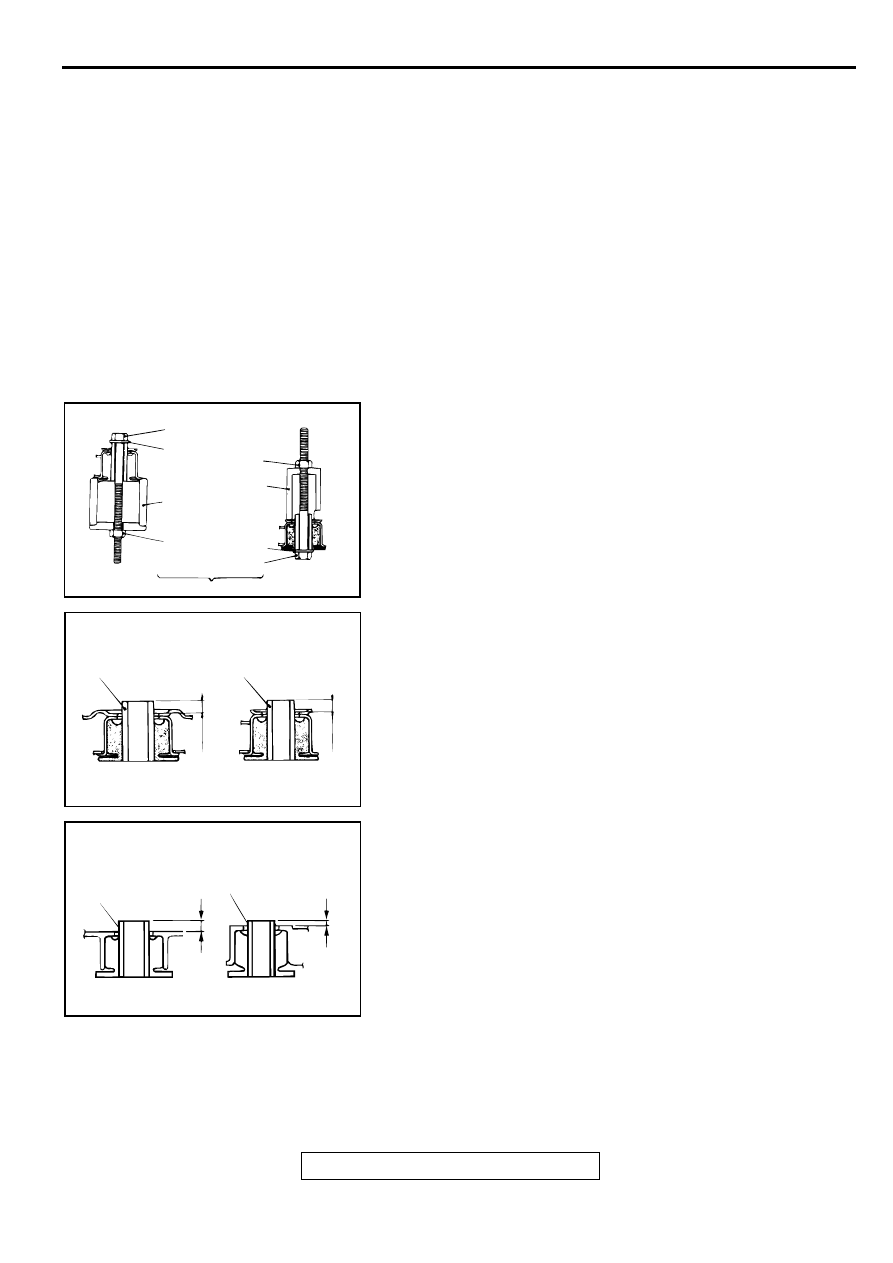

Required Special Tools:

MB990828: Bushing Remover and Installer

MB991045: Bushing Remover and Installer

CROSSMEMBER BUSHING REPLACEMENT

M1321000900034

Crossmember Bushings A and B

1. Apply soapy water to the contact surface of the bushing

when press-fitted the bushing.

2. The bushing should be press-fitted so that the inner pipe

projection is at the standard length.

Standard values

••••

<2.4L ENGINE>

••••

Bushing A: 9.0

±

 1.0 mm (0.35

±

 0.04 inch)

••••

Bushing B: 4.0

±

 1.0 mm (0.16

±

 0.04 inch)

••••

<3.0L ENGINE>

••••

Bushing A, B: 9.0

±

 1.0 mm (0.35

±

 0.04 inch)

4.

CROSSMEMBER MOUNTING
NUT

5.

LOWER PLATE

6.

CROSSMEMBER

7.

STOPPER A

8.

STOPPER B

9.

BUSHING C

10. BUSHING A
11. BUSHING B

REMOVAL STEPS (Continued)

AC000306

REMOVAL

PRESS-FITTING

BOLT

WASHER

NUT

BASE

BASE

NUT

WASHER

BOLT

MB991045

AB

AC000307AB

<2.4L ENGINE>

BUSHING A

BUSHING B

INNER PIPE

INNER PIPE

AC000308

INNER PIPE

INNER PIPE

BUSHING A

BUSHING B

<3.0L ENGINE>

AB

CROSSMEMBER

TSB Revision

POWER PLANT MOUNT

32-13

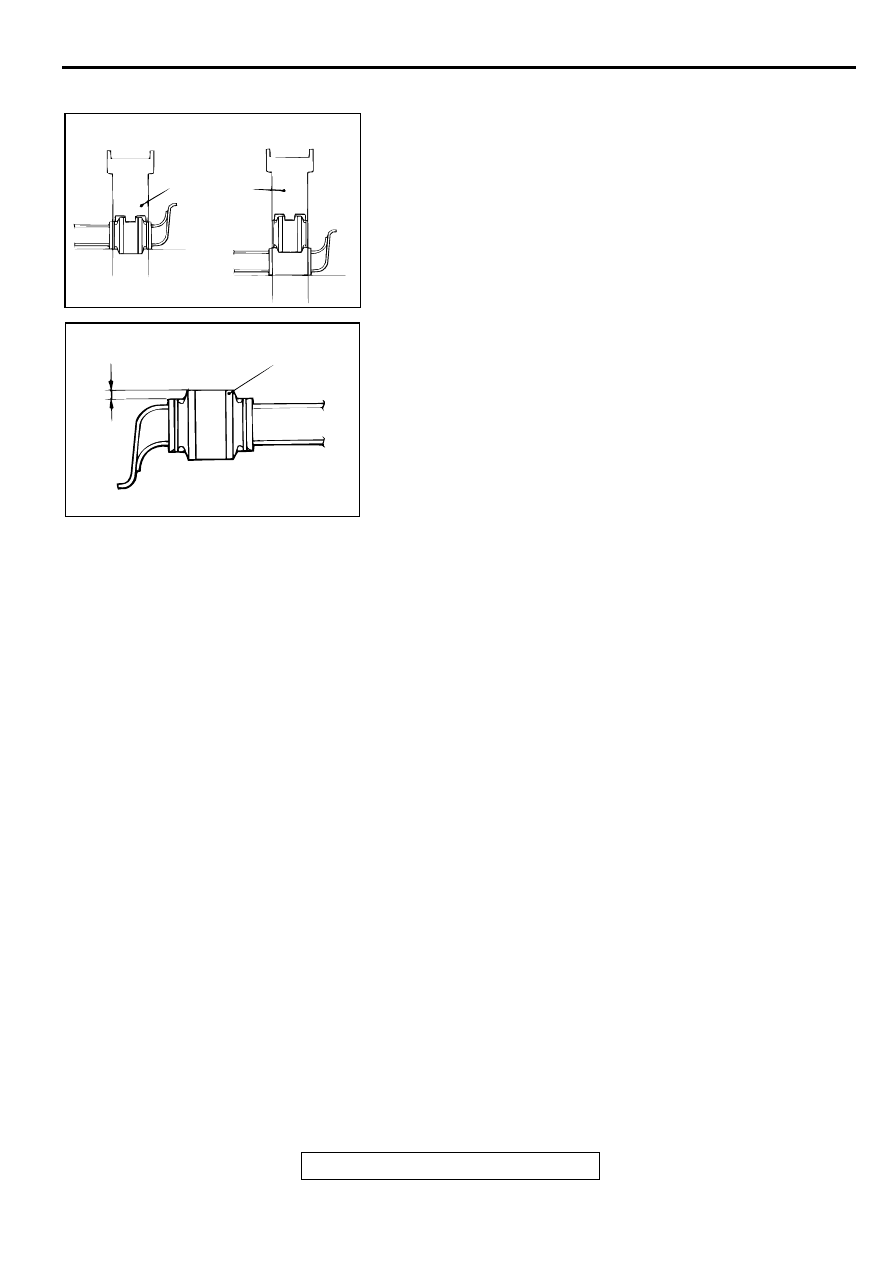

Crossmember Bushing C

1. Use special tool MB990828 to drive out and press-fit the

crossmember bushing C.

2. The bushing should be press-fitted so that the inner pipe

projection is at the standard length.

Standard value (A): 4.0

±

 0.5 mm (0.16

±

 0.02 inch)

AC000309AB

REMOVAL

PRESS-FITTING

MB990828

AC000310

INNER PIPE

A

AB

SPECIFICATIONS

TSB Revision

POWER PLANT MOUNT

32-14

SPECIFIC ATIO NS

FASTENER TIGHTENING SPECIFICATION

M1321004100085

SERVICE SPECIFICATION

M1321000300043

ITEMS

SPECIFICATIONS

Centermember front mounting bolt

93

±

 15 N

m (69

±

 11 ft-lb)

Centermember rear mounting bolt

74

±

 4 N

m (55

±

 3 ft-lb)

Crossmember and stay connecting bolt <2.4L ENGINE>

74

±

 4 N

m (55

±

 3 ft-lb)

Crossmember mounting bolt

108

±

 10 N

m (80

±

 7 ft-lb)

Crossmember mounting nut

88

±

 10 N

m (65

±

 7 ft-lb)

Dynamic damper bolt

4.9

±

 1.0 N

m (44

±

 8 in-lb)

Engine mount bracket bolt

86

±

 12 N

m (64

±

 8 ft-lb)

Engine mount bracket nut

86

±

 12 N

m (64

±

 8 ft-lb)

Engine mount insulator mounting bolt

81

±

 12 N

m (60

±

 9 ft-lb)

Engine mount stay bolt <3.0L ENGINE>

35

±

 5 N

m (26

±

 4 ft-lb)

Lower arm and crossmember connecting nut

108

±

 10 N

m (80

±

 7 ft-lb)

Lower arm mount bolt

81

±

 12 N

m (60

±

 9 ft-lb)

Transaxle and front roll stopper connecting bolt

45

±

 5 N

m (34

±

 3 ft-lb)

Transaxle and front roll stopper connecting nut

45

±

 5 N

m (34

±

 3 ft-lb)

Transaxle and rear roll stopper connecting bolt

45

±

 5 N

m (34

±

 3 ft-lb)

Transaxle and rear roll stopper connecting nut

45

±

 5 N

m (34

±

 3 ft-lb)

Transaxle mount bracket nut

57

±

 7 N

m (42

±

 5 ft-lb)

Transaxle mount insulator mounting nut

81

±

 12 N

m (60

±

 9 ft-lb)

ITEMS

STANDARD VALUE

Inner pipe projection mm (in)

Bushing A

9.0

±

 1.0 (0.35

±

 0.04)

Bushing B

2.4L ENGINE

4.0

±

 1.0 (0.16

±

 0.04)

3.0L ENGINE

9.0

±

 1.0 (0.35

±

 0.04)

Bushing C

4.0

±

 0.5 (0.16

±

 0.02)
