TRANSAXLE (TRANSMISSION) MOUNTING

TSB Revision

POWER PLANT MOUNT

32-7

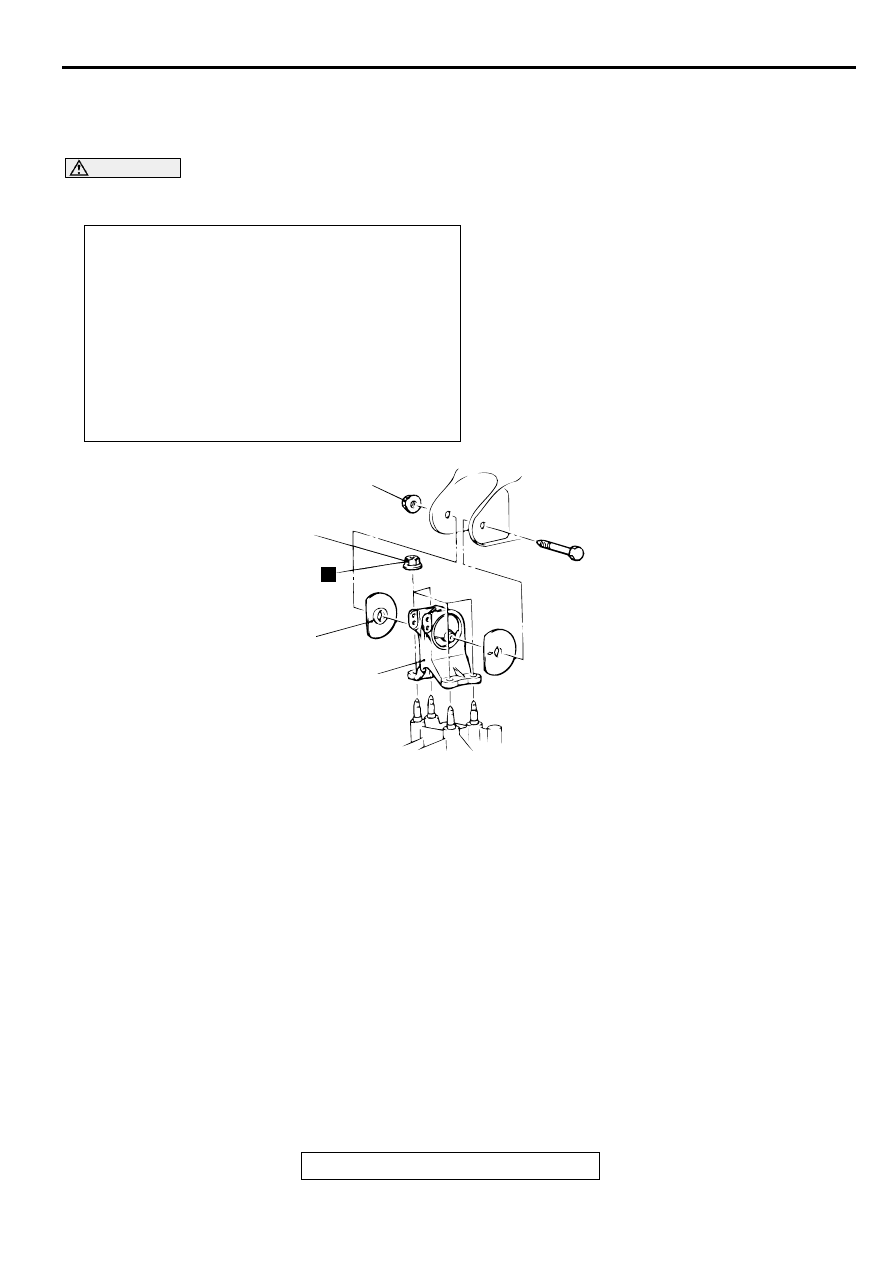

TR AN SAXLE (TRA NSM ISSIO N ) M O U N TIN G

REMOVAL AND INSTALLATION

M1321001400098

CAUTION

Mounting locations marked by

*

should be provisionally tightened, and then fully tightened after

placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

Required Special Tools:

MB991453: Engine Hanger

MZ203827: Engine Lifter

Pre-removal and Post-installation Operation

Air Cleaner Assembly Removal and Installation (Refer to
GROUP 15, Air Cleaner

P.15-5

.)

Battery and Battery Tray Removal and Installation (Refer
to GROUP 54A, Battery

P.54A-8

.)

Centermember Removal and Installation (Refer to

P.32-

9

.)

Transaxle and Rear Roll Stopper Connecting Bolt
Removal and Installation (Refer to

P.32-9

.)

Rear Roll Stopper Bracket Removal and Installation <2.4L
Engine-M/T> (Refer to GROUP 22B, Transaxle

P.22B-8

.),

<2.4L Engine-A/T> (Refer to GROUP 23B, Transaxle

P.23B-11

.)

AC000301 AB

1

2

81 ± 12 N·m*
60 ± 9 ft-lb*

57 ± 7 N·m
42 ± 5 ft-lb

N

REMOVAL STEPS

<<A>>

1.

TRANSAXLE MOUNT BRACKET

>>A<<

2.

TRANSAXLE MOUNT STOPPER

TRANSAXLE (TRANSMISSION) MOUNTING

TSB Revision

POWER PLANT MOUNT

32-8

REMOVAL SERVICE POINT

<<A>> TRANSAXLE MOUNT BRACKET REMOVAL

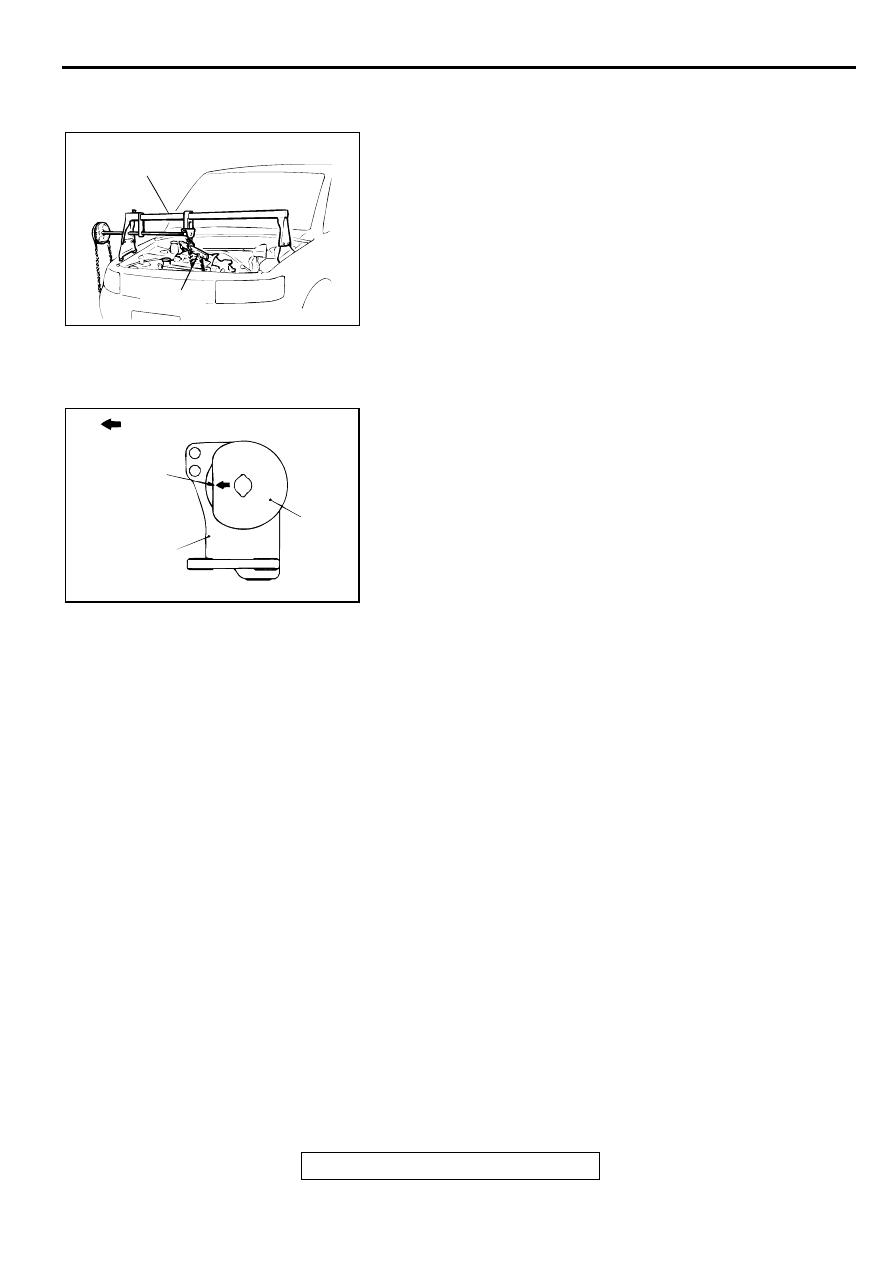

1. Install special tools MB991453 and MZ203827 to the vehicle

body to support the engine and transaxle assembly.

2. Remove the centermember and rear roll stopper bracket.

3. Remove the bolt and nut of the transaxle mount bracket.

4. After lowering the engine and transaxle assembly, remove

the transaxle mount bracket.

INSTALLATION SERVICE POINT

>>A<< TRANSAXLE MOUNT STOPPER INSTALLATION
Clamp the transaxle mount stopper so that the arrow points in
the direction as shown in the diagram.

ACX00406

MZ203827

AB

MB991453

AC000302

ENGINE SIDE

ARROW

TRANSAXLE
MOUNT
BRACKET

AB

TRANS-
AXLE
MOUNT
STOPPER

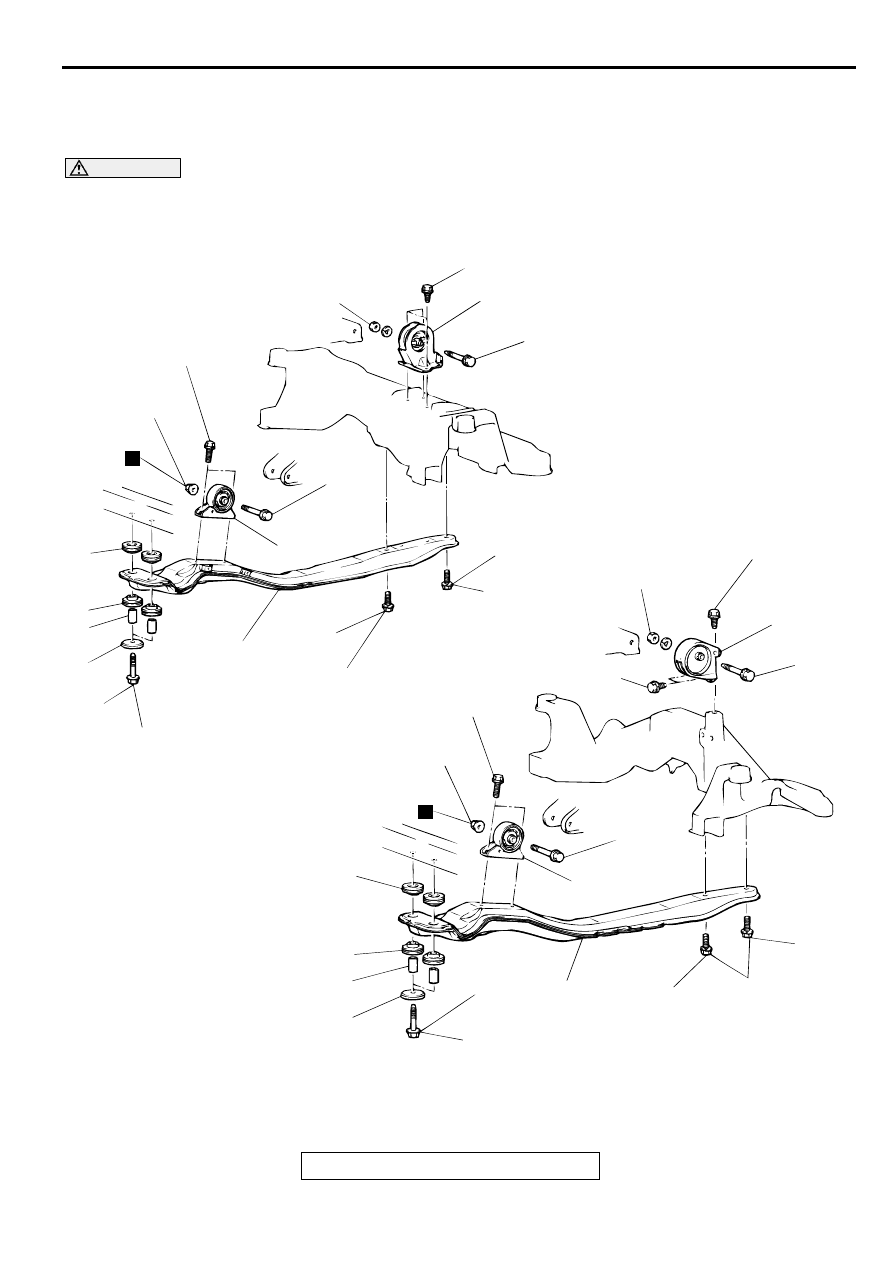

ENGINE ROLL STOPPER AND CENTERMEMBER

TSB Revision

POWER PLANT MOUNT

32-9

EN G INE R O LL STO PPER  A N D  C ENTER M EM BER

REMOVAL AND INSTALLATION

M1321002300050

CAUTION

Mounting locations marked by

*

should be provisionally tightened, and then fully tightened after

placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

AC000303

45 ± 5 N·m
34 ± 3 ft-lb

45 ± 5 N·m
34 ± 3 ft-lb

45 ± 10 N·m*
34 ± 7 ft-lb*

74 ± 4 N·m
55 ± 3 ft-lb

74 ± 4 N·m
55 ± 3 ft-lb

93 ± 15 N·m
69 ± 11 ft-lb

45 ± 5 N·m
34 ± 3 ft-lb

45 ± 5 N·m*
34 ± 3 ft-lb*

45 ± 5 N·m
34 ± 3 ft-lb

45 ± 5 N·m
34 ± 3 ft-lb

45 ± 10 N·m*
34 ± 7 ft-lb*

93 ± 15 N·m
69 ± 11 ft-lb

74 ± 4 N·m
55 ± 3 ft-lb

45 ± 5 N·m*
34 ± 3 ft-lb*

<3.0L ENGINE>

<2.4L ENGINE>

1

2

2

3

4

5

6

7

8

3

9

10

10

9

1

5

4

8

7

6

3

2

2

2

N

N

AB

ENGINE ROLL STOPPER AND CENTERMEMBER

TSB Revision

POWER PLANT MOUNT

32-10

INSTALLATION SERVICE POINT

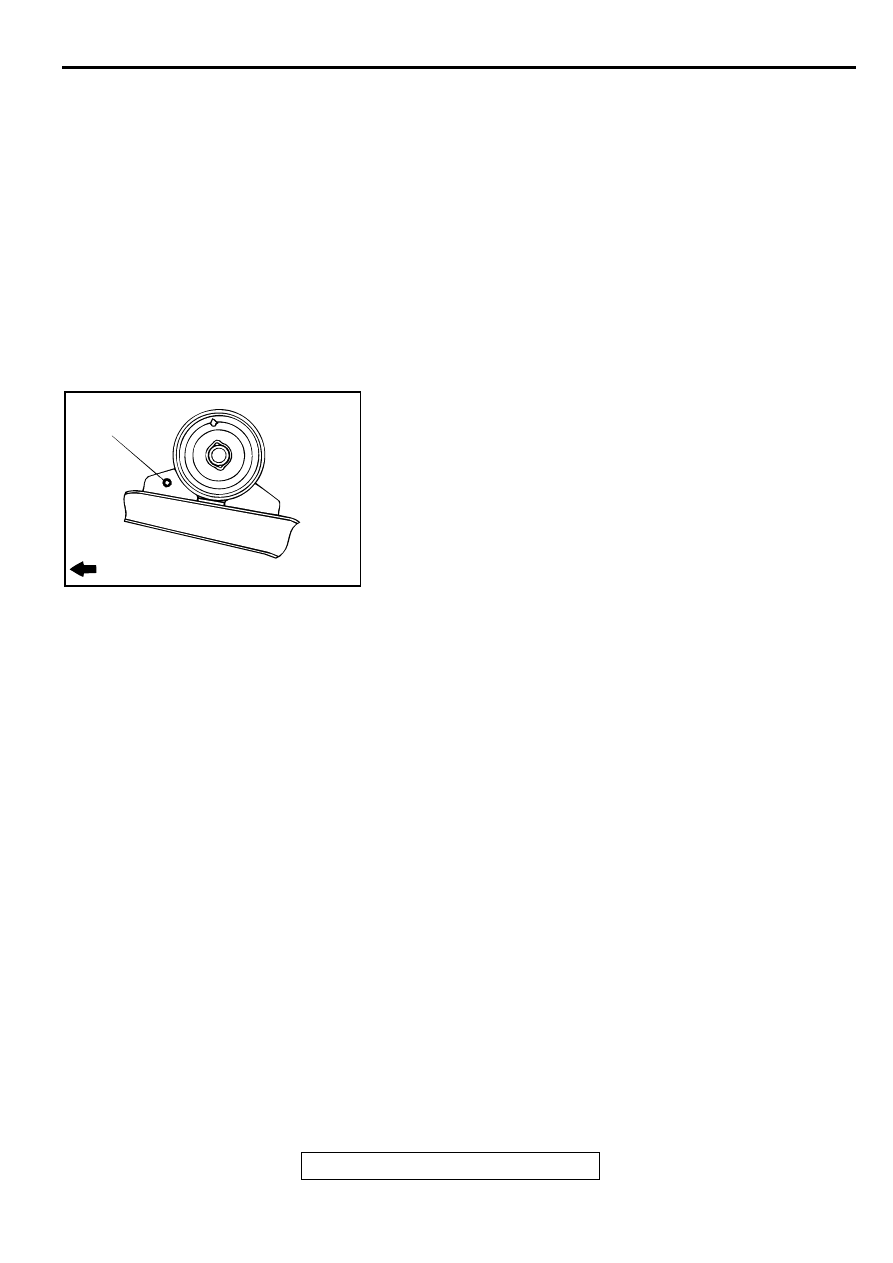

>>A<< FRONT ROLL STOPPER INSTALLATION
Install so that the hole in the front roll stopper is facing towards
the front of the vehicle.

FRONT ROLL STOPPER,
CENTERMEMBER REMOVAL
STEPS

1.

TRANSAXLE AND FRONT ROLL
STOPPER CONNECTING BOLT

2.

CENTERMEMBER MOUNTING
BOLTS

3.

STOPPER

4.

CENTERMEMBER

>>A<<

5.

FRONT ROLL STOPPER

6.

COLLAR

7.

BUSHING (LOWER)

8.

BUSHING (UPPER)
REAR ROLL STOPPER
REMOVAL STEPS

9.

TRANSAXLE AND REAR ROLL
STOPPER CONNECTING BOLT

10. REAR ROLL STOPPER

FRONT ROLL STOPPER,
CENTERMEMBER REMOVAL
STEPS (Continued)

AC000304 AB

FRONT OF VEHICLE

HOLE
