AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-152

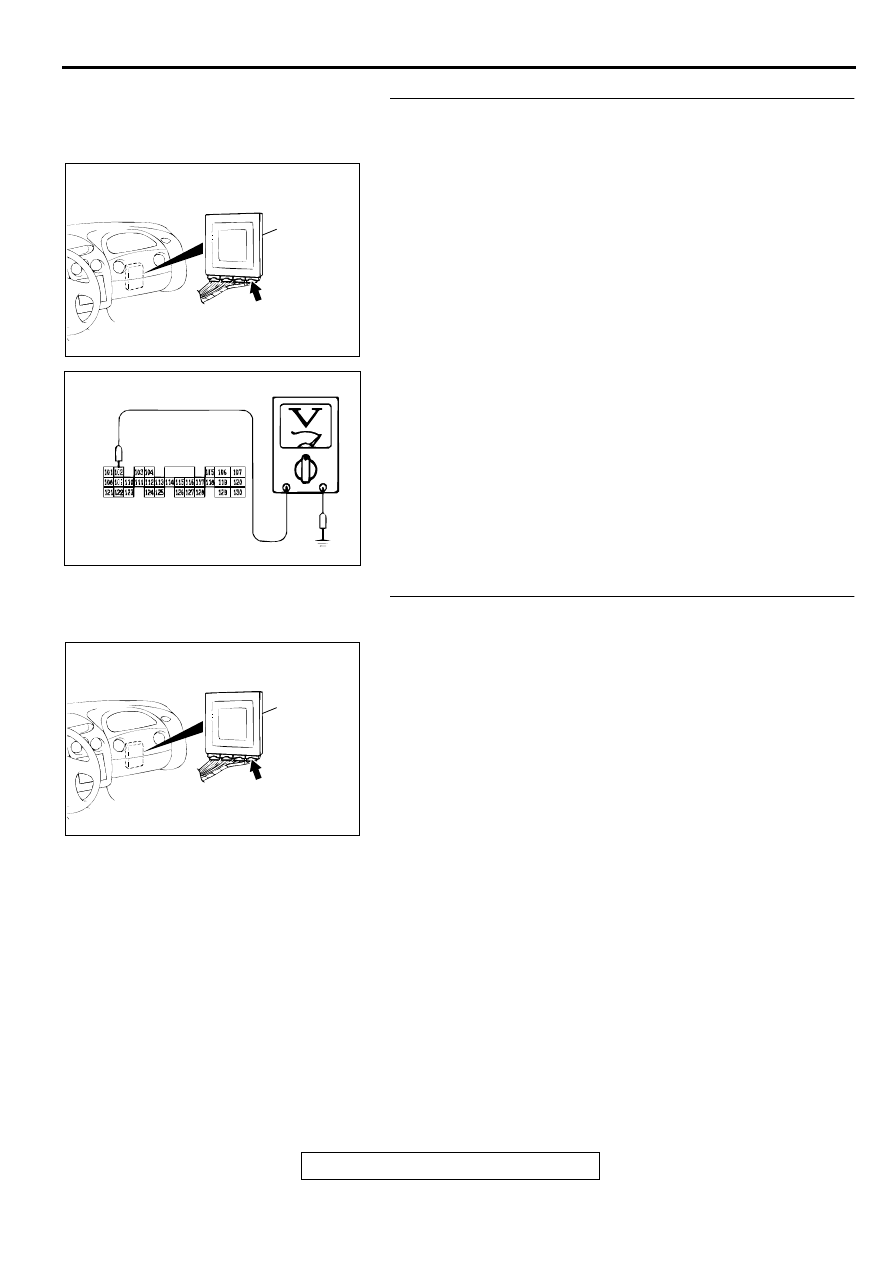

STEP 28. Check the switch output voltage at PCM
connector C-61 <2.4L Engine> or C-63 <3.0L Engine> by
backprobing.
(1) Do not disconnect connector C-61 <2.4L Engine> or C-63

<3.0L Engine>.

(2) Turn the ignition switch to "ON" position.
(3) Move the selector lever to "D" position.

(4) Measure the voltage between terminal 102 and ground by

backprobing.

Voltage should be battery positive voltage.

(5) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 12.
NO :  Go to Step 29.

STEP 29. Check connectors C-61 <2.4L Engine> or C-63
<3.0L Engine> at PCM for damage.
Q: Is the connectors in good condition?

YES : Go to Step 30 <Vehicles with sport mode>Repair it

because of the harness open circuit or short circuit to
ground between the Park/Neutral position switch
connector B-41 terminal 1 and PCM connector C-61
<2.4L Engine> or C-63 <3.0L Engine> terminal 102.
<Vehicles without sport mode>

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN

AC001906

C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>
CONNECTOR HARNESS
SIDE VIEW

AD

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-153

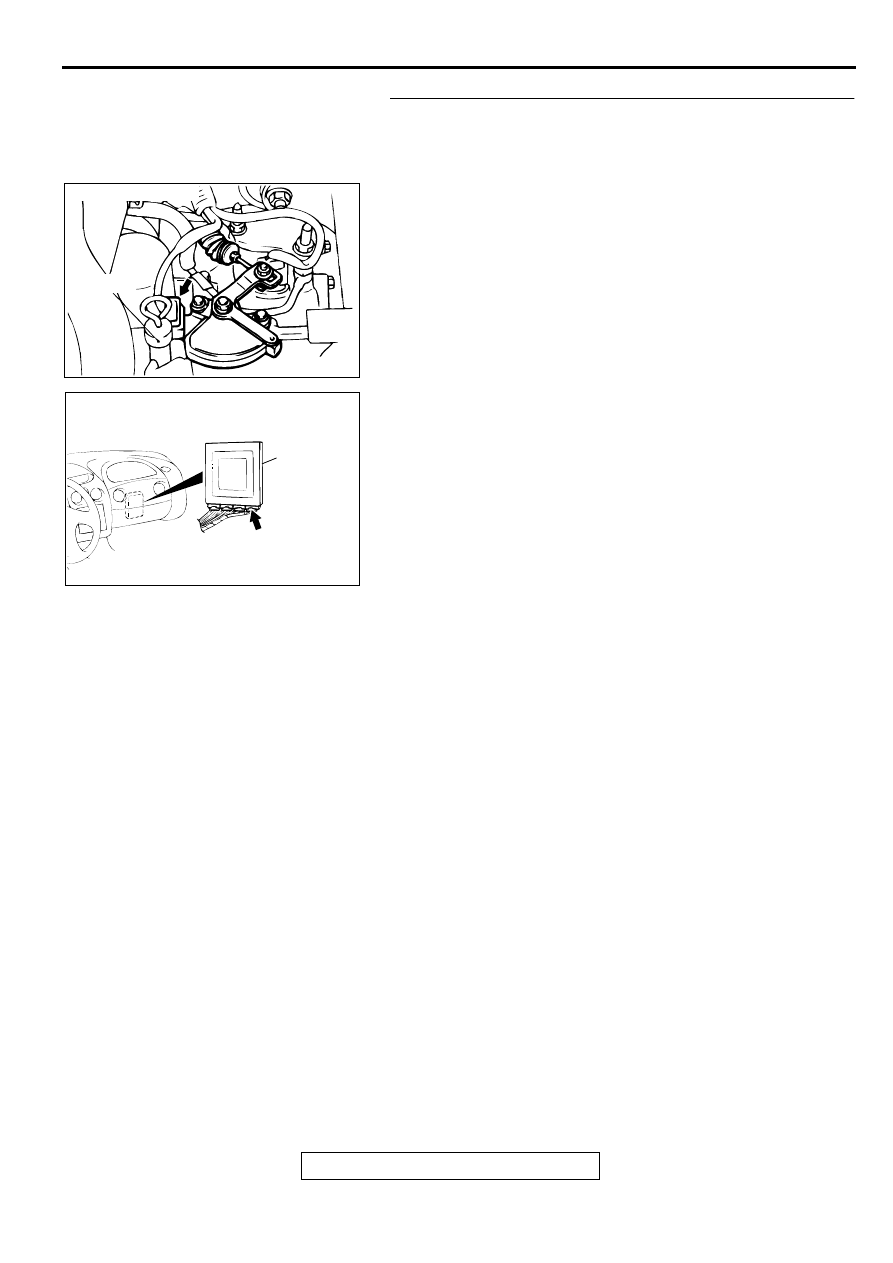

STEP 30. Check harness for open circuit or short circuit to
ground between Park/Neutral position switch connector B-
41 terminal 1 and PCM connector C-63 terminal 102
<Vehicles with sport mode>.
Q: Is the harness wire in good condition?

YES : Go to Step 31
NO :  Repair it.

AC001844

CONNECTOR: B-41

DIPSTICK

AB

AC001657

CONNECTOR: C-63

PCM

AO

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-154

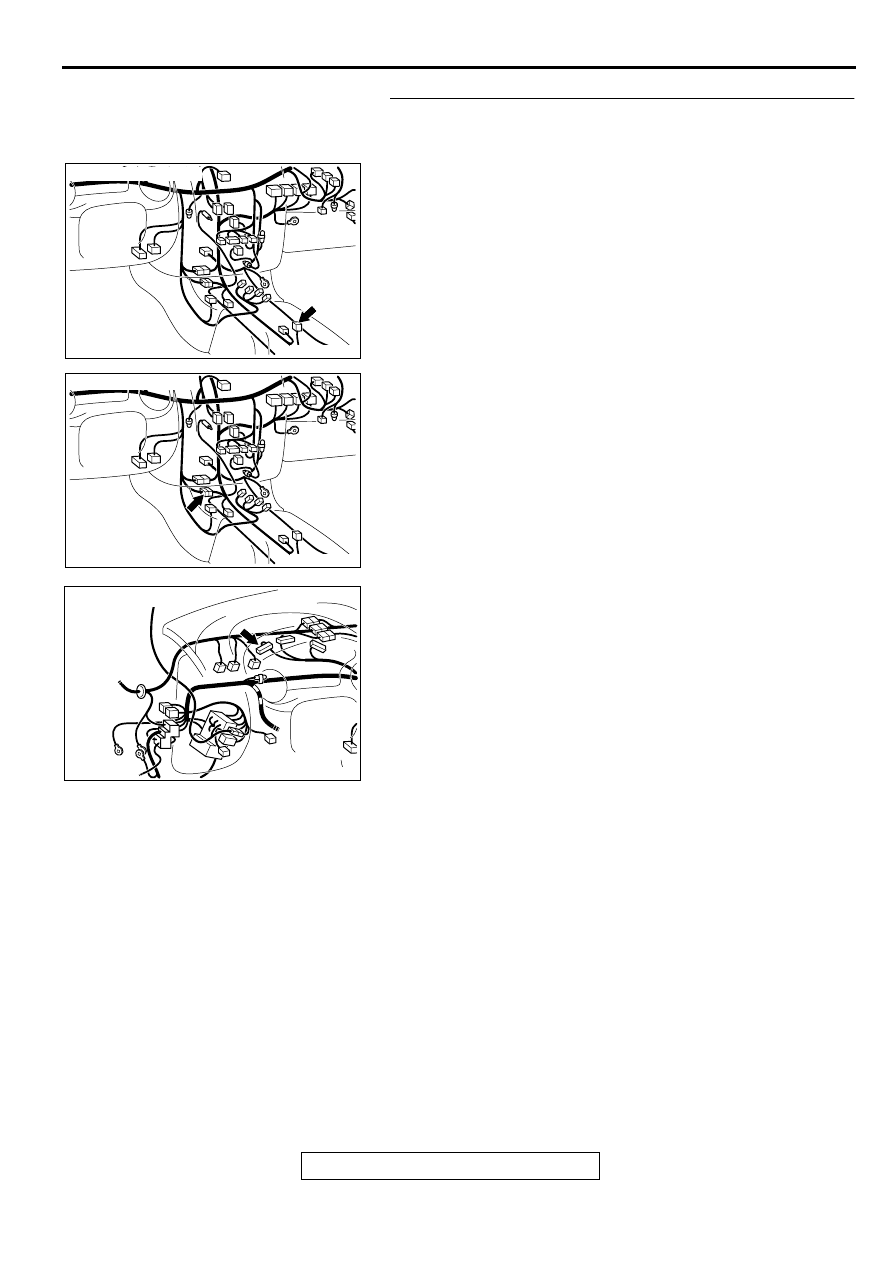

STEP 31. Check connectors C-65 at shift switch assembly,
C-27 at intermediate connector and C-41 at combination
meter for damage <Vehicles with sport mode>.
Q: Are the connectors in good condition?

YES : Go to Step 32.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC001741

CONNECTOR: C-65

AL

AC001741

CONNECTOR: C-27

AK

AC001729 AN

CONNECTOR: C-41

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-155

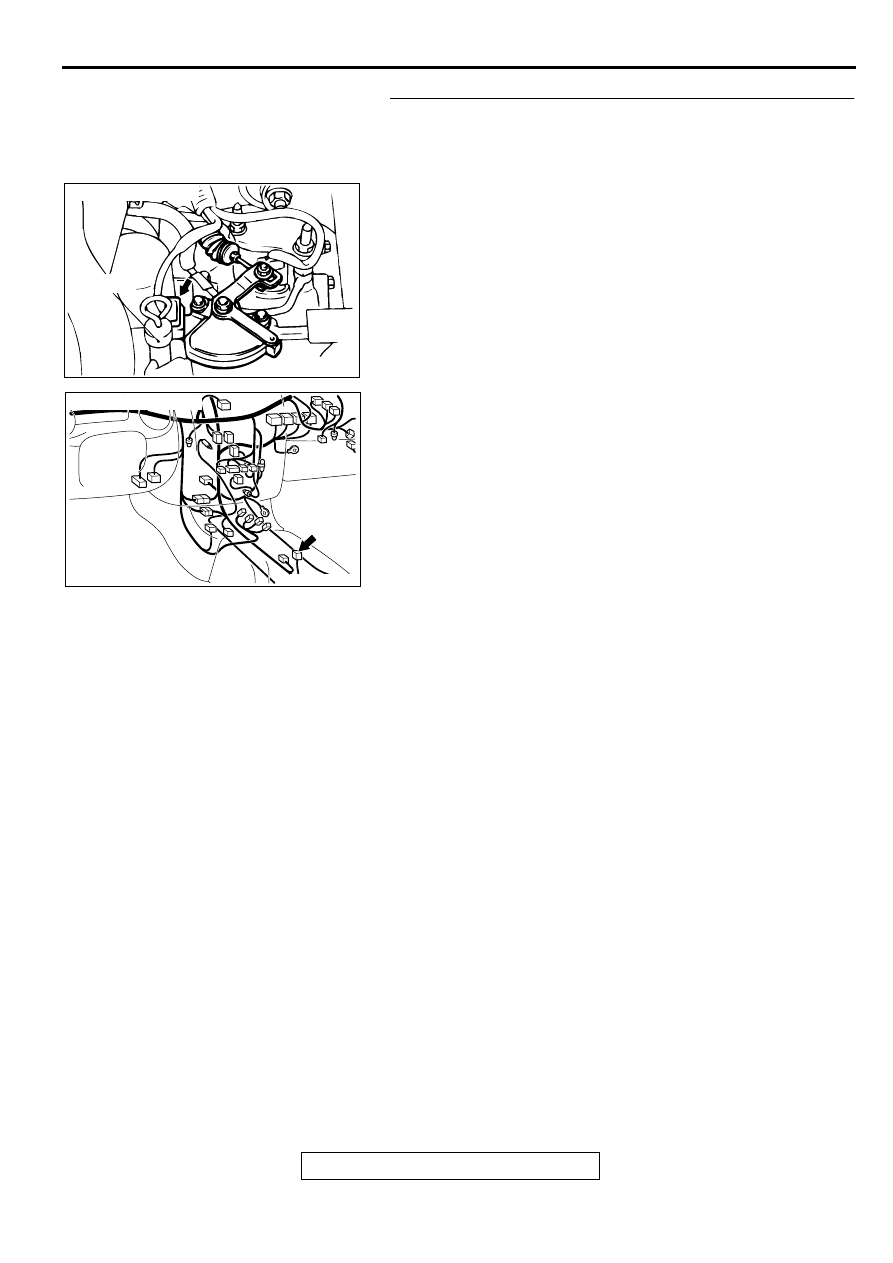

STEP 32. Check harness for short circuit to ground
between Park/Neutral position switch connector B-41
terminal 1 and shift switch assembly connector C-65
terminal 1 <Vehicles with sport mode>.
Q: Is the harness wire in good condition?

YES : Repair it because of the harness short circuit to

ground between shift switch assembly connector C-
65 terminal 2 and combination meter connector C-41
terminal 50.

NO :  Repair it.

AC001844

CONNECTOR: B-41

DIPSTICK

AB

AC001741

CONNECTOR: C-65

AL
