AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-156

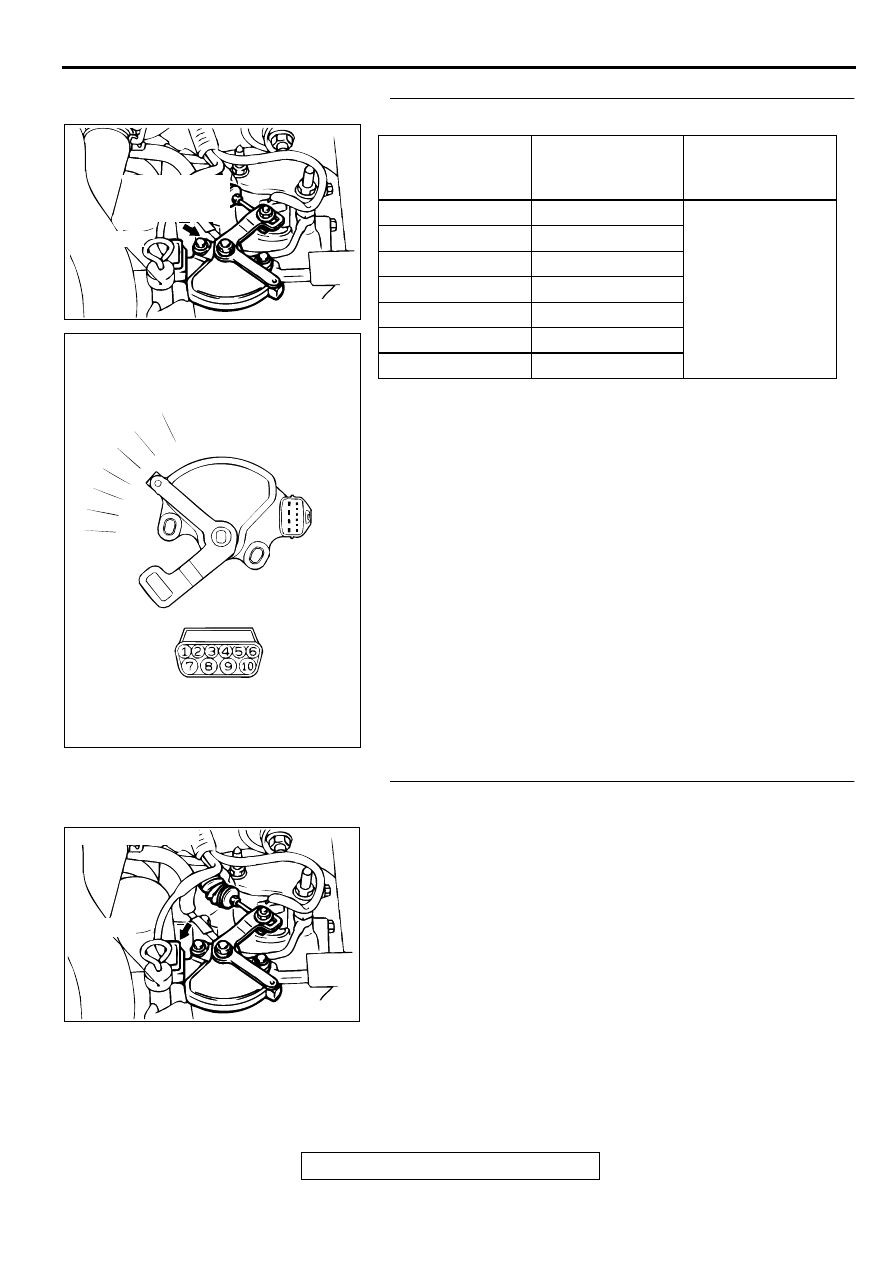

STEP 33. Check the Park/Neutral position switch.

Check for continuity between terminals for each selector
position.

NOTE: For vehicles with sport mode, four positions (P, R, N, D)
are used.

Q: Is the switch operating properly?

YES : Go to Step 34.
NO :  Replace the Park/Neutral position switch. Refer to

GROUP 23B, Transaxle

P.23B-11

.

STEP 34. Check connector B-41 at the Park/Neutral
position switch for damage.
Q: Is the connector in good condition?

YES : Go to Step 35.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

ITEMS

TERMINAL
CONNECTION OF
TESTER

SPECIFIED
CONDITION

P

 8, 9

 10

Less than 2 ohm.

R

 8

N

 8, 9

 10

D

 8

3

 8

2

 8

L

 8

AC004672

DIPSTICK

PARK/NEUTRAL
POSITION (PNP)
SWITCH

AC

AC001846

P

R

N

D

3

2

L

AB

AC001844

CONNECTOR: B-41

DIPSTICK

AB

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-157

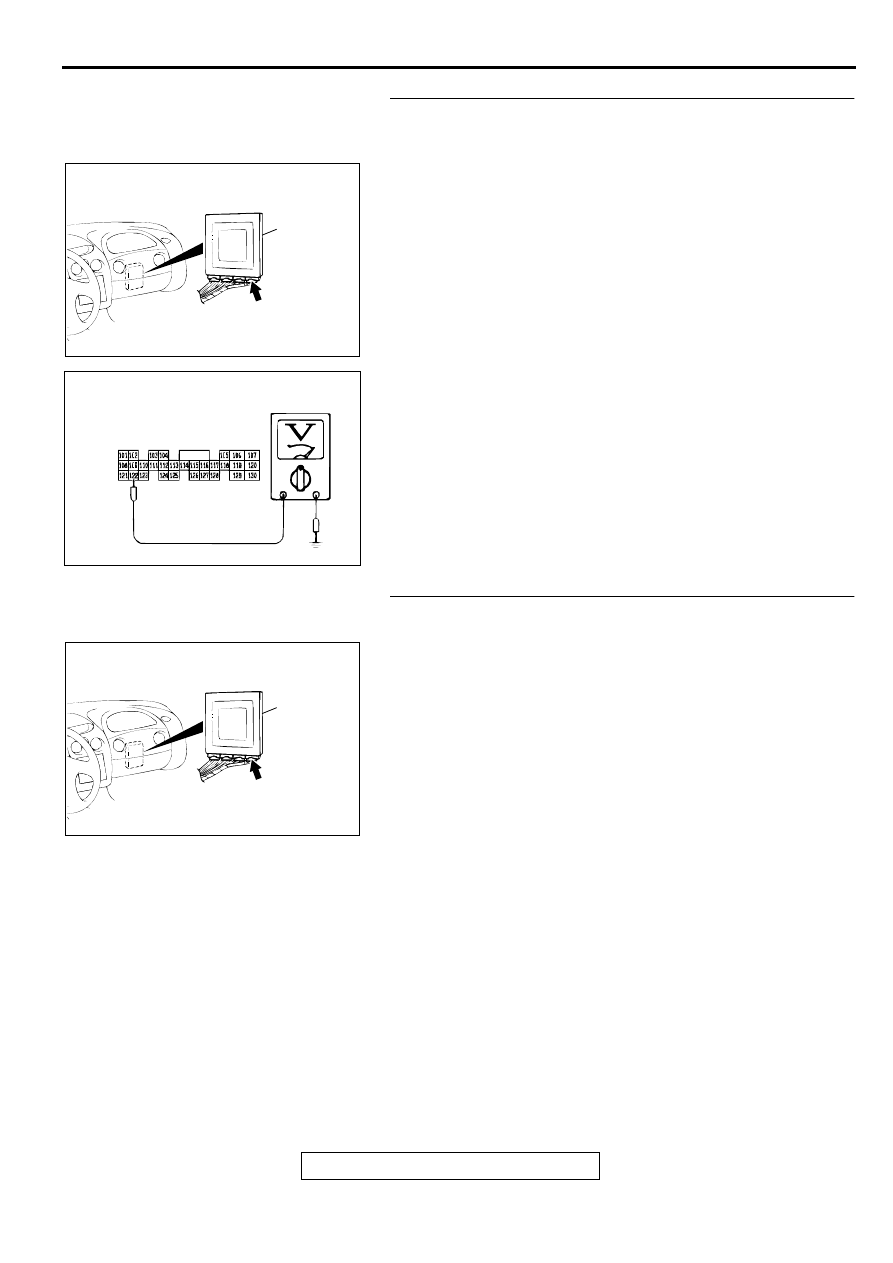

STEP 35. Check the switch output voltage at PCM
connector C-61 <2.4L Engine> or C-63 <3.0L Engine> by
backprobing.
(1) Do not disconnect connector C-61 <2.4L Engine> or C-63

<3.0L Engine>.

(2) Turn the ignition switch to "ON" position.
(3) Move the selector lever to "3" position.

(4) Measure the voltage between terminal 109 and ground by

backprobing.

Voltage should be battery positive voltage.

(5) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 12.
NO :  Go to Step 36.

STEP 36. Check connectors C-61 <2.4L Engine> or C-63
<3.0L Engine> at PCM for damage.
Q: Is the connectors in good condition?

YES : Repair it because of the harness open circuit or short

circuit to ground between the Park/Neutral position
switch connector B-41 terminal 5 and PCM connector
C-61 <2.4L Engine> or C-63 <3.0L Engine> terminal
109.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN

AC001907

C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>
CONNECTOR HARNESS
SIDE VIEW

AD

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-158

STEP 37. Check the Park/Neutral position switch.

Check for continuity between terminals for each selector
position.

NOTE: For vehicles with sport mode, four positions (P, R, N, D)
are used.

Q: Is the switch operating properly?

YES : Go to Step 38.
NO :  Replace the Park/Neutral position switch. Refer to

GROUP 23B, Transaxle

P.23B-11

.

STEP 38. Check connector B-41 at the Park/Neutral
position switch for damage.
Q: Is the connector in good condition?

YES : Go to Step 39.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

ITEMS

TERMINAL
CONNECTION OF
TESTER

SPECIFIED
CONDITION

P

 8, 9

 10

Less than 2 ohm.

R

 8

N

 8, 9

 10

D

 8

3

 8

2

 8

L

 8

AC004672

DIPSTICK

PARK/NEUTRAL
POSITION (PNP)
SWITCH

AC

AC001846

P

R

N

D

3

2

L

AB

AC001844

CONNECTOR: B-41

DIPSTICK

AB

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-159

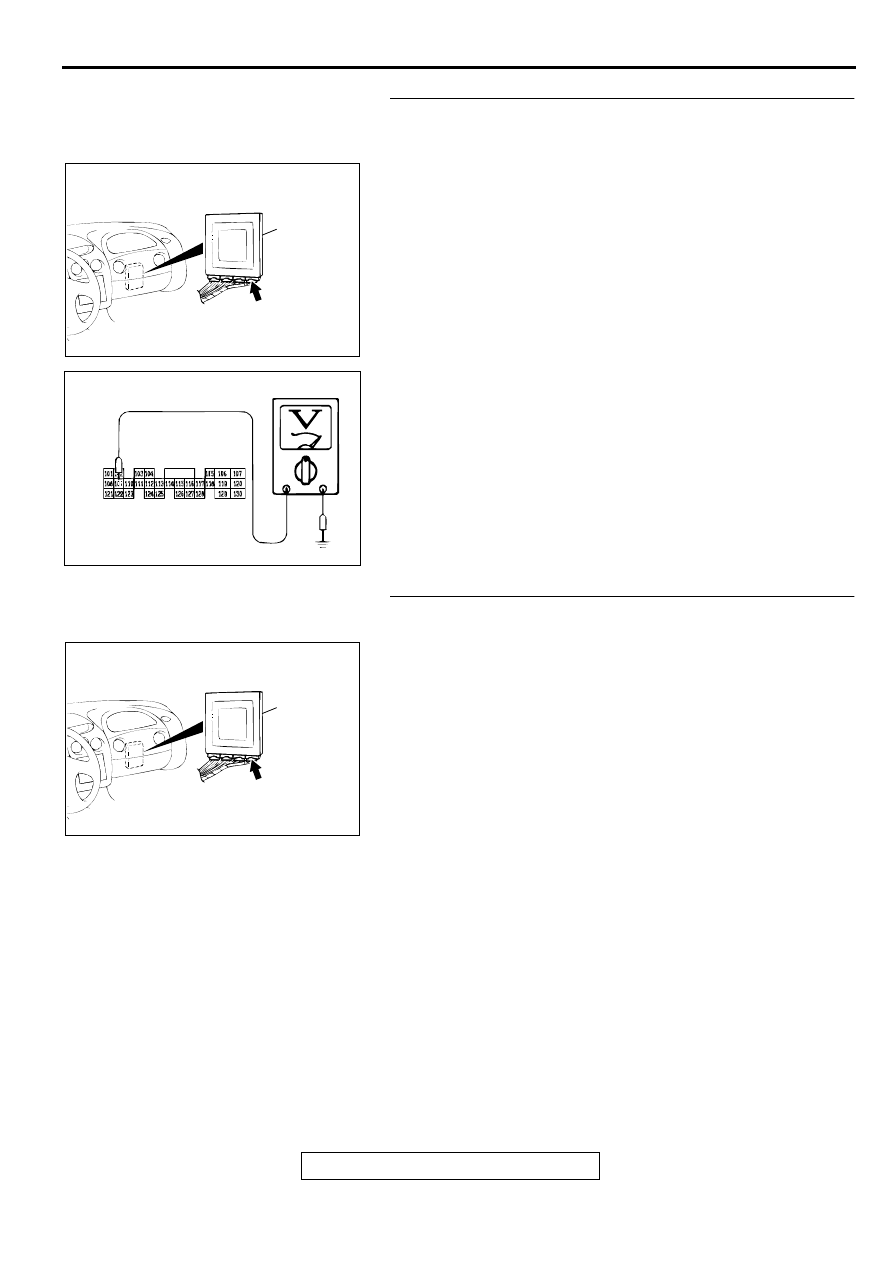

STEP 39. Check the switch output voltage at PCM
connector C-61 <2.4L Engine> or C-63 <3.0L Engine> by
backprobing.
(1) Do not disconnect connector C-61 <2.4L Engine> or C-63

<3.0L Engine>.

(2) Turn the ignition switch to "ON" position.
(3) Move the selector lever to "2" position.

(4) Measure the voltage between terminal 122 and ground by

backprobing.

Voltage should be battery positive voltage.

(5) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 12.
NO :  Go to Step 40.

STEP 40. Check connectors C-61 <2.4L Engine> or C-63
<3.0L Engine> at PCM for damage.
Q: Is the connector in good condition?

YES : Repair it because of the harness open circuit or short

circuit to ground between the Park/Neutral position
switch connector B-41 terminal 2 and PCM connector
C-61 <2.4L Engine> or C-63 <3.0L Engine> terminal
122.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN

AC001908

C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>
CONNECTOR HARNESS
SIDE VIEW

AD

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN
