AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-140

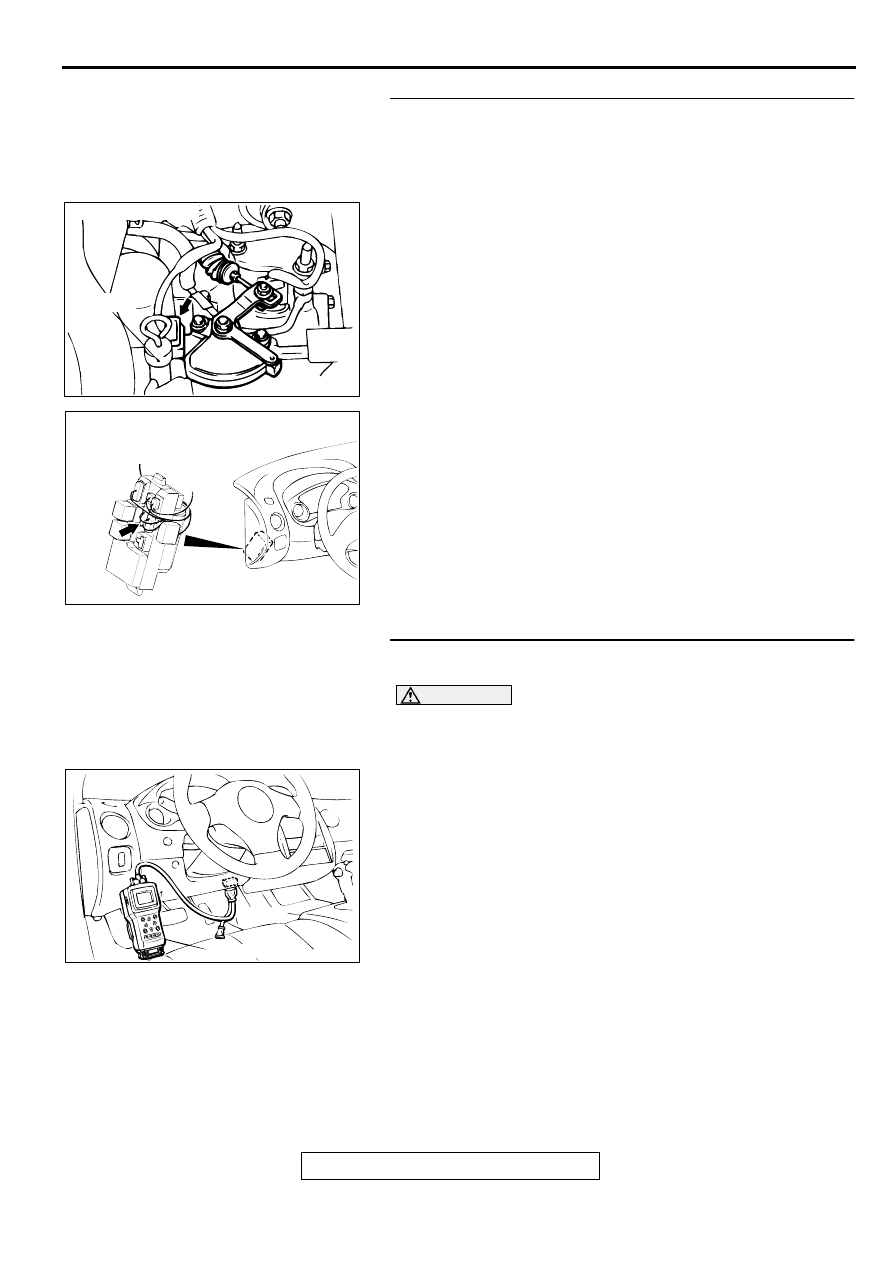

STEP 4. Check harness for open circuit or short circuit to
ground between Park/Neutral position switch connector B-
41 terminal 8 and junction block connector C-107 terminal
12 <Vehicles with sport mode> or terminal 9 <Vehicles
without sport mode>.
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair it.

STEP 5. Using scan tool MB991502, check data list item 61:
Park/Neutral Position Switch.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to "ON" position.
(3) Set scan tool MB991502 to data reading mode for item 61:

Park/Neutral Position Switch.

Move the selector lever to "P," "R," "N," "D," "3," "2," "L"
and sport mode positions to confirm whether the MUT-II.
(The sport mode is indicated as "D" on the MUT-II.)

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the switch operating properly?

YES : This malfunction can be intermittent. Refer to GROUP

00, How to Use Troubleshooting/Inspection Service
Points

 How to Cope with Intermittent Malfunction

P.00-6

.

NO :  Replace the PCM.

AC001844

CONNECTOR: B-41

DIPSTICK

AB

AC001691

CONNECTOR: C-107

JUNCTION BLOCK
(FRONT VIEW)

AO

AC001252

MB991502

16 PIN

AB

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-141

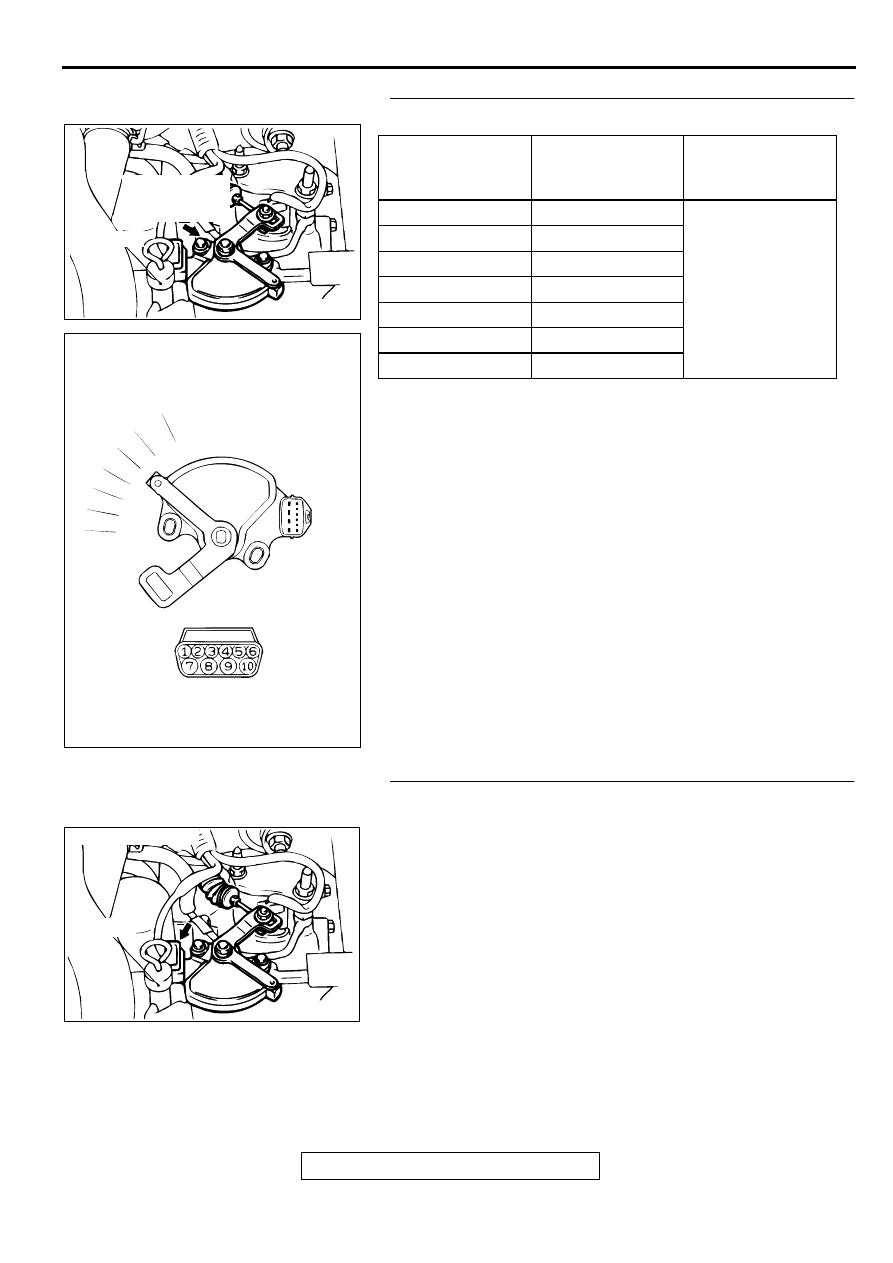

STEP 6. Check the Park/Neutral position switch.

Check for continuity between terminals for each selector
position.

NOTE: For vehicles with sport mode, four positions (P, R, N, D)
are used.

Q: Is the switch operating properly?

YES : Go to Step 7.
NO :  Replace the Park/Neutral position switch. Refer to

GROUP 23B, Transaxle

P.23B-11

.

STEP 7. Check connector B-41 at the Park/Neutral position
switch for damage.
Q: Is the connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

ITEMS

TERMINAL
CONNECTION OF
TESTER

SPECIFIED
CONDITION

P

 8, 9

 10

Less than 2 ohm.

R

 8

N

 8, 9

 10

D

 8

3

 8

2

 8

L

 8

AC004672

DIPSTICK

PARK/NEUTRAL
POSITION (PNP)
SWITCH

AC

AC001846

P

R

N

D

3

2

L

AB

AC001844

CONNECTOR: B-41

DIPSTICK

AB

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-142

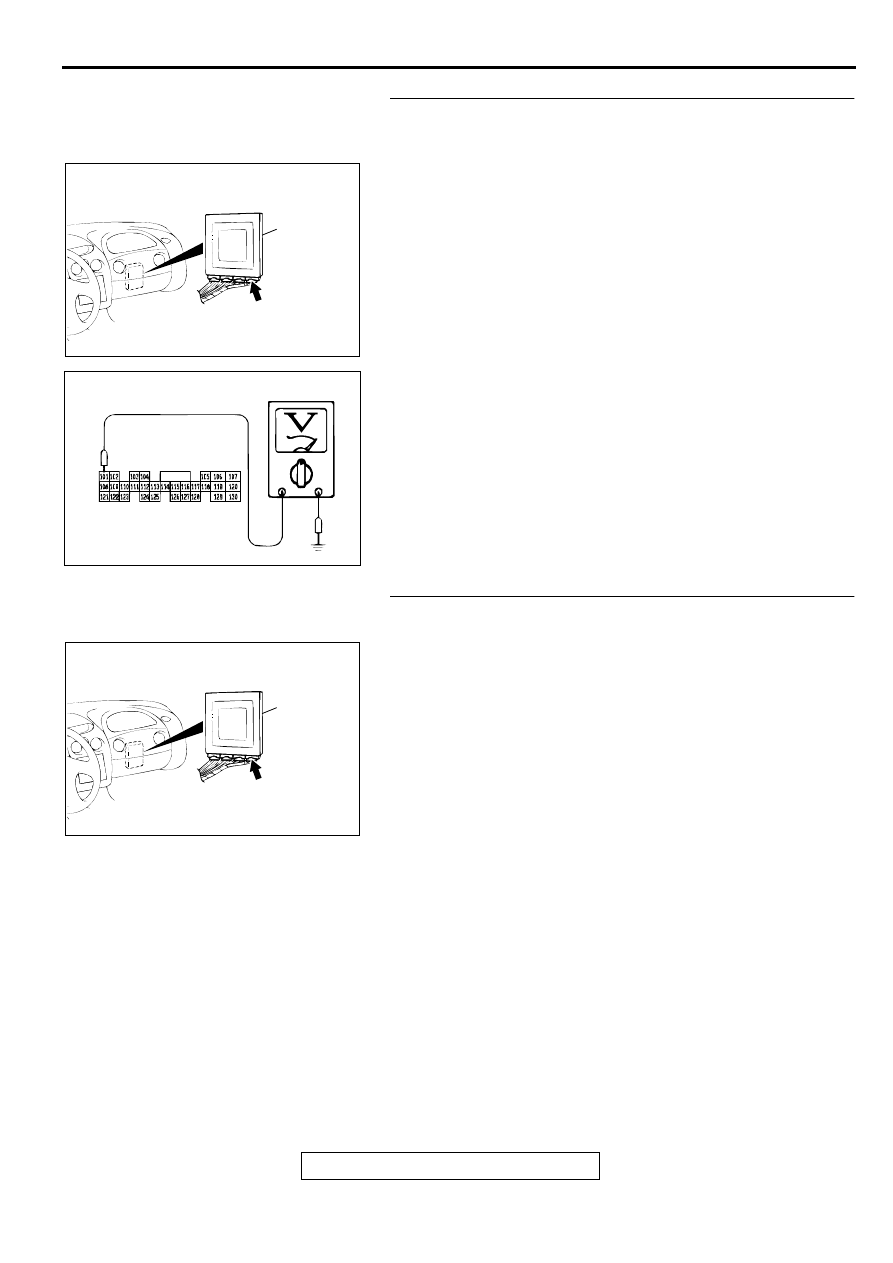

STEP 8. Check the switch output voltage at PCM
connector C-61 <2.4L Engine> or C-63 <3.0L Engine> by
backprobing.
(1) Do not disconnect connector C-61 <2.4L Engine> or C-63

<3.0L Engine>.

(2) Turn the ignition switch to "ON" position.
(3) Move the selector lever to "P" position.

(4) Measure the voltage between terminal 101 and ground by

backprobing.

Voltage should be battery positive voltage.

(5) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 12.
NO :  Go to Step 9.

STEP 9. Check connectors C-61 <2.4L Engine> or C-63
<3.0L Engine> at PCM for damage.
Q: Is the connectors in good condition?

YES : Go to Step 10 <Vehicles with sports mode>Repair it

because of the harness open circuit or short circuit to
ground between Park/Neutral position switch
connector B-41 terminal 3 and PCM connector C-61
<2.4L Engine> or C-63 <3.0L Engine> terminal 101.
<Vehicles without sports mode>

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN

AC001903

C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>
CONNECTOR HARNESS
SIDE VIEW

AD

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-143

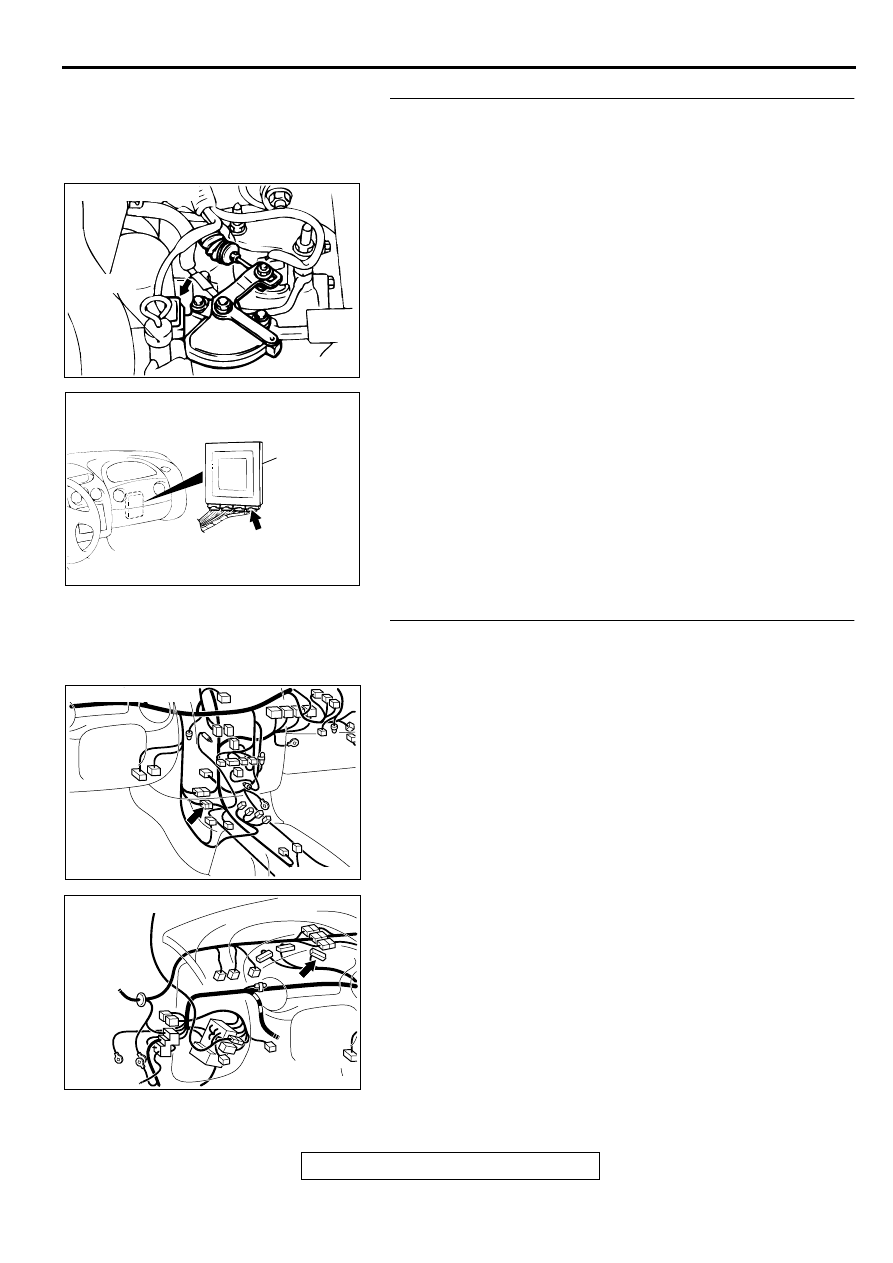

STEP 10. Check harness for open circuit or short circuit to
ground between Park/Neutral position switch connector B-
41 terminal 3 and PCM connector C-63 terminal 101
<Vehicles with sport mode>.
Q: Is the harness wire in good condition?

YES : Go to Step 11.
NO :  Repair it.

STEP 11. Check connectors C-27 at intermediate
connector and C-43 at combination meter for damage
<Vehicles with sport mode>.
Q: Are the connectors in good condition?

YES : Repair it because of the harness short circuit to

ground between Park/Neutral position switch
connector B-41 terminal 3 and combination meter
connector C-43 terminal 11.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC001844

CONNECTOR: B-41

DIPSTICK

AB

AC001657

CONNECTOR: C-63

PCM

AO

AC001741

CONNECTOR: C-27

AK

AC001729 AO

CONNECTOR: C-43
