AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-132

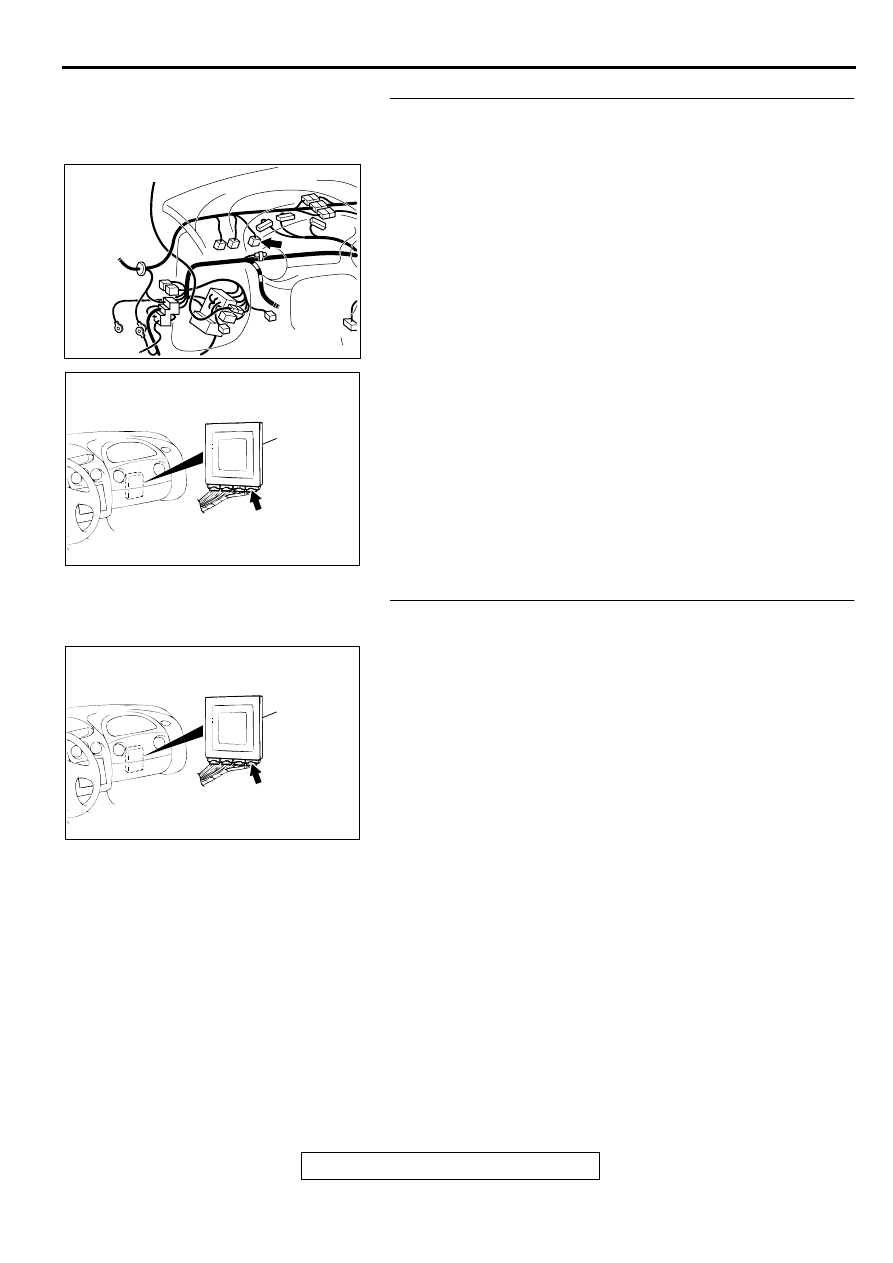

STEP 7. Check harness for damage between stoplight
switch connector C-03 terminal 1 and PCM connector C-61
<2.4L Engine> or C-63 <3.0L Engine> terminal 123.
Q: Is the harness wire in good condition?

YES : Repair it because of the connector and the harness

damage between output signal line of the stoplight
switch.

NO :  Repair it.

STEP 8. Check connector C-61 <2.4L Engine> or C-63
<3.0L Engine> at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC001729

CONNECTOR: C-03

AG

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-133

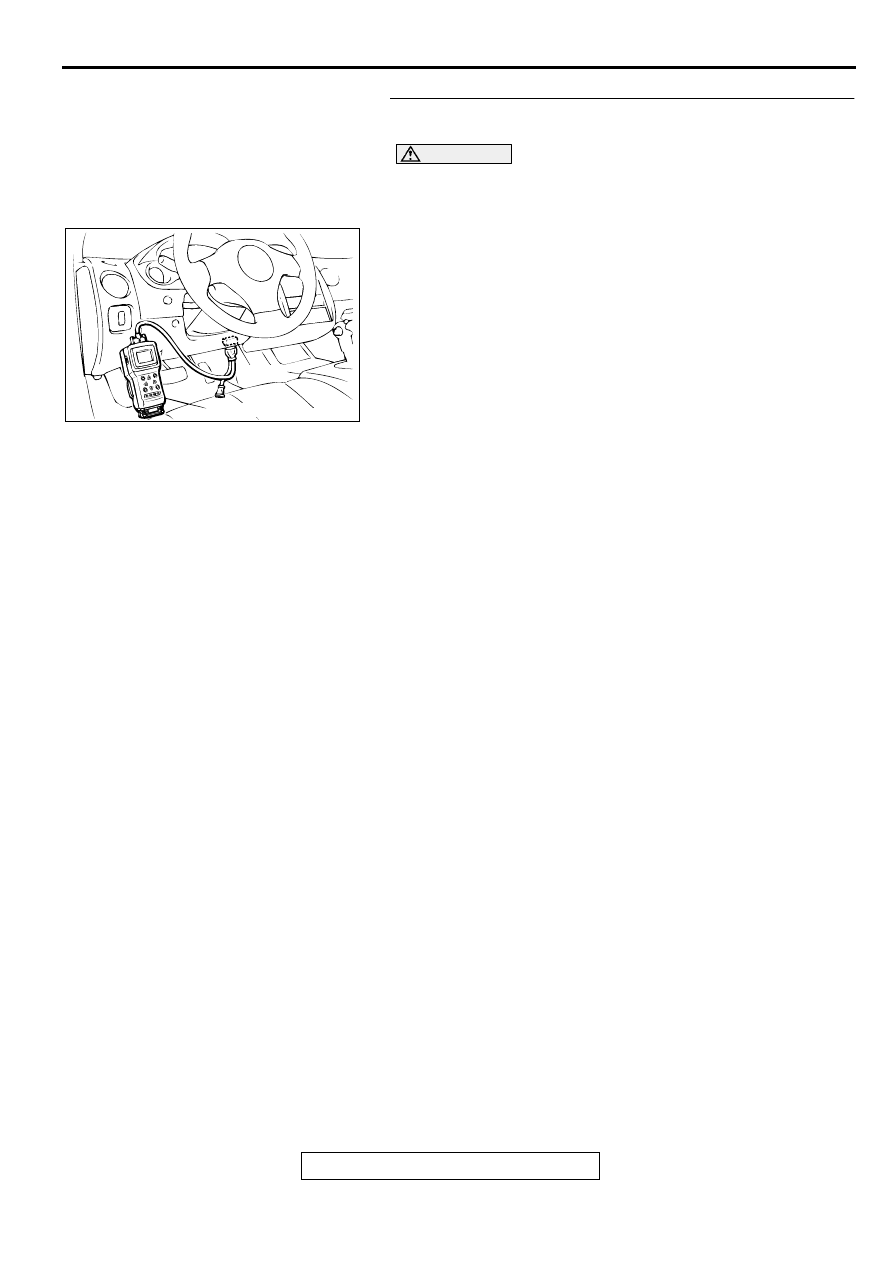

STEP 9. Using scan tool MB991502, check data list item 26:
Stoplight Switch.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to "ON" position.
(3) Set scan tool MB991502 to data reading mode for item 26:

Stoplight Switch.

When the brake pedal is depressed, the display should
be "ON."

When the brake pedal is not depressed, the display
should be "OFF."

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the switch operating properly?

YES : This malfunction may be intermittent. Refer to

GROUP 00, How to Use Troubleshooting/Inspection
Service Points

 How to Cope with Intermittent

Malfunction

P.00-6

.

NO :  Replace the PCM.

AC001252

MB991502

16 PIN

AB

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-134

DTC 27: Park/Neutral Position Switch System (Open Circuit)

AC004687

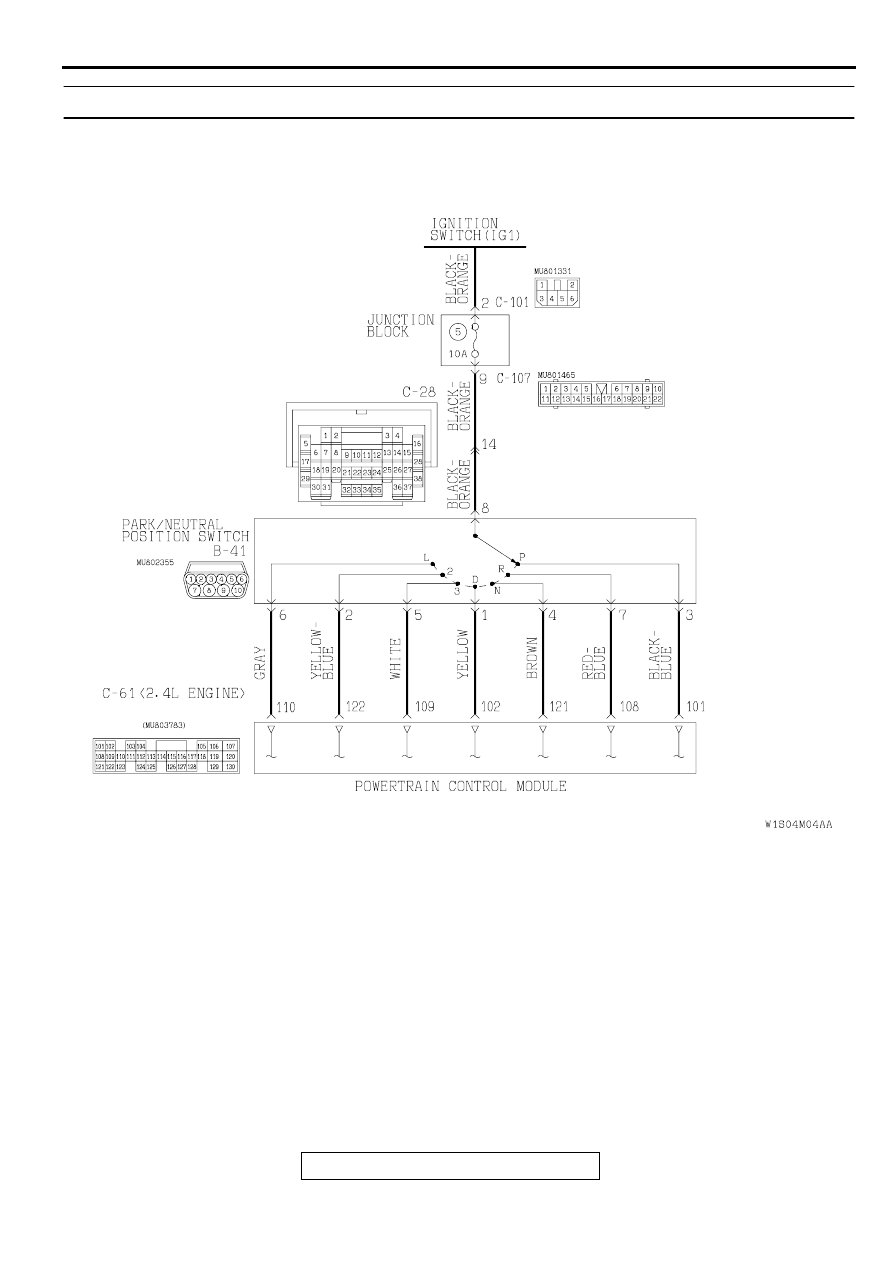

Park/Neutral Position Switch System Circuit <Vehicles without Sport Mode>

AC

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-135

AC004688AC

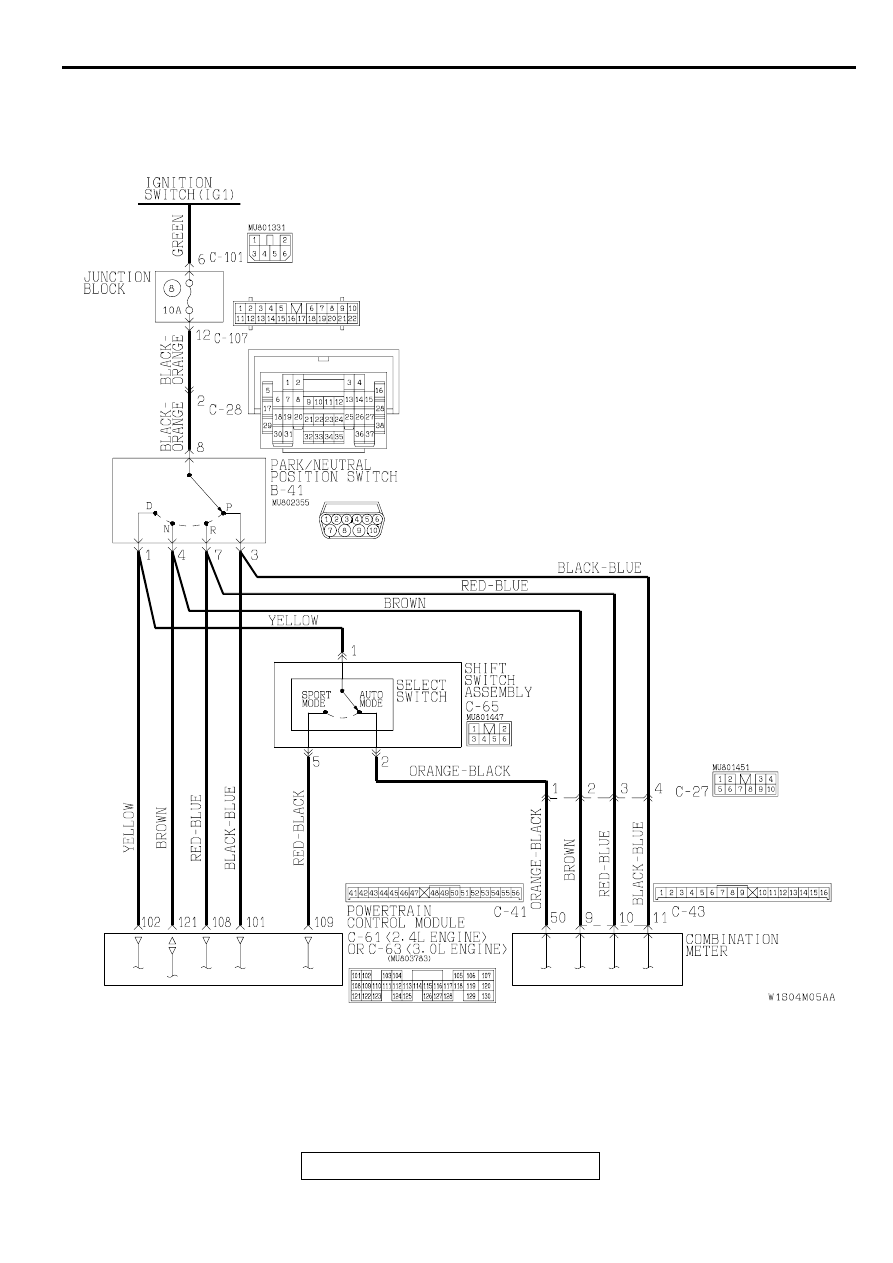

Park/Neutral Position Switch System Circuit <Vehicles with Spot Mode>
