AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-51

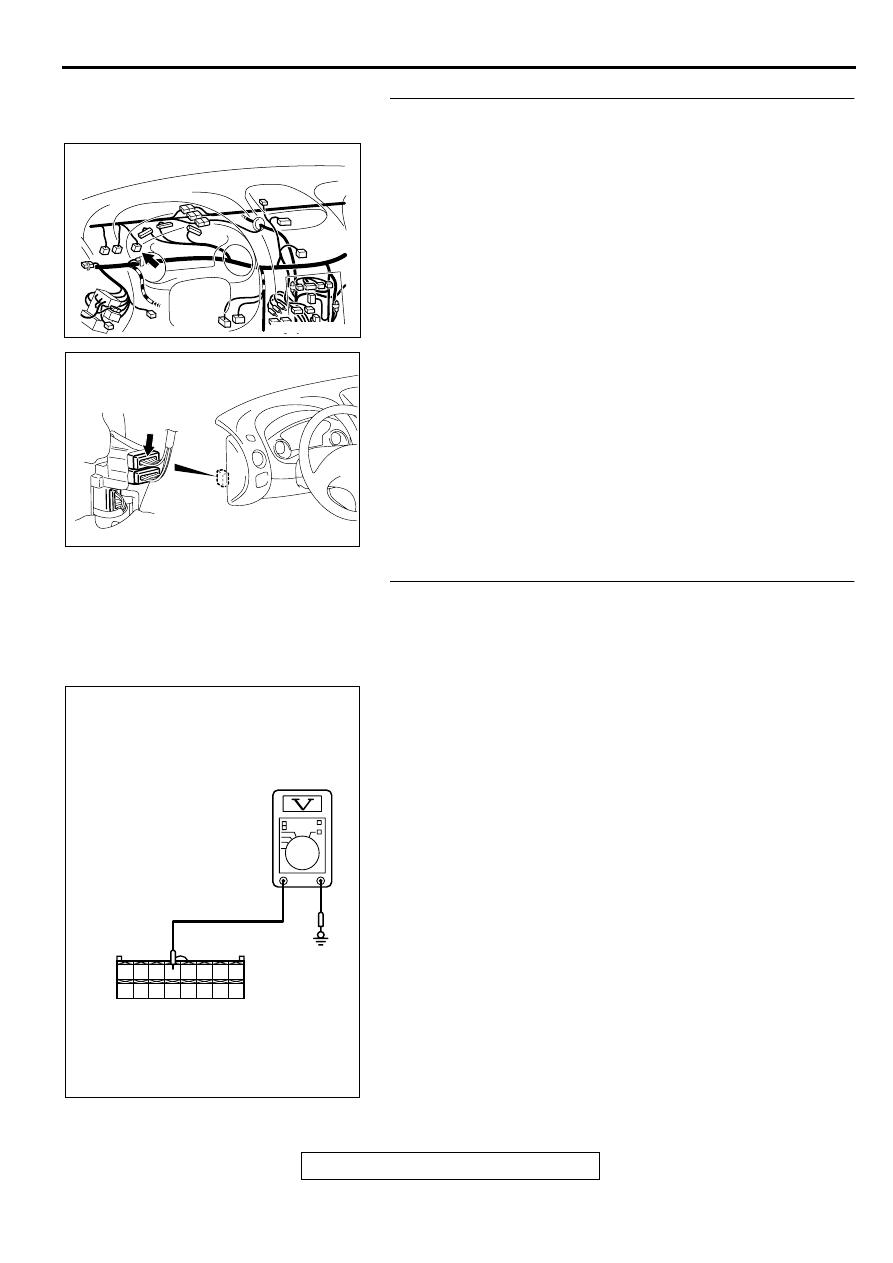

STEP 8. Check the harness wire between stoplight switch
connector C-03 and intermediate connector C-89.
Q: Is any harness wire between stoplight switch connector

C-03 and intermediate connector C-89 damaged?
YES :
Repair the harness wire and then check that the

malfunction is eliminated.

NO :  Check that the malfunction is eliminated.

If the malfunction is eliminated, replace the auto-
cruise control-ECU. (Refer to

P.17-81

.)

Then check that the malfunction is eliminated.

STEP 9. Check the output circuit voltage at auto-cruise
control-ECU connector C-20 by backprobing.
(1) Do not disconnect auto-cruise control switch connector C-

20.

(2) Turn the ignition switch to "ON" position.
(3) Measure the voltage between terminal 4 and ground by

backprobing.

Voltage should be battery positive volts.
 (When brake pedal is depressed.)

Voltage should be 0.5 volts or less.
 (When brake pedal is not depressed.)

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the voltage within specifications?

YES : Check that the malfunction is eliminated.

If the malfunction is eliminated, replace the auto-
cruise control-ECU. (Refer to

P.17-81

.)

Then check that the malfunction is eliminated.

NO :  Go to Step 10.

AC003552 AK

CONNECTOR: C-03

AC001991AM

CONNECTOR: C-89

CONNECTOR
BLOCK (LH)

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

ACX01905

C-20 CONNECTOR
HARNESS SIDE VIEW

AE

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-52

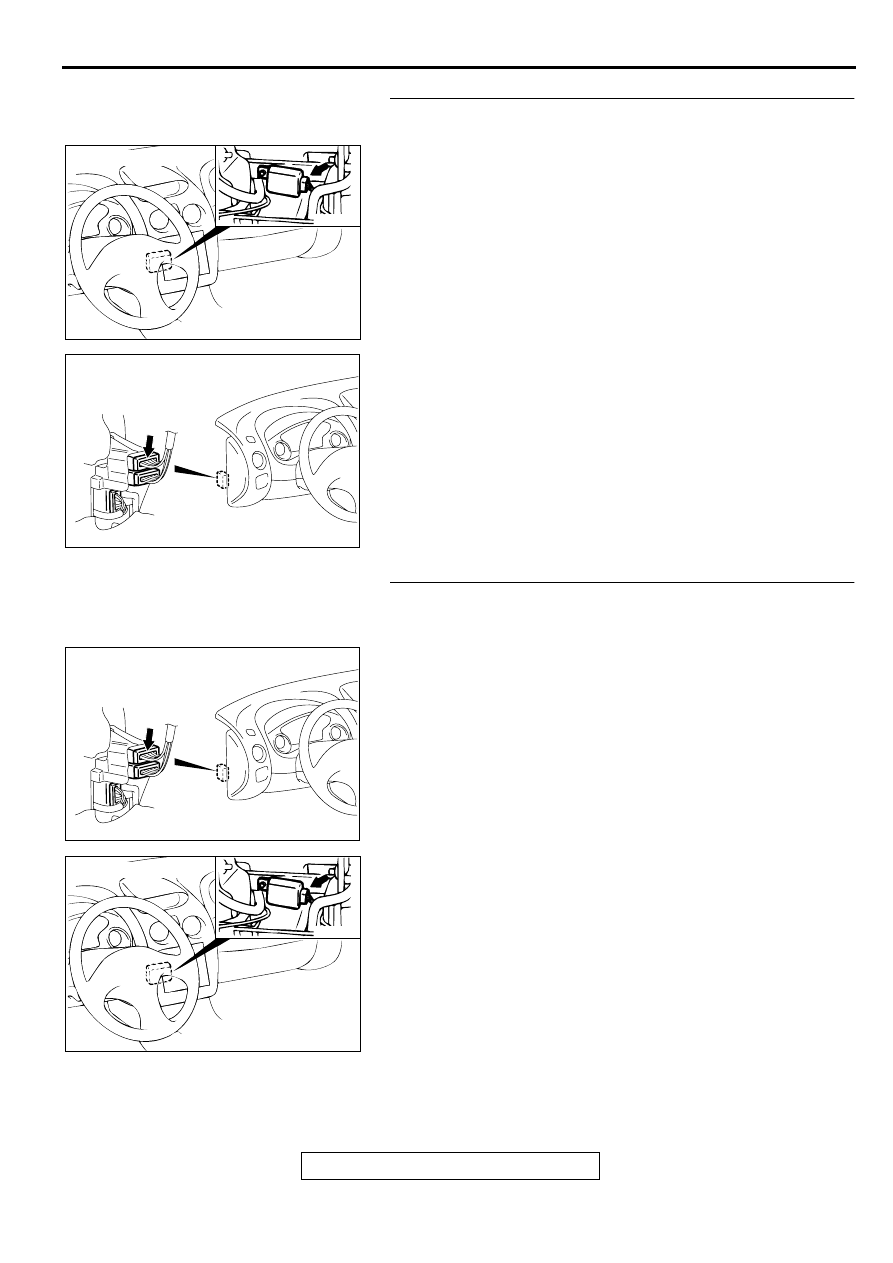

STEP 10. Check auto-cruise control-ECU connector C-20
and intermediate connector C-89.
Q: Is the connector damaged?

YES : Repair or replace connector.

Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

Then check that the malfunction is eliminated.

NO :  Go to Step 11.

STEP 11. Check the harness wire between intermediate
connector C-89 and auto-cruise control-ECU connector C-
20.
Q: Is any harness wire between intermediate connector C-

89 and auto-cruise control-ECU connector C-20
damaged?
YES :
Repair the harness wire and then check that the

malfunction is eliminated.

NO :  Check that the malfunction is eliminated.

If the malfunction is eliminated, replace the auto-
cruise control-ECU. (Refer to

P.17-81

.)

Then check that the malfunction is eliminated.

AC001451

CONNECTOR: C-20

AB

AC001991AM

CONNECTOR: C-89

CONNECTOR
BLOCK (LH)

AC001991AM

CONNECTOR: C-89

CONNECTOR
BLOCK (LH)

AC001451

CONNECTOR: C-20

AB

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-53

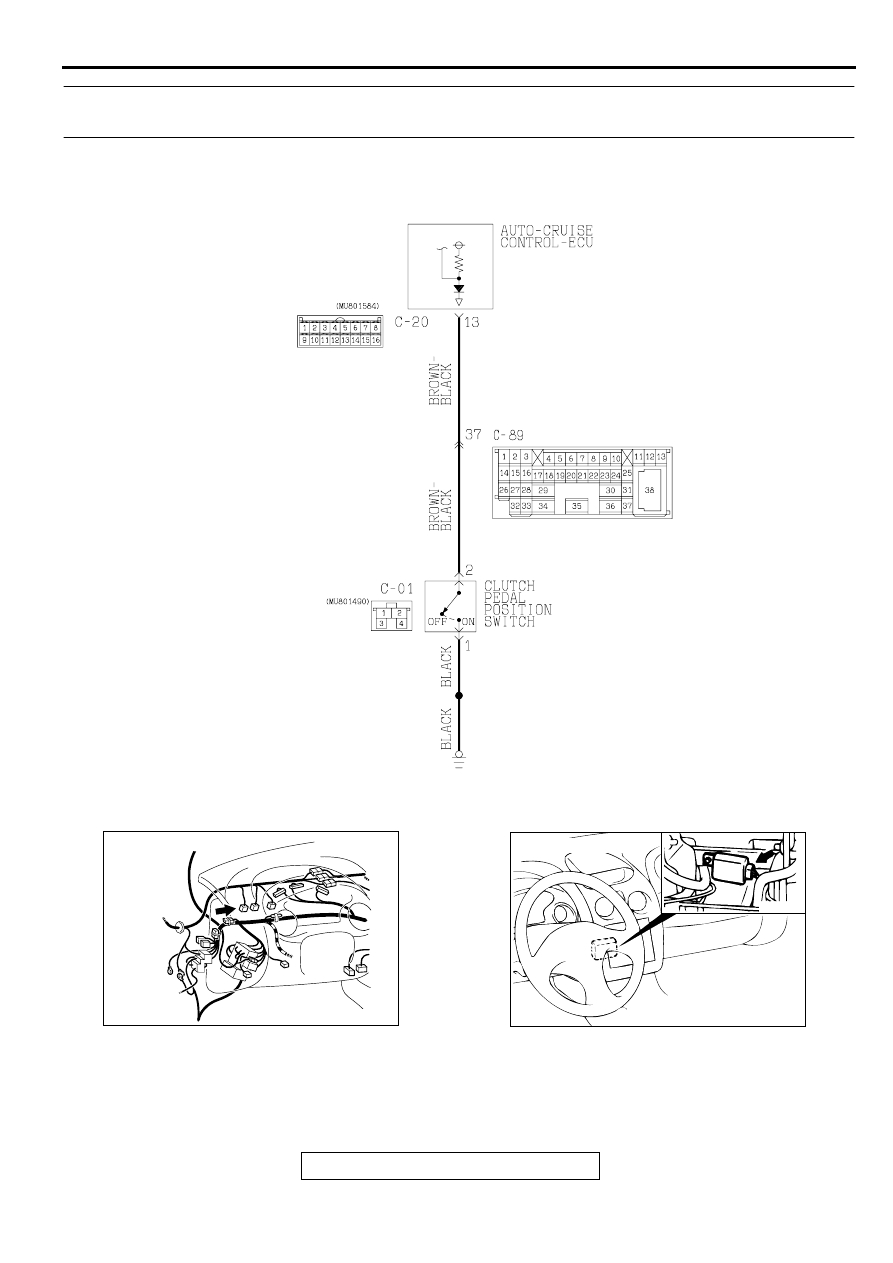

INSPECTION PROCEDURE 3: When the Clutch Pedal is Epressed, Auto-cruise Control is not
Cancelled.

AC005115

Clutch Pedal Position Switch Circuit

AB

AC003553 AL

CONNECTOR: C-01

AC001451

CONNECTOR: C-20

AB

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-54

CIRCUIT OPERATION
This circuit indicates the operation status of the
clutch pedal position switch. When the clutch pedal
position switch is ON (clutch pedal is depressed), the
voltage of auto-cruise control-ECU terminal number
13 will indicate 0 volt.

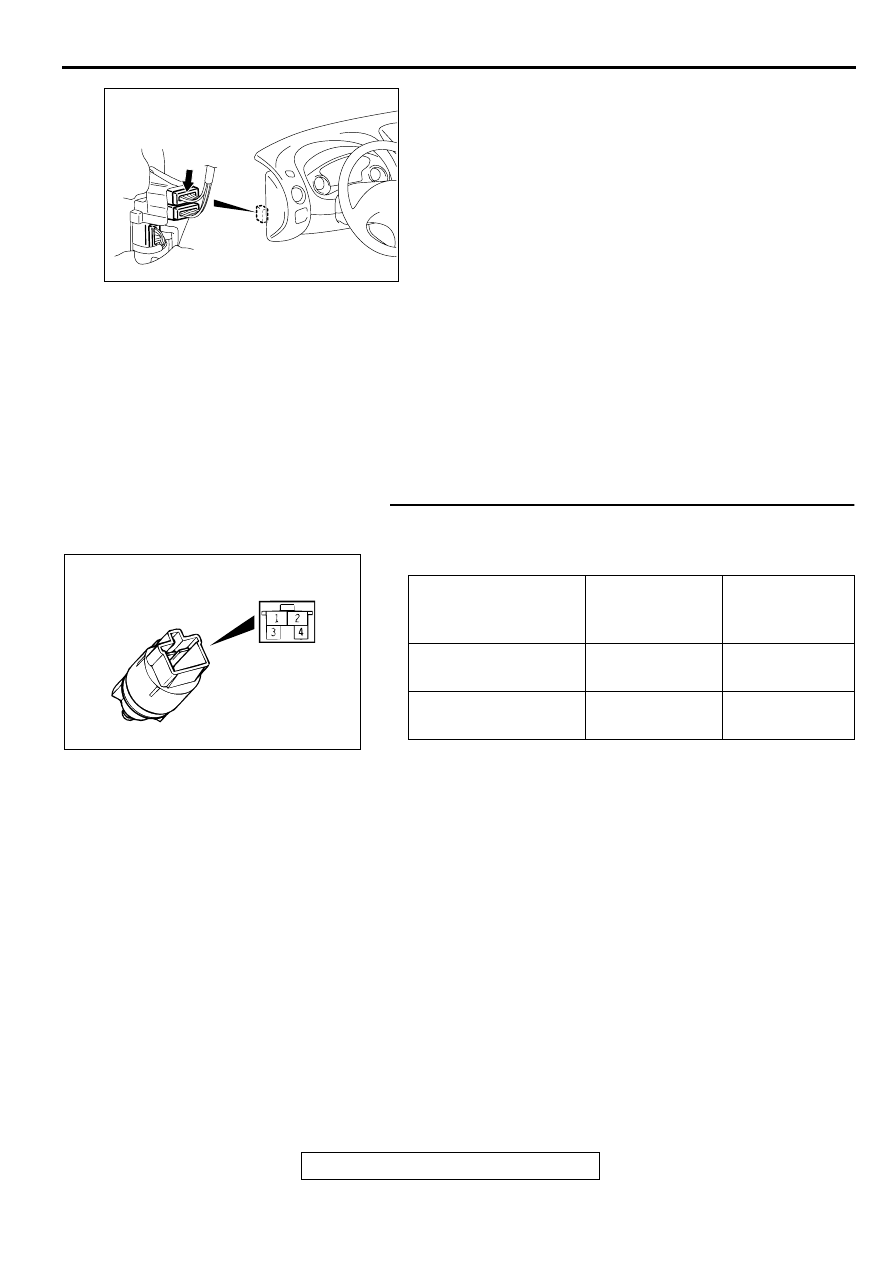

TECHNICAL DESCRIPTION (COMMENT)
The cause is probably a malfunction of the clutch
pedal position switch circuit.

TROUBLESHOOTING HINTS

Malfunction of the clutch pedal position switch.

Damaged harness or connector.

Malfunction of the auto-cruise control-ECU.

DIAGNOSIS

STEP 1. Check the clutch pedal position switch.
1.Disconnect clutch pedal position switch connector C-01.
2.Measure the continuity between the terminals.

Q: Is the continuity meet the table above?

YES : Go to Step 2.
NO :  Replace the clutch pedal position switch.

Refer to GROUP 23A, Transmission

P.21A-10

Then check that the malfunction is eliminated.

AC001991AM

CONNECTOR: C-89

CONNECTOR
BLOCK (LH)

MEASUREMENT
CONDITIONS

TERMINAL
CONNECTOR
OF TESTER

SPECIFIED
CONDITION

When clutch pedal is
depressed.

 2

Continuity

When clutch pedal is
not depressed.

 2

No continuity

AC001492
