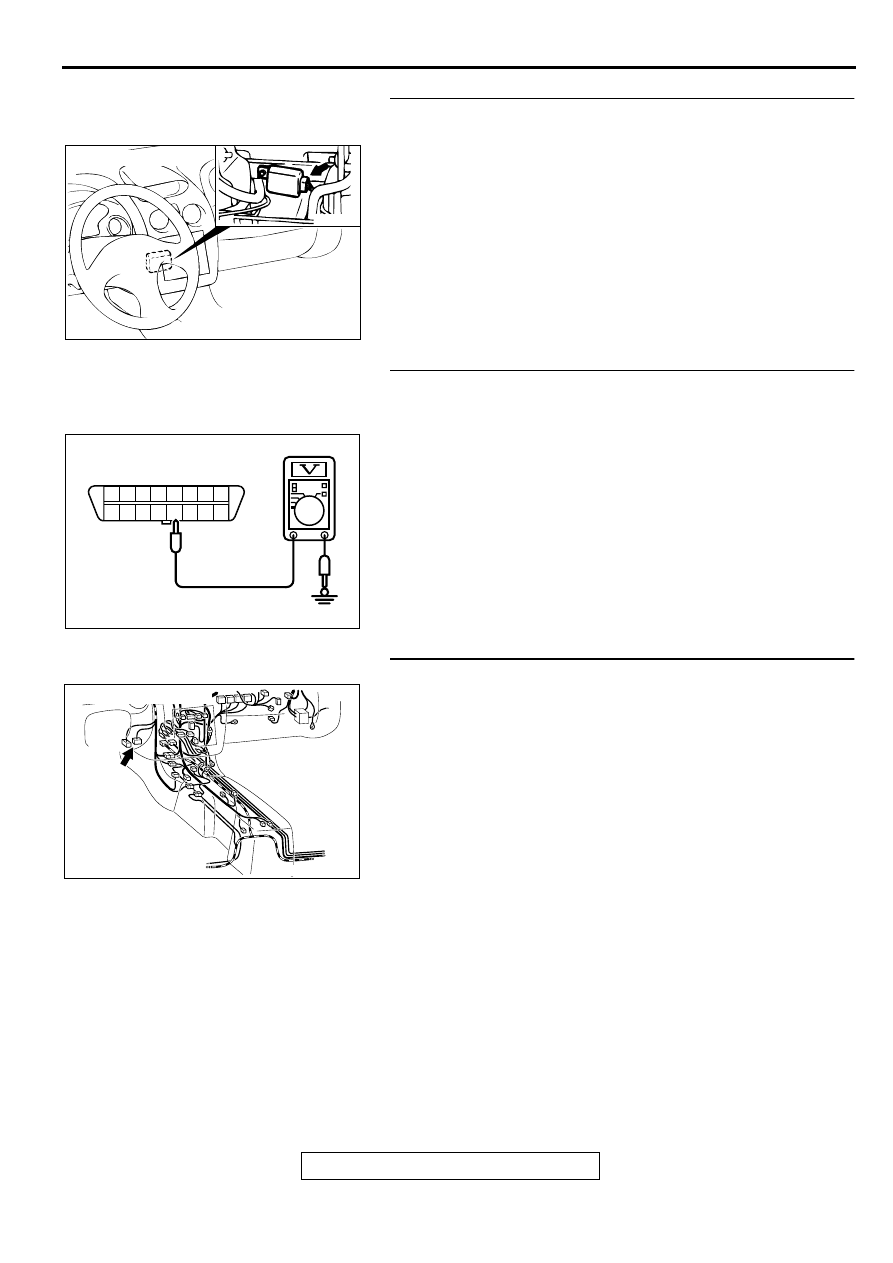

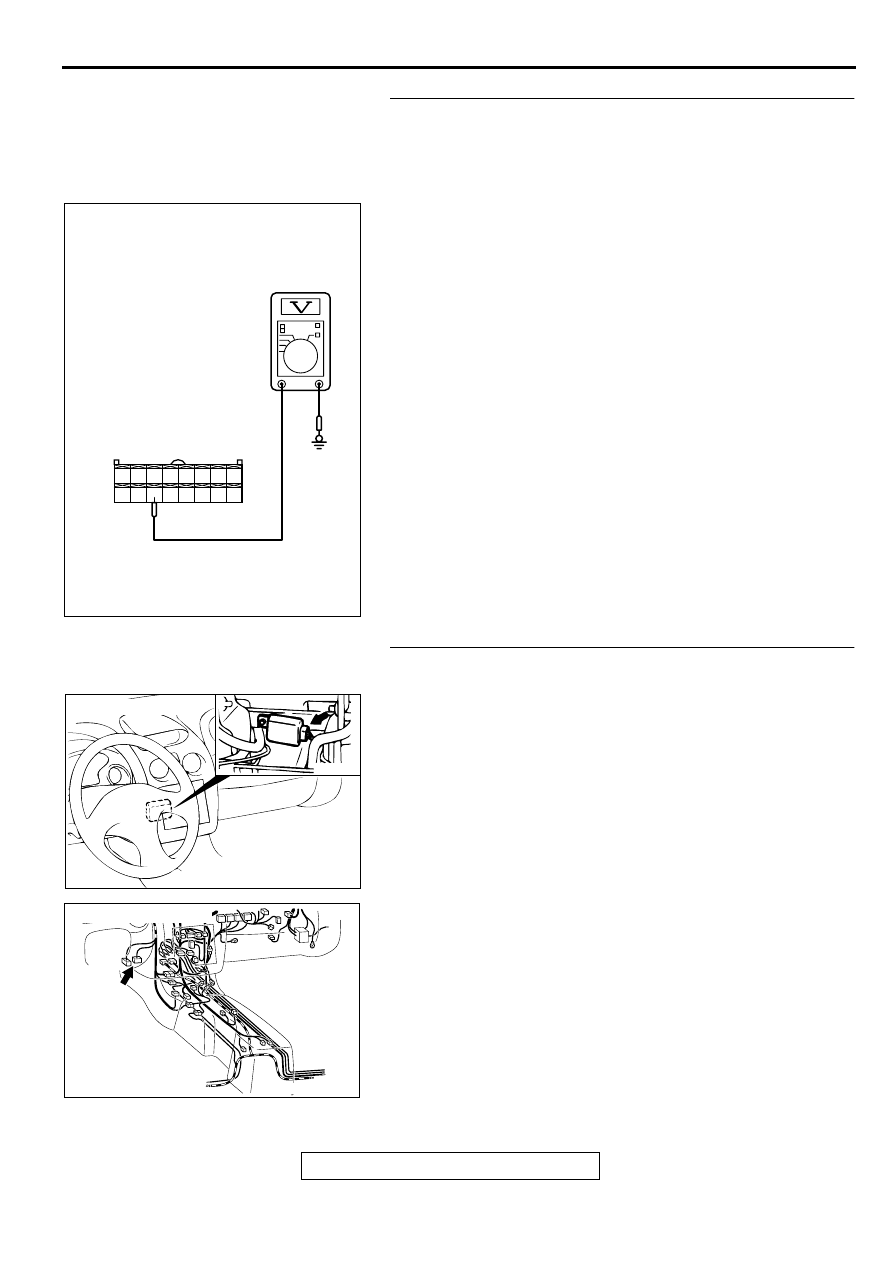

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-43

STEP 7. Check the harness wire between auto-cruise
control-ECU connector C-20 and ground.
Q: Is any harness wire between auto-cruise control-ECU

connector C-20 and ground damaged?
YES :
Repair the harness wire and then check that the

malfunction is eliminated.

NO :  Check that the malfunction is eliminated.

If the malfunction is eliminated, replace the auto-
cruise control-ECU. (Refer to

P.17-81

.)

Then check that the malfunction is eliminated.

STEP 8. Check the output circuit voltage at data link
connector C-29.
(1) Turn the ignition switch to "ON" position.
(2) Measure the voltage between terminal 13 and ground.
(3) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the voltage approximately 4 volts or more?

YES : Check that the malfunction is eliminated.

If the malfunction is eliminated, replace the auto-
cruise control-ECU. (Refer to

P.17-81

.)

Then check that the malfunction is eliminated.

NO :  Go to Step 9.

STEP 9. Check data link connector C-29.
Q: Is the connector damaged?

YES : Repair or replace connector.

Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

Then check that the malfunction is eliminated.

NO :  Go to Step 10.

AC001451

CONNECTOR: C-20

AB

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

ACX01921AE

DATA LINK
CONNECTOR: C-29

AC003599 AC

CONNECTOR: C-29

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-44

STEP10. Check the output circuit voltage at auto-cruise
control-ECU connector C-20 by backprobing.
(1) Do not disconnect auto-cruise control switch connector C-

20.

(2) Turn the ignition switch to "ON" position.
(3) Measure the voltage between terminal 11 and ground by

backprobing.

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the voltage approximately 4 volts or more?

YES : Go to Step 11.
NO :  Go to Step 12.

STEP 11. Check the harness wire between auto-cruise
control-ECU connector C-20 and data link connector C-29.
Q: Is any harness wire between auto-cruise control-ECU

connector C-20 and data link connector C-29 damaged?
YES :
Repair the harness wire and then check that the

malfunction is eliminated.

NO :  Check that the malfunction is eliminated.

If the malfunction is eliminated, replace the auto-
cruise control-ECU. (Refer to

P.17-81

.)

Then check that the malfunction is eliminated.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

ACX01904

C-20 CONNECTOR
HARNESS SIDE VIEW

AE

AC001451

CONNECTOR: C-20

AB

AC003599 AC

CONNECTOR: C-29

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-45

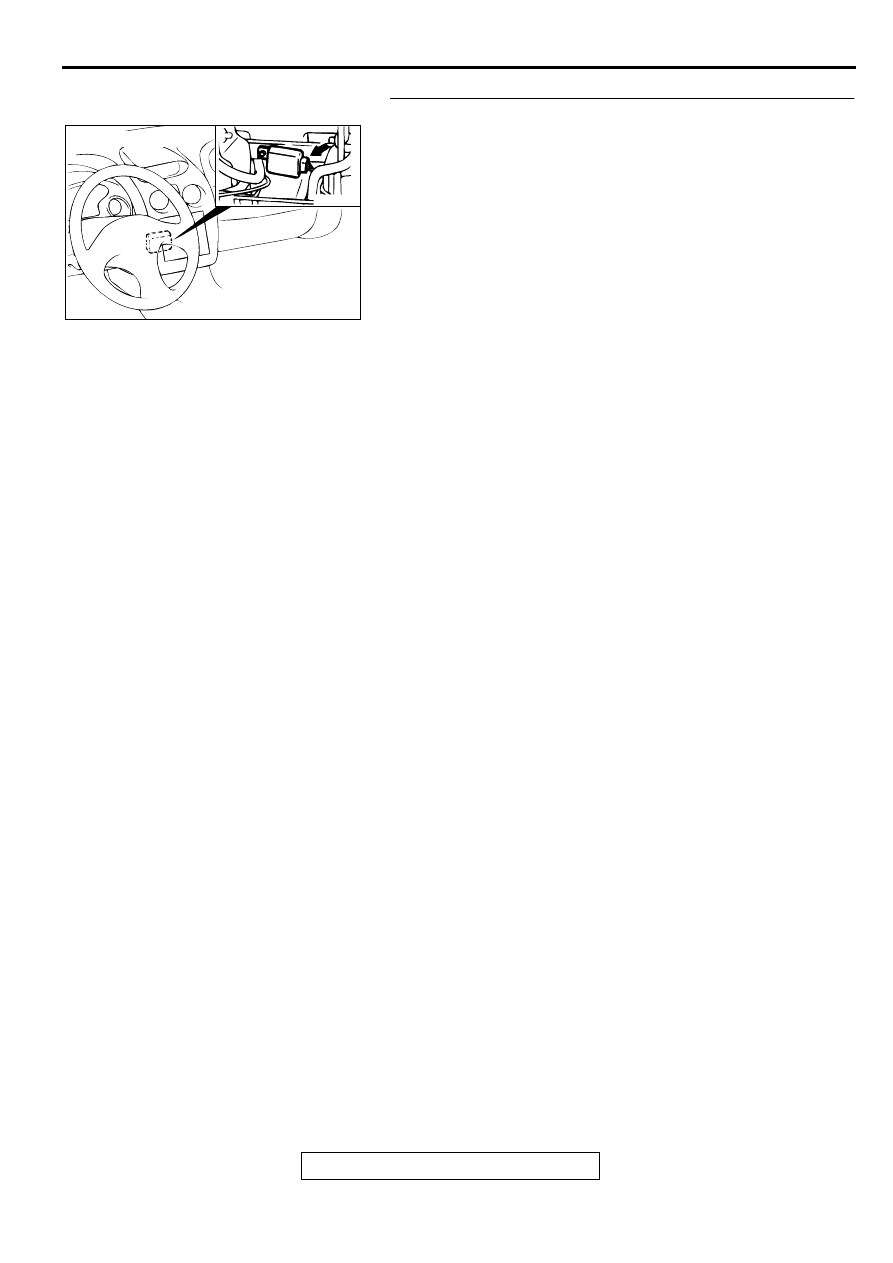

STEP 12. Check auto-cruise control-ECU connector C-20.
Q: Is the connector damaged?

YES : Repair or replace connector.

Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

Then check that the malfunction is eliminated.

NO :  Check that the malfunction is eliminated.

If the malfunction is eliminated, replace the auto-
cruise control-ECU. (Refer to

P.17-81

.)

Then check that the malfunction is eliminated.

AC001451

CONNECTOR: C-20

AB

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-46

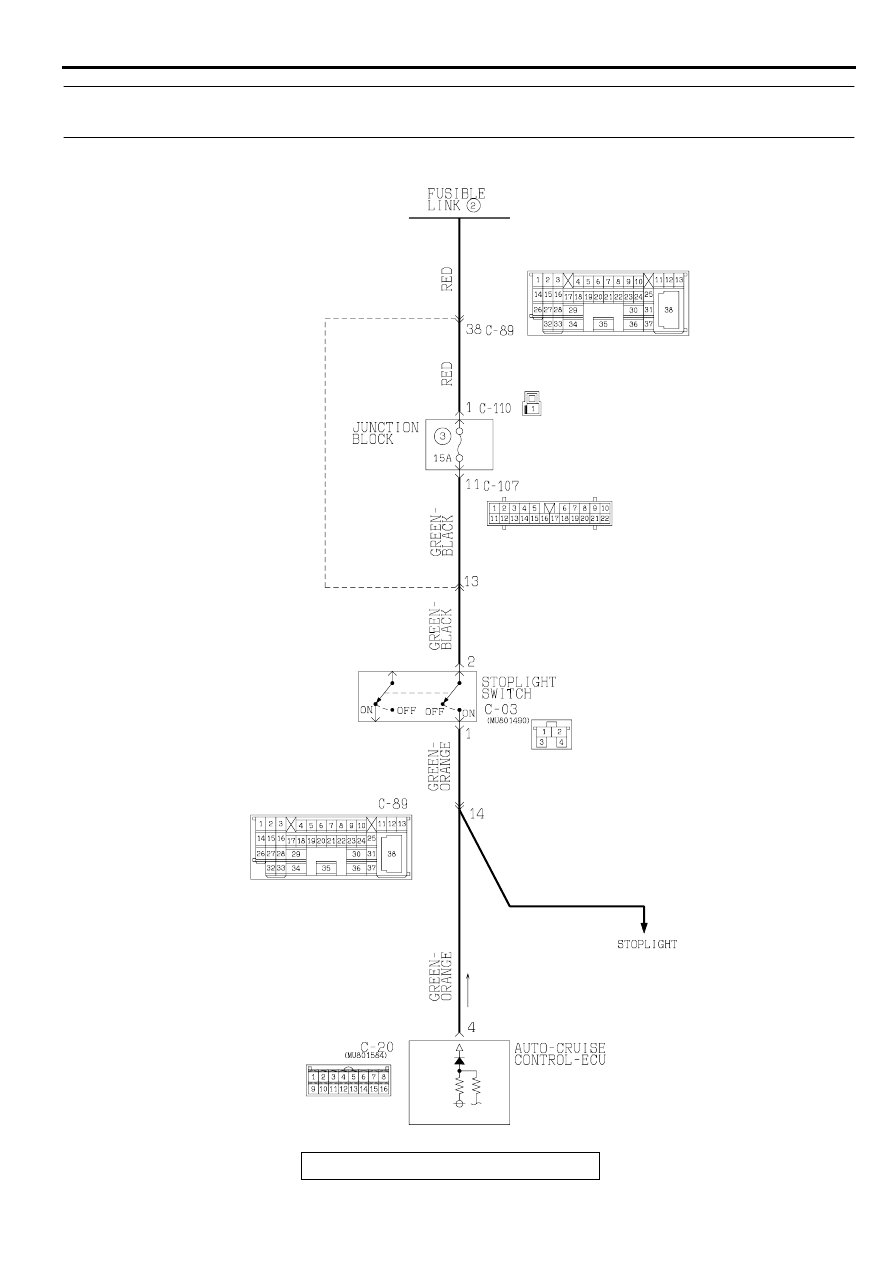

INSPECTION PROCEDURE 2: When the Brake Pedal is Depressed, Auto-cruise Control is not
Cancelled.

AC005114AB

Stoplight Switch Circuit
