AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-55

STEP 2. Check the output circuit voltage at auto-cruise
control-ECU connector C-20 by backprobing.
(1) Do not disconnect auto-cruise control switch connector C-

20.

(2) Turn the ignition switch to "ON" position.
(3) Measure the voltage between terminal 13 and ground by

backprobing.

Voltage should be 0.5 volts or less.
 (When clutch pedal is depressed.)

Voltage should be battery positive voltage.
 (When clutch pedal is not depressed.)

Q: Is the voltage within specifications?

YES : Check that the malfunction is eliminated.

If the malfunction is eliminated, replace the auto-
cruise control-ECU. (Refer to

P.17-81

.)

Then check that the malfunction is eliminated.

NO :  Go to Step 3.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

ACX01906

C-20 CONNECTOR
HARNESS SIDE VIEW

AF

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-56

STEP 3. Check clutch pedal position switch connector C-
01 and auto-cruise control-ECU connector C-20 and
intermediate connector C-89.
Q: Is any connector damaged?

YES : Repair or replace connector.

Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

Then check that the malfunction is eliminated.

NO :  Go to Step 4.

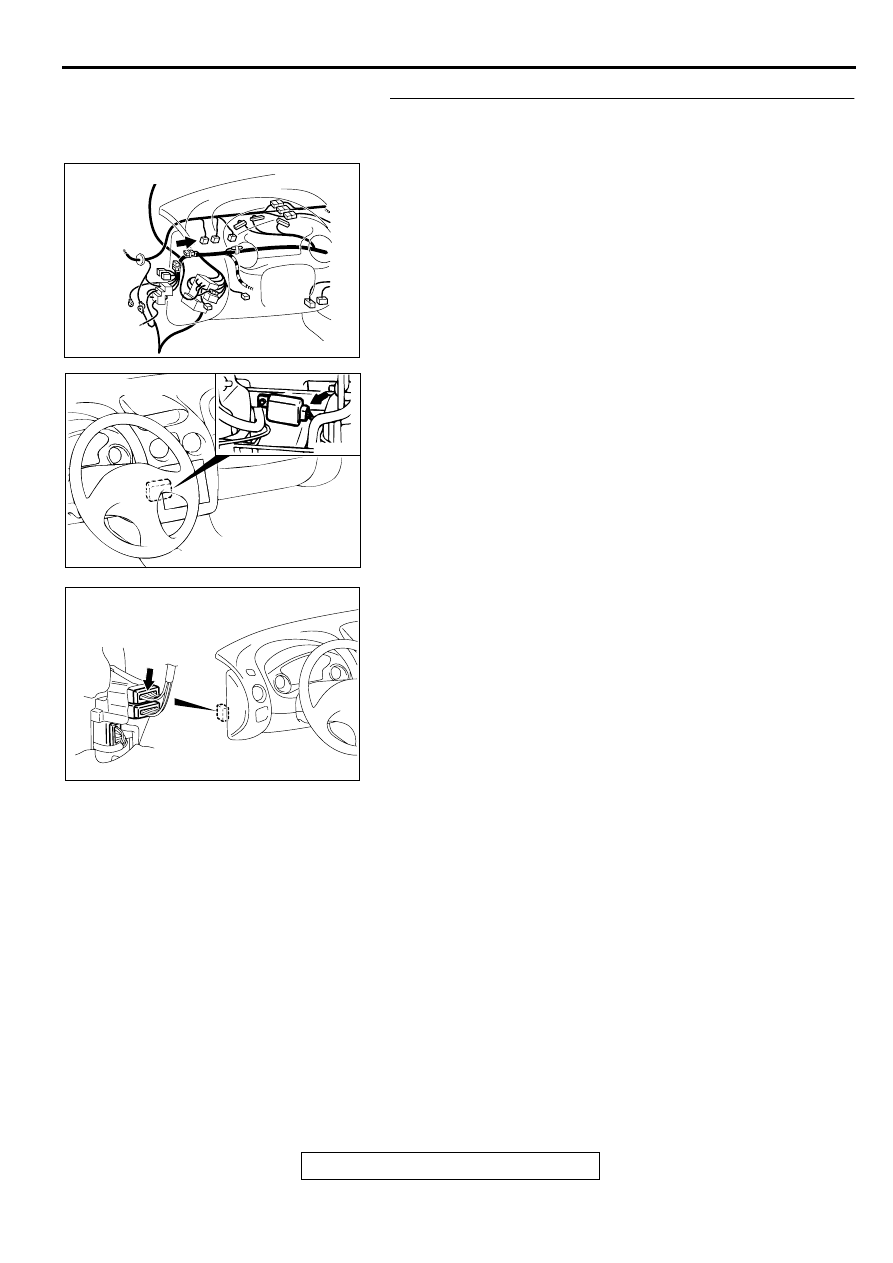

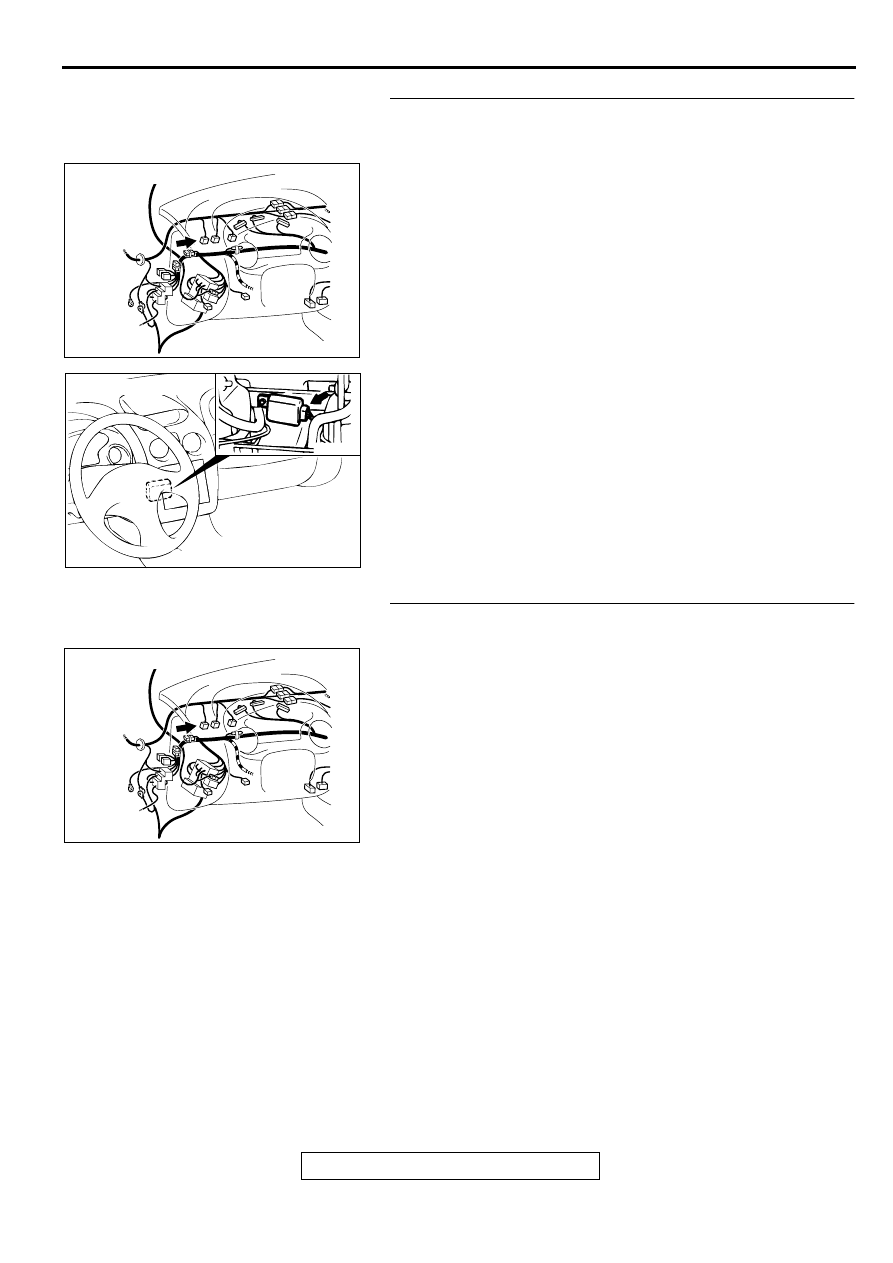

AC003553 AL

CONNECTOR: C-01

AC001451

CONNECTOR: C-20

AB

AC001991AM

CONNECTOR: C-89

CONNECTOR
BLOCK (LH)

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-57

STEP 4. Check the harness wire between clutch pedal
position switch connector C-01 and auto-cruise control-
ECU connector C-20.
Q: Is any harness wire between clutch pedal position

switch connector C-01 and auto-cruise control-ECU
connector C-20 damaged?
YES :
Repair the harness wire and then check that the

malfunction is eliminated.

NO :  Go to Step 5.

STEP 5. Check the harness wire between clutch pedal
position switch connector C-01 and ground wire.
Q: Is any harness wire between clutch pedal position

switch connector C-01 and ground wire damaged?
YES :
Repair the harness wire and then check that the

malfunction is eliminated.

NO :  Check that the malfunction is eliminated.

If the malfunction is eliminated, replace the auto-
cruise control-ECU. (Refer to

P.17-81

.)

Then check that the malfunction is eliminated.

AC003553 AL

CONNECTOR: C-01

AC001451

CONNECTOR: C-20

AB

AC003553 AL

CONNECTOR: C-01

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-58

INSPECTION PROCEDURE 4: When the Selector Lever is Moved to "N" Range, Auto-cruise Control is
not Cancelled.

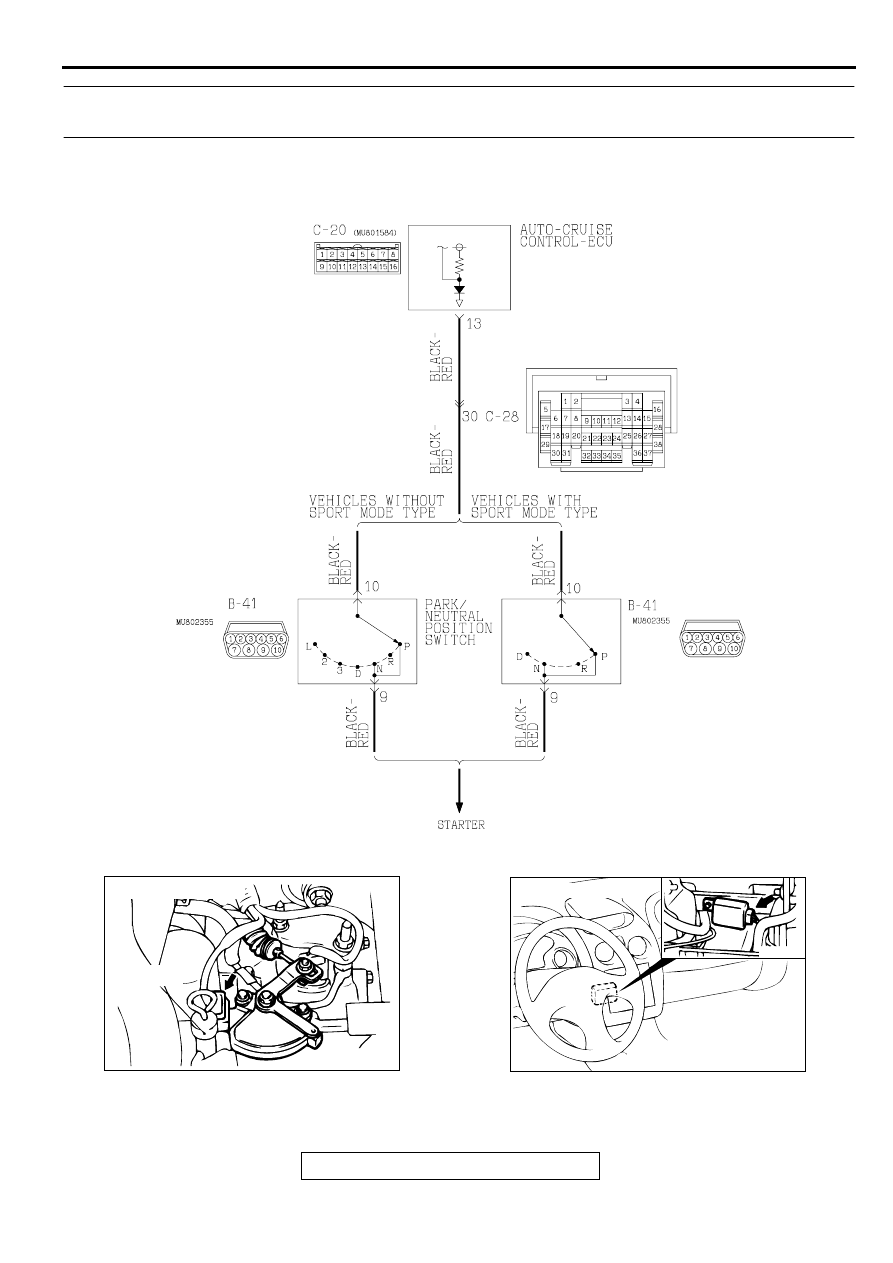

AC005116AB

Park/neutral Position Switch Circuit

AC001482

CONNECTOR: B-41

DIPSTICK

AB

AC001451

CONNECTOR: C-20

AB
