AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-31

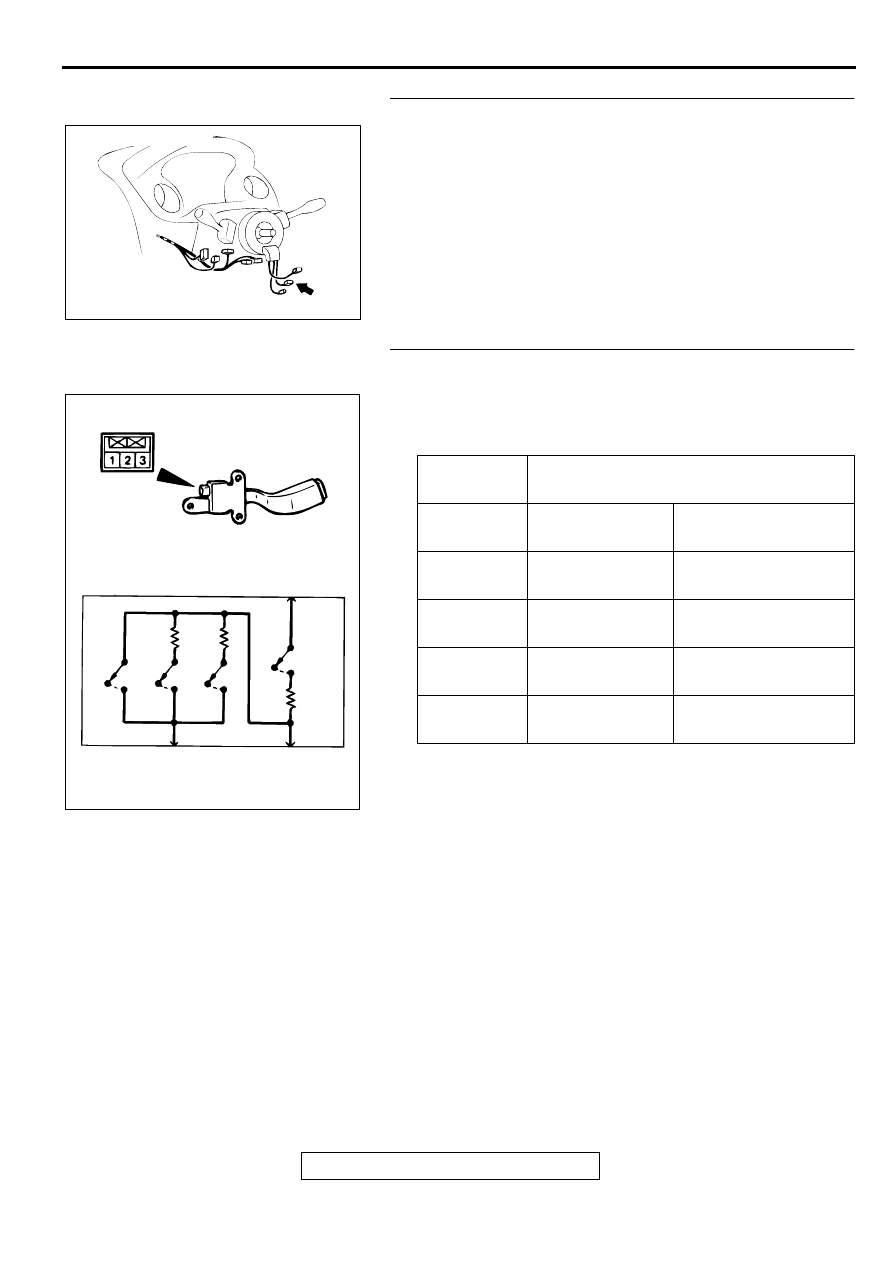

STEP 6. Check auto-cruise control switch connector C-82.
Q: Is the connector damaged?

YES : Repair or replace connector.

Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then check that diagnostic trouble code 15 is not
output.

NO :  Go to Step 7.

STEP 7. Check the auto-cruise control switch.
(1) Disconnect auto-cruise control switch.
(2) Measure the resistance between the terminals when each

of the "SET", "RESUME", "CANCEL" and MAIN switch is
pressed.

Q: Is the values measured correspond to those in the table

below?
YES :
Check that diagnostic trouble code 15 is not output.

If diagnostic trouble code 15 is output, replace the
auto-cruise control-ECU. (Refer to

P.17-81

.)

Then check that diagnostic trouble code 15 is not
output.

NO :  Replace the auto-cruise control switch. (Refer to

P.17-81

.)

Then check that diagnostic trouble code 15 is not
output.

AC001468

CONNECTOR: C-82

AB

SWITCH
POSITION

RESISTANCE BETWEEN TERMINALS

MAIN switch
"OFF"

Terminal 1 and 2

Less than 2 ohm

MAIN switch
"ON"

Terminal 1 and 2

Approximately 3.9 k

Ω

"CANCEL"
switch "ON"

Terminal 2 and 3

Approximately 0

Ω

"RESUME"
switch "ON"

Terminal 2 and 3

Approximately 910

Ω

"SET" switch
"ON"

Terminal 2 and 3

Approximately 220

Ω

ACX01178 AB

OFF

OFF

OFF

OFF

ON

ON

ON

ON

CAN

MAIN

RES

SET

1

2

3

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-32

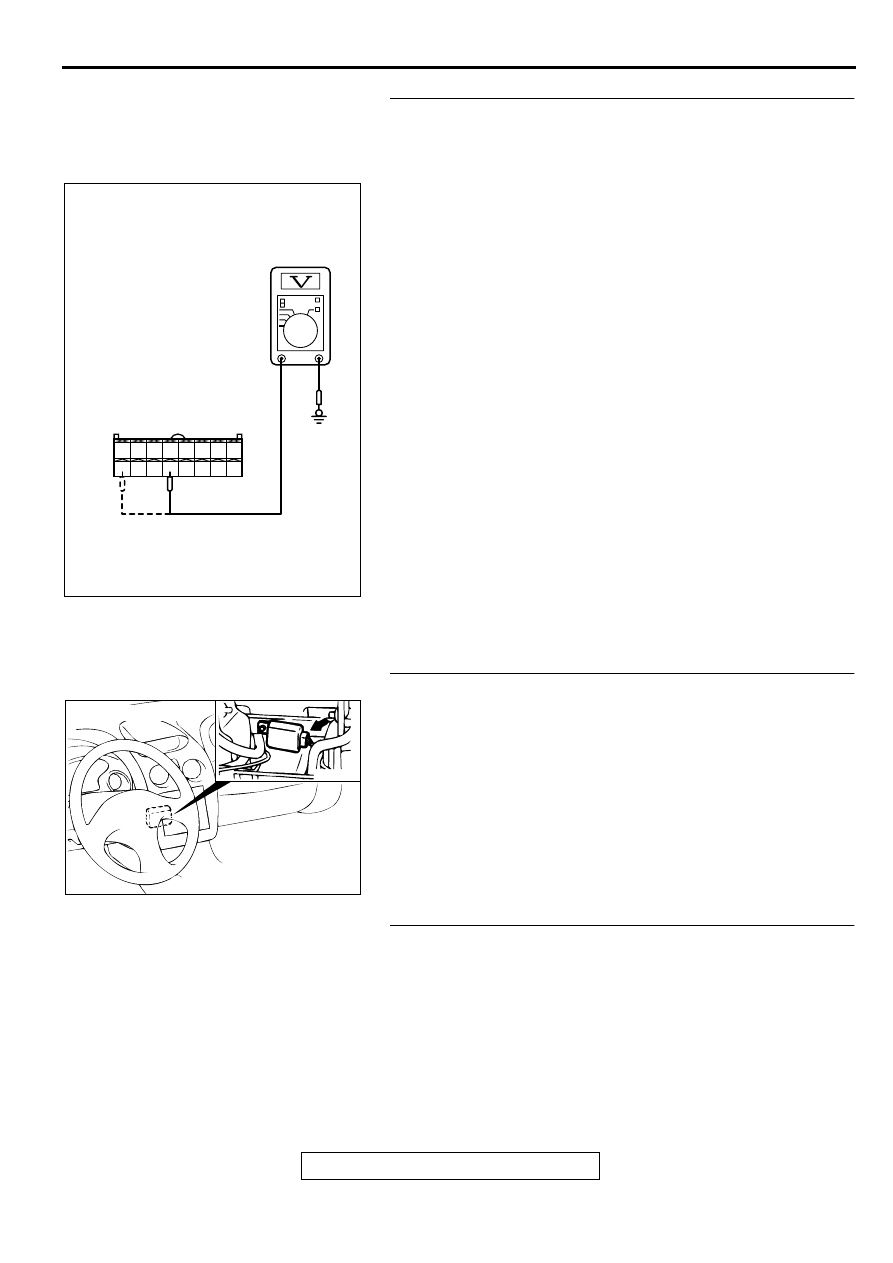

STEP 8. Check the output circuit voltage at auto-cruise
control-ECU connector C-20 by backprobing.
(1) Do not disconnect auto-cruise control-ECU connector C-20.
(2) Turn the ignition switch to "ON" position.
(3) Measure the voltage between terminal 12 and ground by

backprobing.

•

Voltage should be battery positive voltage.
 (The MAIN switch is at the "ON" position.)

(4) Measure the voltage between terminal 9 and ground by

backprobing.

•

Voltage should be between 6.8 and 7.2 volts.
 (MAIN switch is at the "ON" position.)

•

Voltage should be between 3.5 and 5.0 volts.
 (All switches are at the "OFF" position.)

•

Voltage should be between 0.4 and 2.3 volts.
 ("SET" switch is at the "ON" position.)

•

Voltage should be between 2.3 and 3.5 volts.
 ("RESUME" switch is at the "ON" position.)

•

Voltage should be between 1 volt or less.
 ("CANCEL" switch is at the "ON" position.)

(5) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the voltage within specifications?

YES : Check that diagnostic trouble code 15 is not output.

If diagnostic trouble code 15 is output, replace the
auto-cruise control-ECU. (Refer to

P.17-81

.)

Then check that diagnostic trouble code 15 is not
output.

NO :  Go to Step 9.

STEP 9. Check auto-cruise control-ECU connector C-20.
Q: Is the connector damaged?

YES : Repair or replace connector.

Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then check that diagnostic trouble code 15 is not
output.

NO :  Go to Step 10.

STEP 10. Check the clock spring.
Refer to GROUP 52B, Air Bag Modules and Clock Spring

P.52B-69

.

Q: Is the clock spring damaged?

YES : Replace the clock spring.

Refer to GROUP 52B, Air Bag Modules and Clock
Spring

P.52B-69

.

Then check that diagnostic trouble code 15 is not
output.

NO :  Go to Step 11.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

ACX01900AE

C-20 CONNECTOR
HARNESS SIDE VIEW

AC001451

CONNECTOR: C-20

AB

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-33

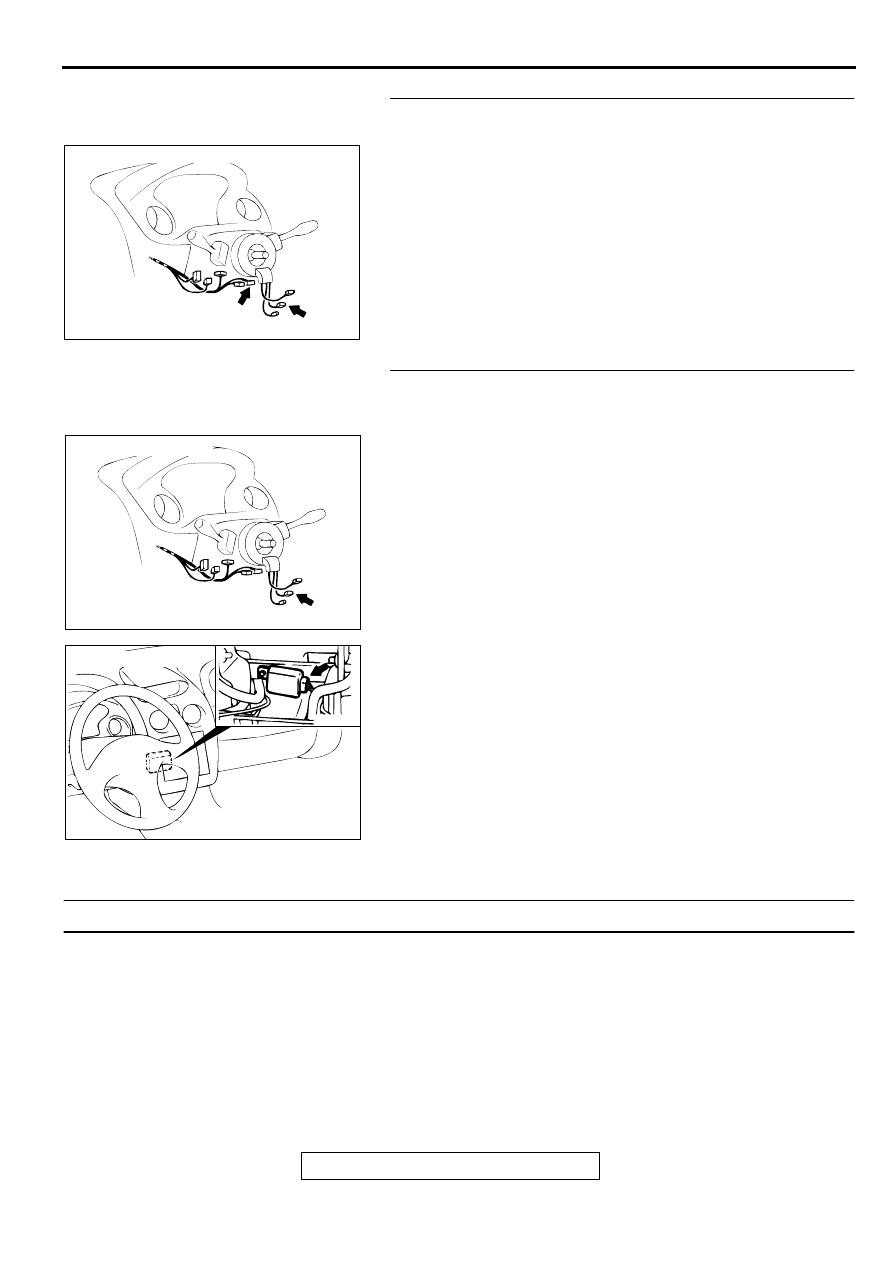

STEP 11. Check auto-cruise control switch connector C-
82, clock spring connector C-84.
Q: Is any connector damaged?

YES : Repair or replace connector.

Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then check that diagnostic trouble code 15 is not
output.

NO :  Go to Step 12.

STEP 12. Check the harness wire between auto-cruise
control switch connector C-82 and auto-cruise control-
ECU connector C-20.
Q: Is any harness wire between auto-cruise control switch

connector C-82 and auto-cruise control-ECU connector
C-20 damaged?
YES :
Repair harness wire and then check that diagnostic

trouble code 15 is not output.

NO :  Check that diagnostic trouble code 15 is not output.

If diagnostic trouble code 15 is output, replace the
auto-cruise control-ECU. (Refer to

P.17-81

.)

 Then check that diagnostic trouble code 15 is not
output.

DTC 16: Auto-cruise Control-ECU

DTC SET CONDITIONS
This code is output when a problem is found on the
cancel status hold circuit or microcomputer operation
monitor circuit, which is incorporated in the auto-
cruise control-ECU.

TROUBLESHOOTING HINTS
Malfunction of the auto-cruise control-ECU.

DIAGNOSIS
Replace the auto-cruise control-ECU. (Refer to

P.17-81

.)

Check that diagnostic trouble code 16 is not output.

AC001467

CONNECTORS: C-82, C-84

C-84

C-82

AB

AC001468

CONNECTOR: C-82

AB

AC001451

CONNECTOR: C-20

AB

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-34

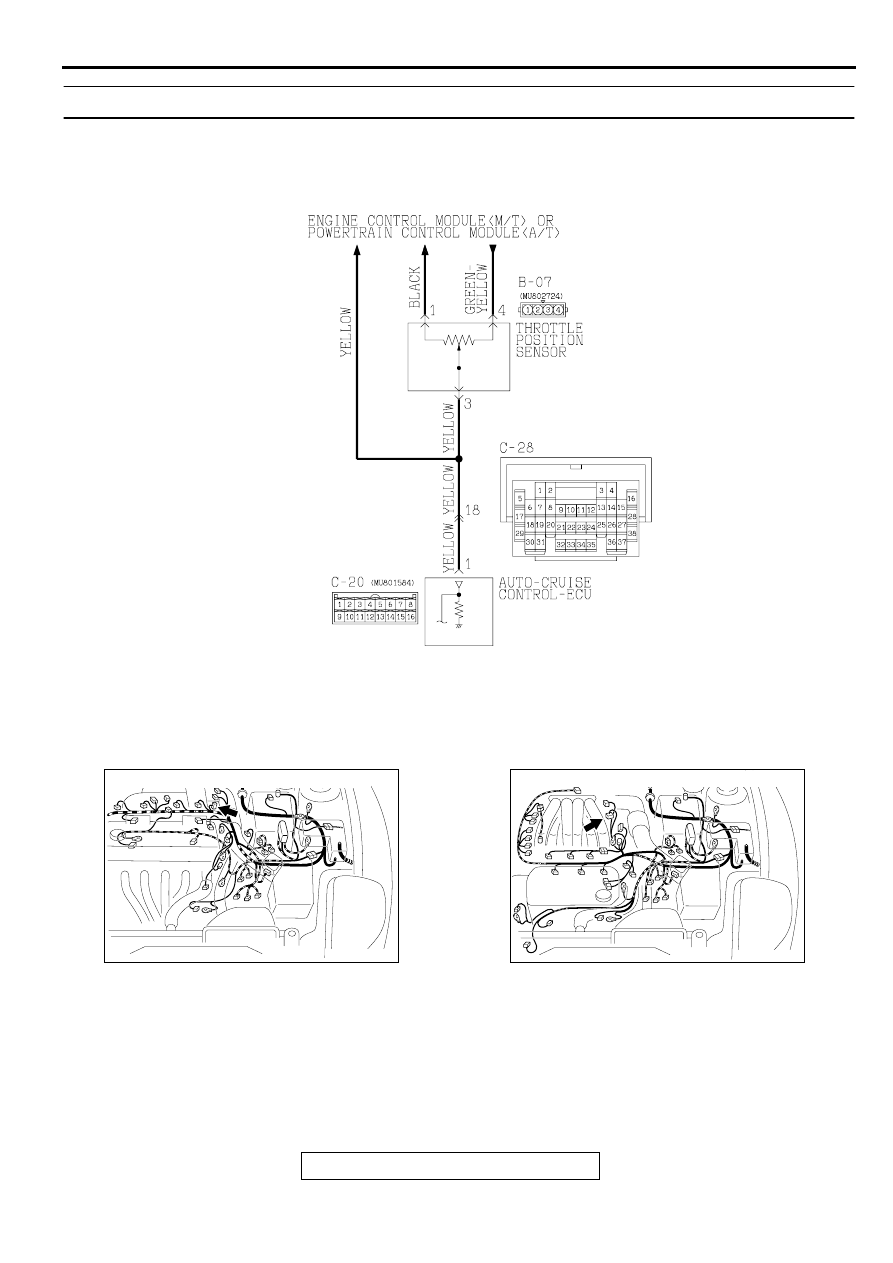

DTC 17: Throttle Position Sensor System

AC005112 AB

Throttle Position Sensor System Circuit

AC005105

CONNECTOR: B-07 <2.4L ENGINE>

AB

AC005106

CONNECTOR: B-07 <3.0L ENGINE>

AB
