IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-49

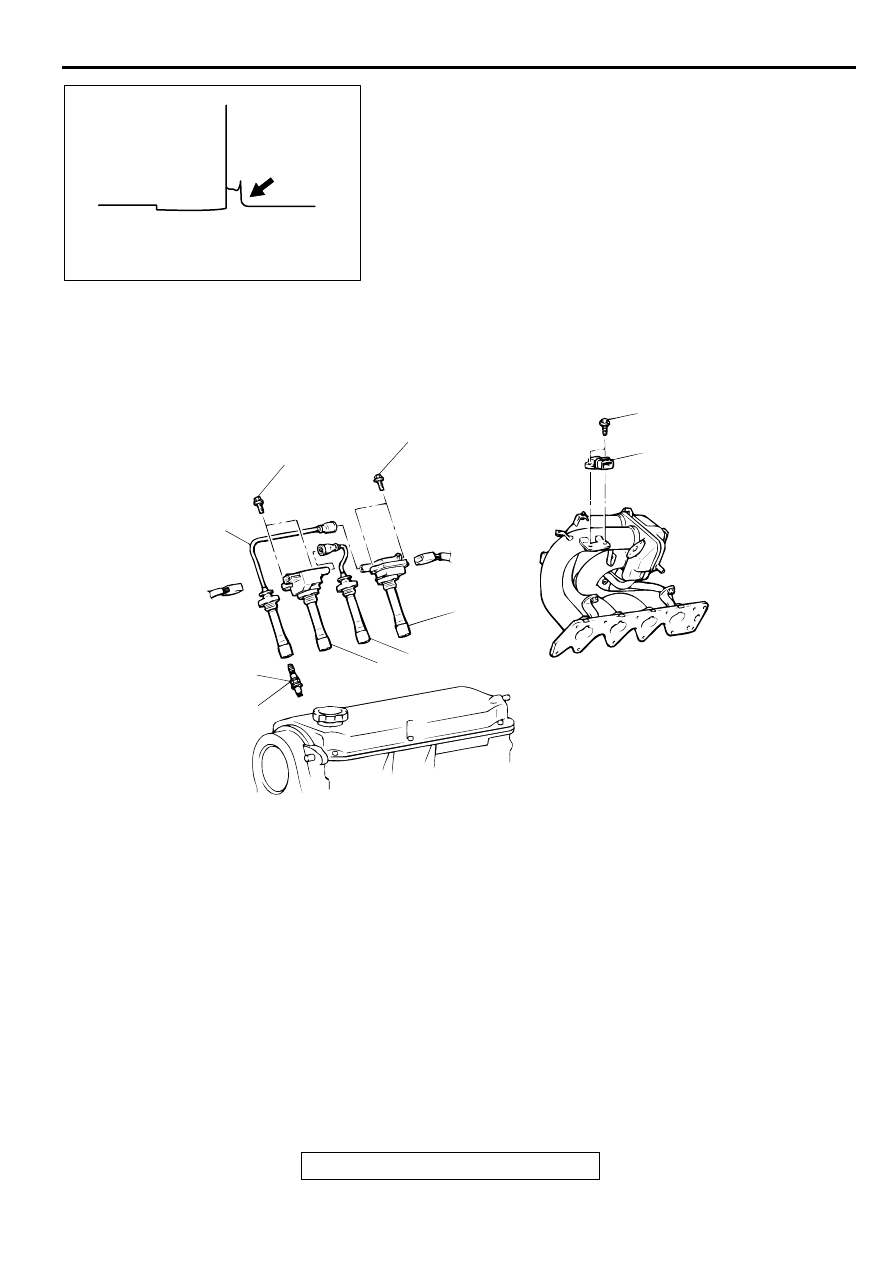

Example 5

•

Wave characteristics
No waves in wave damping section

•

Cause of problem
Layer short in ignition coil.

IGNITION COIL

REMOVAL AND INSTALLATION <2.4L ENGINE>

M1163004000051

AKX00292

AC000288

1

2

3

1

2

4

9.8 ± 2.0 N·m
87 ± 17 in-lb

9.8 ± 2.0 N·m
87 ± 17 in-lb

4.9 ± 1.0 N·m
44 ± 8 in-lb

25 ± 4 N·m
18 ± 4 ft-lb

AB

REMOVAL STEPS

1.

SPARK PLUG CABLE

2.

IGNITION COIL ASSEMBLY

3.

SPARK PLUG

4.

IGNITION FAILURE SENSOR
ASSEMBLY

REMOVAL STEPS (Continued)

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-50

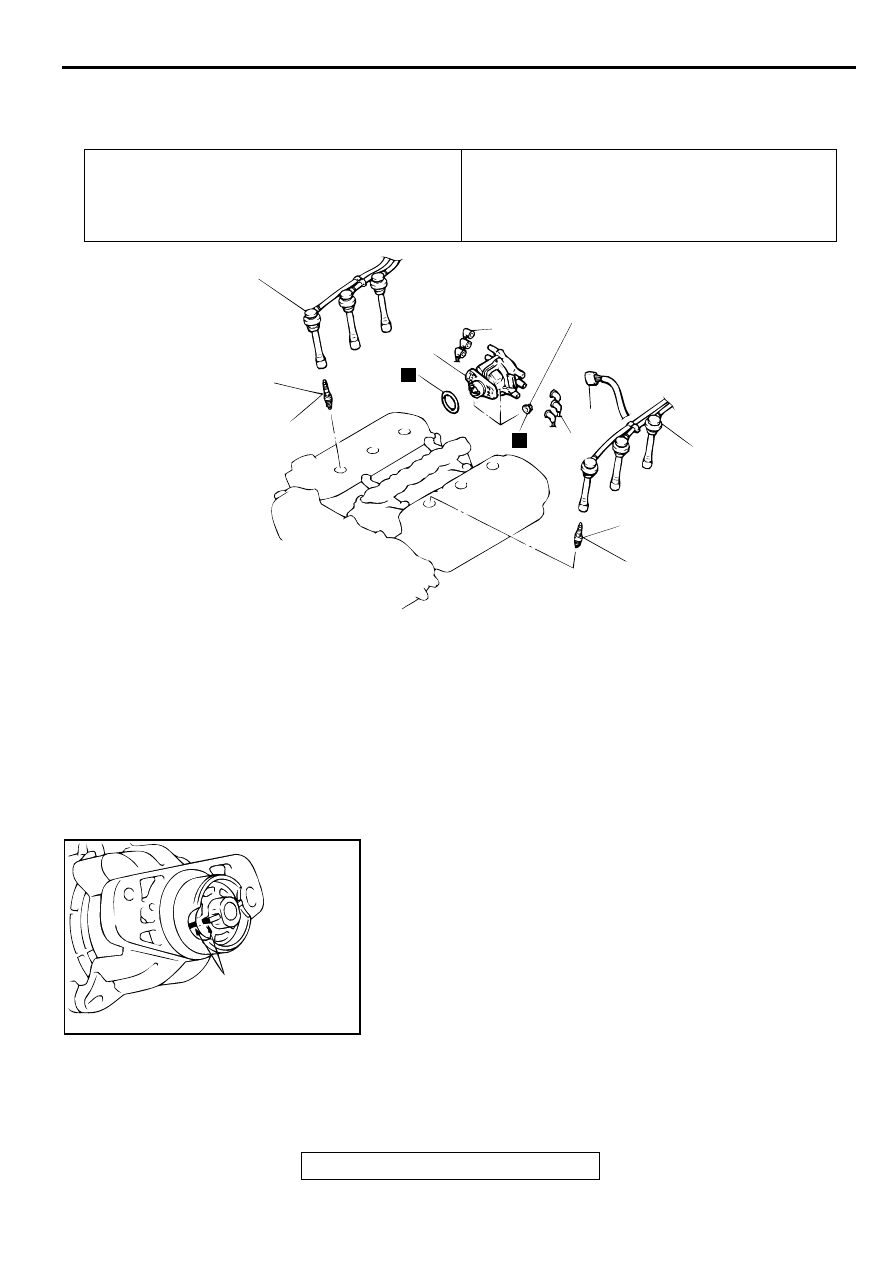

DISTRIBUTOR ASSEMBLY

REMOVAL AND INSTALLATION <3.0L ENGINE>

M1163002000066

INSTALLATION SERVICE POINT

>>A<< DISTRIBUTOR INSTALLATION
1. Set the number 1 cylinder to top dead compression center.

2. Align the mating marks on the distributor housing and

coupling, and then install the distributor to the engine.

3. Check that the ignition timing is at the standard value. (Refer

to GROUP 11C, On-vehicle - Ignition Timing Check

P.11C-

6

.)

Pre-removal Operation

•

Air Cleaner Removal (Refer to GROUP 15

−

 Air Cleaner

P.15-5

.)

Post-installation Operation

•

Air Cleaner Installation (Refer to GROUP15

−

 Air Cleaner

P.15-5

.)

•

Ignition Timing Check (Refer to GROUP 11C, On-vehicle
Service

−

 Ignition Timing Check

P.11C-6

.)

AC000289 AB

1

2

4

5

2

3

4

5

13 ± 2 N·m
109 ± 21 in-lb

25 ± 4 N·m
18 ± 4 ft-lb

25 ± 4 N·m
18 ± 4 ft-lb

N

N

REMOVAL STEPS

1.

DISTRIBUTOR CONNECTOR

2.

SPARK PLUG CABLE
CONNECTION

>>A<<

3.

DISTRIBUTOR

•

INTAKE MANIFOLD PLENUM
(REFER TO GROUP 15

−

 INTAKE

MANIFOLD PLENUM

P.15-6

.)

4.

SPARK PLUG CABLE

5

.

SPARK PLUG

REMOVAL STEPS (Continued)

AC000290 AB

MATING
MARKS

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-51

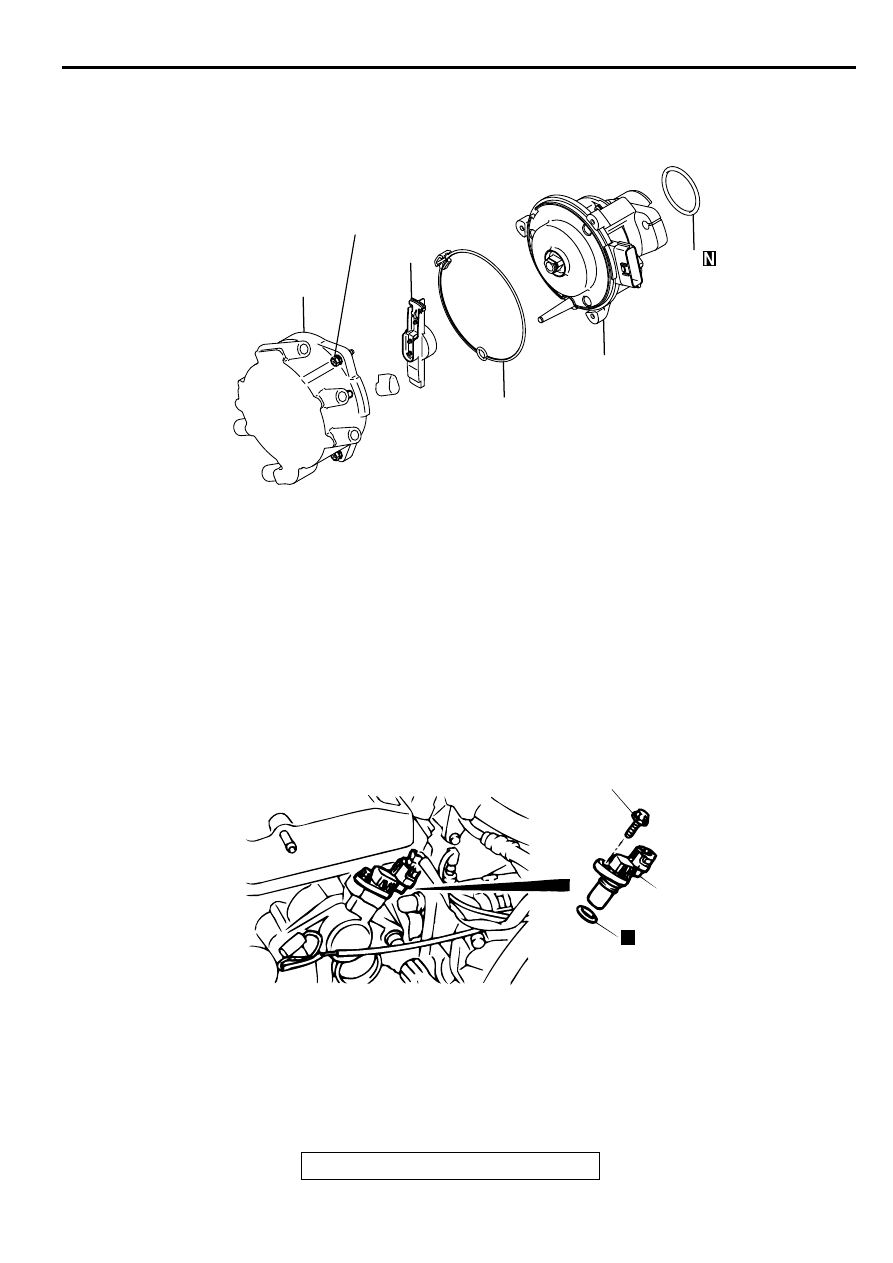

DISASSEMBLY AND ASSEMBLY

M1163002200059

CAMSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION <2.4L ENGINE>

M1163003400090

AK000203AC

1

2

3

4

5

2.3 ±0.7  N·m
20 ± 6 in-lb

DISASSEMBLY STEPS

1.

DISTRIBUTOR CAP

2.

ROTOR

3.

PACKING

4.

DISTRIBUTOR HOUSING

5

.

O-RING

DISASSEMBLY STEPS

AC000291

CAMSHAFT POSITION
SENSOR

8.8 ± 1.0 N·m
78 ± 9 in-lb

N

AB

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-52

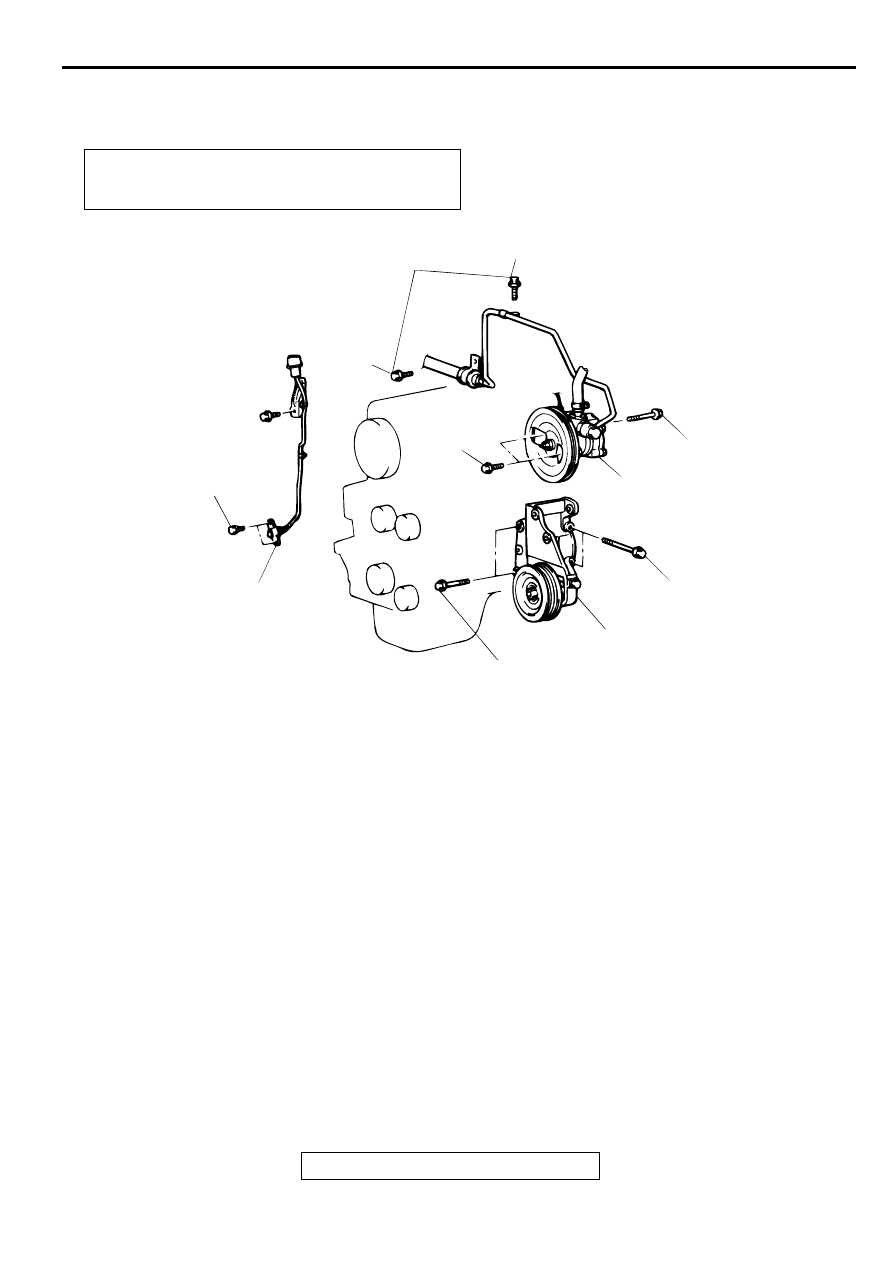

CRANKSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION <2.4L ENGINE>

M1163003500105

Pre-removal and Post-installation Operation

•

Timing Belt Removal and Installation (Refer to GROUP
11A, Timing Belt

P.11A-31

.)

AC000292

1

1

2

3

4

12 ± 2 N·m
100 ± 22 in-lb

8.8 ± 1.0 N·m
78 ± 9 in-lb

29 ± 4 N·m
21 ± 4 ft-lb

29 ± 4 N·m
21 ± 4 ft-lb

49 ± 10 N·m
36 ± 7 ft-lb

49 ± 10 N·m
36 ± 7 ft-lb

AB

REMOVAL STEPS

1.

PRESSURE HOSE AND TUBE
ASSEMBLY CONNECTION

2.

POWER STEERING OIL PUMP
ASSEMBLY

3.

POWER STEERING OIL PUMP
BRACKET

4.

CRANKSHAFT POSITION
SENSOR

REMOVAL STEPS (Continued)
