IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-53

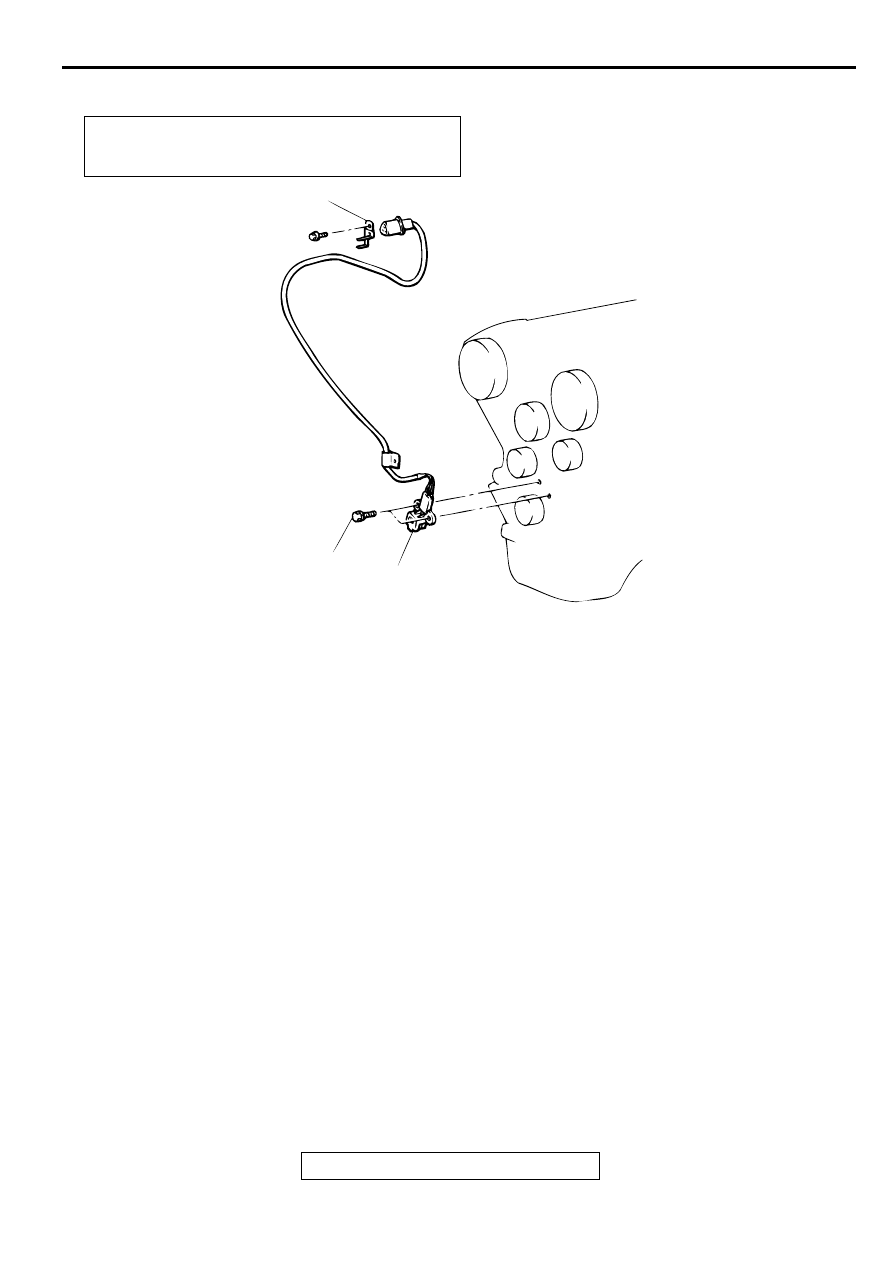

REMOVAL AND INSTALLATION <3.0L ENGINE>

M1163003500116

Pre-removal and Post-installation Operation

•

Timing Belt Removal and Installation (Refer to
GROUP11C, Timing Belt

P.11C-32

.)

AC000293

1

2

8.8 ± 1.0 N·m
78 ± 9 in-lb

AB

REMOVAL STEPS

1.

CLIP

2.

CRANKSHAFT POSITION
SENSOR

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-54

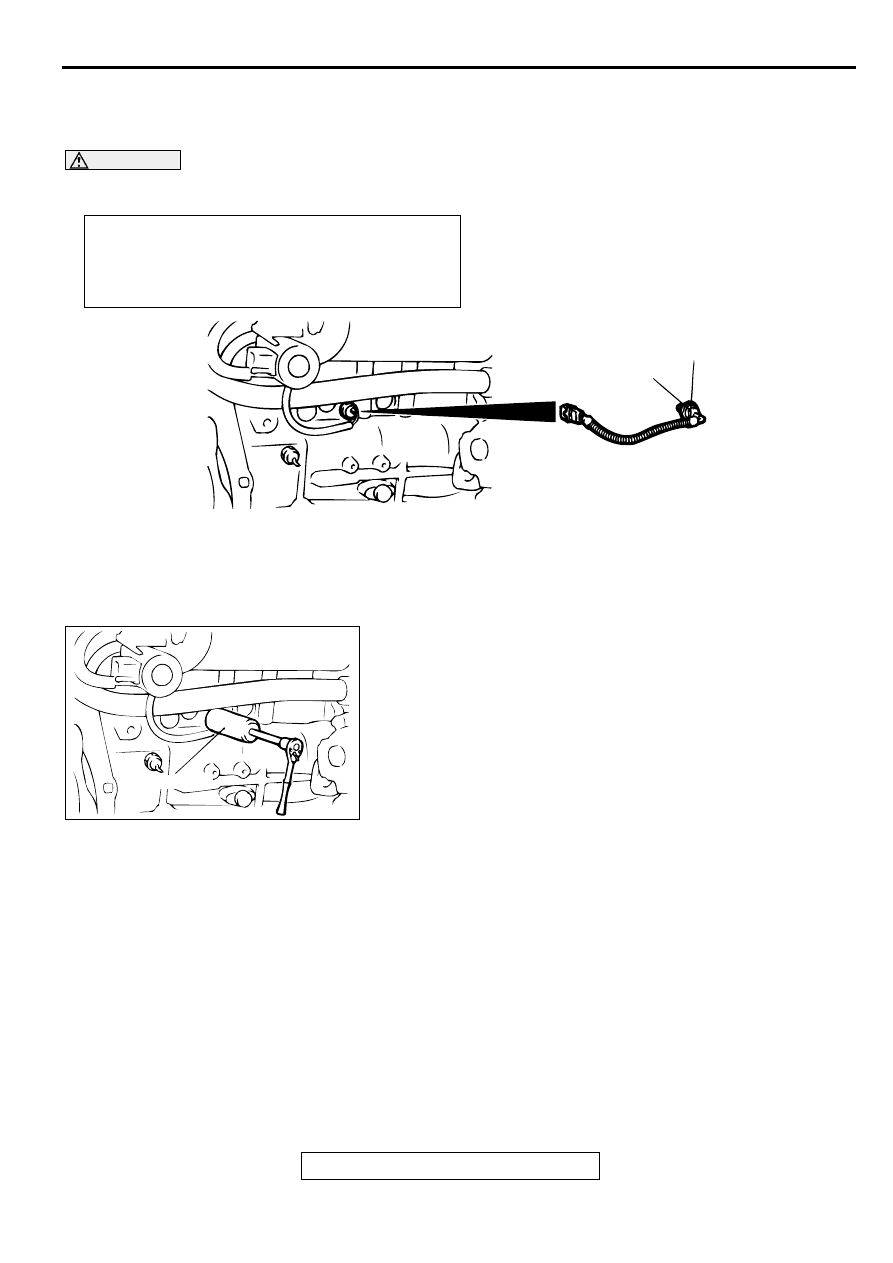

KNOCK SENSOR

REMOVAL AND INSTALLATION <2.4L ENGINE>

M1163002800095

CAUTION

Do not drop or hit the knock sensor against other components. Internal damage may result, and the
knock sensor will need to be replaced.

Required Special Tool:
MD998773: Knock Sensor Wrench

REMOVAL SERVICE POINT

<<A>> KNOCK SENSOR REMOVAL
Use special tool MD998773 to removal the knock sensor.

INSTALLATION SERVICE POINT

>>A<< KNOCK SENSOR INSTALLATION
Use special tool MD998773 to install the knock sensor.

Pre-removal and Post-installation Operation

•

Air Cleaner Removal and Installation (Refer to GROUP
15, Air Cleaner

P.15-5

.)

•

Intake Manifold Stay Removal and Installation (Refer to
GROUP 15, Intake Manifold

P.15-8

.)

AC000294 AB

1

23 ± 2 N·m
16 ± 2 ft-lb

<<A>>

>>A<<

1.

KNOCK SENSOR

AC000295

MD998773

AB

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-55

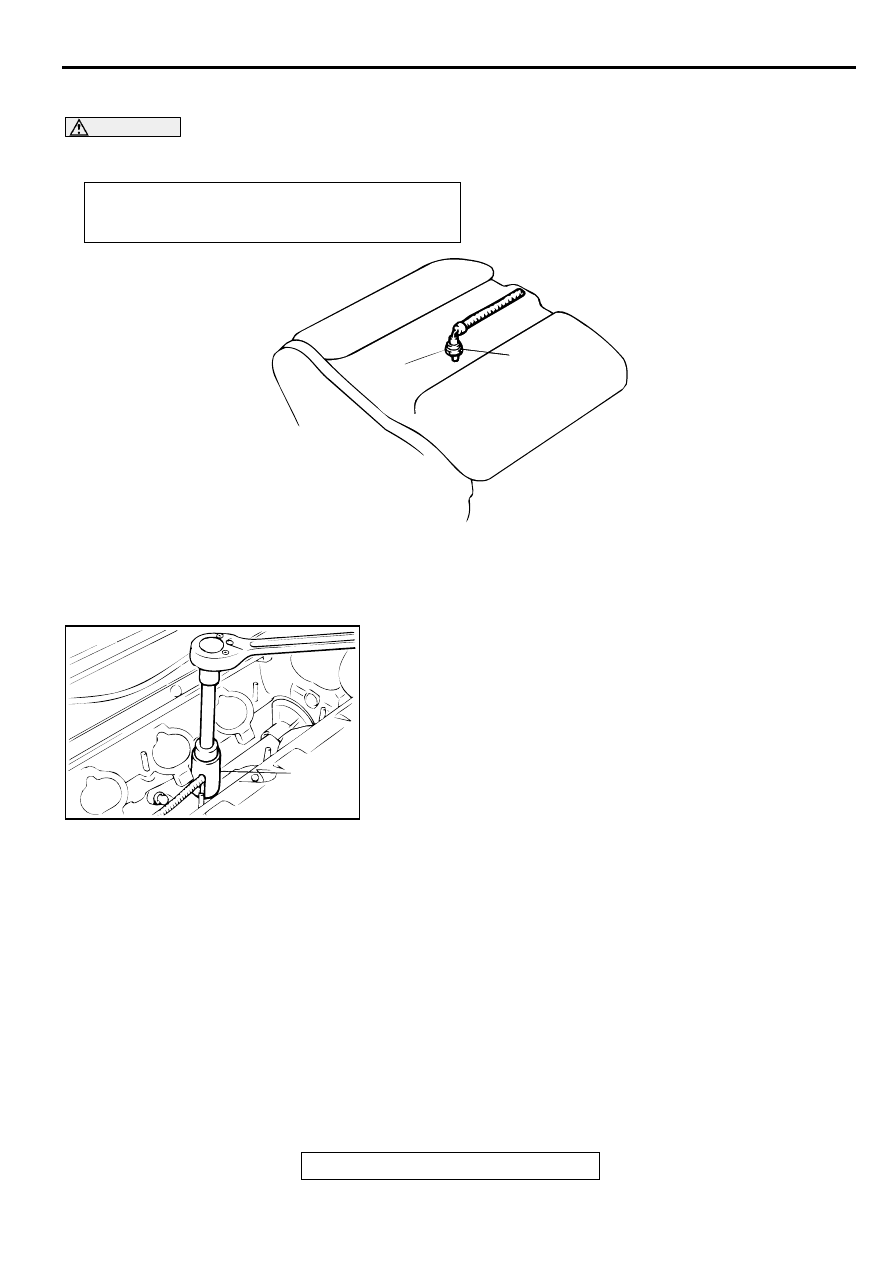

REMOVAL AND INSTALLATION <3.0L ENGINE>

M1163002800103

CAUTION

Do not drop or hit the knock sensor against other components. Internal damage may result, and the
knock sensor will need to be replaced.

Required Special Tool:
MD998773: Knock Sensor Wrench

REMOVAL SERVICE POINT

<<A>> KNOCK SENSOR REMOVAL
Use special tool MD998773 to removal the knock sensor.

INSTALLATION SERVICE POINT

>>A<< KNOCK SENSOR INSTALLATION
Use special tool MD998773 to install the knock sensor.

Pre-removal and Post-installation Operation

•

Intake Manifold Stay Removal and Installation (Refer to
GROUP 15, Intake Manifold

P.15-12

.)

AC000296 AB

1

23 ± 2 N·m
16 ± 2 ft-lb

<<A>>

>>A<<

1.

KNOCK SENSOR

AC000297 AB

MD998773

SPECIFICATIONS

TSB Revision

ENGINE ELECTRICAL

16-56

SPECIFIC ATIO NS

FASTENER TIGHTENING SPECIFICATIONS

M1161002100119

ITEM

SPECIFICATIONS

Charging system

Bearing retainer

3.7

±

 0.7 N

⋅

m (33

±

 6 in-lb)

Front bracket assembly bolt

4.4

±

 1.0 N

⋅

m (39

±

 9 in-lb)

Generator bolt <2.4L ENGINE>

23

±

 2 N

⋅

m (16

±

 2 ft-lb)

Generator bolt <3.0L ENGINE>

21

±

 4 N

⋅

m (16

±

 3 ft-lb)

Generator brace bolt <2.4L ENGINE>

23

±

 2 N

⋅

m (16

±

 2 ft-lb)

Generator brace bolt <2.4L ENGINE>

4.9

±

 1.0 N

⋅

m (44

±

 8 in-lb)

Generator brace bolt <3.0L ENGINE>

49

±

 10 N

⋅

m (36

±

 7 ft-lb)

Generator nut

44

±

 10 N

⋅

m (33

±

 7 ft-lb)

Oil level gauge unit bolt <3.0L ENGINE>

14

±

 1 N

⋅

m (117

±

 13 in-lb)

Oil pressure hose and tube clamp bolt <2.4L ENGINE>

12

±

 2 N

⋅

m (100

±

 22 in-lb)

Oil return tube clamp bolt <2.4L ENGINE>

12

±

 2 N

⋅

m (100

±

 22 in-lb)

Regulator assembly

3.7

±

 0.7 N

⋅

m (33

±

 6 in-lb)

Starting system

Cover bolt

5.8

±

 1.6 N

⋅

m (52

±

 14 in-lb)

Magnetic switch bolt

5.8

±

 1.6 N

⋅

m (52

±

 14 in-lb)

Rear bracket bolt

3.4

±

 1.0 N

⋅

m (30

±

 9 in-lb)

Stator bolt

30

±

 3 N

⋅

m (23

±

 2 ft-lb)

Starter cover bolt <2.4L ENGINE>

4.9

±

 1.0 N

⋅

m (44

±

 8 in-lb)

Starter screw

5.7

±

 1.5 N

⋅

m (51

±

 13 in-lb)

Ignition system

Camshaft position sensor bolt <2.4L ENGINE>

8.8

±

 1.0 N

⋅

m (78

±

 9 in-lb)

Crankshaft position sensor bolt <2.4L ENGINE>

8.8

±

 1.0 N

⋅

m (78

±

 9 in-lb)

Crankshaft position sensor bolt <3.0L ENGINE>

8.8

±

 1.0 N

⋅

m (78

±

 9 in-lb)

Distributor cap <3.0L ENGINE>

2.3

±

 0.7 N

⋅

m (20

±

 6 in-lb)

Distributor nut <3.0L ENGINE>

13

±

 2 N

⋅

m (109

±

 21 in-lb)

Ignition coil bolt <2.4L ENGINE>

9.8

±

 2.0 N

⋅

m (87

±

 17 in-lb)

Ignition failure sensor bolt <2.4L ENGINE>

4.9

±

 1.0 N

⋅

m (44

±

 8 in-lb)

Knock sensor

23

±

 2 N

⋅

m (16

±

 2 ft-lb)

Power steering oil pump assembly bolt <2.4L ENGINE>

29

±

 4 N

⋅

m (21

±

 4 ft-lb)

Power steering oil pump bracket bolt <2.4L ENGINE>

49

±

 10 N

⋅

m (36

±

 7 ft-lb)

Pressure hose and tube connection bolt <2.4L ENGINE>

12

±

 2 N

⋅

m (100

±

 22 in-lb)

Spark plug

25

±

 4 N

⋅

m (18

±

 4 ft-lb)
