MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-255

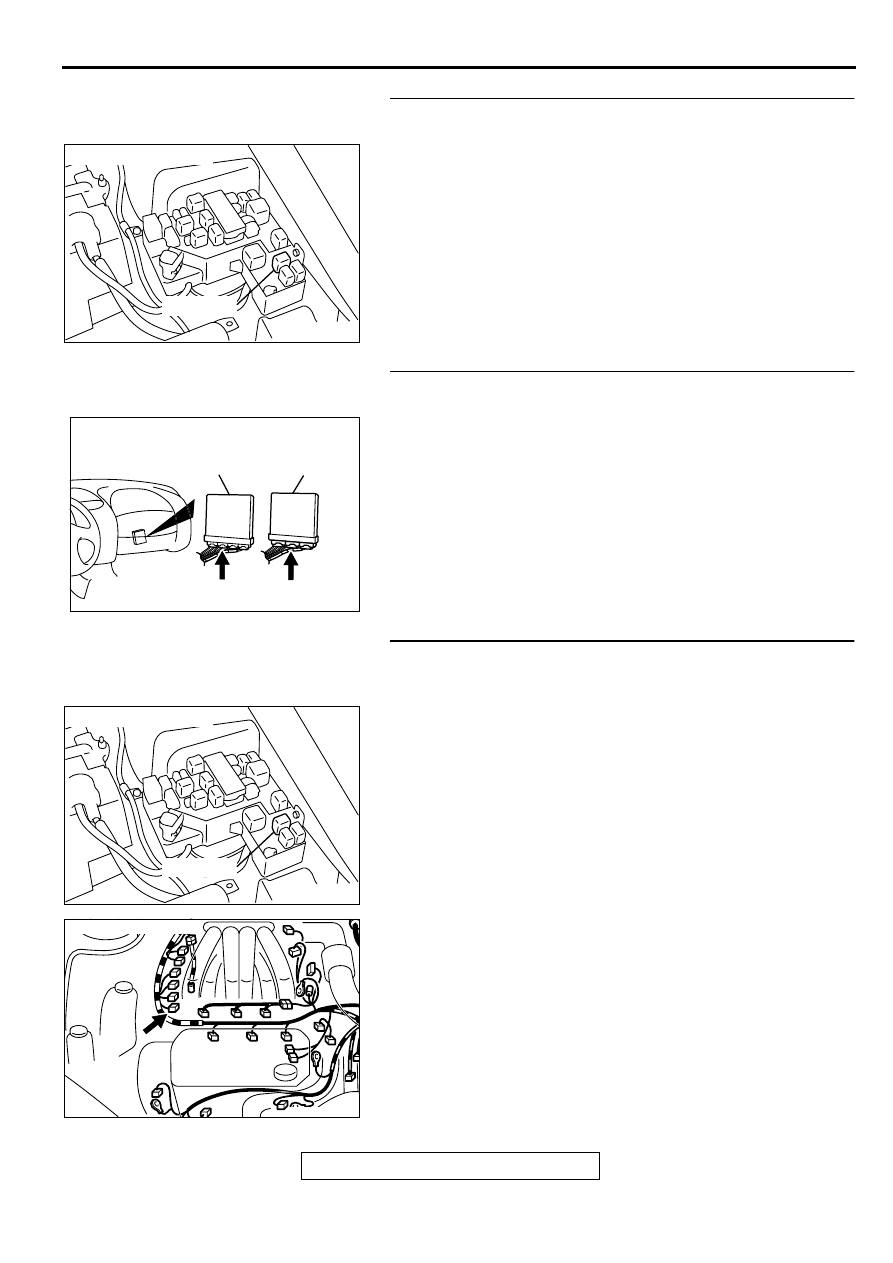

STEP 14. Check connector A-21X at the MFI relay for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 15.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 20.

STEP 15. Check connector C-58 at ECM <M/T> or
connector C-55 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 16.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 20.

STEP 16. Check for harness damage between MFI relay
connector A-21X terminal 1 and crankshaft position
sensor connector B-20 terminal 3.
Q: Is the harness wire in good condition?

YES : Go to Step 17.
NO :  Repair it. Then go to Step 20.

AK000226

AK000226AB

CONNECTOR : A-21X

MFI RELAY

AK000225

CONNECTOR : C-58<M/T>, C-55<A/T>

C-55

C-58

PCM<A/T>

ECM<M/T>

AI

AK000226

AK000226AB

CONNECTOR : A-21X

MFI RELAY

AK000216AB

AK000216

CONNECTOR : B-20

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-256

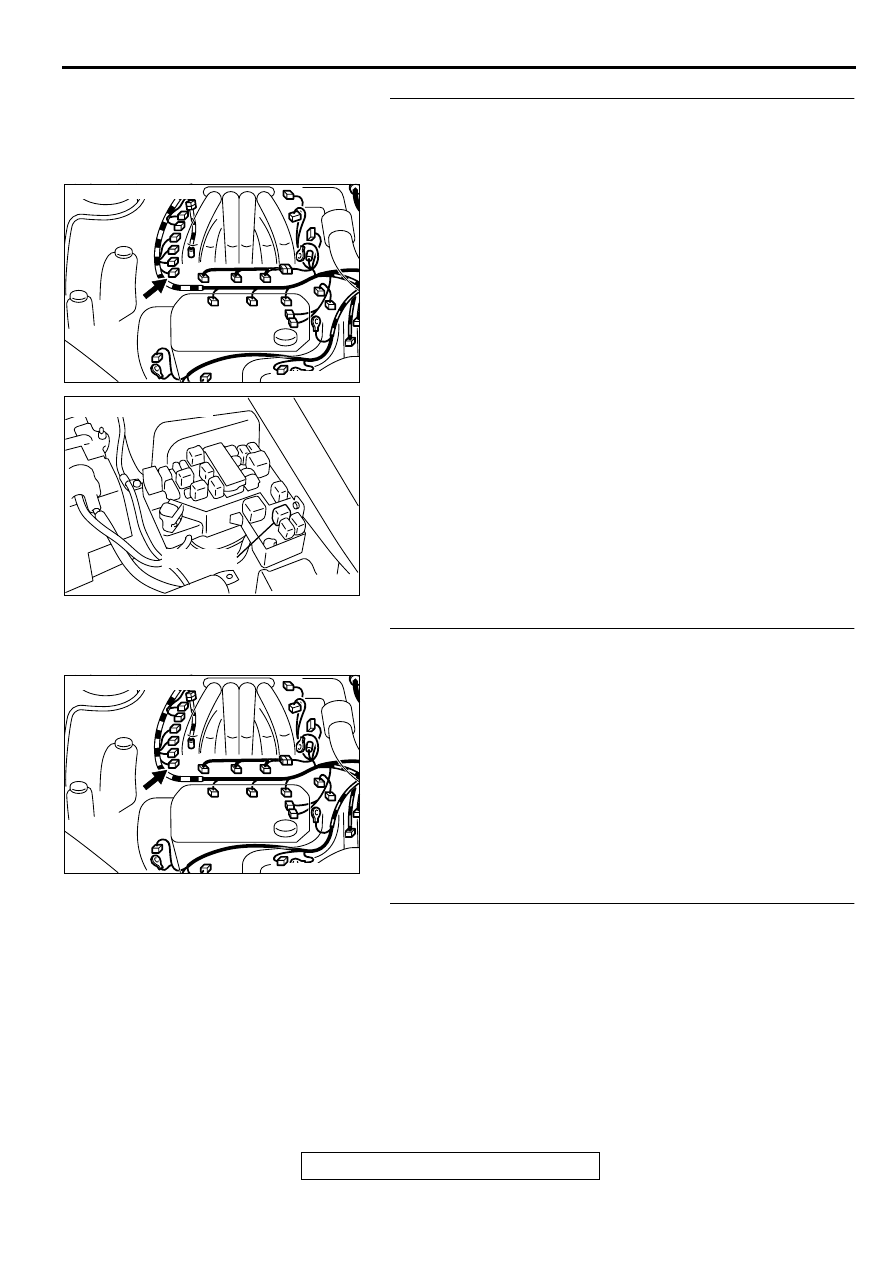

STEP 17. Check for harness damage between crankshaft
position sensor connector B-20 terminal 2 and ECM
connector C-58 terminal 43 <M/T> or PCM connector C-55
terminal 45 <A/T>.
Q: Is the harness wire in good condition?

YES : Go to Step 18.
NO :  Repair it. Then go to Step 20.

STEP 18. Check for harness damage between crankshaft
position sensor connector B-20 terminal 1 and ground.
Q: Is the harness wire in good condition?

YES : Go to Step 19.
NO :  Repair it. Then go to Step 20.

STEP 19. Check the crankshaft position sensor vane.

Q: Is the vane in a good condition?

YES : Replace the crankshaft position sensor. Then go to

Step 20.

NO :  Repair it. Then go to Step 20.

AK000216AB

AK000216

CONNECTOR : B-20

AK000226

AK000226AB

CONNECTOR : A-21X

MFI RELAY

AK000216AB

AK000216

CONNECTOR : B-20

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-257

STEP 20. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to,

Procedure 6

 Other Monitor (

P.13B-4

).

(2) Check the diagnostic trouble code (DTC).

Q: Is the DTC P0335 is output?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-258

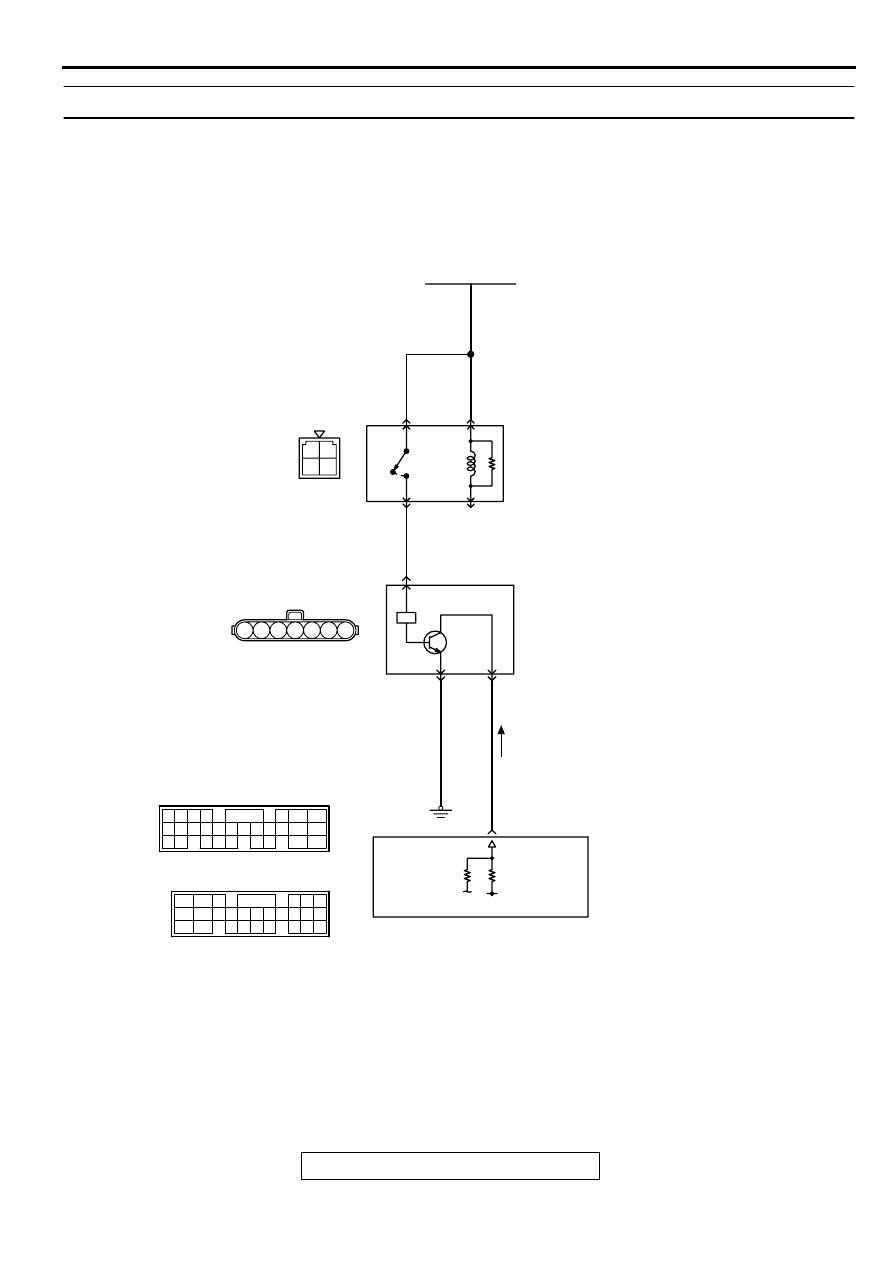

DTC P0340: Camshaft Position Sensor Circuit Malfunction

AK000702

4

3

2

6

5

7

1

2

3 4

1

RED

-

WHITE

RED

-

WHITE

RED

-

WHITE

RED

RED

-WHITE

BL

ACK

ENGINE CONTROL
MODULE(ECM)<M/T>
OR
POWERTRAIN CONTROL
MODULE(PCM)<A/T>

5V

1

7

2

3

4

6

5

BATTERY

CAMSHAFT POSITION SENSOR
(BUILT INTO DISTRIBUTOR)

MFI
RELAY

      B-22
(MU802054)

A-21X

50<M/T>
56<A/T>

65

43
50

42
49

41

48
60 61

64

46 47
58 59
67 68

45

56
66

52

51

44

53

62

54

63

57

55

 C-58<M/T>
(MU803782)

 C-55<A/T>
(MU803781)

42 43
48 49 50 51 52 53 54 55 56 57

46

45

44

58 59

60 61 62 63

64 65 66

47

41
