INJECTOR

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-487

INSTALLATION SERVICE POINT

>>A<< INJECTORS/FUEL PRESSURE REGULATOR/HIGH-
PRESSURE FUEL HOSE INSTALLATION

CAUTION

Do not let the engine oil get into the fuel rail will be
damaged.
1. Apply a drop of new engine oil to the O-ring.

2. Turn the injector. To the right and left to install to the fuel rail.

Repeat for fuel pressure regulator and high-pressure fuel
hose.
Be careful not to damage the O-ring. After installing, check
that the item turns smoothly.

3. If it dose not turn smoothly, the O-ring may be trapped,

remove the item, re-install it into the fuel rail and check
again.

4. Tighten the fuel pressure regulator and high-pressure fuel

hose to the specified torque.

Tightening torque:

8.8

±

 1.0 N

m (78

±

 9 in-lb) <Fuel pressure regulator>

4.9

±

 1.0 N

m (44

±

 8 in-lb) <High-pressure fuel hose>

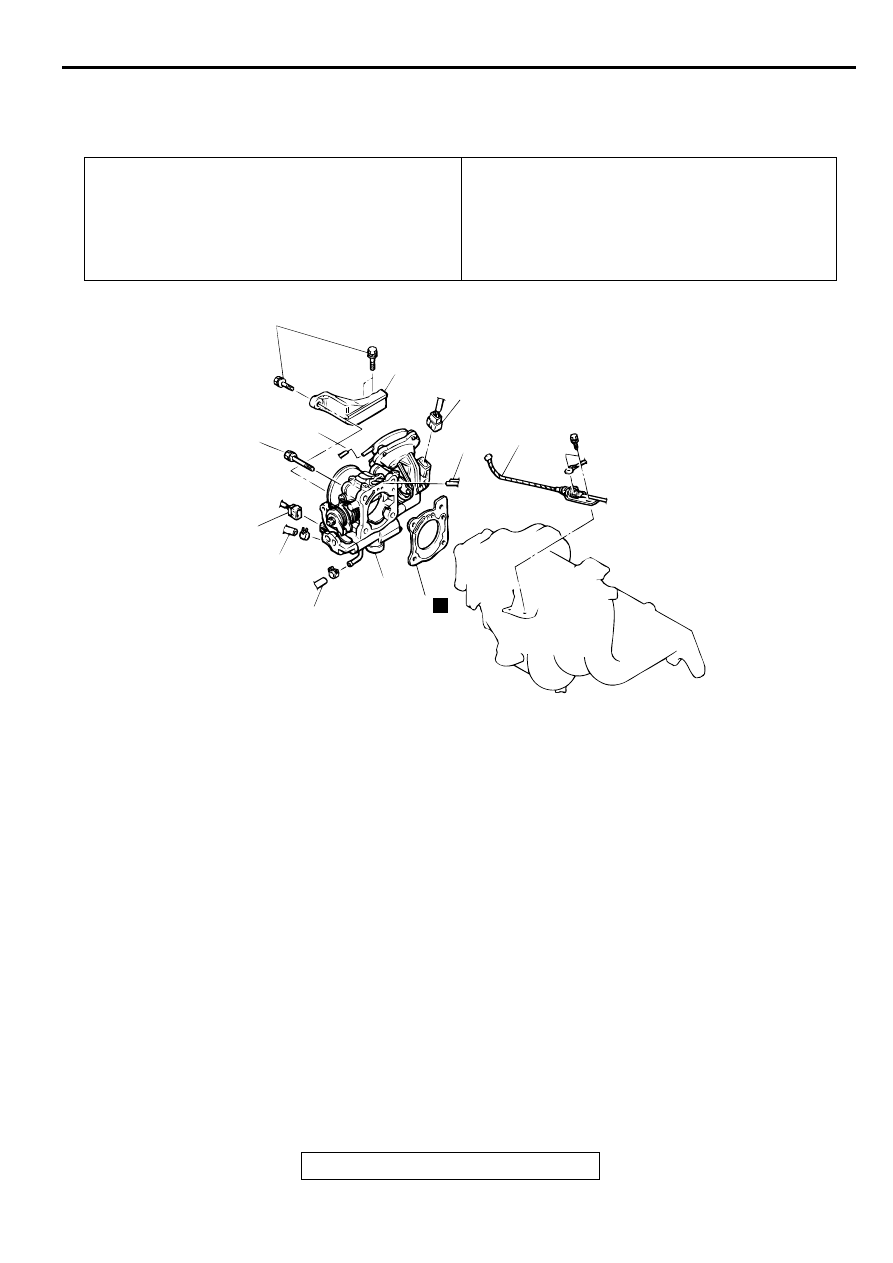

THROTTLE BODY ASSEMBLY

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-488

TH R O TTLE B O D Y A SSEM B LY

REMOVAL AND INSTALLATION

M1131007700135

Pre-removal Operation

Engine Coolant Draining [Refer to GROUP 00, Mainte-
nance Service

 Engine Coolant (Change)

P.00-52

.]

Air Cleaner Removal (Refer to GROUP 15, Air Cleaner

P.15-5

.)

Post-installation Operation

Air Cleaner Installation (Refer to GROUP 15, Air Cleaner

P.15-5

.)

Engine Coolant Refilling [Refer to GROUP 00, Mainte-
nance Service

 Engine Coolant (Change)

P.00-52

.]

Accelerator Cable Adjustment (Refer to GROUP 17, On-
vehicle Service

 Accelerator Cable Adjustment

P.17-4

.)

AC000232

19 ± 3 N·m
14 ± 2 ft-lb

19 ± 3 N·m
14 ± 2 ft-lb

7

2

4

1

3

6

6

8

9

N

AB

5

REMOVAL STEPS

1.

ACCELERATOR CABLE
CONNECTION

2.

THROTTLE POSITION SENSOR
CONNECTOR

3.

IDLE AIR CONTROL MOTOR
CONNECTOR

4.

VACUUM HOSE CONNECTION

5.

VACUUM HOSE CONNECTION
<VEHICLES WITH AUTO-
CRUISE CONTROL SYSTEM>

6.

WATER HOSE CONNECTION

7.

THROTTLE BODY STAY

8.

THROTTLE BODY

>>A<<

9.

THROTTLE BODY GASKET

REMOVAL STEPS (Continued)

THROTTLE BODY ASSEMBLY

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-489

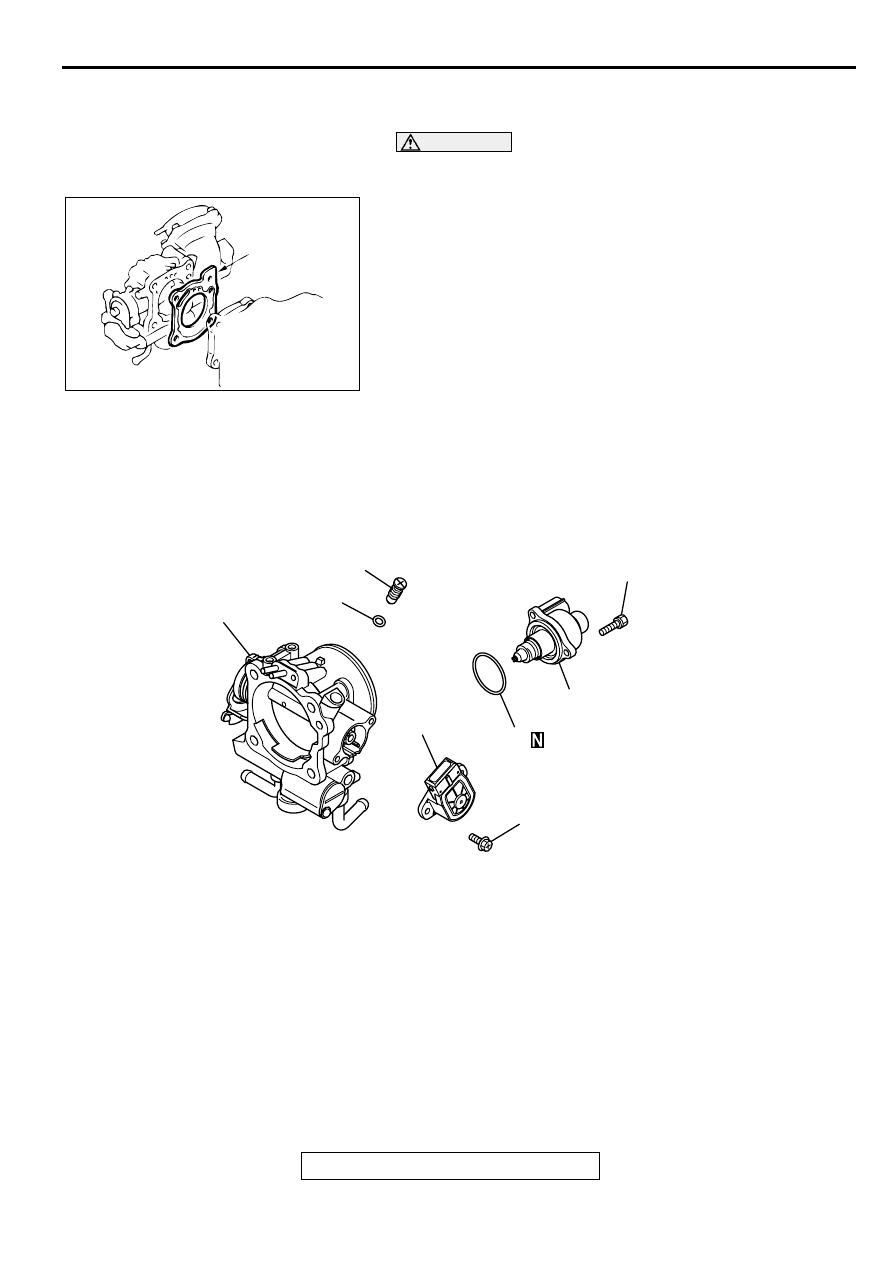

INSTALLATION SERVICE POINT

>>A<< THROTTLE BODY GASKET INSTALLATION

CAUTION

Poor idling etc. may result if the throttle body gasket is
installed incorrectly.
Install the throttle body gasket as shown in the illustration.

DISASSEMBLY AND ASSEMBLY

M1131009700120

<VEHICLES WITHOUT AUTO-CRUSE CONTROL SYSTEM>

NOTE: IF THE ADJUSTING SCREW WAS HAPPEN
TO HAVE BEEN REMOVED, PERFOM SPEED
ADJUSTING SCREW ADJUSTMENT.

AC000233

PROJECTION

AB

AK000589

6

5

4

2.0 N·m
18 in-lb

3

2

1

2.0 N·m
18 in-lb

AC

REMOVAL STEPS

<<A>>

>>A<<

1. THROTTLE POSITION SENSOR
2. IDLE AIR CONTROL MOTOR
3. O-RING

<<B>>

4 . THROTTLE BODY

5. SPEED ADJUSTING SCREW
6. O-RING

REMOVAL STEPS (Continued)

THROTTLE BODY ASSEMBLY

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-490

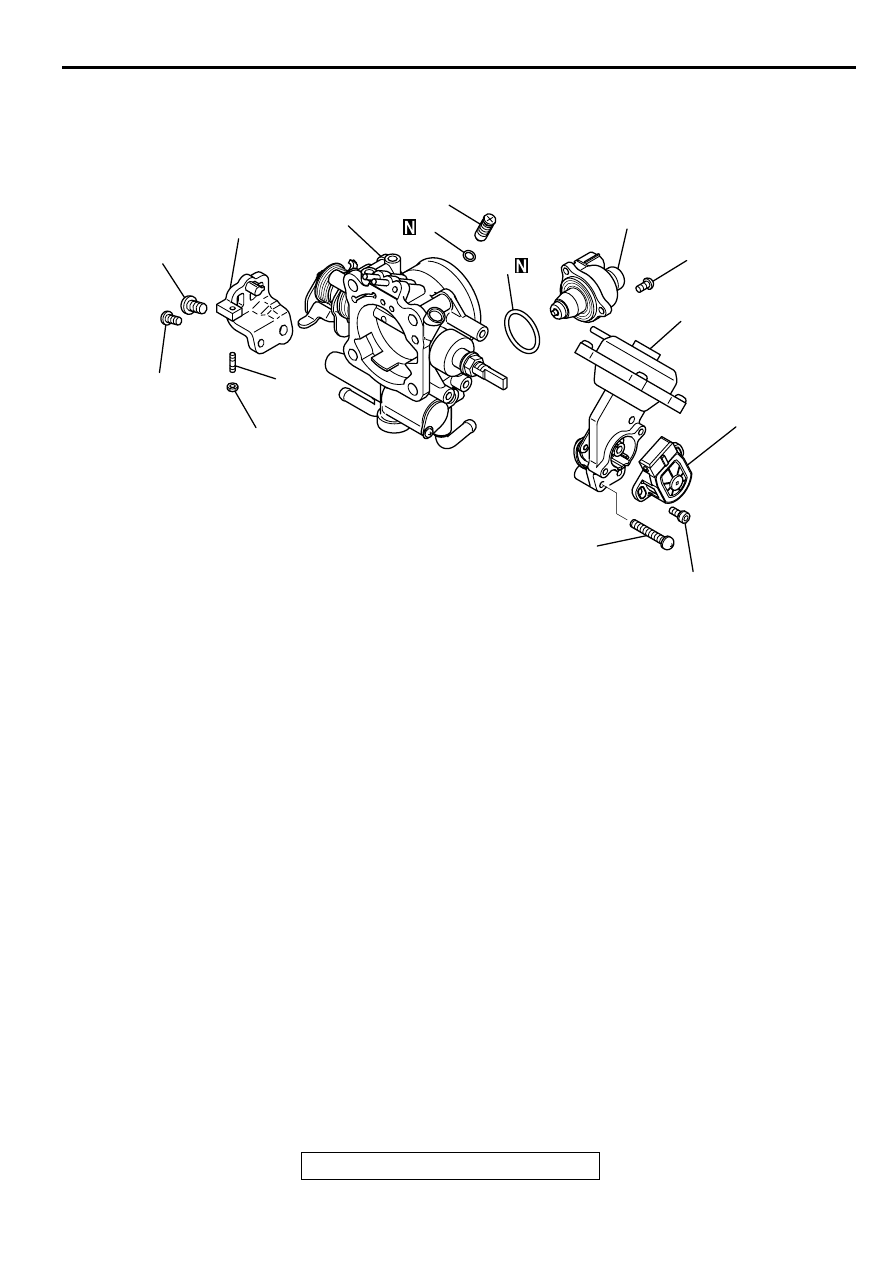

<VEHICLES WITH AUTO-CRUSE CONTROL SYSTEM>

NOTE: IF THE ADJUSTING SCREW WAS HAPPEN
TO HAVE BEEN REMOVED, PERFOM SPEED
ADJUSTING SCREW ADJUSTMENT.

DISASSEMBLY SERVICE POINTS

<<A>> THROTTLE POSITION SENSOR DISASSEMBLY
1. Do not disassemble the sensor and motor.

2. Do not clean the sensor and motor by dipping them into

cleaning solvent. Clean them with shop towel.

<<B>> THROTTLE BODY DISASSEMBLY
1. Do not disassemble the throttle body.

AK000035

7

6

6.9 N·m
61 in-lb

4.9 N·m
43 in-lb

2.0 N·m
18 in-lb

5

9

8

4

2.0 N·m
18 in-lb

3

2

1

4.9 N·m
43 in-lb

2.0 N·m
18 in-lb

AC

REMOVAL STEPS

<<A>>

>>A<<

1. THROTTLE POSITION SENSOR
2. LEVER ASSEMBLY
3. IDLE AIR CONTROL MOTOR
4 . O-RING

<<B>>

5. THROTTLE BODY
6. THROTTLE SPEED ADJUSTING

SCREW

7. BRACKET

8. SPEED ADJUSTING SCREW
9. O-RING

REMOVAL STEPS (Continued)
