ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-475

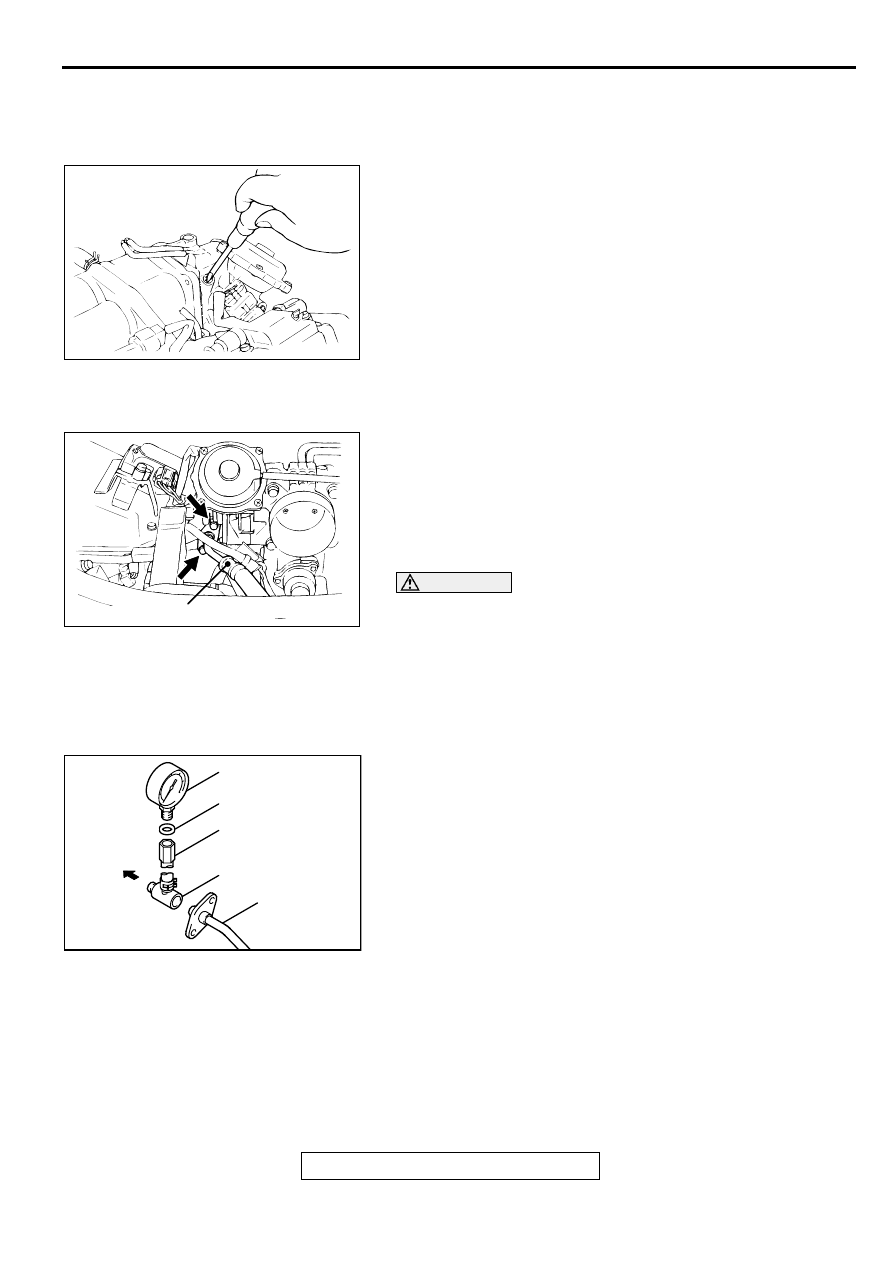

NOTE: If the engine stalls or the engine speed is low even
though the vehicle has been driven approximately 500 km
(300 mile) or more, it is probable that deposits are adhered
to the throttle valve, so clean it. (Refer to

P.13A-472

)

6. If not within the standard value range, turn the speed

adjusting screw (SAS) to make the necessary adjustment.

7. Press the scan tool clear key, and release the IAC motor

Actuator test mode.

8. Turn the ignition switch to the "LOCK" (OFF) position.

NOTE: Unless the IAC motor is released, the Actuator test
mode will continue for 27 minutes.

9. Disconnect scan tool MB991502.

10.Start the engine again and let it idle for about 10 minutes.

Check that the idling condition is normal.

FUEL PRESSURE TEST

M1131001900090

Required Special Tools:
MB991502: Scan Tool (MUT-II)
MB991637: Fuel Pressure Gauge Set
MD998709: Adaptor Hose
MD998742: Hose Adaptor
1. Release residual pressure from the fuel line to prevent fuel

spray. (Refer to

P.13A-478

.)

WARNING

To prevent a fire, cover the hose connection with
shop towels to prevent splashing of fuel that could be
caused by some residual pressure in the fuel pipe
line.

2. Disconnect the high-pressure fuel hose at the fuel rail side.

3. Assemble the fuel pressure measurement tools as follows.

<When using the fuel pressure gauge>

1. Remove the union joint and bolt from special tool

MD998709 (adaptor hose) and instead attach special tool
MD998742 (hose adaptor) to the adaptor hose.

2. Place a suitable O-ring or gasket on assembled special

tools MD998709 and MD998742 and install the fuel
pressure gauge.

3. Install the assembled fuel pressure measurement tools

between the fuel rail and high-pressure fuel hose.

AK000114

AK000116AB

HIGH-PRESSURE FUEL HOSE

AKX01457AB

FUEL PRESSURE
GAUGE

O-RING OR GASKET

MD998709

MD998742

HIGH-PRESSURE
FUEL HOSE

FUEL
RAIL

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-476

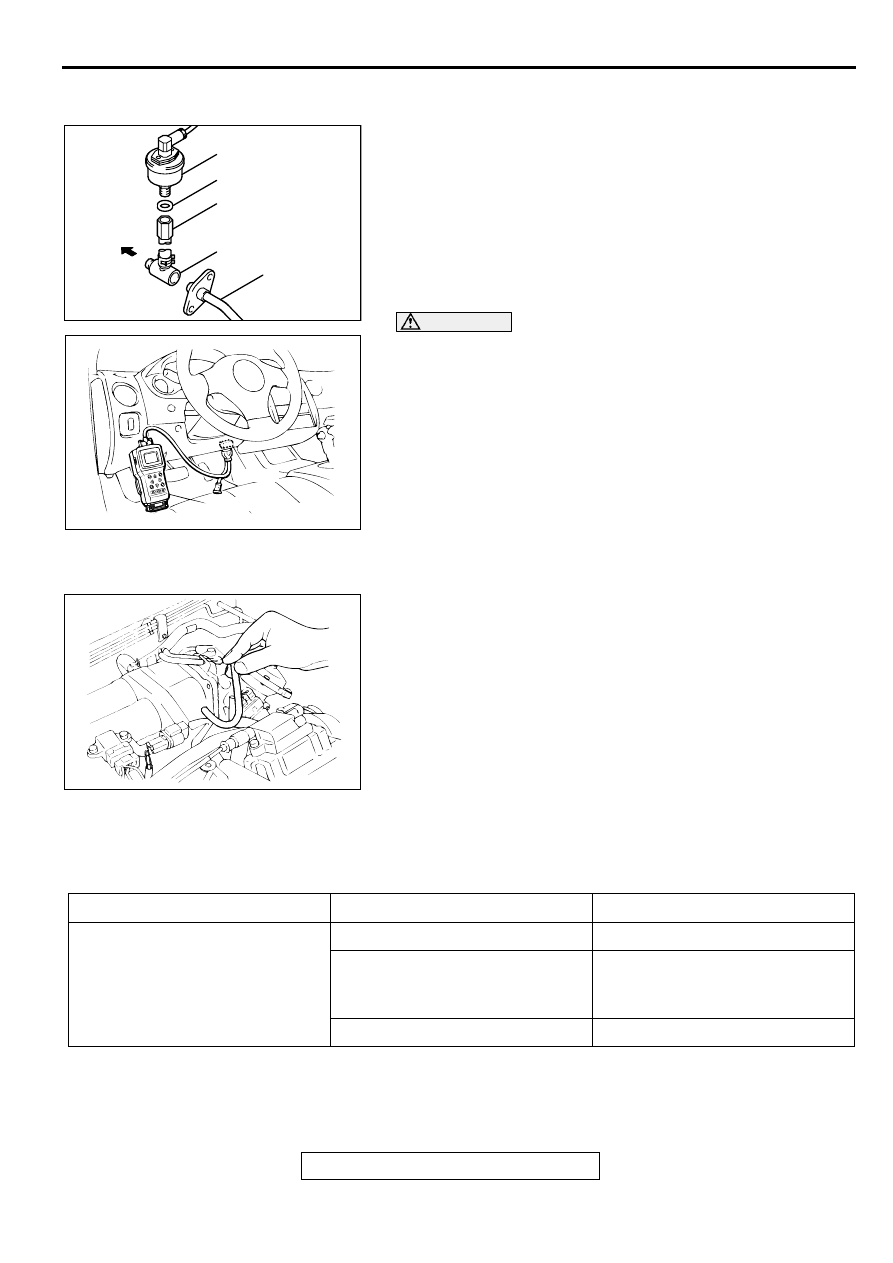

<When using the special tool MB991637 (fuel pressure

gauge set)>

1. Remove the union joint and bolt from special tool

MD998709 (adaptor hose) and instead attach special tool
MD998742 (hose adaptor) to the adaptor hose.

2. Install special tool MB991637 (fuel pressure gauge set) to

assembled special tools MD998709 and MD998742 via a
gasket.

3. Install the assembled fuel pressure measurement tools

between the fuel rail and the high-pressure fuel hose.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.
4. Connect scan tool MB991502 to the data link connector.

5. Use the Actuator test 07 to drive the fuel pump. Check that

there is no fuel leaking from any section when the fuel pump
is operating.

6. Stop the fuel pump.

7. Start the engine and run at idle.

8. Measure fuel pressure while the engine is running at idle.

Standard value: Approximately 270 kPa (38 psi) at
curb idle

9. Disconnect the vacuum hose from the fuel pressure

regulator and measure fuel pressure with the hose end
closed with your finger.

Standard value: 330

 350 kPa (47

 50 psi) at curb idle

10.Check to see that fuel pressure at idle does not drop even

after the engine has been revved several times.

11.Revving the engine repeatedly, hold the fuel return hose

lightly with your fingers to feel that fuel pressure is present in
the return hose.

NOTE: If the fuel flow rate is low, there will be no fuel
pressure in the return hose.

12.If any of fuel pressure measured in steps 10 to 13 is out of

specification, troubleshoot and repair according to the table
below.

SYMPTOM

PROBABLE CAUSE

REMEDY

Fuel pressure too low

Fuel pressure drops after racing

No fuel pressure in fuel return
hose

Clogged fuel filter

Replace fuel filter

Fuel leaking to return side due to
poor fuel regulator valve seating or
settled spring

Replace fuel pressure regulator

Low fuel pump delivery pressure

Replace fuel pump

AKX01458

MB991637

O-RING OR GASKET

MD998709

MD998742

HIGH-
PRESSURE
FUEL HOSE

FUEL
RAIL

AB

AKX01177

16 PIN

MB991502

AB

AK000118

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-477

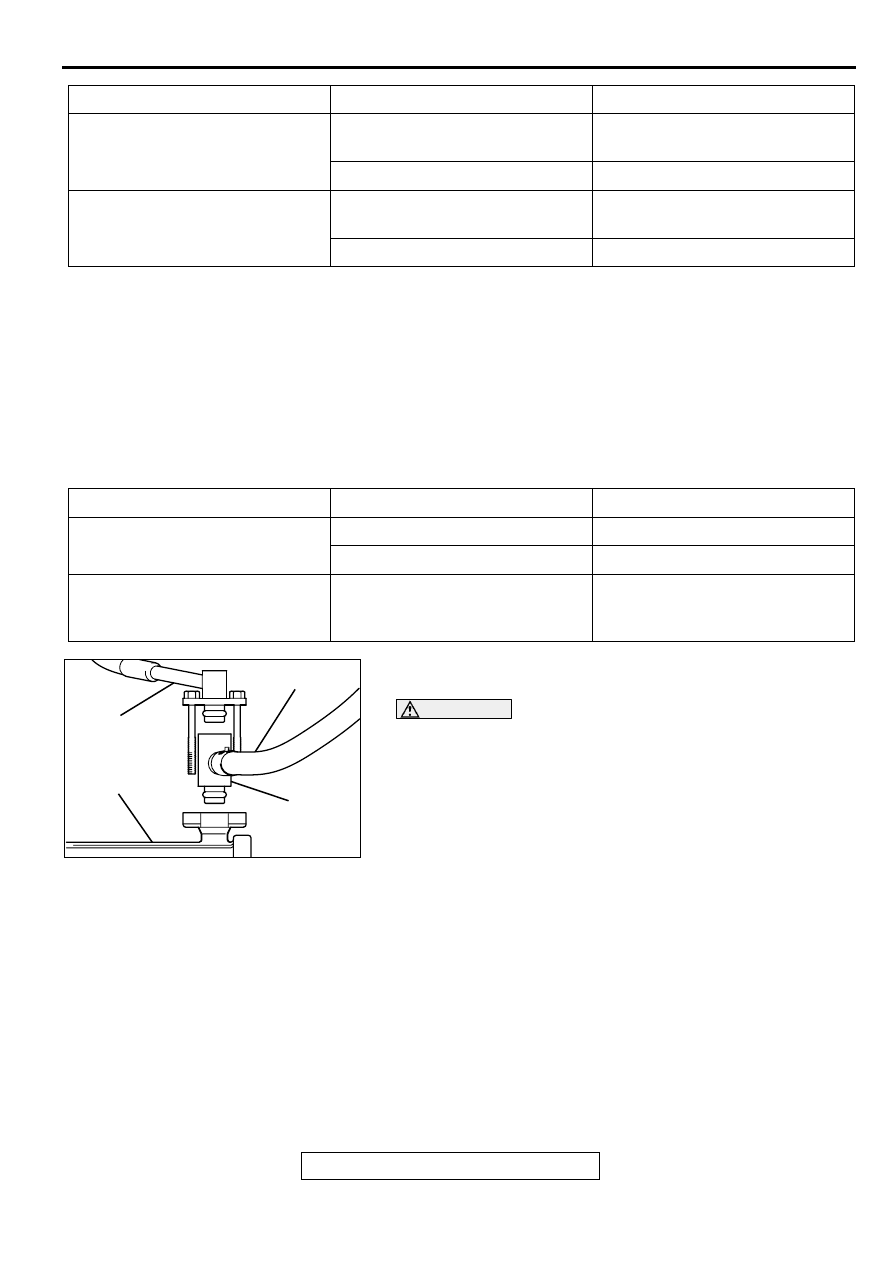

13.Stop the engine and observe fuel pressure gauge reading. It

is normal if the reading does not drop within two minutes. If it
does, observe the rate of drop and troubleshoot and repair
according to the table below. Start, then stop the engine.

(1) Squeeze the fuel return line closed to confirm leak-down

occurs from defective fuel pressure regulator.

(2) Squeeze the fuel supply line closed to confirm leak-down

occurs from defective fuel pump check valve.

(3) If pressure continues to drop with both fuel lines

squeezed closed, injector(s) are leaking.

14.14.Release residual pressure from the fuel pipe line. (Refer

to

P.13A-478

.)

WARNING

Cover the hose connection with shop towels to
prevent splash of fuel that could be caused by some
residual pressure in the fuel pipe line.

15.Remove the fuel pressure gauge, and special tools

MD998709 and MD998742 from the fuel rail.

16.Replace the O-ring at the end of the high-pressure fuel hose

with a new one.

17.Fit the high-pressure fuel hose into the fuel rail and tighten

the bolts to specified torque.

Tightening torque: 4.9

±

 1.0 (44

±

 8 in-lb)

18.Check for fuel leaks.

(1) Use scan tool MB991502 to operate the fuel pump.
(2) Check the fuel line for leaks, and repair as needed.

19.Disconnect scan tool MB991502.

Fuel pressure too high

Binding valve in fuel pressure
regulator

Replace fuel pressure regulator

Clogged fuel return hose or pipe

Clean or replace hose or pipe

Same fuel pressure when vacuum
hose is connected and when
disconnected

Damaged vacuum hose or
clogged nipple

Replace vacuum hose or clean
nipple

Defective fuel pressure regulator

Replace fuel pressure regulator

SYMPTOM

PROBABLE CAUSE

REMEDY

Fuel pressure drops gradually
after engine is stopped

Leaky injector

Replace injector

Leaky fuel regulator valve seat

Replace fuel pressure regulator

Fuel pressure drops sharply
immediately after engine is
stopped

Check valve in fuel pump is held
open

Replace fuel pump

SYMPTOM

PROBABLE CAUSE

REMEDY

AK000120

AK000120

HIGH-
PRESSURE
FUEL HOSE

MD998709

MD998742

FUEL RAIL

AB

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-478

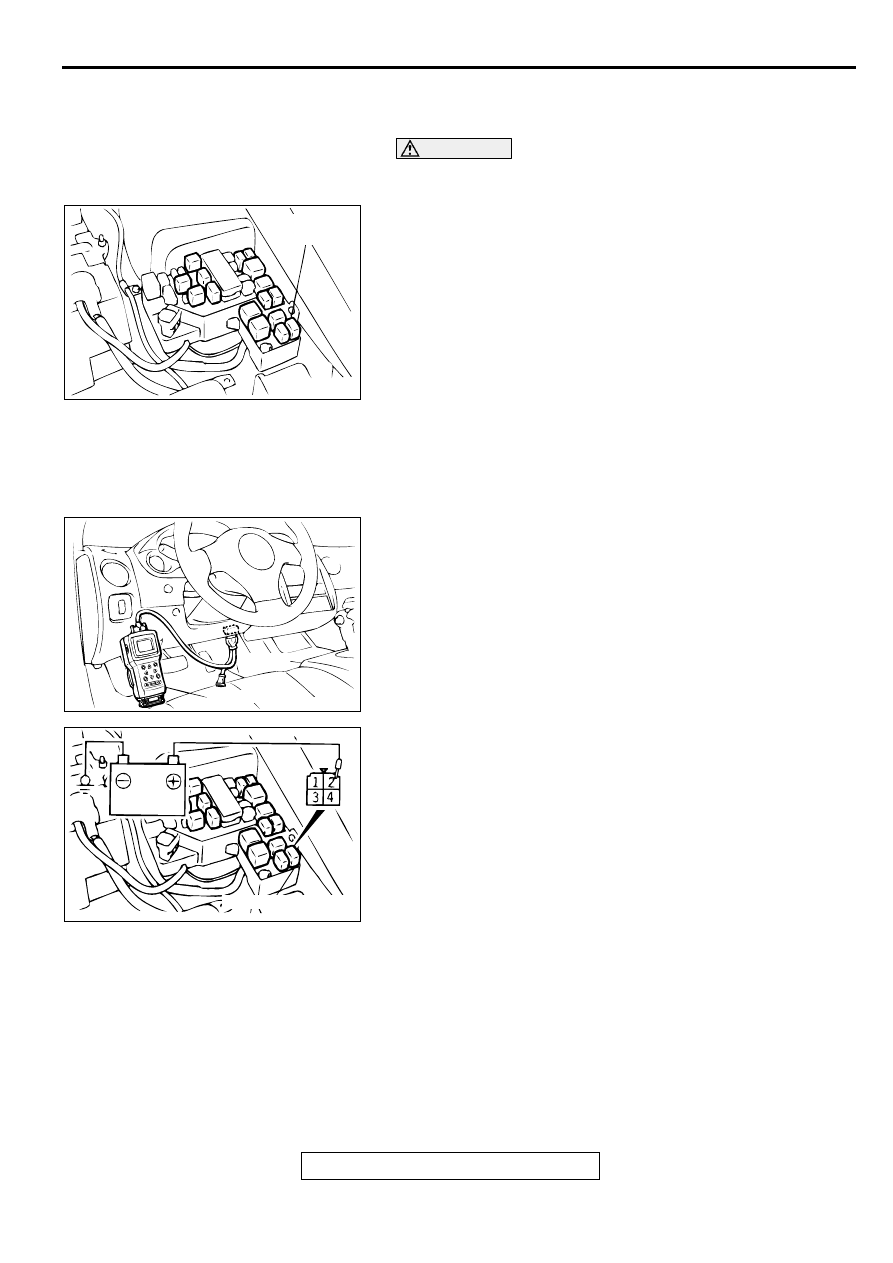

FUEL PUMP CONNECTOR DISCONNECTION
(HOW TO REDUCE PRESSURIZED FUEL LINES)

M1131000900172

WARNING

When removing the fuel pipe, etc., release fuel
pressure to prevent fuel spray.

1. Disconnect the fuel pump relay.

2. Start the engine and let it run until it stops naturally. Turn the

ignition switch to the "LOCK" (OFF) position.

3. Connect the fuel pump relay.

FUEL PUMP OPERATION CHECK

M1131002000164

Required Special Tool:
MB991502: Scan Tool (MUT-II)
1. Check the operating of the fuel pump by using scan tool

MB991502 to force-drive the fuel pump.

2. If the fuel pump will not operate, check by using the

following procedure. If normal, check the fuel pump drive
circuit.

(1) Turn the ignition switch to the "LOCK" (OFF) position.
(2) Remove the fuel pump relay, and apply battery voltage to

harness-side connector terminal number 2. Check that an
operating sound can be heard from the fuel pump.

NOTE: As the fuel pump is an in-tank type, the fuel pump
sound is hard to hear. Remove the fuel tank filler tube cap
and check from the tank inlet.

(3) Check for fuel pressure by pinching the fuel hose with

fingertips.

(4) Install the fuel pump relay.

AC000229

FUEL PUMP
RELAY

AB

AC000077

16 PIN

MB991502

AB

AC000230

FUEL PUMP RELAY

AB
