Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 192

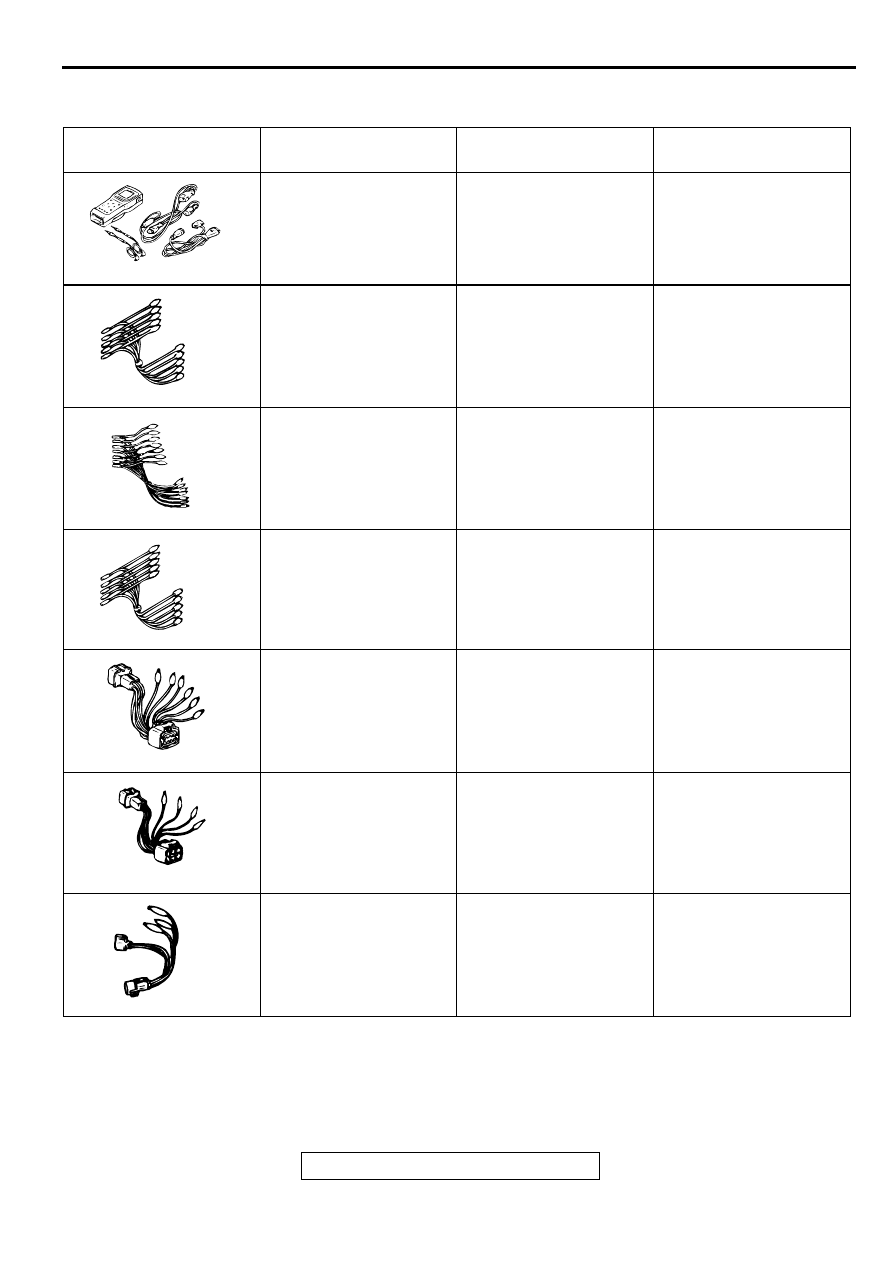

SPECIAL TOOLS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-467

SPECIA L TO O LS

M1131000600085

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991502
Scan tool <MUT-II>

MB991496-OD

•

Reading diagnostic
trouble code

•

MFI system inspection

MB991348
Test harness set

MB991348-01

•

Adjustment of throttle
position sensor

•

Inspection using an
oscilloscope

MB991709
Test harness set

MB991709-01

•

Inspection using an
oscilloscope

•

Inspection of idle air
control motor

MB991658
Test harness set

Tool not available

Inspection of heated
oxygen sensor

MD998463
Test harness (6 pin,
square)

MD998463-01

Inspection using an
oscilloscope

MD998464
Test harness (4 pin,
square)

MD998464-01

•

Inspection of heated
oxygen sensor

•

Inspection using an
oscilloscope

MD998478
Test harness (3 pin,
triangle)

MD998478-01

Inspection using an
oscilloscope

B991502

MB991348

MB991658

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-468

O N -VEH IC LE SERVIC E

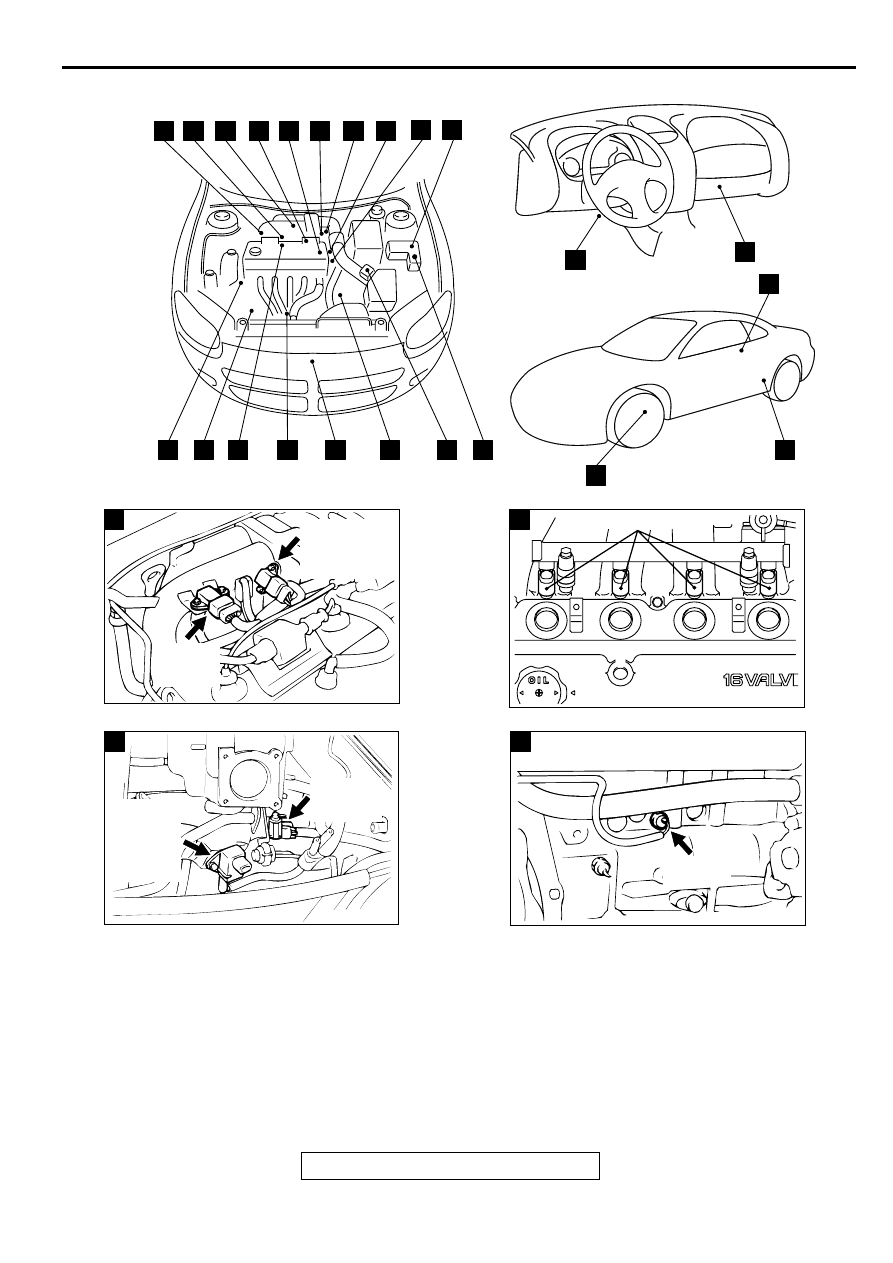

COMPONENT LOCATION

M1131002100161

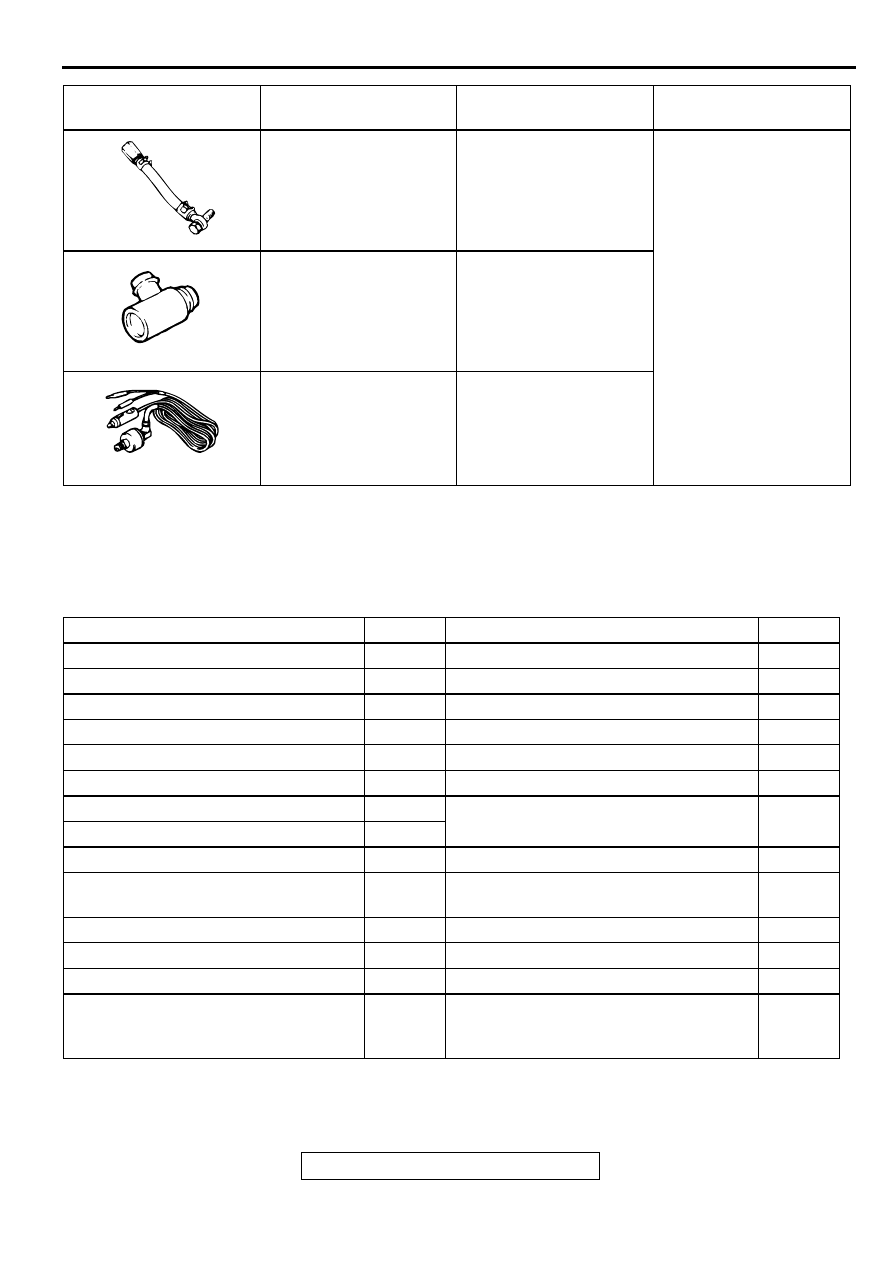

MD998709
Adaptor hose

MIT210196

Measurement of fuel
pressure

MD998742
Hose adaptor

MD998742-01

MB991637
Fuel pressure gauge set

Tool not available

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991637

NAME

SYMBOL NAME

SYMBOL

Air conditioning compressor clutch relay J

Idle air control motor

F

Camshaft position sensor

I

Ignition coil

M

Crankshaft position sensor

K

Ignition failure sensor

A

Data link connector

S

Injector

B

EGR solenoid

C

Knock sensor

D

Engine control module (ECM) <M/T>

T

Manifold differential pressure sensor

A

Engine coolant temperature sensor

H

Multiport fuel injection (MFI) relay/fuel
pump relay

J

Engine speed detection connector

R

Evaporative emission purge solenoid

C

Park/neutral position switch <A/T>

P

Evaporative emission ventilation
solenoid

W

Powertrain control module (PCM) <A/T>

T

Fan controller

O

Power steering pressure switch

L

Fuel tank differential pressure sensor

U

Throttle position sensor

G

Heated oxygen sensor (front)

N

Vehicle speed sensor

E

Heated oxygen sensor (rear)

V

Volume air flow sensor (with built-in intake
air temperature sensor and barometric
pressure sensor)

Q

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-469

AK000070 AB

A

B

C

D

E

F

G

H

I

Q

R

M

N

O

P

J

K

L

S

T

V

W

U

ACX02471

A

MANIFOLD
DIFFERENTIAL
PRESSURE
SENSOR

IGNITION
FAILURE
SENSOR

AC

AK000083AB

INJECTOR

B

ACX02513

EGR
SOLENOID
VALVE

EVAPORA-
TIVE
EMISSION
PURGE
SOLENOID
VALVE

AC

C

ACX02470

D

KNOCK
SENSOR

AC

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-470

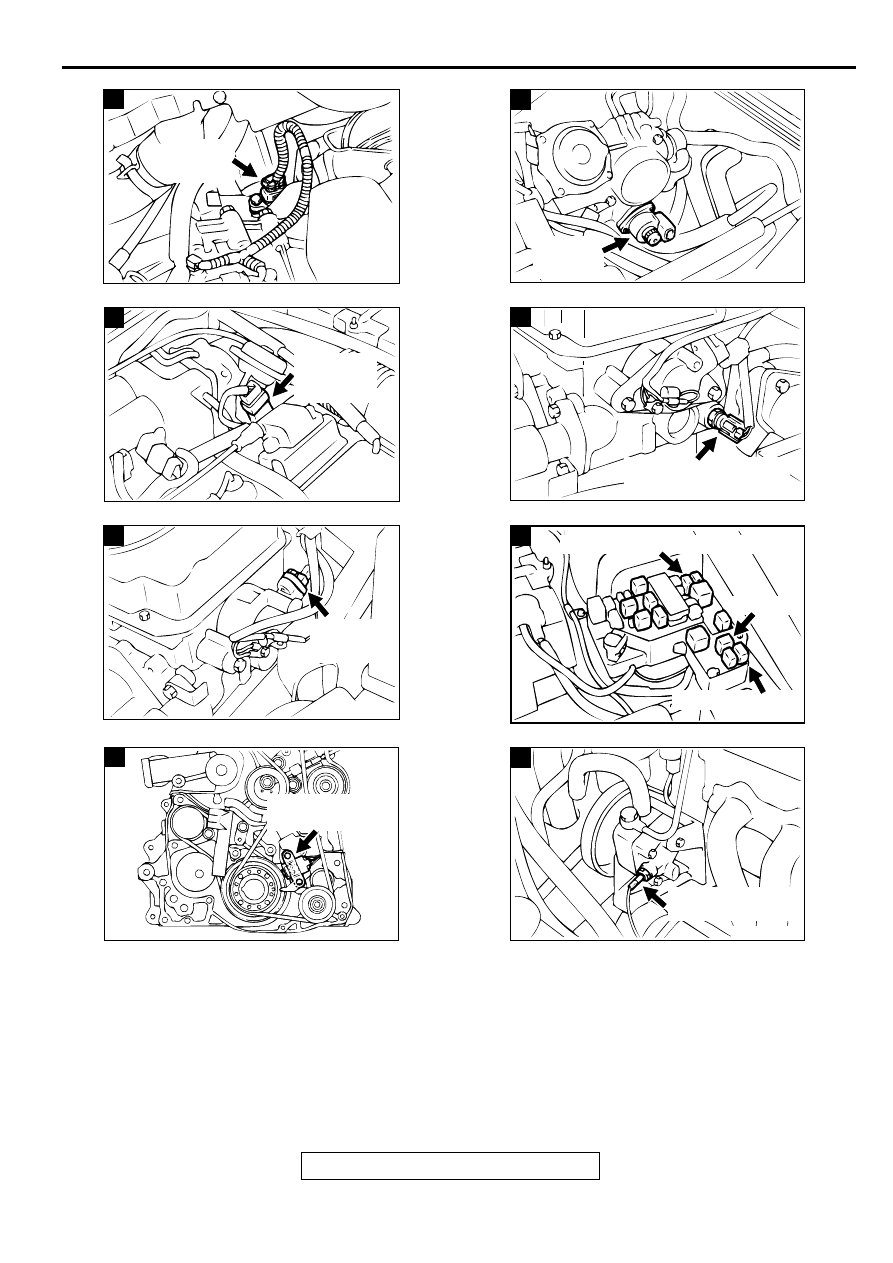

ACX02473

E

VEHICLE
SPEED
SENSOR

AD

ACX02519

F

IDLE AIR
CONTROL
MOTOR

AC

ACX02472

G

THROTTLE
POSITION
SENSOR

AC

ACX02478

H

ENGINE COOLANT
TEMPERATURE SENSOR

AC

ACX02477

I

CAMSHAFT
POSITION
SENSOR

AC

AK000072

J

AB

A/C COMPRESSOR CLUTCH RELAY

MFI RELAY

FUEL PUMP RELAY

ACX02475

K

AC

CRANKSHAFT
POSITION SENSOR

ACX02520

L

AC

POWER STEERING
PRESSURE SWITCH
