MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-255

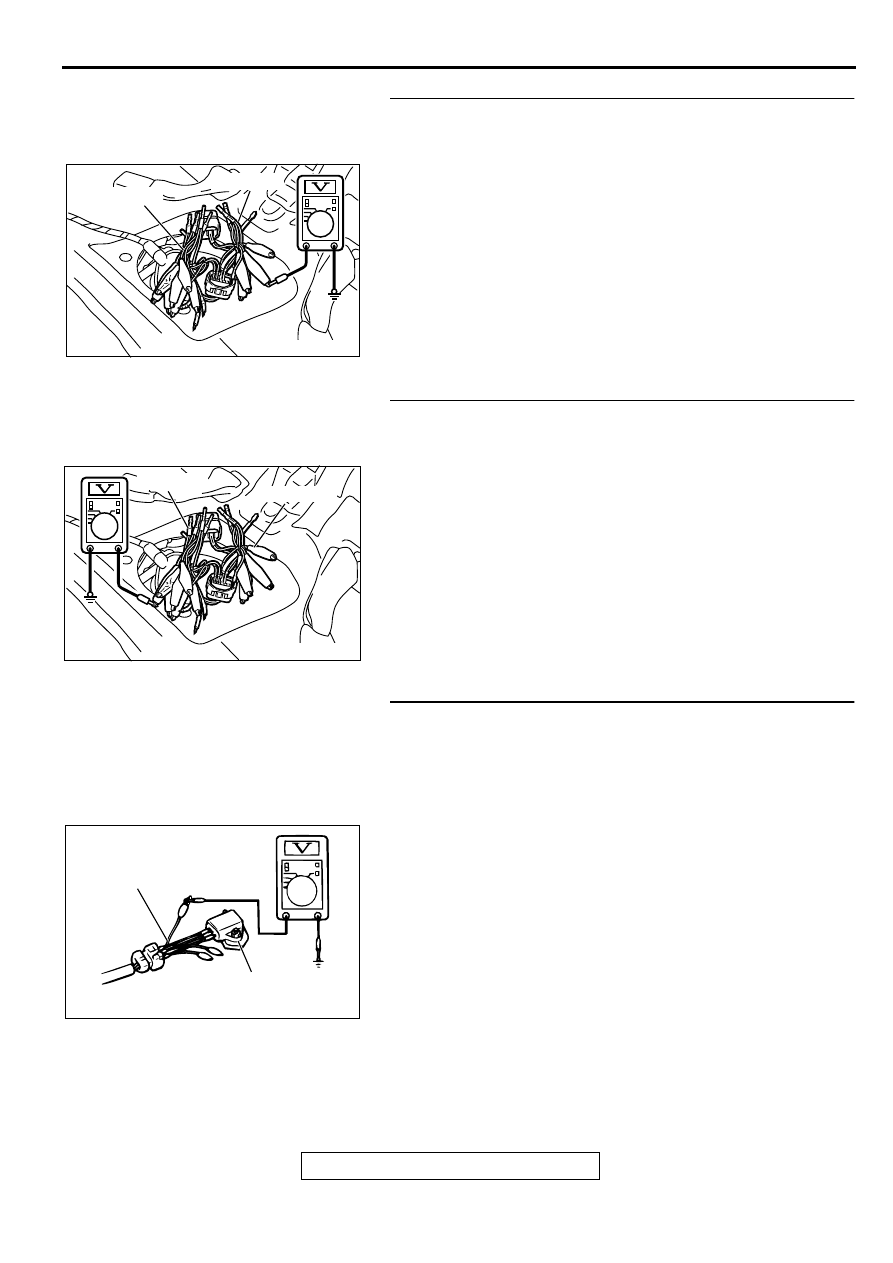

STEP 3. Check the 5-volt supply circuit voltage at
intermediate connector D-16.
(1) Do not disconnect intermediate connector D-16.
(2) Use special tools (MB991658 and MB991709) to connect

terminals 5, 6 and 8 between connectors of the
intermediate connector, respectively.

(3) Turn the ignition switch to the "ON" position.
(4) Measure the voltage between terminal 8 and ground by

backprobing.

Voltage should be between 4.8 and 5.2 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the multi-meter reading within the specified value?

YES : Go to Step 4.
NO :  Go to Step 11.

STEP 4. Check the ground circuit voltage at intermediate
connector D-16.
(1) Do not disconnect intermediate connector D-16.
(2) Use special tools (MB991658 and MB991709) to connect

terminals 5, 6 and 8 between connectors of the
intermediate connector, respectively.

(3) Turn the ignition switch to the "ON" position.
(4) Measure the voltage between terminal 6 and ground by

backprobing.

Voltage should be between 0.5 volts or less.

(5) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the multi-meter reading within the specified value?

YES : Go to Step 5.
NO :  Go to Step 15.

STEP 5. Check the output circuit voltage at fuel tank
differential pressure connector D-18.
(1) Remove the center pipe.
(2) Remove the fuel band assembly, tilt the fuel tank.
(3) Disconnect fuel tank differential pressure sensor connector

D-18.

(4) Use special tool (MB991658) to connect terminals 1, 2 and

3 of the disconnected sensor connector and those of the
harness side connector, respectively.

(5) Turn the ignition switch to the "ON" position.
(6) Remove the fuel cap.
(7) Measure the voltage between terminal 1 and ground by

backprobing.

Voltage should be between 2.0 and 3.0 volts.

(8) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the multi-meter reading within the specified value?

YES : Go to Step 17.
NO :  Go to Step 6.

AC002080

MB991709

MB991658

AB

AC002079 AB

MB991709

MB991658

AC002081AB

MB991658

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-256

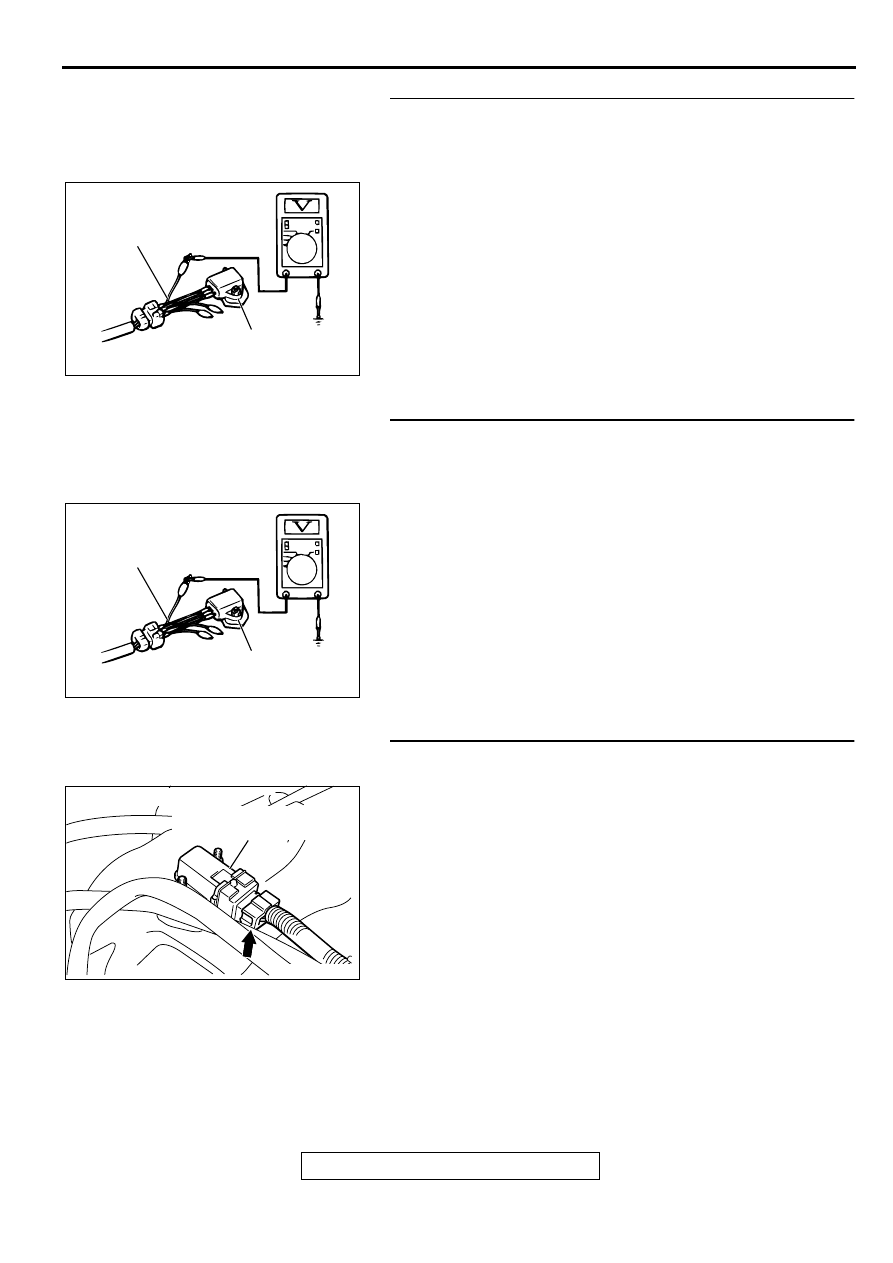

STEP 6. Check the 5-volt supply circuit voltage at fuel tank
differential pressure sensor connector D-18.
(1) Do not disconnect fuel tank differential pressure sensor

connector D-18.

(2) Use special tool (MB991658) to connect terminals 1, 2 and

3 of the disconnected sensor connector and those of the
harness side connector, respectively.

(3) Turn the ignition switch to the "ON" position.
(4) Measure the voltage between terminal 3 and ground by

backprobing.

Voltage should be between 4.8 and 5.2 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the multi-meter reading within the specified value?

YES : Go to Step 7.
NO :  Go to Step 17.

STEP 7. Check the ground circuit voltage at fuel tank
differential pressure sensor connector D-18.
(1) Disconnect fuel tank differential pressure sensor connector

D-18.

(2) Use special tool (MB991658) to connect terminals 1, 2 and

3 of the disconnected sensor connector and those of the
harness side connector, respectively.

(3) Turn the ignition switch to the "ON" position.
(4) Measure the voltage between terminal 2 and ground by

backprobing.

Voltage should be between 0.5 volts or less.

(5) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the multi-meter reading within the specified value?

YES : Go to Step 8.
NO :  Go to Step 17.

STEP 8. Check fuel tank differential pressure sensor
connector D-18 for damage.
(1) Disconnect fuel tank differential pressure sensor connector

D-18.

Q: Is there any failure at fuel tank differential pressure

sensor connector D-18?
YES :
Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 26.

AC002081AB

MB991658

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

AC002081AB

MB991658

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

AC002041AB

CONNECTOR: D-18

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-257

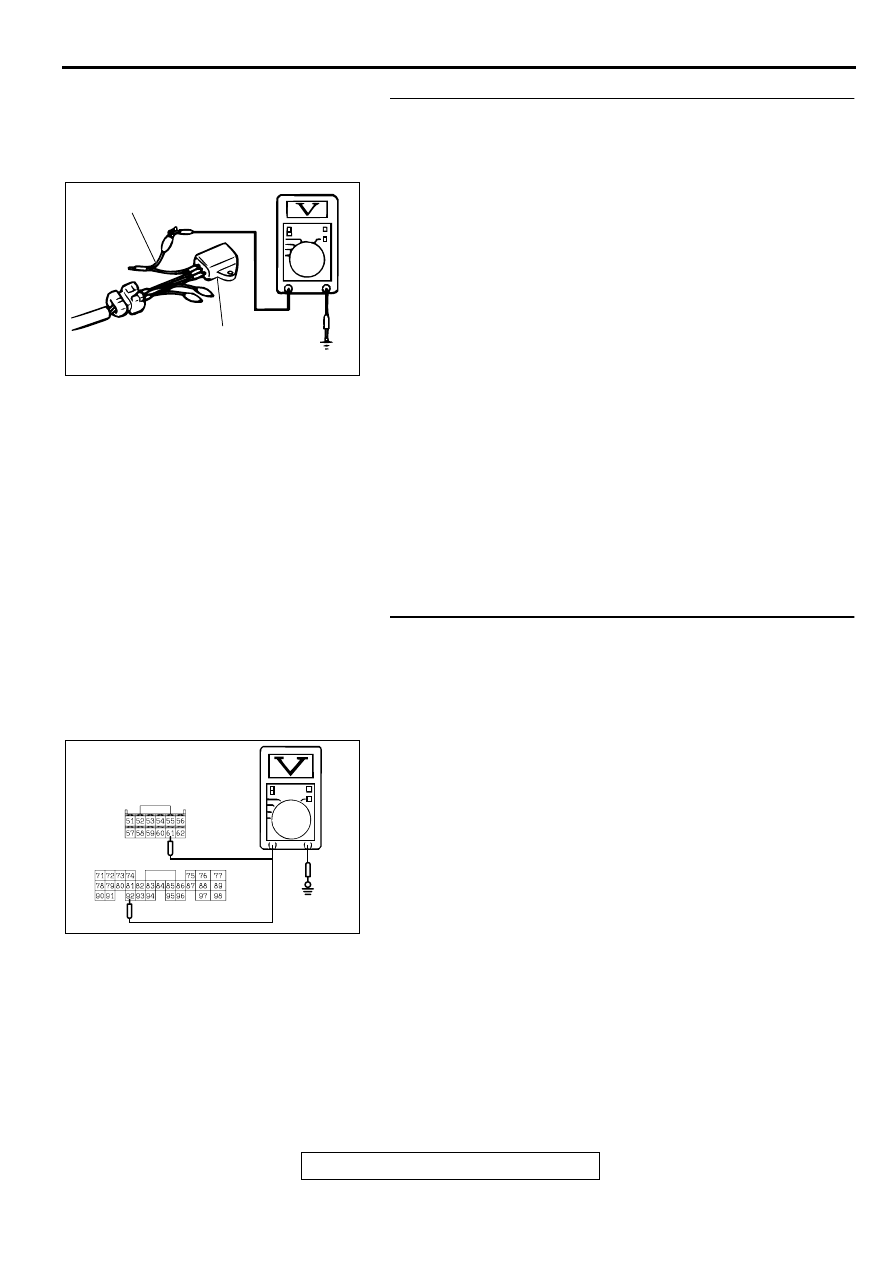

STEP 9. Check the output voltage at fuel tank differential
pressure sensor connector D-18.
(1) Disconnect fuel tank differential pressure sensor connector

D-18.

(2) Use special tool (MB991658) to connect terminals 2 and 3

of the disconnected sensor connector and those of the
harness side connector, respectively.

(3) Turn the ignition switch to the "ON" position.
(4) Remove the fuel cap.
(5) Measure the voltage between terminal 1 and ground by

backprobing.

Voltage should be between 2.0 and 3.0 volts.

(6) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the multi-meter reading within the specified value?

YES : Check connectors D-16, C-90, C-28, C-56 <M/T> or

C-57 <A/T> and repair or replace as required. Refer
to GROUP 00E, Harness Connector Inspection

P.00E-2

. If connectors D-16, C-90, C-28, C-56 <M/T>

or C-57 <A/T> are in good condition, check the
harness between fuel tank differential pressure
sensor connector D-18 and ECM connector C-56 <M/
T> or PCM connector C-57 <A/T> for short circuit to
ground, then repair if necessary. Then go to Step 26.

NO :  Replace the fuel tank differential pressure sensor.

Then go to Step 26.

STEP 10. Check the output circuit voltage at ECM
connector C-56 <M/T> or PCM connector C-57 <A/T>.
(1) Do not disconnect the ECM connector C-56 <M/T> or PCM

connector C-57 <A/T>.

(2) Turn the ignition switch to the "ON" position.
(3) Remove the fuel cap.
(4) Measure the voltage between terminal 61 <M/T> or terminal

92 <A/T> and ground by backprobing.

Voltage should be between 2.0 and 3.0 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the multi-meter reading within the specified value?

YES : Go to Step 18.
NO :  Check connectors D-16, C-90, C-28, C-56 <M/T> or

C-57 <A/T> and repair or replace as required. Refer
to GROUP 00E, Harness Connector Inspection

P.00E-2

. If connectors D-16, C-90, C-28, C-56 <M/T>

or C-57 <A/T> are in good condition, check the
harness between intermediate connector D-16 and
ECM connector C-56 <M/T> or PCM connector C-57
<A/T> for open circuit or damage. Then repair if
necessary. Then go to Step 26.

ACX01760AB

MB991658

FUEL TANK DIFFERENTIAL

PRESSURE SENSOR

AC002551AC

<M/T> C-56

<A/T> C-57

HARNESS SIDE
CONNECTOR

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-258

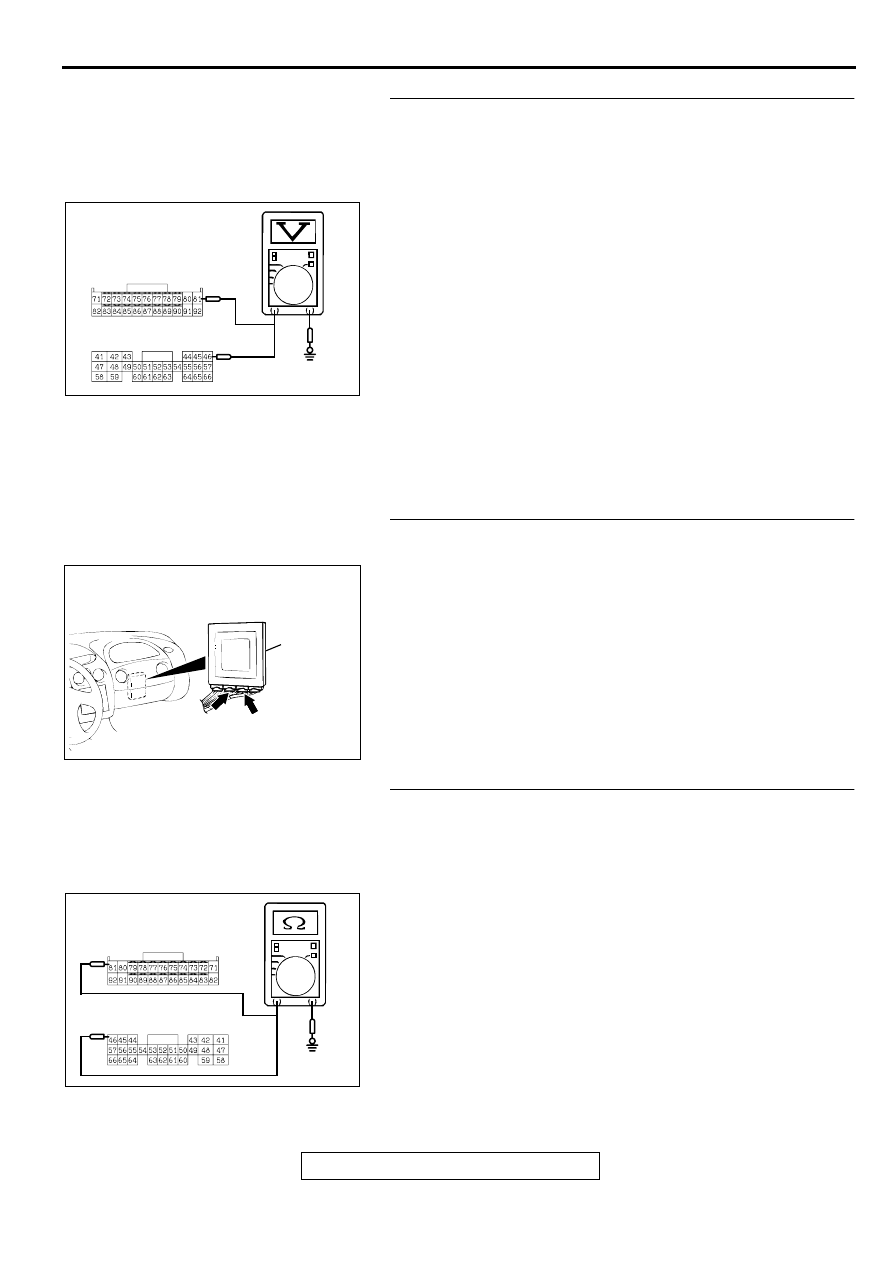

STEP 11. Check the 5-volt supply circuit voltage at ECM
connector C-60 <M/T> or PCM connector C-54 <A/T>.
(1) Do not disconnect ECM connector C-60 <M/T> or PCM

connector C-54 <A/T>.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 81 <M/T> or terminal

46 <A/T> and ground by backprobing.

Voltage should be between 4.8 and 5.2 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the multi-meter reading within the specified value?

YES : Check connectors D-16, C-90, C-28, C-60 <M/T> or

C-54 <A/T> and repair or replace as required. Refer
to GROUP 00E, Harness Connector Inspection

P.00E-2

. If connectors D-16, C-90, C-28, C-60 <M/T>

or C-54 <A/T> are in good condition, check the
harness between intermediate connector D-16 and
ECM connector C-60 <M/T> or PCM connector C-54
<A/T> for open circuit or damage. Then repair if
necessary. Then go to Step 26.

NO :  Go to Step 12.

STEP 12. Check ECM connector C-60 <M/T> or PCM
connector C-54 <A/T> for damage.
(1) Disconnect ECM connector C-60 <M/T> or PCM connector

C-54 <A/T>.

Q: Is there any failure at ECM connector C-60 <M/T> or

PCM connector C-54 <A/T>?
YES :
Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 26.

NO :  Go to Step 13.

STEP 13. Check the sensor power supply line for short
circuit to ground at ECM connector C-60 <M/T> or PCM
connector C-54 <A/T>.
(1) Disconnect ECM connector C-60 <M/T> or PCM connector

C-54 <A/T> and measure at the harness side.

(2) Check for the continuity between terminal 81 <M/T> or

terminal 46 <A/T> and ground.

There should be 2 ohms or more.

Q: Does the multi-meter reading exceed the specified

value?
YES :
Replace ECM or PCM. Then go to Step 26.
NO :  Go to Step 14.

AC002552

HARNESS SIDE
CONNECTOR

<M/T> C-60

<A/T> C-54

AC

AC001689

CONNECTOR: C-60 <M/T>, C-54 <A/T>

ECM <M/T>
OR
PCM <A/T>

AL

C-54
<A/T>

C-60
<M/T>

AC002553

HARNESS SIDE
CONNECTOR

<M/T> C-60

<A/T> C-54

AC
