INTAKE MANIFOLD PLENUM AND THROTTLE BODY ASSEMBLY

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-7

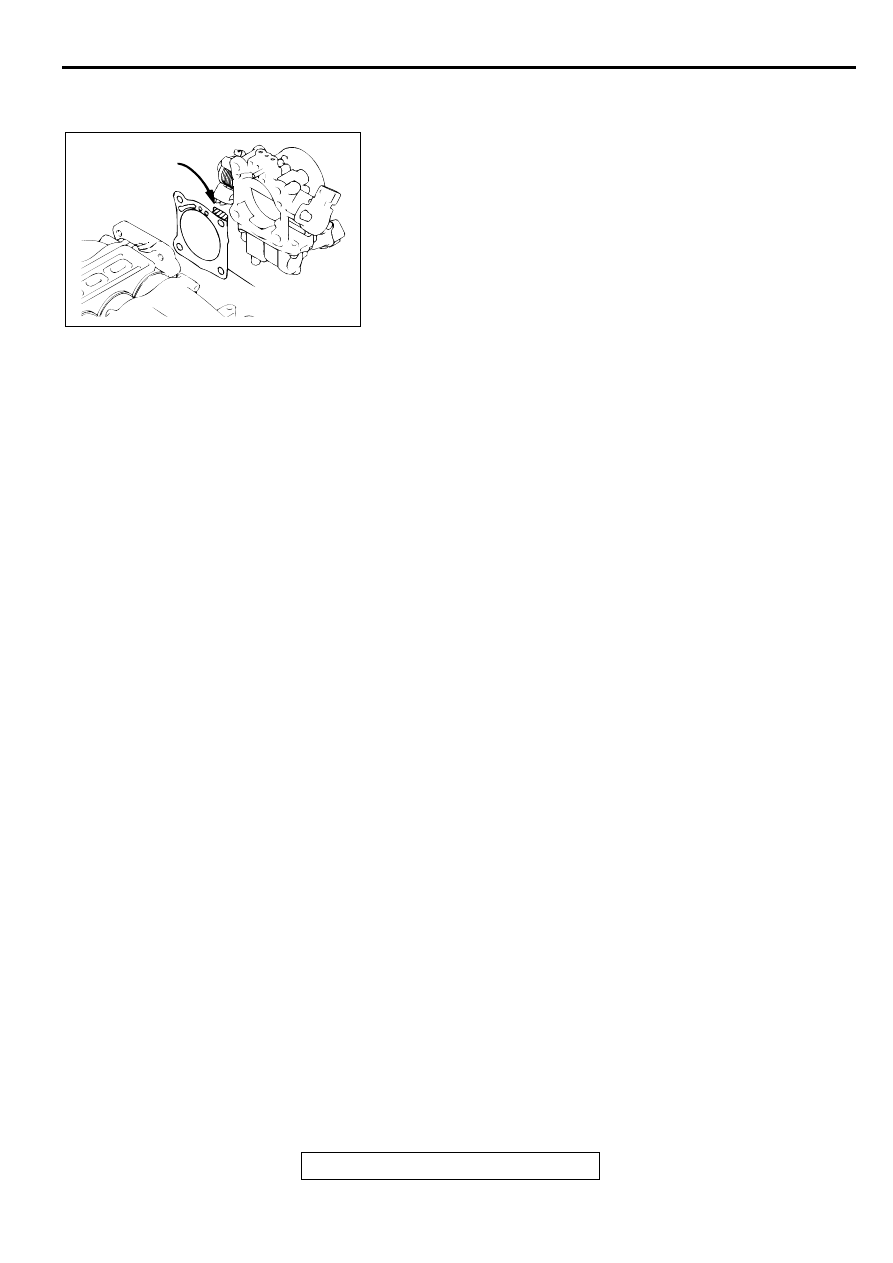

INSTALLATION SERVICE POINT

>>A<< THROTTLE BODY GASKET INSTALLATION
Install the gasket so that the tab is positioned as shown in the
illustration.

AKX00691

TAB

GASKET

AB

IGNITION SYSTEM

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-8

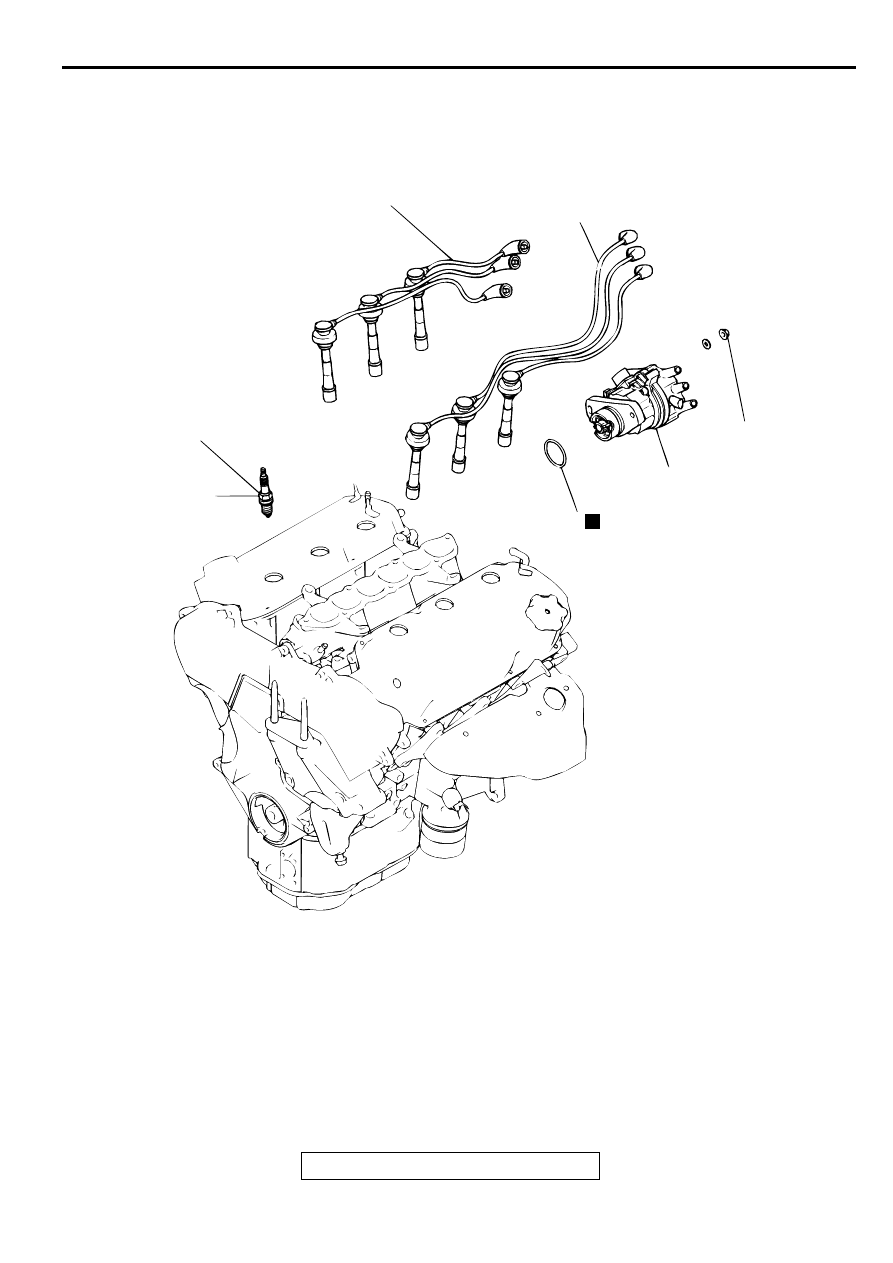

IG N ITIO N  SYSTEM

REMOVAL AND INSTALLATION

M1113001600037

AKX00663

25 ± 5 N·m
18 ± 4 ft-lb

13 ± 2 N·m
113 ± 17 in-lb

1

1

3

2

4

N

AB

REMOVAL STEPS
1. SPARK PLUG CABLES
2. SPARK PLUGS

>>A<<

3

DISTRIBUTOR

4. O-RING

IGNITION SYSTEM

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-9

INSTALLATION SERVICE POINT

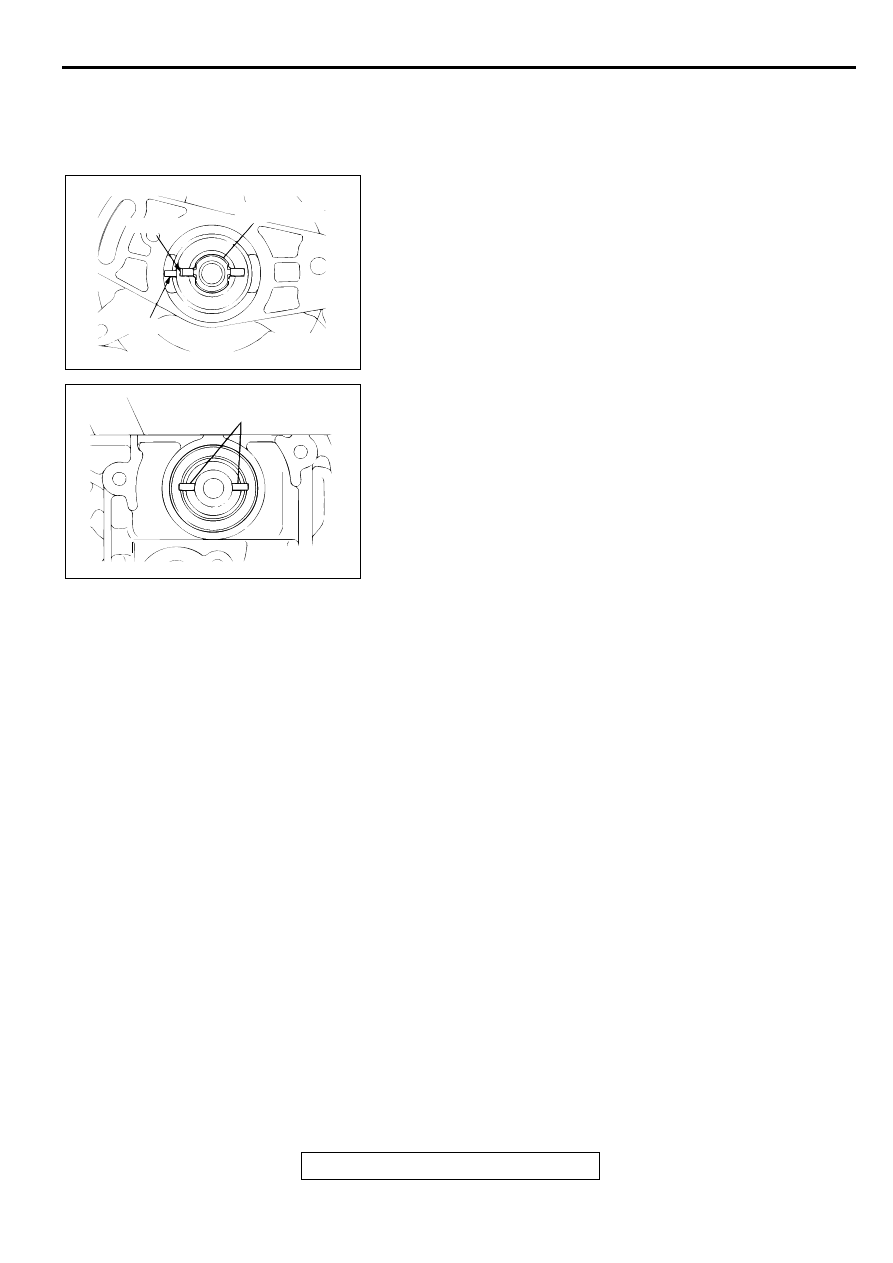

>>A<< DISTRIBUTOR INSTALLATION
1. Turn the crankshaft to bring the piston in No.1 cylinder to the

top dead center on the compression stroke.

2. Rotate the distributor shaft coupling until its notch (mating

mark) is lined up with the notch (mating mark) in the
housing.

3. Fit the distributor coupling in the slot at the rear end of the

camshaft to install the distributor.

AKX00664AB

COUPLING

NOTCH

NOTCH

AKX00665

SLOT

AB

TIMING BELT

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-10

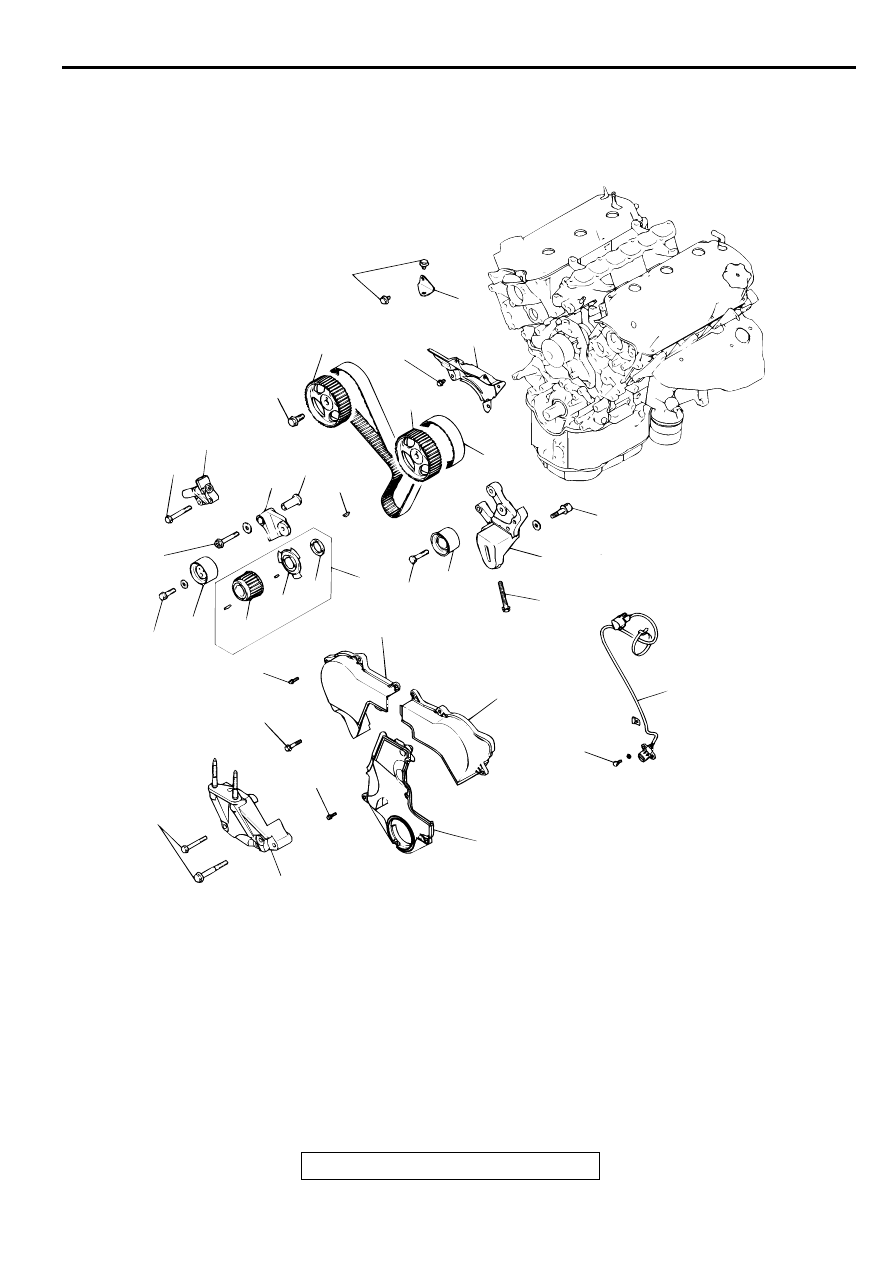

TIM IN G  B ELT

REMOVAL AND INSTALLATION

M1113001900049

AKX00666

24 ± 3 N·m
17 ± 2 ft-lb

14 ± 1 N·m
122 ± 9 in-lb

88 ± 10 N·m
65 ± 7 ft-lb

24 ± 3 N·m
17 ± 2 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 5 N·m
33 ± 4 ft-lb

48 ± 6 N·m
35 ± 4 ft-lb

11 ± 1 N·m
95 ± 9 in-lb
(M6 BOLT)

14 ± 1 N·m
122 ± 9  in-lb
(M8 BOLT)

8.8 ± 1 N·m
78 ± 9 in-lb

44 ± 5 N·m
33 ± 4 ft-lb

11 ± 1 Nm
95 ± 9 in-lb

21

22

20

20

7

6

10

9

16

14

12

15

11

17

13

18

8

1

19

2

5

3

4

AB

REMOVAL STEPS
1. TIMING BELT FRONT UPPER

COVER, RIGHT

2. TIMING BELT FRONT UPPER

COVER, LEFT

3 TIMING BELT FRONT LOWER

COVER

>>D<<

4. ENGINE SUPPORT BRACKET,

RIGHT

5. CRANKSHAFT POSITION

SENSOR

<<A>>

>>C<<

6. TIMING BELT

>>B<<

7. AUTO-TENSIONER
8. TENSIONER PULLEY
9. TENSIONER ARM
10.SHAFT
11. IDLER PULLEY
12.TENSIONER BRACKET
13.ADJUSTING BOLT
14.ADJUSTING STUD
15.CRANKSHAFT SPROCKET AND

SENSING BLADE

16.KEY

REMOVAL STEPS (Continued)
