ENGINE MECHANICAL <3.0L ENGINE>
11C-37
INSPECTION
M1112004400095

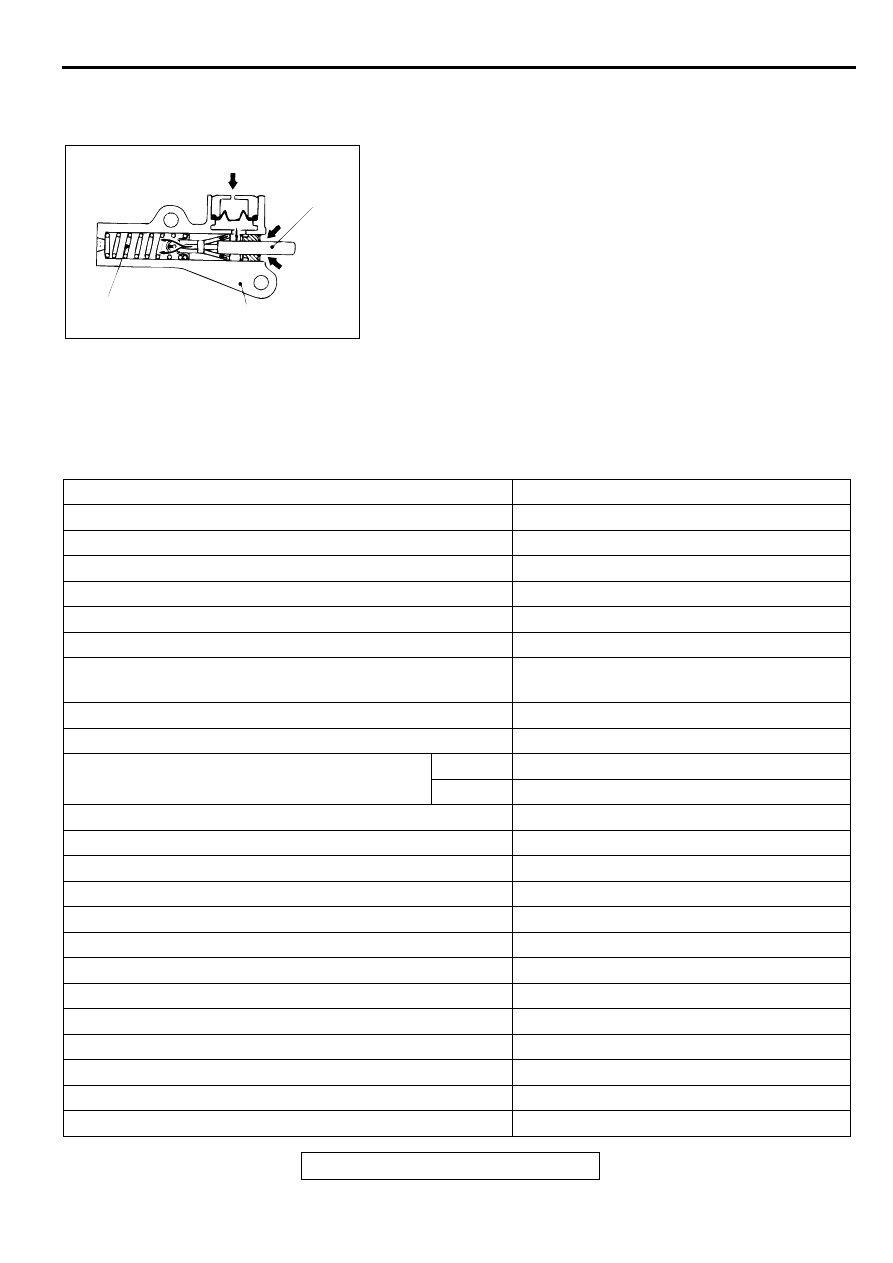

AUTO-TENSIONER
•
Check the auto-tensioner for possible leaks.
•
Check the pushrod for cracks.
SPECIFIC ATIO NS
FASTENER TIGHTENING SPECIFICATIONS
M1111003800150
AC001740AB
PUSHROD
SPRING
AUTO-TENSIONER
ITEMS
SPECIFICATIONS
Auto-tensioner attaching bolt
23
±
3 N
⋅
m (17
±
3 ft-lb)
Camshaft sprocket attaching bolt
88
±
10 N
⋅
m (65
±
7 ft-lb)
Camshaft thrust case attaching bolt
13
±
2 N
⋅
m (109
±
21 in-lb)
Control wiring harness protector attaching bolt
4.9
±
1.0 N
⋅
m (44
±
8 in-lb)
Crankshaft bolt
182
±
4 N
⋅
m (134
±
3 ft-lb)
Crankshaft position sensor attaching bolt
8.8
±
1.0 N
⋅
m (78
±
9 in-lb)
Cylinder head bolt <cold engine>
108
±
5 N
⋅
m
→
0 N
⋅
m
→
108
±
5 N
⋅
m
(80
±
3 ft-lb
→
0 in-lb
→
80
±
3 ft-lb)
Distributor attaching bolt
13
±
2 N
⋅
m (109
±
21 in-lb)
Drive plate bolt <A/T>
74
±
2 N
⋅
m (55
±
1 ft-lb)
Engine mount bracket attaching bolt
M10
86
±
12 N
⋅
m (64
±
8 ft-lb)
M12
81
±
12 N
⋅
m (60
±
9 ft-lb)
Engine mount bracket attaching nut
86
±
12 N
⋅
m (64
±
8 ft-lb)
Engine mount stay attaching bolt
35
±
6 N
⋅
m (26
±
4 ft-lb)
Engine support bracket right attaching nut
44
±
5 N
⋅
m (33
±
3 ft-lb)
Flywheel plate bolt <M/T>
74
±
2 N
⋅
m (55
±
1 ft-lb)
Ground wire attaching bolt
8.9
±
1.9 N
⋅
m (78
±
17 in-lb)
High-pressure fuel hose attaching bolt
4.9
±
1.0 N
⋅
m (44
±
8 in-lb)
Lower oil pan attaching bolt
11
±
1 N
⋅
m (96
±
8 in-lb)
Oil dipstick guide attaching bolt
48
±
6 N
⋅
m (36
±
4 ft-lb)
Oil pan cover attaching bolt
11
±
1 N
⋅
m (96
±
8 in-lb)
Oil pan drain plug
39
±
5 N
⋅
m (29
±
4 ft-lb)
Power steering oil pump attaching bolt
42
±
7 N
⋅
m (31
±
5 ft-lb)
Rocker arm and shaft assembly attaching bolt
31
±
3 N
⋅
m (23
±
2 ft-lb)
Rocker cover attaching bolt
3.4
±
0.5 N
⋅
m (31
±
4 in-lb)
