CONVERTIBLE TOP

TSB Revision

BODY

42-113

.

CIRCUIT OPERATION
When the convertible top switch is operated, a signal
is sent to the convertible top control module. The
convertible top control module sends convertible top
switch "ON" signal to the power window main switch
to lower the door windows automatically. The power
window main switch lowers the door windows and
simultaneously sends the "AUTO DOWN" signal to
the convertible top control module. When the "AUTO

DOWN" signal is received, the convertible top control
module drives the quarter window regulator motor to
lower the quarter windows and simultaneously drives
the topstack drive motor assembly to operate the
electric convertible top.

.

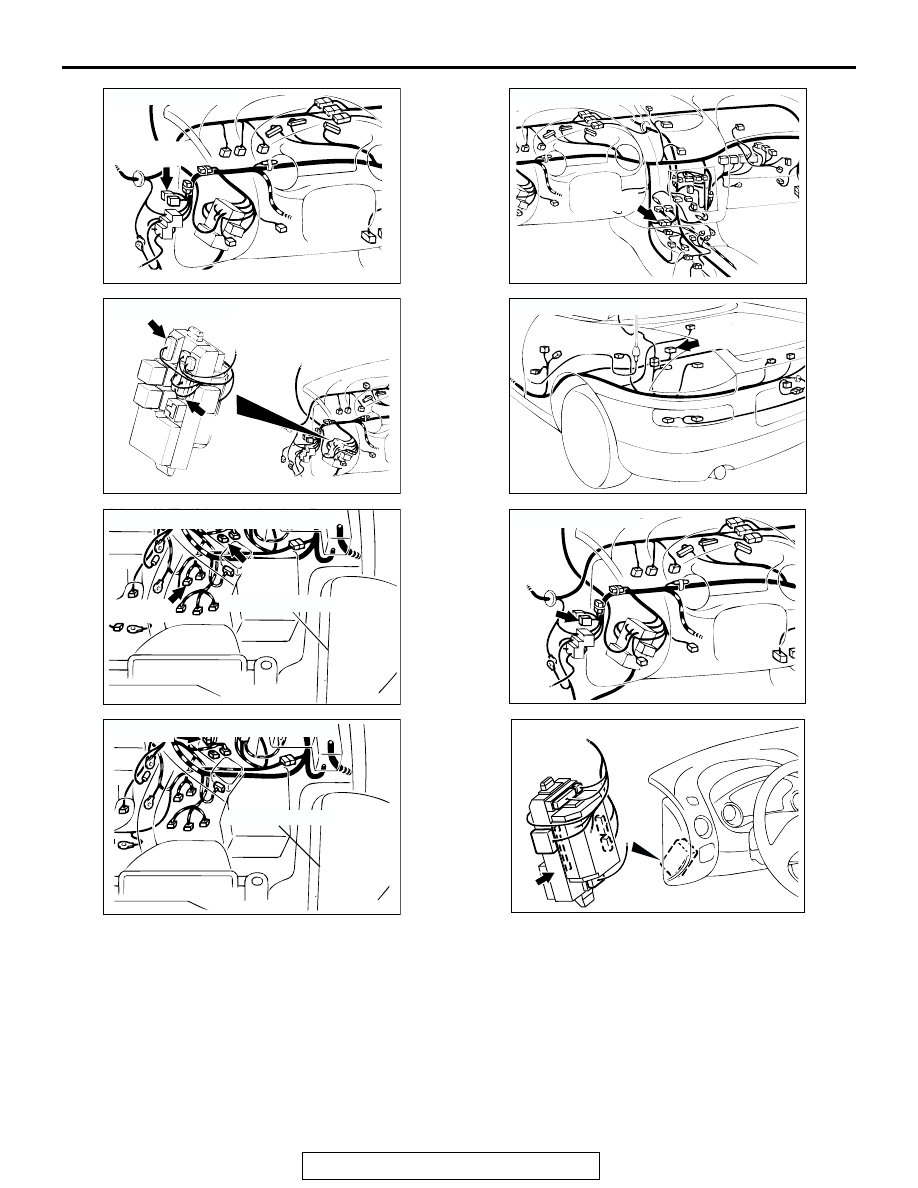

TECHNICAL DESCRIPTION (COMMENT)
The cause may be a malfunction of the vehicle
speed sensor.

.

AC004114 AB

CONNECTOR:C-78

AC004116 AB

CONNECTORS:C-101,C-104

C-101

C-104

AC004111AB

<M/T>

<2.4L ENGINE>CONNECTOR:B-39

<A/T>

HEADLIGHT(LH)

AC004113 AB

<2.4L ENGINE>CONNECTOR:B-36

HEADLIGHT(LH)

AC004115AB

CONNECTOR:C-28

AC004117AB

CONNECTOR:F-34

AC004118AB

CONNECTOR:C-77

AC004119

CONNECTOR:C-90

AB

CONVERTIBLE TOP

TSB Revision

BODY

42-114

TROUBLESHOOTING HINTS

• Malfunction of the vehicle speed sensor

• Damaged harness wires or connectors

.

DIAGNOSIS

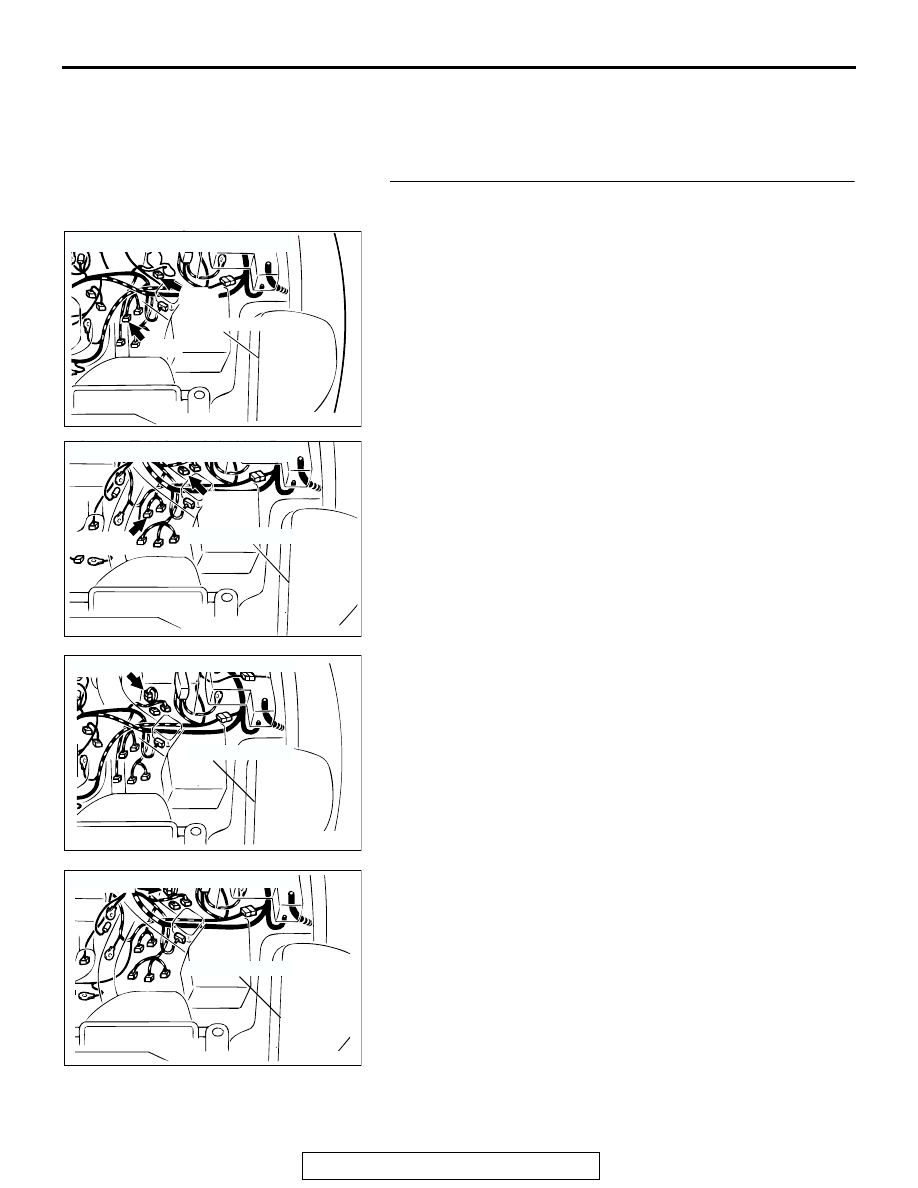

STEP 1. Check harness wires between ignition switch (IG1)
and vehicle speed sensor connector B-39 (terminal 1).

AC004110

HEADLIGHT(LH)

AB

<M/T>

<3.0L ENGINE>CONNECTOR:B-39

<A/T>

AC004111AB

<M/T>

<2.4L ENGINE>CONNECTOR:B-39

<A/T>

HEADLIGHT(LH)

AC004112AB

<3.0L ENGINE>CONNECTOR:B-36

HEADLIGHT(LH)

AC004113 AB

<2.4L ENGINE>CONNECTOR:B-36

HEADLIGHT(LH)

CONVERTIBLE TOP

TSB Revision

BODY

42-115

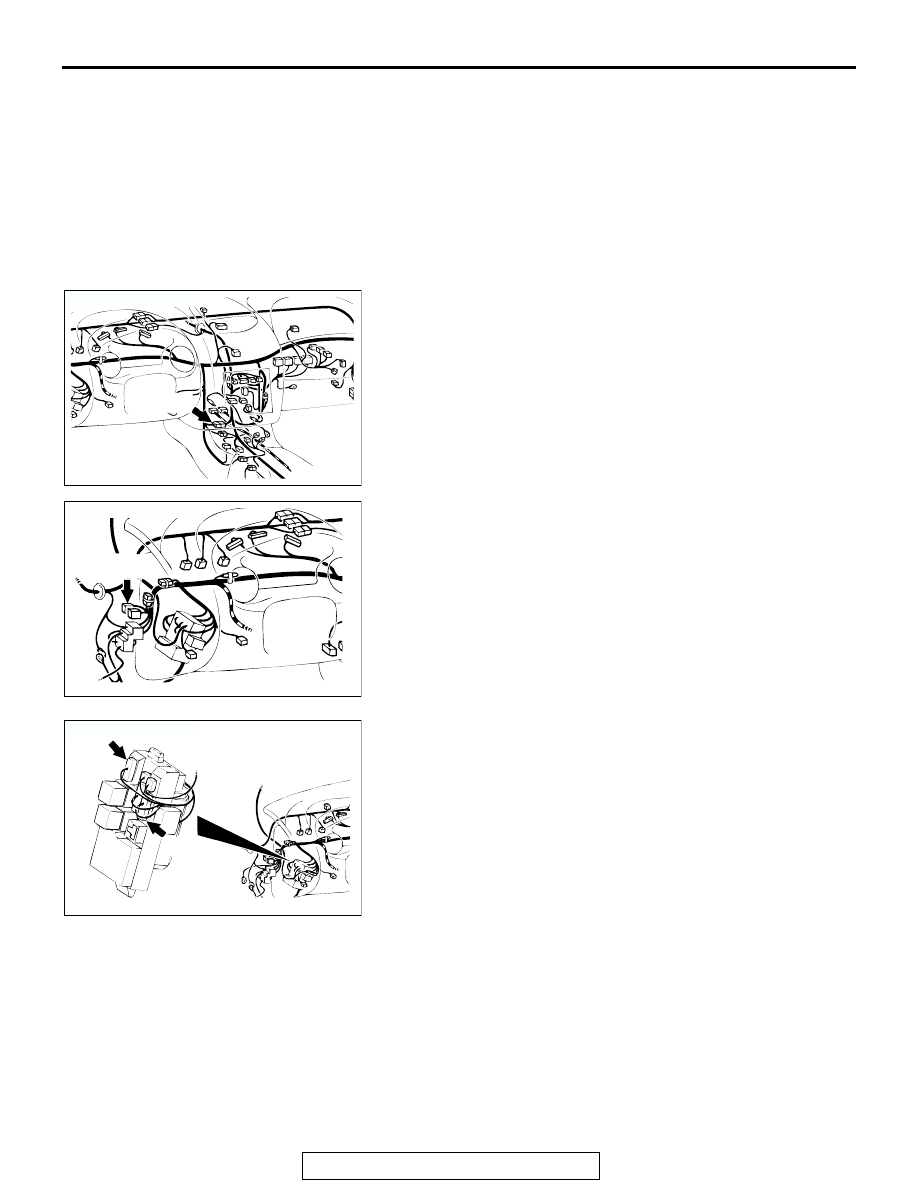

NOTE: After inspecting intermediate connector B-36 <M/T>,
C-28, C-78, C-101, C-104 inspect the wire. If intermediate con-
nector B-36 <M/T>, C-28, C-78, C-101, C-104 are damaged,
repair or replace it. Refer to GROUP 00E

P.00E-2

, Harness

Connector Inspection. Then go to Step 4.
Q: Are there any damaged wires between ignition switch

(IG1) and vehicle speed sensor connector B-39
(terminal 1)?
YES : Replace it, then go to Step 4.
NO :  Go to Step 2.

AC004115AB

CONNECTOR:C-28

AC004114 AB

CONNECTOR:C-78

AC004116 AB

CONNECTORS:C-101,C-104

C-101

C-104

CONVERTIBLE TOP

TSB Revision

BODY

42-116

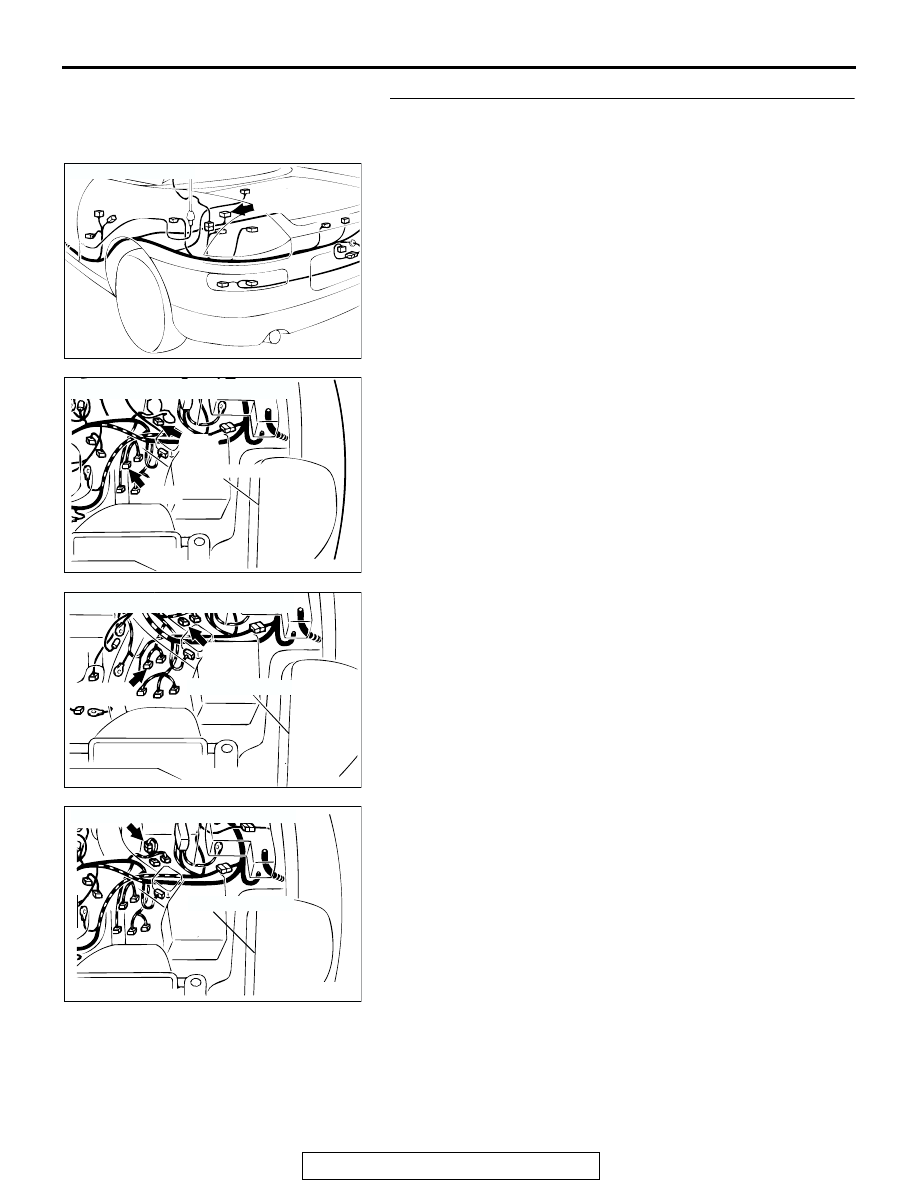

STEP 2. Check harness wires between convertible top
control module connector F-34 (terminal 13) and vehicle
speed sensor connector B-39 (terminal 3).

AC004117AB

CONNECTOR:F-34

AC004110

HEADLIGHT(LH)

AB

<M/T>

<3.0L ENGINE>CONNECTOR:B-39

<A/T>

AC004111AB

<M/T>

<2.4L ENGINE>CONNECTOR:B-39

<A/T>

HEADLIGHT(LH)

AC004112AB

<3.0L ENGINE>CONNECTOR:B-36

HEADLIGHT(LH)
