CONVERTIBLE TOP

TSB Revision

BODY

42-105

DIAGNOSIS

STEP 1. Check the harness wires between ignition switch
(IG2) and convertible top switch connector C-35 (terminal
7).

NOTE: After inspecting intermediate connector C-73, C-77,
C-101, C-107 inspect the wire. If intermediate connector C-73,
C-77, C-101, C-107 are damaged, repair or replace it. Refer to
GROUP 00E

P.00E-2

, Harness Connector Inspection. Then go

to Step 5.
Q: Are the harness wires between ignition switch (IG2) and

convertible top switch connector C-35 (terminal 7) in
good condition?
YES : Go to Step 2.
NO :  Repair or replace them. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

. Then go to

Step 5.

AC004105AB

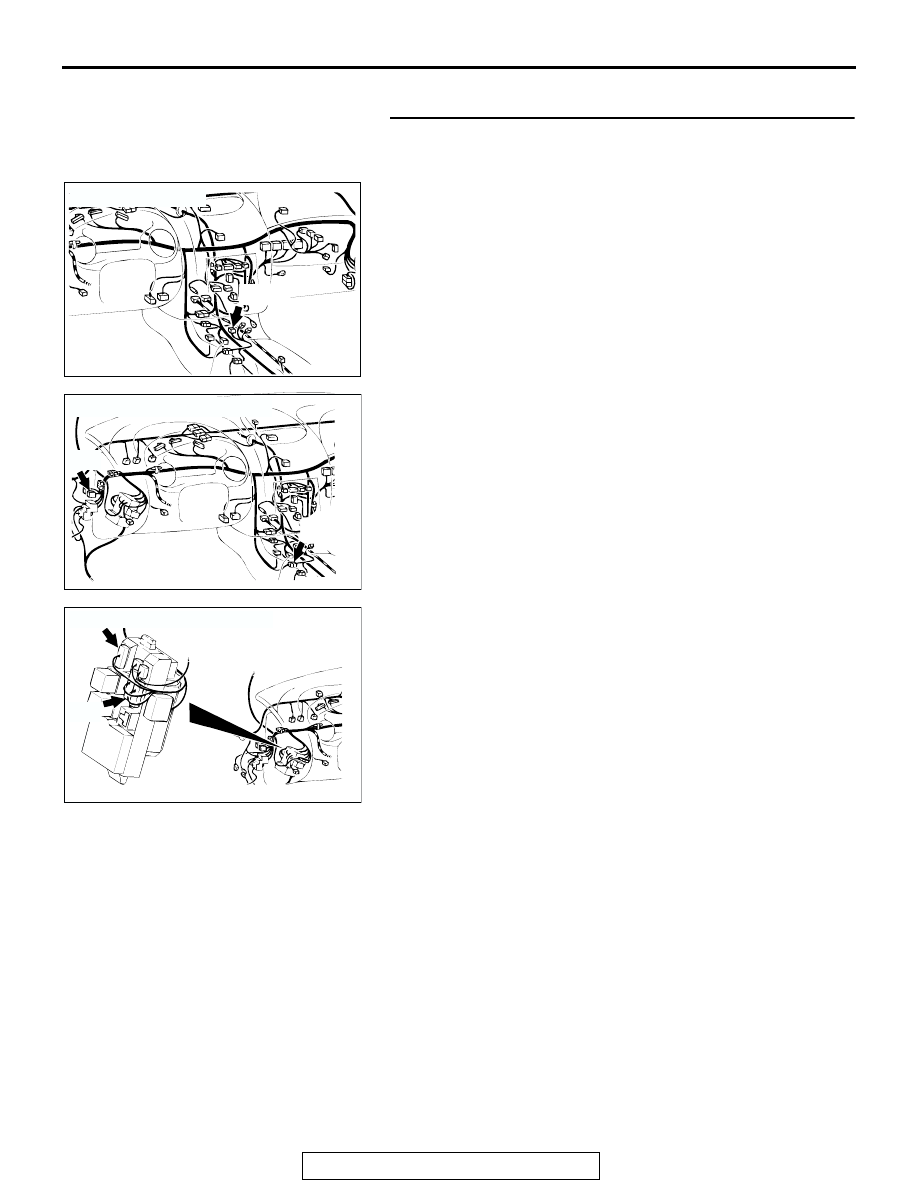

CONNECTOR:C-35

AC004101

C-73

AB

C-77

CONNECTORS:C-73,C-77

AC004103 AB

C-101

CONNECTORS:C-101,C-107

C-107

CONVERTIBLE TOP

TSB Revision

BODY

42-106

STEP 2. Check the harness wires between convertible top
control module connector F-34 (terminals 8, 9) and
convertible top switch connector C-35 (terminals 4, 5).

NOTE: After inspecting intermediate connector C-36 inspect
the wire. If intermediate connector C-36 is damaged, repair or
replace it. Refer to GROUP 00E

P.00E-2

, Harness Connector

Inspection. Then go to Step 5.
Q: Are the harness wires between convertible top control

module connector F-34 (terminals 8, 9) and convertible
top switch connector C-35 (terminals 4, 5) in good
condition?
YES : Go to Step 3.
NO :  Repair or replace them. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

. Then go to

Step 5.

STEP 3. Check the convertible top switch
Q: Are convertible top switch in good condition?

YES : Go to Step 4.
NO :  Replace the convertible top switch

P.42-144

.

AC004102 AB

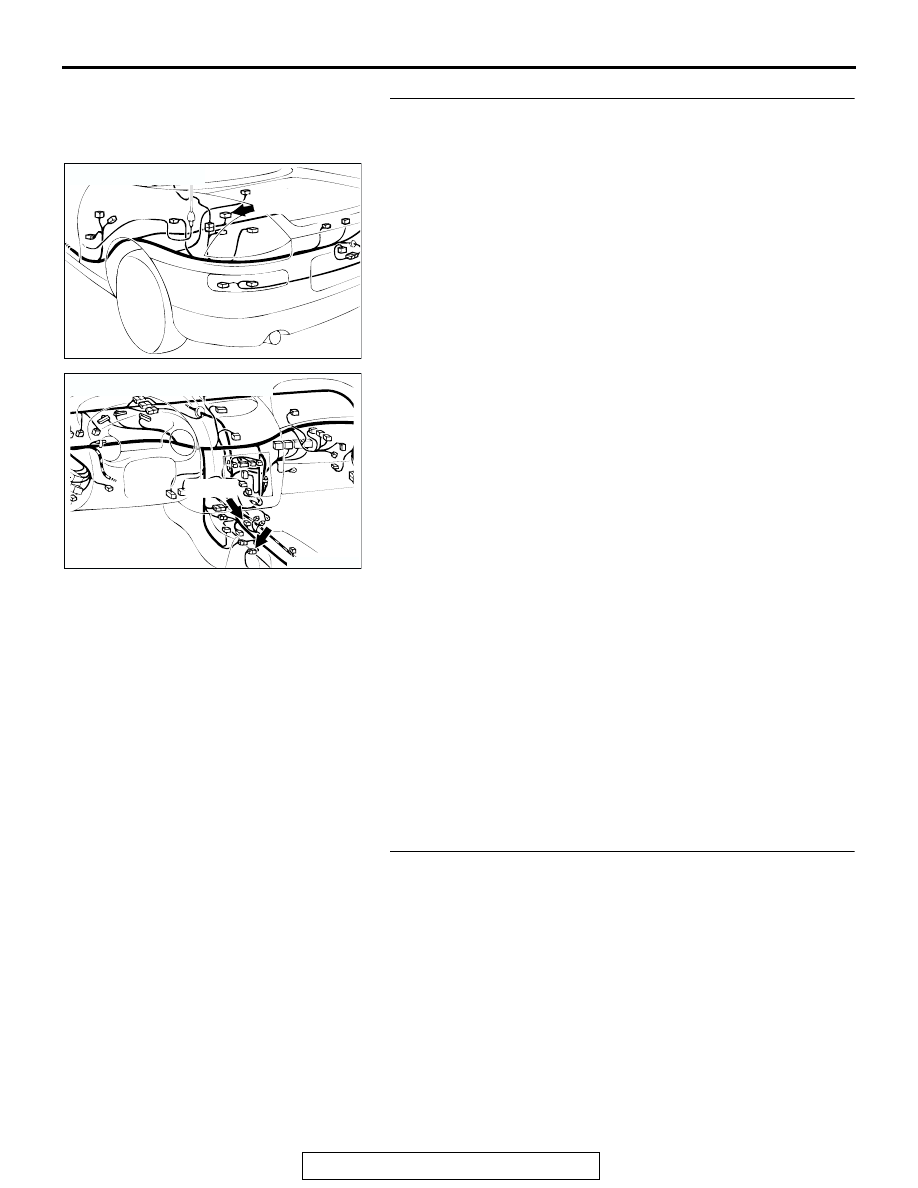

CONNECTOR:F-34

AC004104

C-36

AB

C-35

CONNECTORS:C-35,C-36

CONVERTIBLE TOP

TSB Revision

BODY

42-107

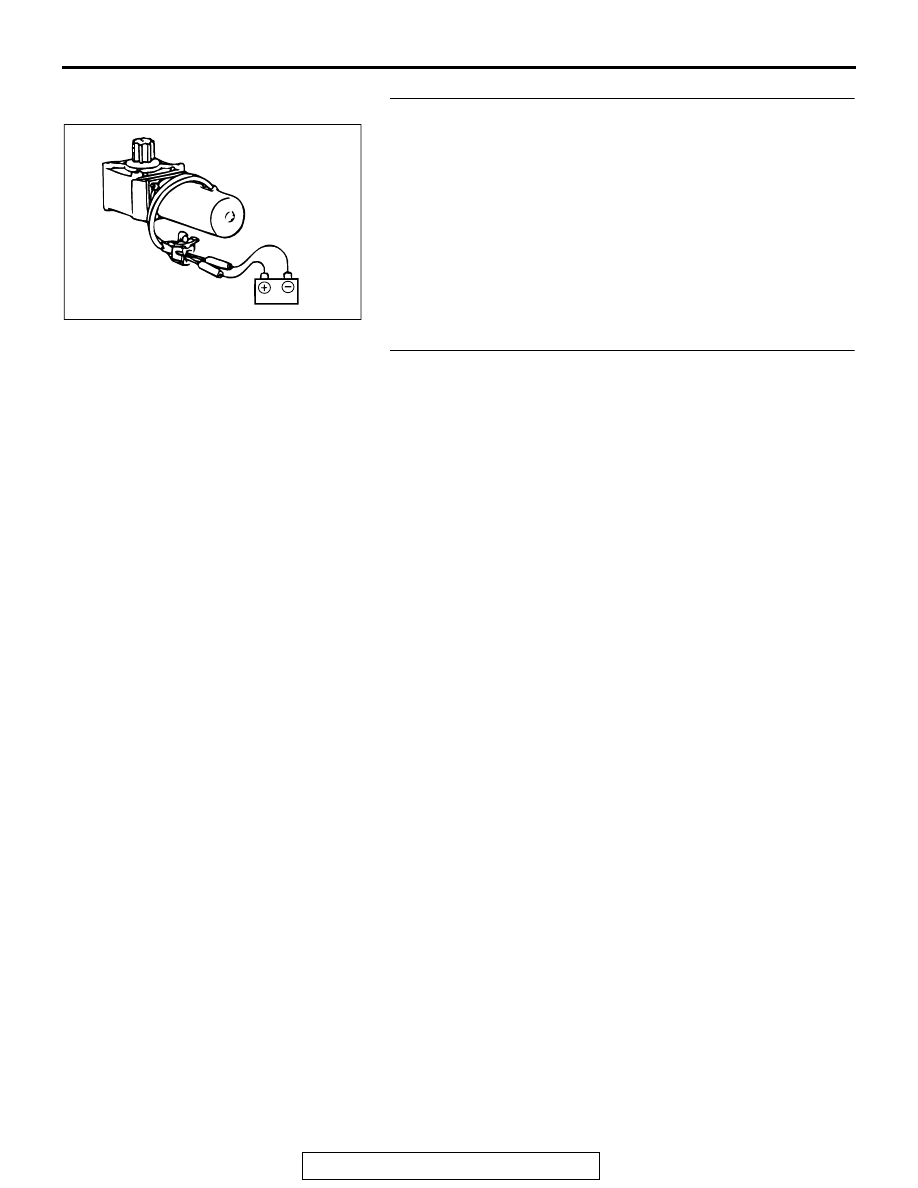

STEP 4. Check the topstack drive motor assembly.
Q: Are topstack drive motor assembly in good condition?

YES : Go to Step 5.
NO :  Replace the topstack drive motor assembly

P.42-120

.

STEP 5. Check symptoms.
Q: Does the electric convertible top open and close

normally?
YES : This diagnosis is complete.
NO :  Return to Step 1.

AC004099

CONVERTIBLE TOP

TSB Revision

BODY

42-108

INSPECTION PROCEDURE 3: The Electric Convertible Top does not Open or Close at the Vehicle
Speed of Less than 3 km/h (1.9 mph). (The Door Windows and the Quarter Windows do not
Automatically Lower when the Convertible Top Switch is Operated. Also, the Quarter Windows do not
Operate when the Power Window Main Switch is Operated.)

AC004106

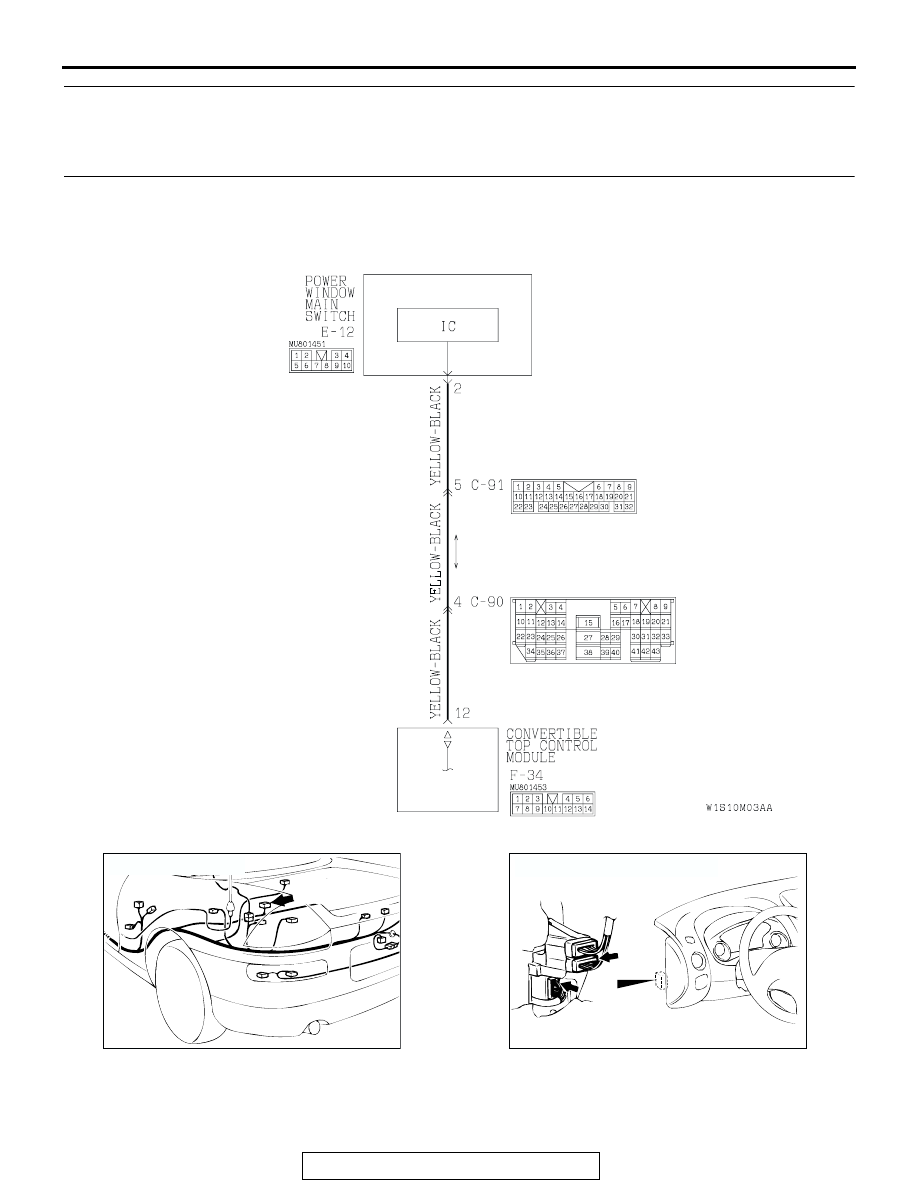

Convertible Top Control Module Circuit

AC004102 AB

CONNECTOR:F-34

AC004108

C-91

AB

C-90

CONNECTORS:C-90,C-91
