CONVERTIBLE TOP

TSB Revision

BODY

42-109

.

CIRCUIT OPERATION
When the convertible top switch is operated, a signal
is sent to the convertible top control module. The
convertible top control module sends convertible top
switch "ON" signal to the power window main switch
to lower the door windows automatically. The power
window main switch lowers the door windows and
simultaneously sends the "AUTO DOWN" signal to
the convertible top control module. When the "AUTO

DOWN" signal is received, the convertible top control
module drives the quarter window regulator motor to
lower the quarter windows and simultaneously drives
the topstack drive motor assembly to operate the
electric convertible top.

.

TECHNICAL DESCRIPTION (COMMENT)
The cause may be a malfunction of the topstack con-
trol module circuit.

.

TROUBLESHOOTING HINTS

• Malfunction of the power window main switch

• Damaged harness wires or connectors

.

AC004107AB

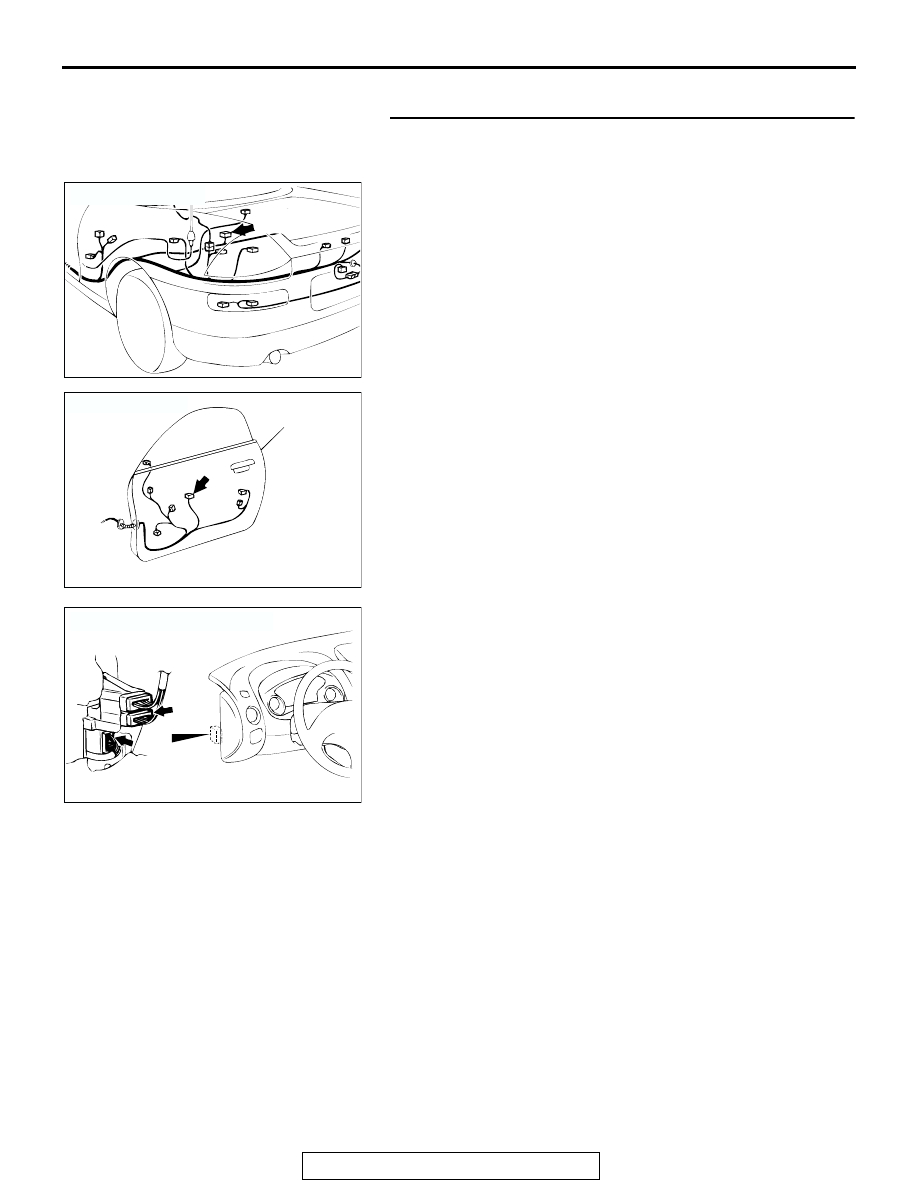

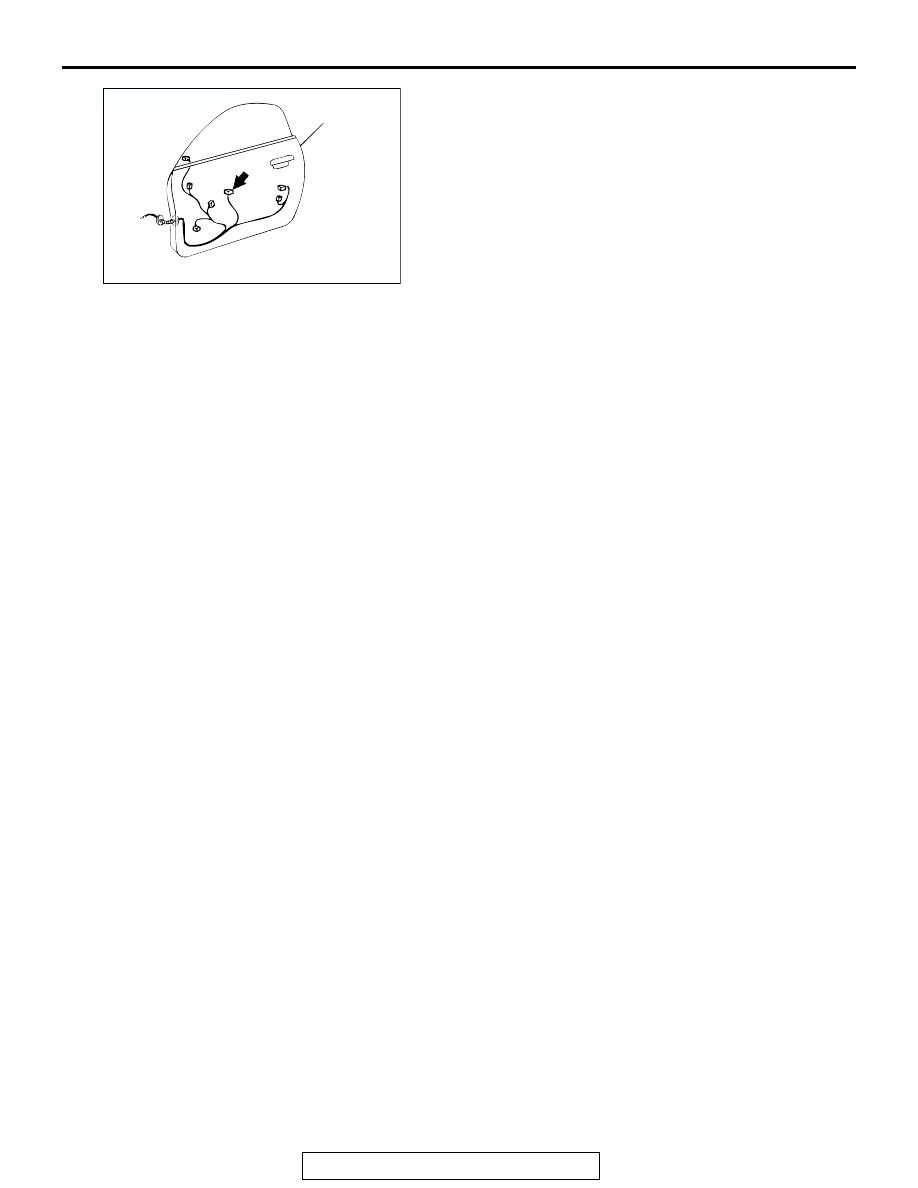

DOOR(LH)

CONNECTOR:E-12

CONVERTIBLE TOP

TSB Revision

BODY

42-110

DIAGNOSIS

STEP 1. Check harness wires between convertible top
control module connector F-34 (terminal 12) and power
window main switch connector E-12 (terminal 2).

NOTE: After inspecting intermediate connector C-90, C-91
inspect the wire. If connector block connector C-90, C-91 are
damaged, repair or replace it. Refer to GROUP 00E

P.00E-2

,

Harness Connector Inspection. Then go to Step 3.
Q: Are there any damaged wires between convertible top

control module connector F-34 (terminal 12) and power
window main switch connector E-12 (terminal 2)?
YES : Replace it, then go to Step 3.
NO :  Go to Step 2.

AC004102 AB

CONNECTOR:F-34

AC004107AB

DOOR(LH)

CONNECTOR:E-12

AC004108

C-91

AB

C-90

CONNECTORS:C-90,C-91

CONVERTIBLE TOP

TSB Revision

BODY

42-111

STEP 2. Check the power window main switch
Furthermore, check that the power window main switch with
the one in good condition to check that the quarter window
glass operates properly. (Refer to

P.42-56

.)

Q: Is the power window main switch damaged?

YES : Replace it, then go to Step 3.
NO :  Go to Step 3.

STEP 3. Check the Check symptoms.
Q: Does the electric convertible top open and close

normally?
YES : This diagnosis is complete.
NO :  Return to Step 1.

CONVERTIBLE TOP

TSB Revision

BODY

42-112

INSPECTION PROCEDURE 4: The Electric Convertible Top Opens or Closes Even at the Vehicle
Speed of 3 km/h (1.9 mph) or more.

AC004109

W1S10M04AA

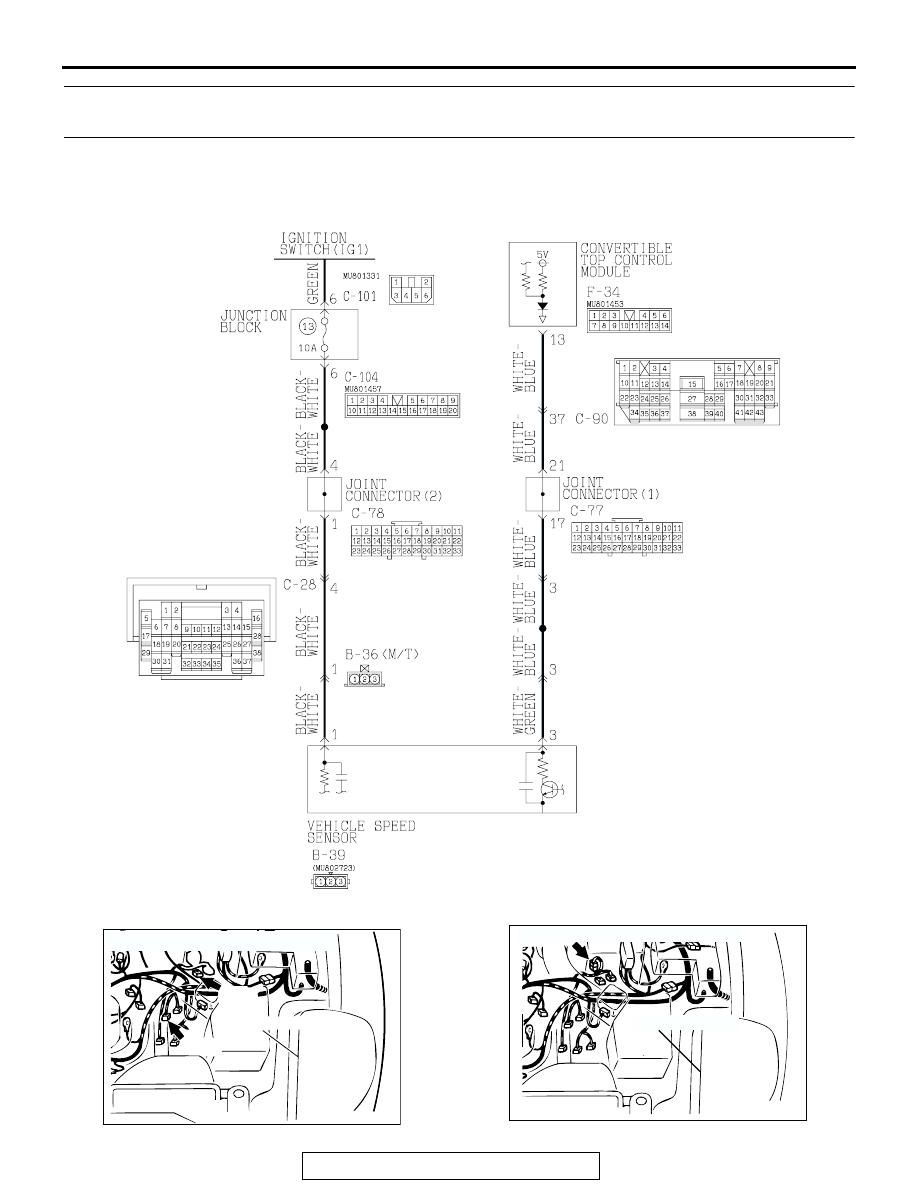

Vehicle Speed Sensor Circuit

AC004110

HEADLIGHT(LH)

AB

<M/T>

<3.0L ENGINE>CONNECTOR:B-39

<A/T>

AC004112AB

<3.0L ENGINE>CONNECTOR:B-36

HEADLIGHT(LH)
