SUNROOF ASSEMBLY

TSB Revision

BODY

42-97

>>B<< SUNROOF MOTOR ASSEMBLY INSTALLATION
If the sunroof motor assembly is out of its fully closed position,
adjust the motor position by the following steps before install-
ment.
1. Remove the sunroof motor assembly without disconnecting

the sunroof motor assembly connector.

2. Close the sunroof lid glass fully.
3. Push the sunroof close switch until the sunroof motor

assembly stops turning. Repeat this operation until the
motor does not turn at all. Then install the motor assembly to
the roof.
NOTE: When the sunroof motor assembly does not turn at
all, the sunroof-ECU will return to its default condition.

INSPECTION

M1421007600484

ROOF LID GLASS OPERATION CURRENT CHECK

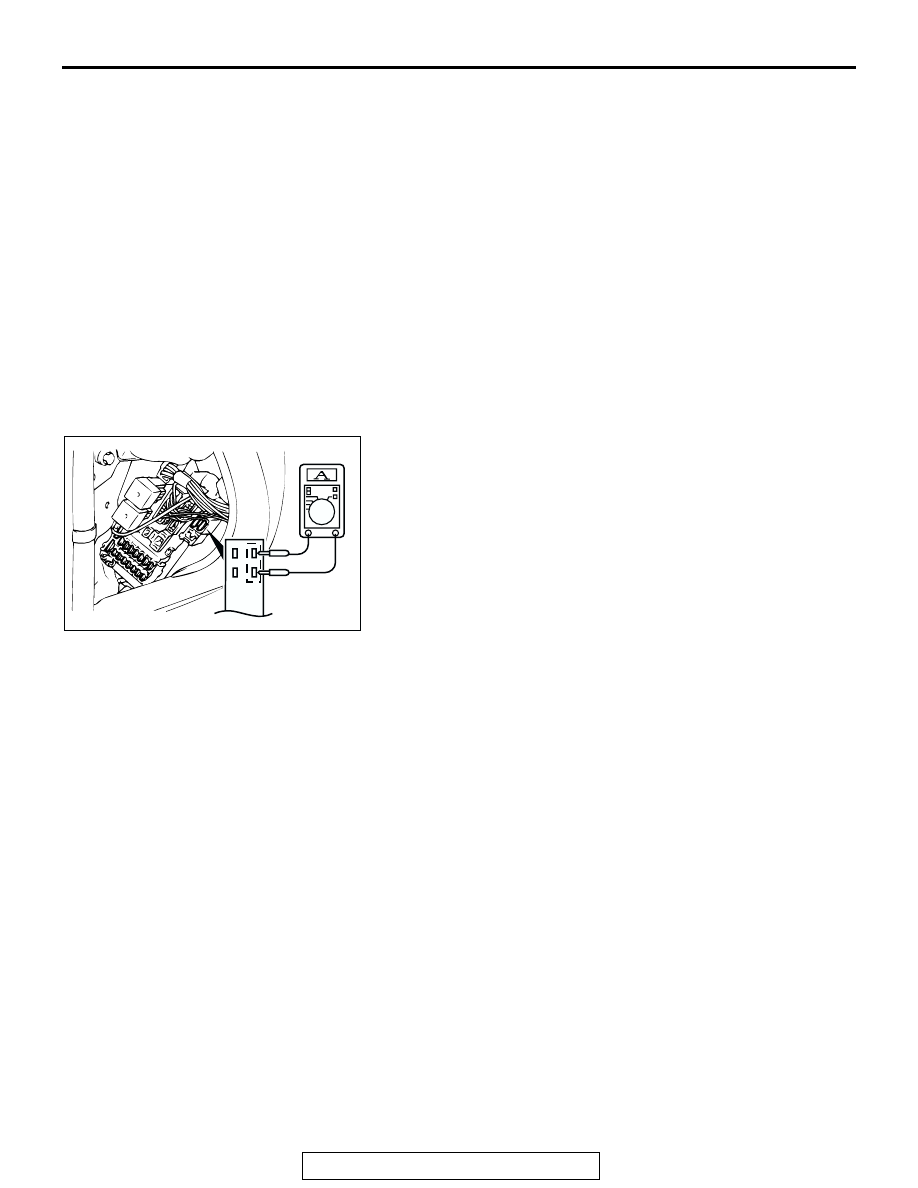

1. Remove the sunroof fuse and connect an ammeter as

shown in the illustration.

2. Press the sunroof switch to operate the sunroof, and then

measure the operation current while the roof lid glass is
moving (except when the sunroof starts to operate, when it
is fully open, when it is fully closed and when it is fully tilted
up).

Standard value: 10 A or less [at 20

°C (68°F)]

3. If the operation current is outside the standard value, check

the following points.

• Installation condition, warping or jamming of sunroof

assembly

• Sticking of drive cable

• Tilt of roof lid glass

AC002356AB

JUNCTION BLOCK

SUNROOF ASSEMBLY

TSB Revision

BODY

42-98

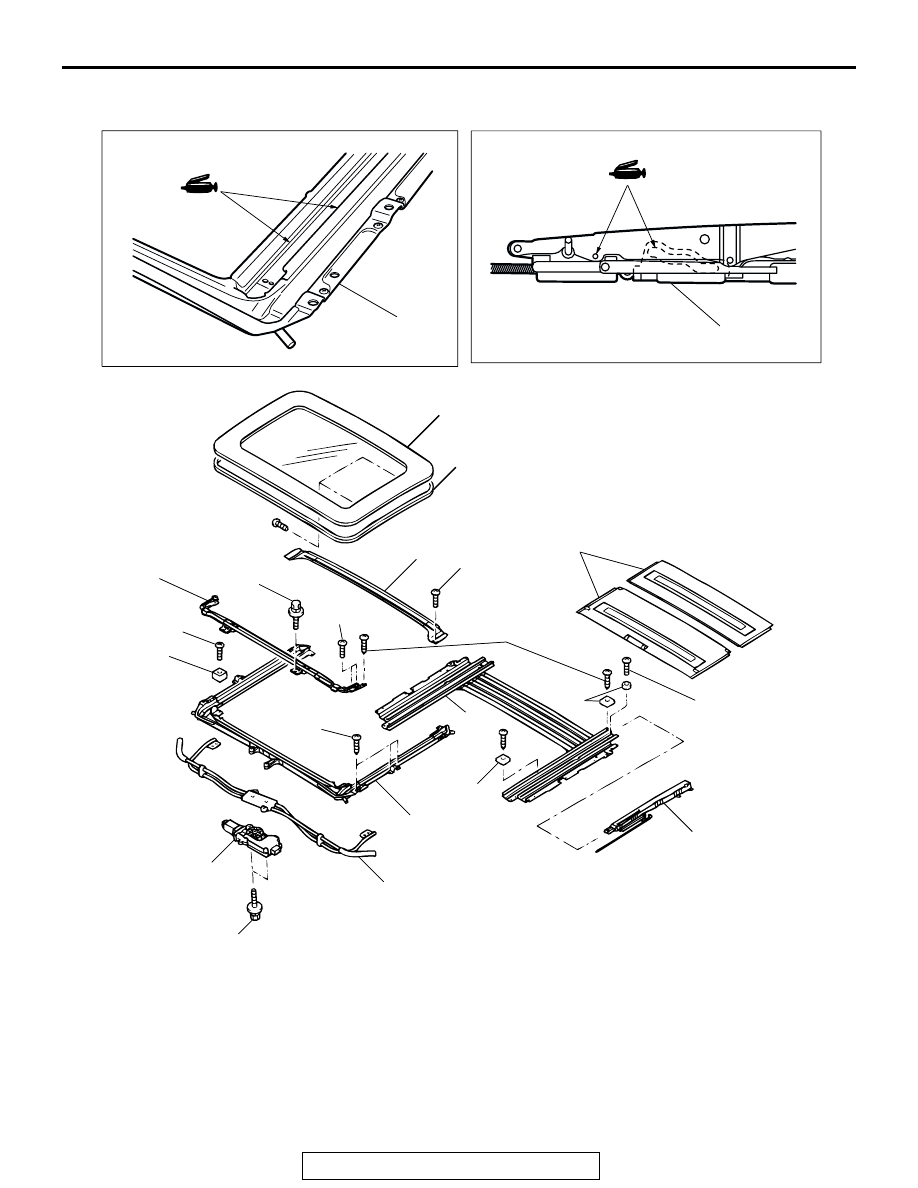

DISASSEMBLY AND ASSEMBLY

M1426001400302

AC002547

1

2

3

5

4

5

5

6

7

8

9

10

11

2.0 ± 0.5 N·m

17 ± 4 in-lb

5.4 ± 1.5 N·m

48 ± 13 in-lb

2.0 ± 0.5 N·m

17 ± 4 in-lb

2.0 ± 0.5 N·m

17 ± 4 in-lb

2.0 ± 0.5 N·m

17 ± 4 in-lb

1.4 ± 0.3 N·m

13 ± 3 in-lb

2.0 ± 0.5 N·m

17 ± 4 in-lb

4.0 ± 0.5 N·m

35 ± 4 in-lb

10

9

AB

DISASSEMBLY STEPS

1. ROOF LID GLASS ASSEMBLY
2. WEATHERSTRIP

>>B<<

• CHECK OPERATION

3. SUNROOF MOTOR ASSEMBLY
4. SUNROOF DRIP RAIL
5. STOPPER

6. SUN SHADE ASSEMBLY

>>A<<

7. ROOF LID SLIDER
8. SUNROOF DEFLECTOR
9. SLIDING ROOF OPERATING UNIT
10. SUNROOF HOUSING, UPPER
11. SUNROOF HOUSING, LOWER

DISASSEMBLY STEPS

CONVERTIBLE TOP

TSB Revision

BODY

42-99

INSTALLATION SERVICE POINT

.

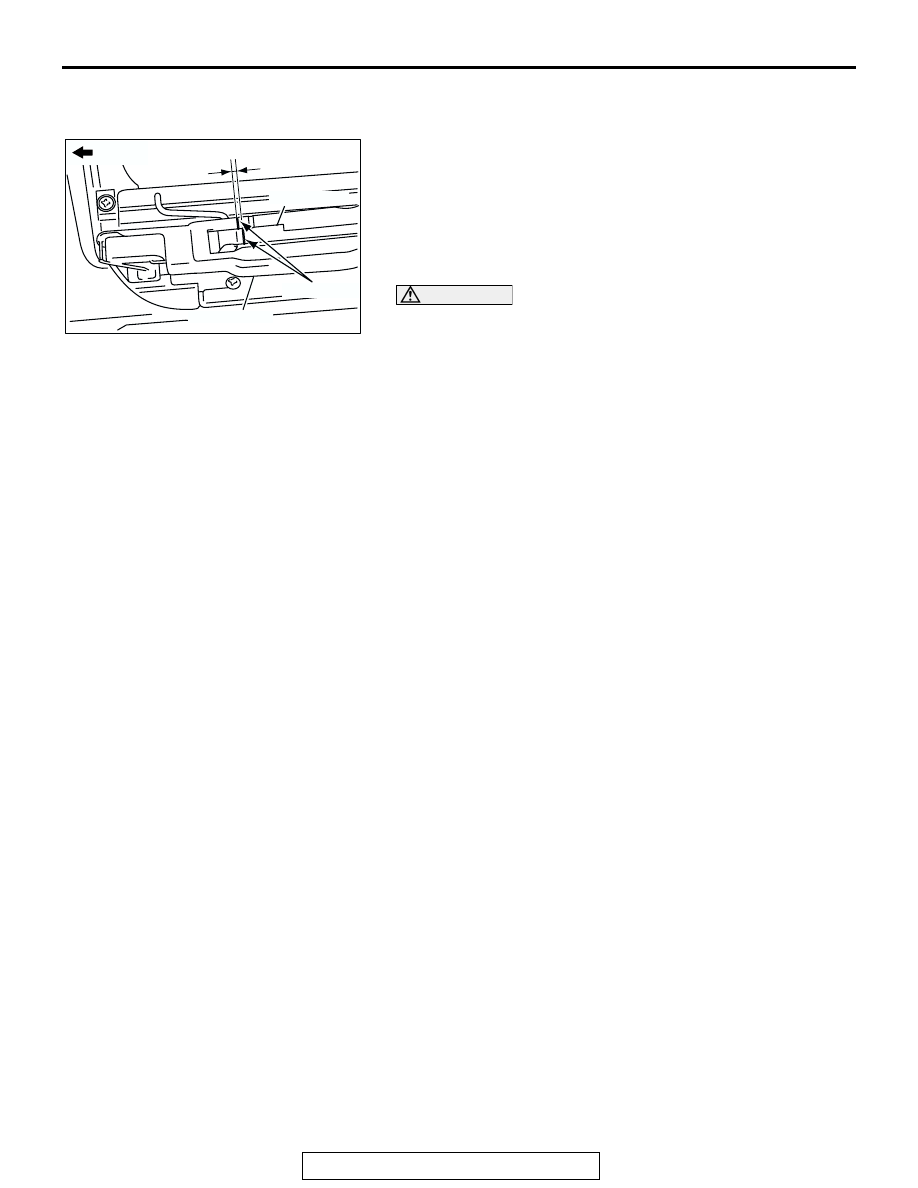

>>A<< ROOF LID SLIDER INSTALLATION
To set the roof lid slider to fully closed position, position the
recesses on the inner and outer rails of the roof lid slider as
shown.
NOTE: Ideally, the inner and outer rails of the roof lid slider
should be aligned.

.

>>B<< CHECK OPERATION

CAUTION

Roof lid slider recesses position error must be kept within
2.5 mm (0.01 inch) or less.
When roof lid slider is set to its fully closed position, it must be
at the recesses position.
If roof lid slider is positioned at the rear of recesses, carry out
the following procedure.
1. Remove sunroof motor assembly.
2. Fit sunroof motor firmly.
3. Install sunroof motor assembly
4. Check recesses position again.

CONVERTIBLE TOP

GENERAL DESCRIPTION

M1421000100068

The electric convertible top can be opened/closed by
means of electric power. For safety, the convertible
top control module disables opening and closing of

the convertible top in response to signals from the
vehicle speed sensor when the vehicle speed
exceeds 3km/h (1.9 mph).

CONVERTIBLE TOP DIAGNOSIS

INTRODUCTION TO ELECTRIC CONVERTIBLE TOP DIAGNOSIS

M1426203900040

The electric convertible top is controlled by the con-
vertible top control module. When the convertible top
switch is operated at the vehicle speed of less than 3
km/h (1.9 mph), all the door windows automatically
lower and then all the quarter windows. After all the
door windows and the quarter windows are fully low-
ered, the top stack drive motor operates to open or
close the electric convertible top.

Incidentally, the door windows will automatically
lower during the operation of the convertible top
switch even when the lock switch of the power win-
dow main switch is locked.
If the following types of symptom occur, there may be
a fault.

• The electric convertible top does not open or

close.

ELECTRIC CONVERTIBLE TOP DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1426204000040

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find the
electric convertIble top fault.
1. Gather information from customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

AC101680

RECESSES

OUTER RAIL

INNER RAIL

2.5mm (0.01 inch) OR LESS

FRONT

AB

CONVERTIBLE TOP

TSB Revision

BODY

42-100

SYMPTOM CHART

M1426204100047

SYMPTOMS

INSPECTION
PROCEDURE

REFERENCE PAGE

The electric convertible top does not open or close at the vehicle
speed of less than 3 km/h (1.9 mph). (The door windows and the
quarter windows automatically lower when the convertible top
switch is operated.)

1

P.42-101



The electric convertible top does not open or close at the vehicle
speed of less than 3 km/h (1.9 mph). (The door windows and the
quarter windows do not automatically lower when the convertible top
switch is operated. However, the door windows and the quarter
windows lower and raise when the power window main switch is
operated.)

2

P.42-103



The electric convertible top does not open or close at the vehicle
speed of less than 3 km/h (1.9 mph). (The door windows and the
quarter windows do not automatically lower when the convertible top
switch is operated. Also, the quarter windows do not operate when
the power window main switch is operated.)

3

P.42-108

The electric convertible top opens or closes even at the vehicle
speed of 3 km/h (1.9 mph) or more.

4

P.42-112
