SUNROOF ASSEMBLY

TSB Revision

BODY

42-93

08

Fully closed (tilt
down)

Ignition switch: ON

1. Sunroof switch: TILT UP
2. Sunroof switch: OPEN, CLOSE (Each

direction switch of the sunroof switch is
pushed while the sunroof is conducting the
automatic tilt up operation.)

The sunroof will continue
automatic operation until
tilted up.

09

Fully closed or while
opening

Ignition switch: ON

• Sunroof switch: OPEN

Block the sunroof before the sunroof is fully
open.

The sunroof stop.

10

Fully opened or
while closing

Ignition switch: ON

• Sunroof switch: CLOSE

Block the sunroof before the sunroof is fully
closed.

The sunroof moves back
toward open and stops.

11

Fully opened or
while opening

Ignition switch: ON

1. Sunroof switch: CLOSE

Block the sunroof before the sunroof is fully
closed.

2. Sunroof switch: TILT UP, OPEN or CLOSE

The sunroof moves back
toward open and stops
when any switch is pushed.

12

Fully closed

Ignition switch: ON

1. Ignition switch: LOCK (OFF)
2. Sunroof switch: OPEN [Within 30 seconds

after the ignition switch is turned LOCK
(OFF).]

The sunroof automatic
opens 30 seconds after the
ignition switch is turned
LOCK (OFF).

13

Fully opened or
while closing

Ignition switch: ON

1. Sunroof switch: CLOSE
2. Ignition switch: LOCK (OFF)
3. Sunroof switch: TILT UP, OPEN or CLOSE

[Within 30 seconds after the ignition switch is
turned LOCK (OFF).]

The sunroof closes while the
sunroof switch is pushed to
the CLOSE position. Then,
the sunroof does not move
when any switch is pushed.

14

Fully closed (tilt
down)

Ignition switch: ON

1. Sunroof switch: TILT UP
2. Ignition switch: LOCK (OFF) [The ignition

switch is turned LOCK (OFF) while the
sunroof switch is automatically opening.]

The sunroof automatic
opens only 30 seconds after
the ignition switch is turned
LOCK (OFF).

15

Fully opened or
while closing

Ignition switch: ON

1. Sunroof switch: CLOSE
2. Ignition switch: LOCK (OFF) [The ignition

switch is turned LOCK (OFF) while the
sunroof switch is pushed to the CLOSE
position.]

The sunroof closes while the
sunroof switch is pushed to
the CLOSE position.

NO. SUNROOF INITIAL

POSITION

SWITCH OPERATION

JUDGMENT (NORMAL)

SUNROOF ASSEMBLY

TSB Revision

BODY

42-94

16

Fully closed

Ignition switch: ON

1. Ignition switch: LOCK (OFF)
2. Sunroof switch: OPEN [Within 30 seconds

after the ignition switch is turned LOCK
(OFF).]

3. Door switch: ON [Within 30 seconds after the

ignition switch is turned LOCK (OFF).]

The sunroof automatic
opens and stops when the
door switch is LOCK (OFF).

17

Fully closed

Ignition switch: ON

1. Ignition switch: LOCK (OFF)
2. Sunroof switch: OPEN [Within 30 seconds

after the ignition switch is turned LOCK
(OFF).]

3. Door switch: ON [Within 30 seconds after the

ignition switch is turned LOCK (OFF).]

The sunroof closes while the
sunroof switch is pushed to
the CLOSE position. Then,
the sunroof does not move
when the door switch is ON.

18

Fully closed (tilt
down)

Ignition switch: ON

1. Ignition switch: LOCK (OFF)
2. Sunroof switch: TILT UP [Within 30 seconds

after the ignition switch is turned LOCK
(OFF).]

3. Door switch: ON [Within 30 seconds after the

ignition switch is turned LOCK (OFF).]

The sunroof automatic
opens and stops when the
door switch is ON.

NO. SUNROOF INITIAL

POSITION

SWITCH OPERATION

JUDGMENT (NORMAL)

SUNROOF ASSEMBLY

TSB Revision

BODY

42-95

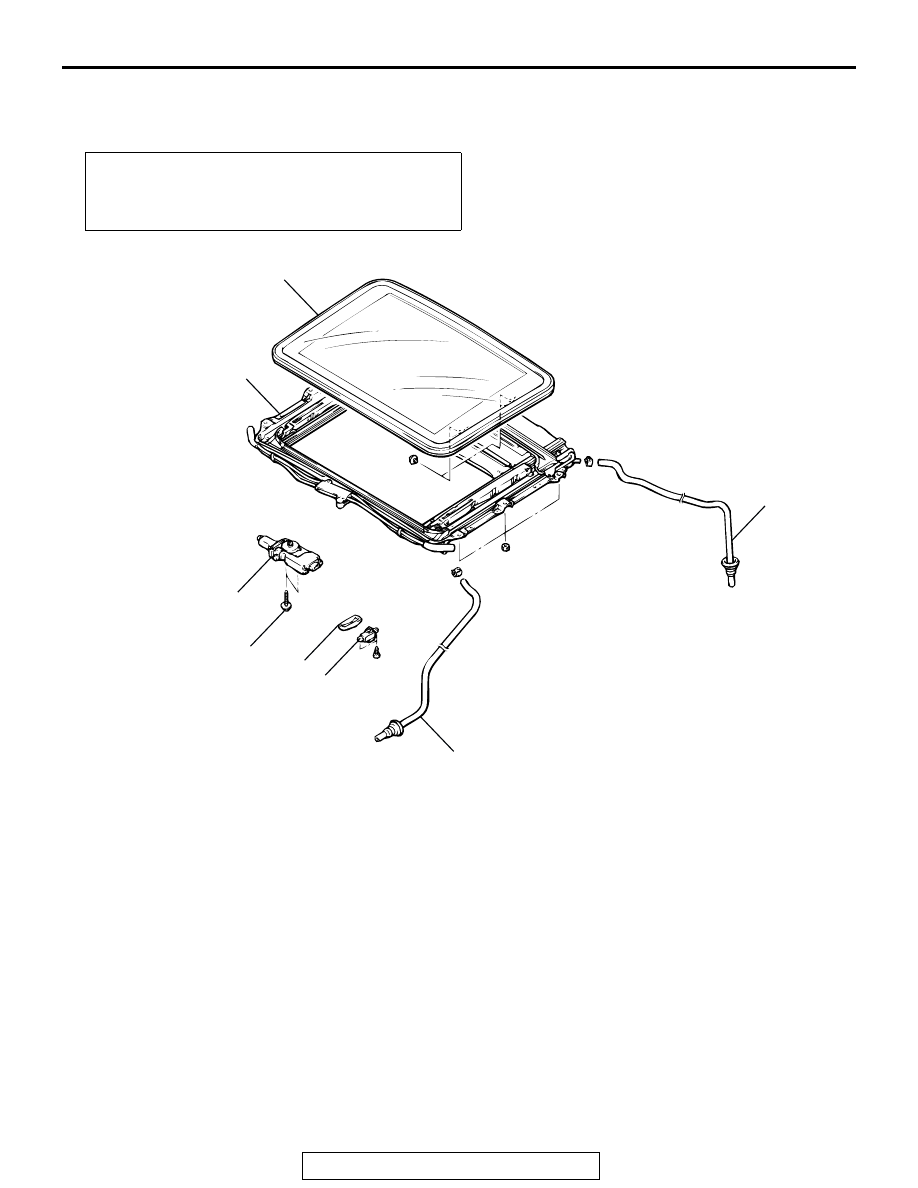

SUNROOF ASSEMBLY

REMOVAL AND INSTALLATION

M1426001200319

Post-installation Operation <Roof lid glass assembly,
Sunroof assembly>
• Sunroof Fit Adjustment (Refer to

P.42-92

.)

• Sunroof Water Test (Refer to

P.42-91

.)

AC004739 AB

1

2

3

4

5

6

5.4 ± 1.5 N·m
48 ± 13 in-lb

5

1. ROOF LID GLASS ASSEMBLY

SUNROOF SWITCH REMOVAL
STEPS

2. SUNROOF SWITCH COVER
• HEADLINING (REFER TO GROUP

52A

P.52A-12

.)

3. SUNROOF SWITCH

SUNROOF MOTOR REMOVAL
STEPS

• HEADLINING (REFER TO GROUP

52A

P.52A-12

.)

<<A>> >>B<<

4. SUNROOF MOTOR ASSEMBLY

DRAIN HOSE REMOVAL STEPS

•  FRONT SIDE AIR DAM (FRONT

DRAIN HOSE) (REFER TO

P.42-9

.)

• HEADLINING (REFER TO GROUP

52A

P.52A-12

.)

• SPLASH SHIELD (FRONT DRAIN

HOSE) (REFER TO

P.42-9

.)

<<B>> >>A<<

5. DRAIN HOSE

SUNROOF ASSEMBLY REMOVAL
STEPS

2. SUNROOF SWITCH COVER
• HEADLINING (REFER TO GROUP

52A

P.52A-12

.)

<<A>> >>B<<

4. SUNROOF MOTOR ASSEMBLY
5. DRAIN HOSE CONNECTION
6. SUNROOF ASSEMBLY

SUNROOF ASSEMBLY

TSB Revision

BODY

42-96

REMOVAL SERVICE POINTS

.

<<A>> SUNROOF MOTOR REMOVAL

CAUTION

Always close the roof lid glass fully before removing the
sunroof motor. If the fully-closed positions of the roof lid
glass and the sunroof motor are not the same, the sunroof
will not operate properly.
NOTE: If there is a problem with the sunroof motor so that the
roof lid glass cannot close fully, use an Allen wrench to turn the
gear section of the sunroof motor to fully close the roof lid
glass.

.

<<B>> DRAIN HOSE REMOVAL
Tie a cord to the end of the drain hose, and wind tape around
the tie until it is smooth. Then pull the drain hose out into the
wheel housing.

INSTALLATION SERVICE POINTS

.

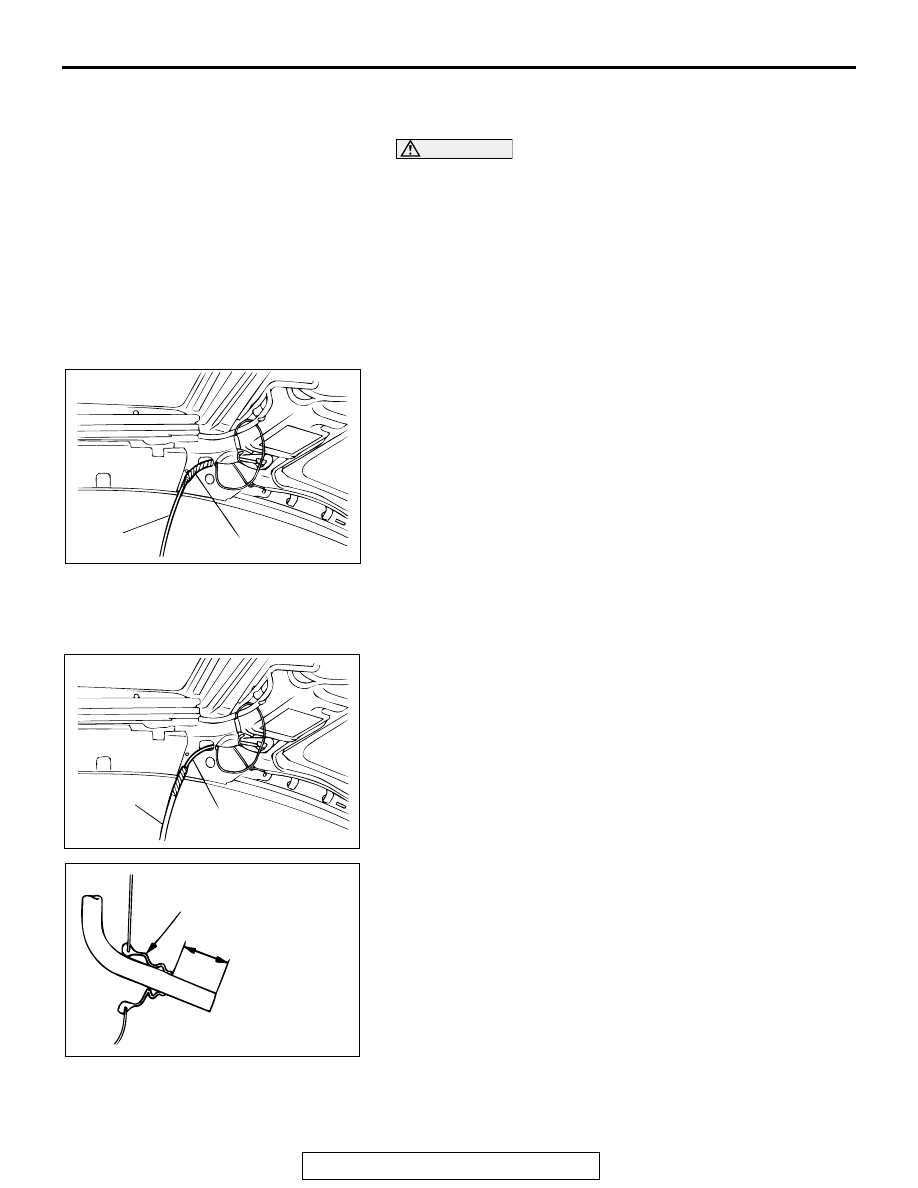

>>A<< DRAIN HOSE INSTALLATION
1. Tie the cord that was used during removal to the end of the

drain hose, and wind tape around it until it is smooth.

2. Pull the cord to pull through the drain hose.

3. Install the grommet, and then position the drain hose so that

it protrudes from the grommet as shown in the illustration.

.

AC000513AB

CORD

DRAIN HOSE

AC000514

CORD

DRAIN HOSE

AB

AC002392

GROMMET

25 mm (1.0 in)
(FRONT SIDE, REAR SIDE RH)
25 ± 3 mm (1.0 ± 0.1 in)
(REAR SIDE LH)

AB
