KEYLESS ENTRY SYSTEM

TSB Revision

BODY

42-89

• When one minute has been passed after registration mode

started;

• When the data link connector terminal 1 to ground is dis-

connected;

• When the ignition key is removed from the ignition key cylin-

der;

9. After the registration is completed, carry out the following

work.

CAUTION

Turn the ignition switch to the "LOCK" (OFF) position and
then disconnect data link connector terminal 1 from
ground.
10.Disconnect data link connector terminal 1 from ground.
11.Remove the ignition key from ignition key cylinder.
12.Close all of the doors.
13.Verify the keyless entry system operates normally.

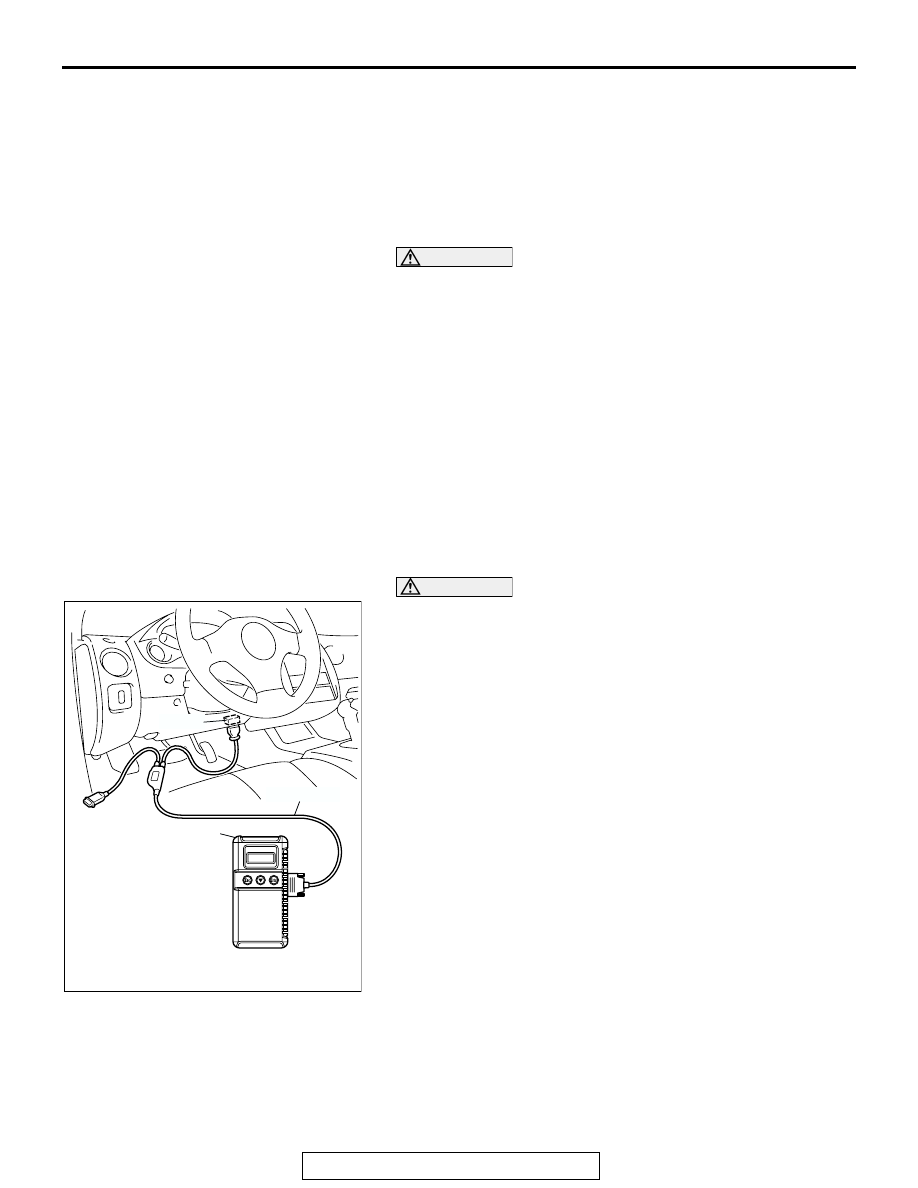

When vehicles communication interface (V.C.I.)
MB991824 is used

1. Insert the ignition key into the key cylinder and check that

the doors have been locked normally when the ignition key
is turned.

2. Insert the ignition key into the key cylinder.

CAUTION

Turn the ignition switch to the "LOCK" (OFF) position and
then connect vehicle communication interface (V.C.I.)
MB991824 to the data link connector.
3. Connect vehicle communication interface (V.C.I.) MB991824

to the data link connector.

AC305377

AB

MB991911

16-PIN

MB991824

KEYLESS ENTRY SYSTEM

TSB Revision

BODY

42-90

4. Within 10 seconds after turning the V.C.I. power supply

switch to the "ON" position, push the hazard warning light
switch six times.
NOTE:

.

At this time the code registration monitor request is out-
put and becomes registration mode (all doors locked and
then all doors unlocked).

The hazard warning light switch is turned ON and OFF
alternately whenever the hazard warning light switch is
pushed.

5. Press the transmitter switch, and then press it two times

within 10 seconds of the first press. This will register the
code.

6. When registration is completed, the code registration

monitor request is output (all doors locked and unlocked).

7. If you are using two or more transmitters or have added a

second transmitter, the same registration procedure should
be carried out within one minute after registering the code
for the first transmitter. After the second registration is
completed, the code registration monitor request is output
(all doors locked and unlocked).

8. Registration mode will be canceled under the following

conditions:

• When the secret code for four transmitters has been regis-

tered;

• When one minute has been passed after registration mode

started;

• When vehicle communication interface (V.C.I.) MB991824

is disconnected from the data link connector

• When the ignition key is removed from the ignition key cylin-

der;

9. After the registration is completed, carry out the following

work.

CAUTION

Turn the ignition switch to the "LOCK" (OFF) position and
then disconnect vehicle communication interface (V.C.I.)
MB991824 from the data link connector.
10.Disconnect vehicle communication interface (V.C.I.)

MB991824 from the data link connector.

11.Remove the ignition key from ignition key cylinder.
12.Close all of the doors.
13.Verify the keyless entry system operates normally.

AC305378

CONNECT V.C.I. AND TURN
THE  V.C.I.  POWER SUPPLY
SWITCH ON.

WITHIN 10 SECONDS

HAZARD
WARNING
LIGHT
SWITCH

ON

OFF

1

2

3

4

5

6

AB

SUNROOF ASSEMBLY

TSB Revision

BODY

42-91

SUNROOF ASSEMBLY

GENERAL DESCRIPTION

M1426000100245

A motor-driven outer slide-type glass sunroof with a
tilt-up mechanism is adopted in some models as
optional equipment.Even when the sunroof is

fully closed, a sufficient amount of light and a feeling
of openness can still be obtained by opening the
sunroof sunshade.

SUNROOF DIAGNOSIS

M1426000700322

The sunroof system is controlled by the Simplified
Wiring System (SWS). For troubleshooting,

refer to GROUP 54B, Diagnosis

P.54B-19

.

SPECIAL TOOLS

M1426000600239

ON-VEHICLE SERVICE

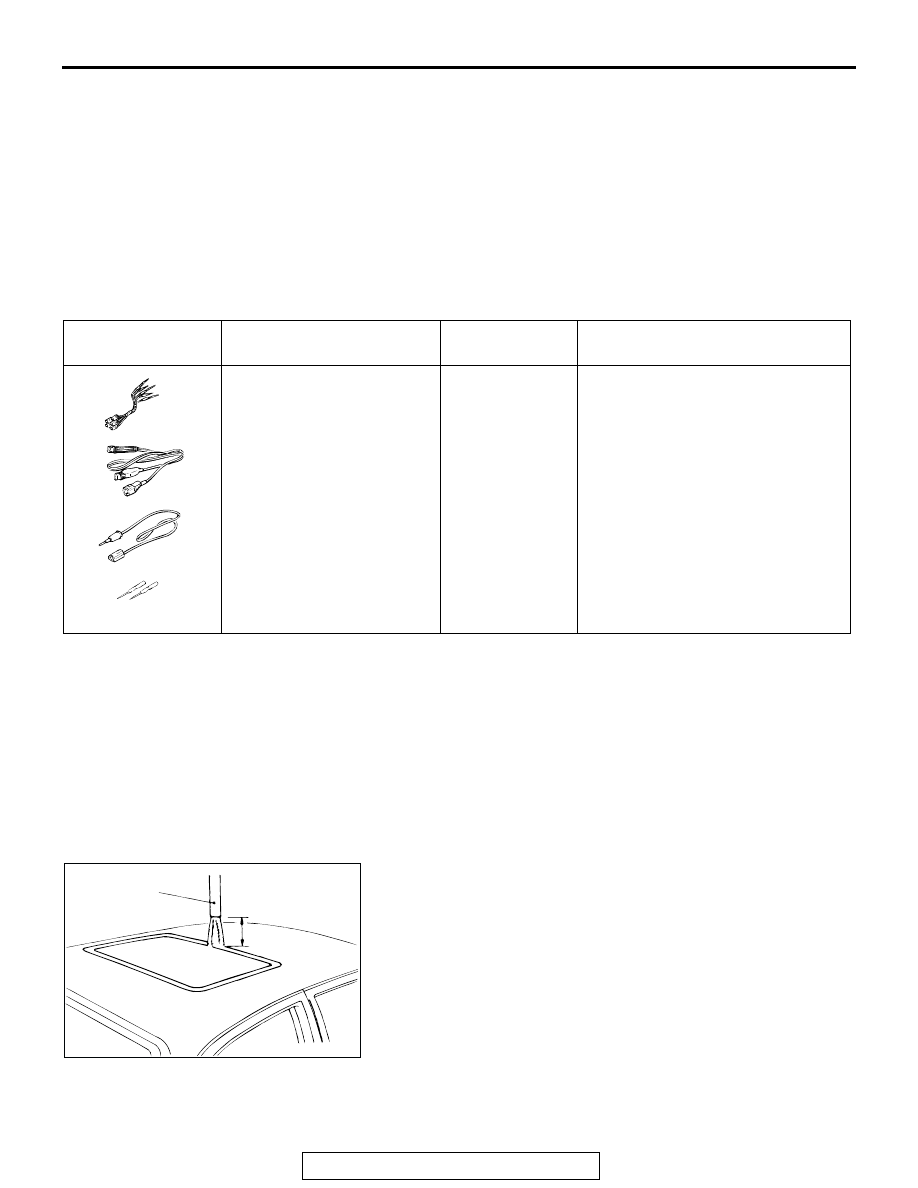

WATER TEST

M1426000900285

Check if there are any leaks in the sunroof by the following pro-
cedure.
1. Fully close the roof lid glass.
2. Adjust the water pressure so that water comes out of the

hose to a height of approximately 50 cm (19.7 inches) when
the hose is held vertically facing upwards.

3. Hold the end of the hose approximately 30 cm (11.8 inches)

above the roof and let the water run onto the weatherstrip for
5 minutes or more.

4. Check if any water leaks can be found in the room while

watering. Even though there are any water leaks around the
roof lid glass, it can be acceptable as long as water is caught
in the drip area.

TOOL

TOOL NUMBER AND
NAME

SUPER
SESSION

APPLICATION

MB991223
Harness set

• A: MB991219

Test harness

• B: MB991220

LED harness

• C: MB991221

LED harness adapter

• D: MB991222

Probe

MB991223

Measurement of terminal voltage

• A: Connector pin contact

pressure inspection

• B: Power circuit inspection

• C: Power circuit inspection

• D: Commercial tester connection

MB991223

A

D

C

B

AD

ACX00572AB

HOSE

APPROX
30 cm (11.8 in)

SUNROOF ASSEMBLY

TSB Revision

BODY

42-92

SUNROOF FIT ADJUSTMENT

M1426001000296

1. Fully close the roof lid glass.
2. Fully open the sunshade.
3. Loosen the roof lid glass assembly mounting screws (four),

and then slide the roof lid glass assembly along the slot in
the roof lid glass assembly to adjust the height of the roof lid
glass. Ensure that uniform space between the roof lid glass
and the body is secured in circumference.

4. After adjustment, check to be sure that the sunroof operates

smoothly.

OPERATION CHECK

M1426002600343

Check that the following items. If faulty, replace the sunroof-ECU (sunroof motor assembly).

CAUTION

Check that the following items are normal before carrying out this operation check.

1. Installation condition of the sunroof assembly
2. Installation condition, deforms and foreign material of the sunroof drive cable
3. Unfitted sunroof lid glass
4. Sunroof switch and sunroof motor assembly

ACX00573AB

NO. SUNROOF INITIAL

POSITION

SWITCH OPERATION

JUDGMENT (NORMAL)

01

Fully closed

Ignition switch: ON

• Sunroof switch: OPEN

The sunroof automatically
opens.

02

Fully open

Ignition switch: ON

• Sunroof switch: CLOSE

The sunroof closes while the
sunroof switch is pushed to
the CLOSE position.

03

Fully closed (tilt
down)

Ignition switch: ON

• Sunroof switch: TILT UP

The sunroof will
automatically tilt up.

04

Tilt up

Ignition switch: ON

• Sunroof switch: CLOSE

The sunroof closes while the
sunroof switch is pushed to
the CLOSE position.

05

Fully closed, tilt up or
fully tilted

Ignition switch: ON

1. Sunroof switch: OPEN
2. Sunroof switch: CLOSE (The sunroof switch

is pushed to the CLOSE position while the
sunroof is automatically opening. The time of
pushing: Within 2 seconds)

The sunroof stops the
automatic open operation.

06

Fully tilted

Ignition switch: ON

• Sunroof switch: TILT UP

The sunroof dose not move.

07

Fully closed, tilt up or
fully tilted

Ignition switch: ON

1. Sunroof switch: OPEN
2. Sunroof switch: CLOSE (The sunroof switch

is pushed to the CLOSE position while the
sunroof is automatically opening. The time of
pushing: More than 2 seconds)

The sunroof stops the
automatic open operation,
and the sunroof closes while
the sunroof switch is pushed
to the CLOSE position.
