LIFTGATE

TSB Revision

BODY

42-73

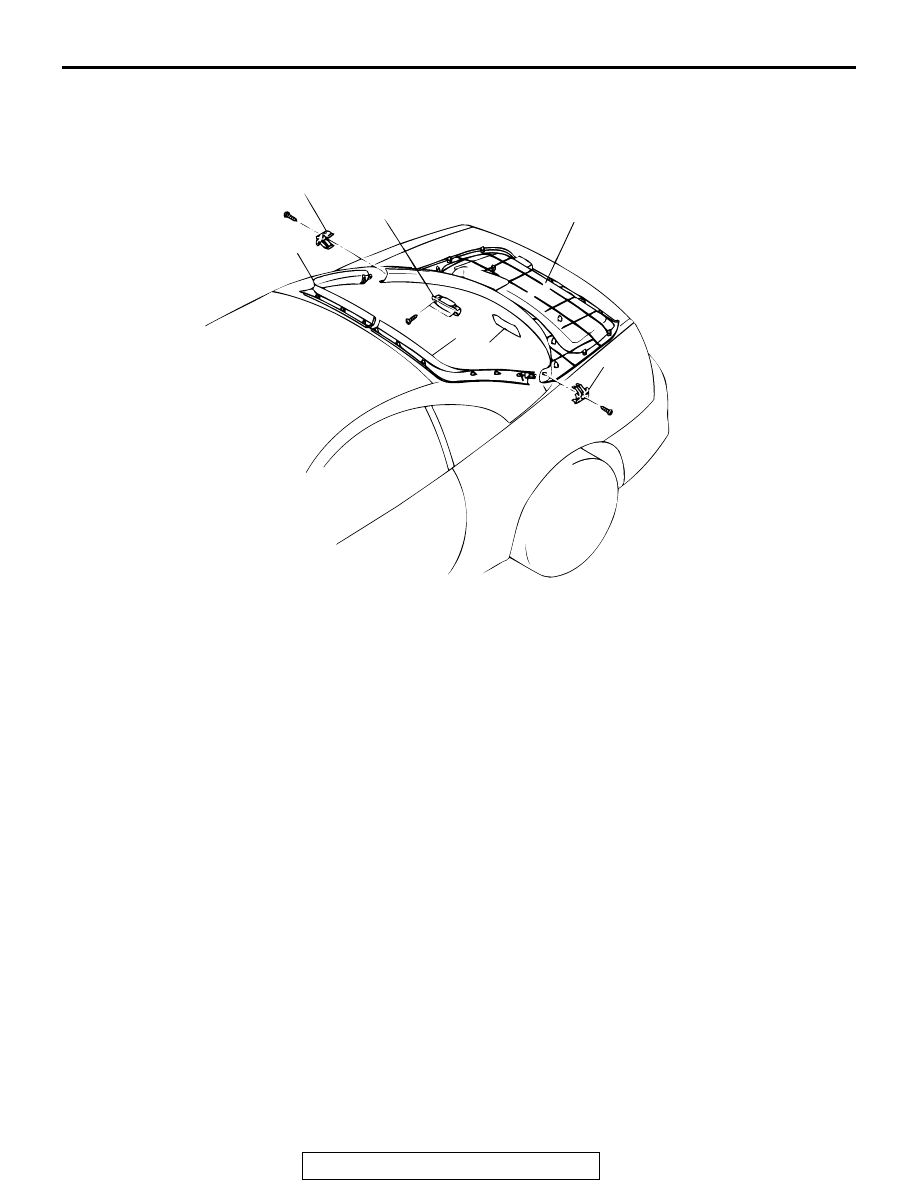

LIFTGATE TRIM AND WATERPROOF FILM

REMOVAL AND INSTALLATION

M1424001400113

Required Special Tool:

• MB990784: Remover

AC000507

4

1

5

6

3

2

4

AB

REMOVAL STEPS

1. LIFTGATE GRIP
2. LIFTGATE LOWER TRIM
3. HIGH MOUNTED STOPLIGHT LID
4. CLIP
5. LIFTGATE UPPER TRIM (LH)

6. LIFTGATE UPPER TRIM (RH)
7. LIFTGATE SIDE TRIM

REMOVAL STEPS (Continued)

LIFTGATE

TSB Revision

BODY

42-74

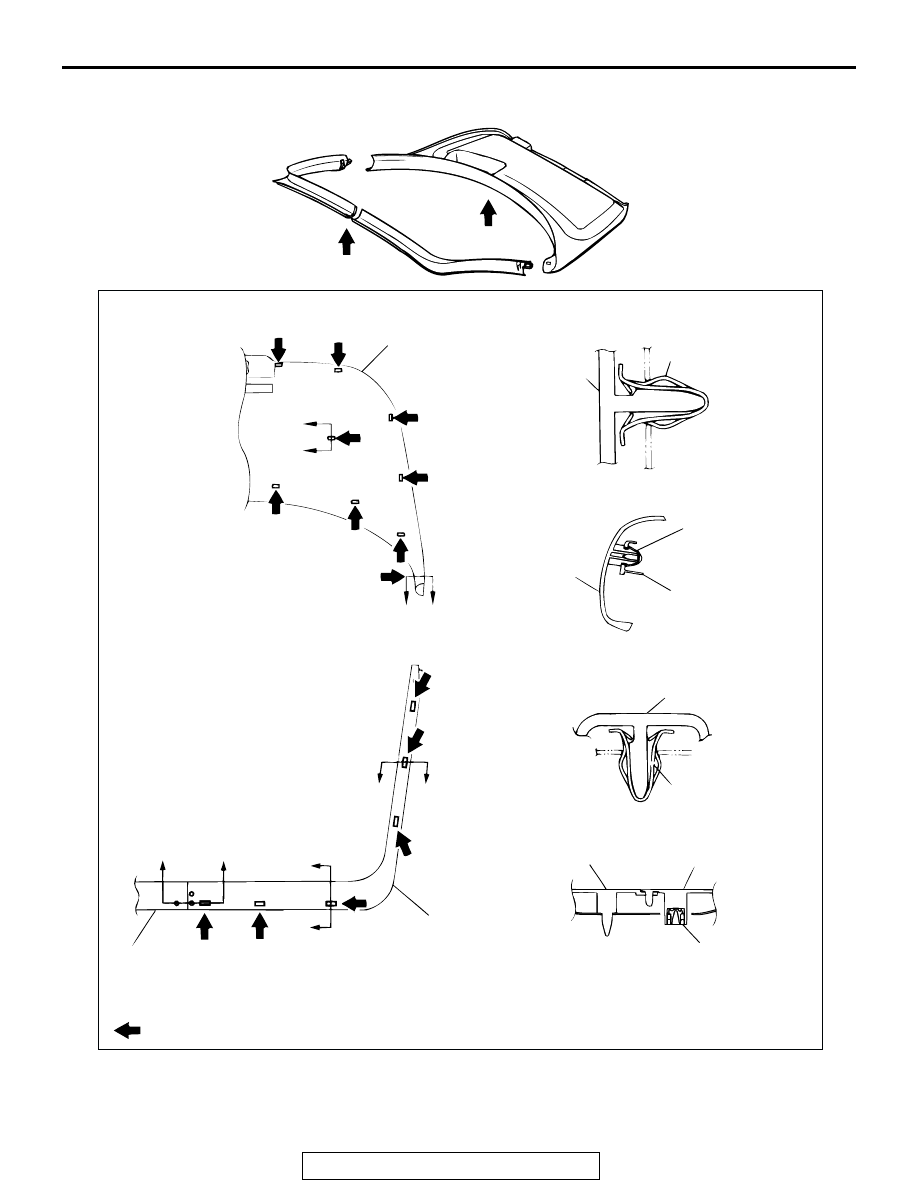

CLIP AND POSITIONS

AC000508

A

B

VIEW A

VIEW B

SECTION A – A

SECTION B – B

SECTION C – C

SECTION D – D

A

A

B

B

C

C

A

A

D

D

LIFTGATE

LOWER TRIM

LIFTGATE

UPPER TRIM (LH)

LIFTGATE

UPPER TRIM (RH)

NOTE

: CLIP POSITIONS

LIFTGATE

LOWER TRIM,

LIFTGATE

UPPER TRIM

CLIP

CLIP

LIFTGATE

UPPER TRIM

LIFTGATE

LOWER TRIM

LIFTGATE

UPPER TRIM

CLIP

LIFTGATE

UPPER TRIM (RH)

LIFTGATE

UPPER TRIM (LH)

CLIP

AB

TRUNK LID

TSB Revision

BODY

42-75

TRUNK LID

TRUNK LID DIAGNOSIS

INTRODUCTION TO TRUNK LID DIAGNOSIS

M1421005800385

Difficult locking and unlocking and uneven clearance,
and generation of wind noise from the trunk lid may
be caused by improper adjustment of the trunk lid.

TRUNK LID DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1421005900359

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
trunk lid fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

SYMPTOM CHART

M1421006000393

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Difficult Locking and Unlocking

DIAGNOSIS

STEP 1. Check the release cable routing
condition.

Q: Is the release cable routing condition good?

YES :

Go to Step 2.

NO :

Repair it, then go to Step 3.

STEP 2. Check the engagement of the trunk lid
latch and trunk lid striker.

Q: Are the trunk lid latch and trunk lid striker engaged

correctly?
YES :

Adjust it. Refer to

P.42-77

.

NO :

Then go to Step 3.

STEP 3. Check symptoms.

Q: Does the trunk lid lock operate easily?

YES :

This diagnosis is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 2: Uneven Body Clearance

DIAGNOSIS

STEP 1. Check the trunk lid installation
condition.

Q: Is the trunk lid installation in good condition?

YES :

Adjust it. Refer to

P.42-77

.

NO :

Then go to Step 2.

SYMPTOMS

INSPECTION
PROCEDURE

REFERENCE PAGE

Difficult locking and unlocking

1

P.42-75



Uneven body clearance

2

P.42-75



Uneven height

3

P.42-76



TRUNK LID

TSB Revision

BODY

42-76

STEP 2. Check symptoms.

Q: Is the clearance with the body even?

YES :

This diagnosis is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 3: Uneven Height

DIAGNOSIS

STEP 1. Check the trunk lid bumper height.

Q: Is the trunk lid bumper height proper?

YES :

Adjust it. Refer to

P.42-77

.

NO :

Then go to Step2.

STEP 2. Check symptoms.

Q: Are the trunk lid and body height even?

YES :

This diagnosis is complete.

NO :

Return to Step 1.
