TRUNK LID

TSB Revision

BODY

42-77

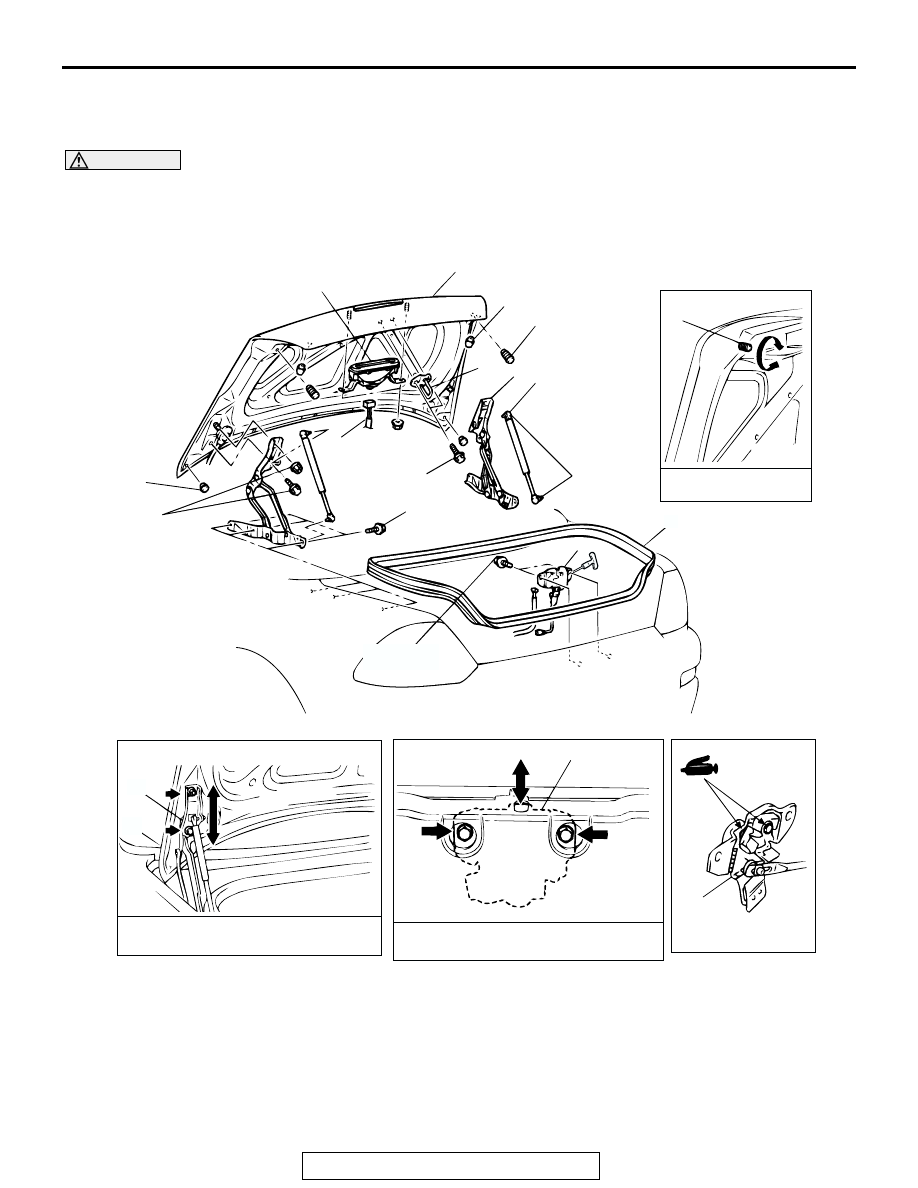

TRUNK LID

REMOVAL AND INSTALLATION

M1421002200210

CAUTION

1. Never try to disassemble trunk lid gas spring.
2. Always bore a hole in the gas spring to release the interior gas before the spring is discarded.
3. Keep the trunk lid gas spring away from fire or flame.

AC102186

6

9

1

3

10 8

2

7

2

5

4

13 ± 2 N·m

109 ± 21 in-lb

22 ± 4 N·m

16 ± 3 ft-lb

13 ± 2 N·m

109 ± 21 in-lb

22 ± 4 N·m

16 ± 3 ft-lb

12 ± 2 N·m

104 ± 21 in-lb

1

ADJUSTMENT
OF BUMPER

10

9

ADJUSTMENT OF CLEARANCE
AROUND TRUNK LID

5

ADJUSTMENT OF CLEARANCE
AROUND TRUNK LID

5

AB

REMOVAL STEPS

>>C<<

1. BUMPER
2. BUMPER
3. TRUNK LID STRIKER

>>B<<

4. TRUNK LID OPENING

WEATHERSTRIP

TRUNK LID LATCH REMOVAL
STEPS

• REAR END TRIM (REFER TO

GROUP 52A

− TRIMS

P.52A-8

.)

5. TRUNK LID LATCH

TRUNK LID GAS SPRING
REMOVAL STEPS

>>B<<

4. TRUNK LID OPENING

WEATHERSTRIP

TRUNK LID

TSB Revision

BODY

42-78

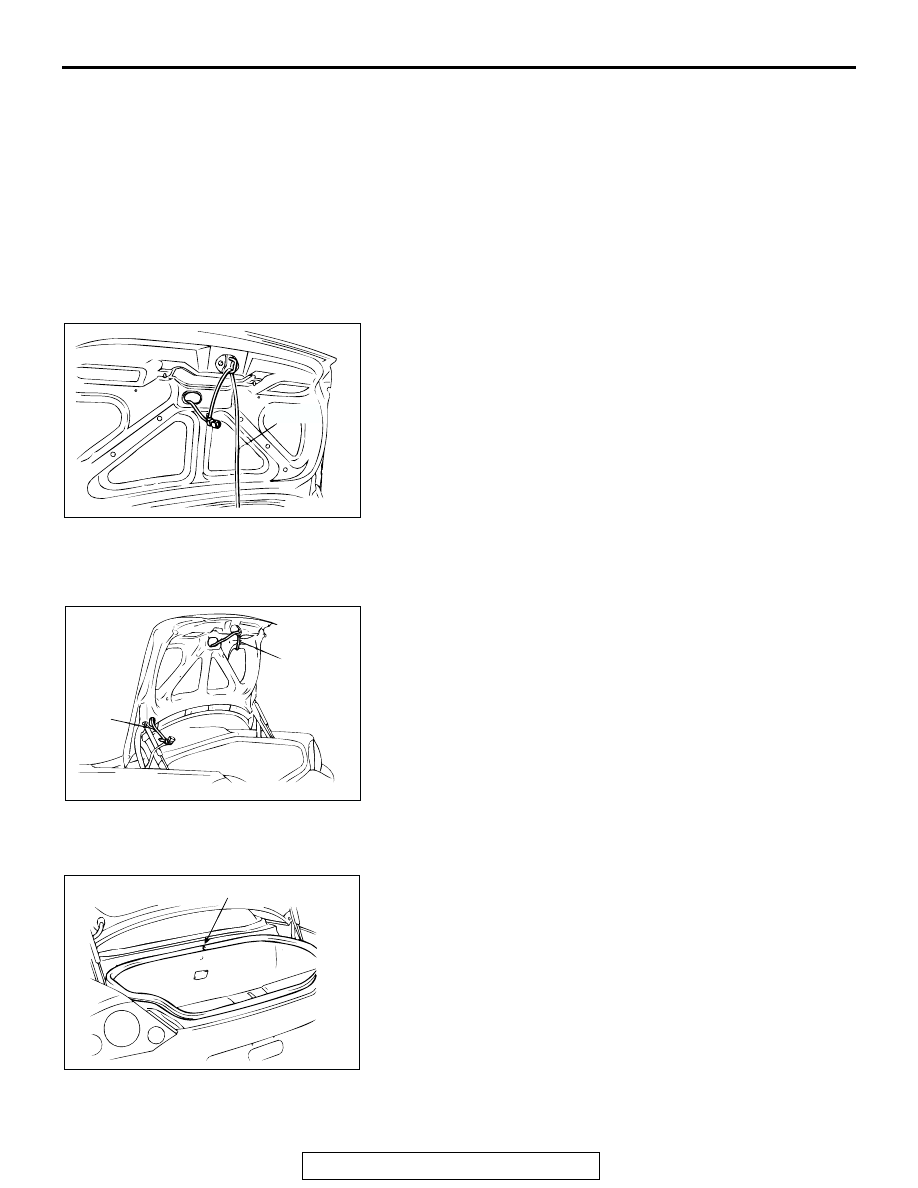

REMOVAL SERVICE POINT

.

<<A>> HARNESS CONNECTOR REMOVAL
Removal the grommet Tie a cord to the end of the harness con-
nector, wind plastic tape around it so that there is no other side.

INSTALLATION SERVICE POINTS

.

>>A<< HARNESS CONNECTOR INSTALLATION
1. Tie the cord that was used during removal to the end of the

harness connector, wind plastic tape around it so that there
is no unevenness.

2. Pull the cord to pull through the harness connector.
3. Install the grommet.

.

>>B<< TRUNK LID OPENING WEATHERSTRIP
INSTALLATION
Install the trunk lid opening weatherstrip so that its marking is
positioned at the center of the vehicle.

.

8. TRUNK LID GAS SPRING

TRUNK LID REMOVAL STEPS

6. HIGH MOUNTED STOPLIGHT

<<A>> >>A<<

7. HARNESS CONNECTOR
8. TRUNK LID HINGE
9. TRUNK LID
10. TRUNK LID HINGE

TRUNK LID GAS SPRING
REMOVAL STEPS (Continued)

AC003334AB

CORD

AC003335AB

CORD

CORD

AC003336

MARKING

AB

TRUNK LID

TSB Revision

BODY

42-79

>>C<< BUMPER INSTALLATION
Install the bumper as shown in figure. Be sure they are
adjusted so the trunk lid is even with the rear fenders and body
on all sides.

AC003337AB

TRUNK LID

BUMPER

20 mm (0.79 in)

TRUNK LID

TSB Revision

BODY

42-80

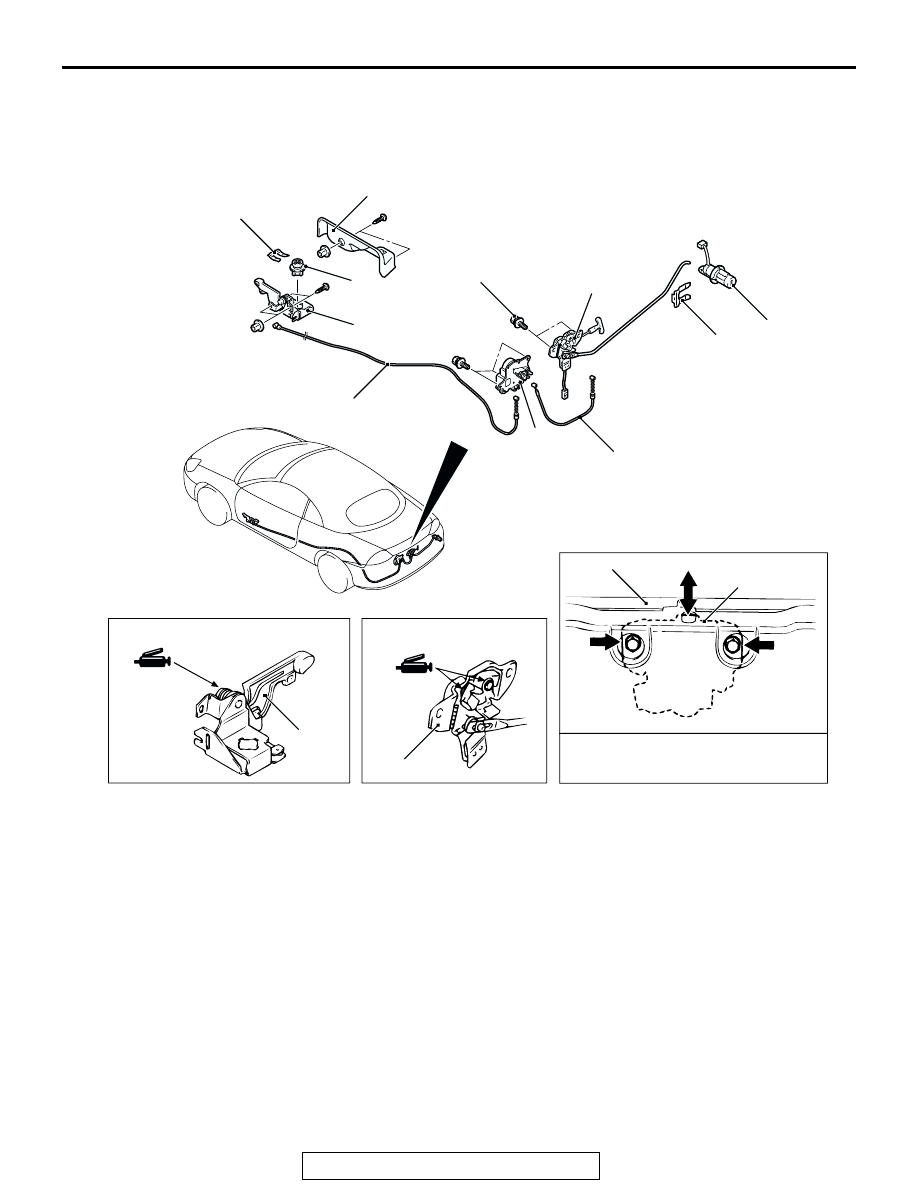

TRUNK LID LOCK RELEASE HANDLE AND CABLE

REMOVAL AND INSTALLATION

M1421004500068

AC106507

1

2

3

4

22 ± 4 N·m

16 ± 3 ft-lb

5

6

7

4

7

7

REAR END TRIM

ADJUSTMENT OF TRUNK LID STEP
AND TRUNK LID STRIKER LINKAGE

AC

8

9

10
