SPECIFICATIONS

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-79

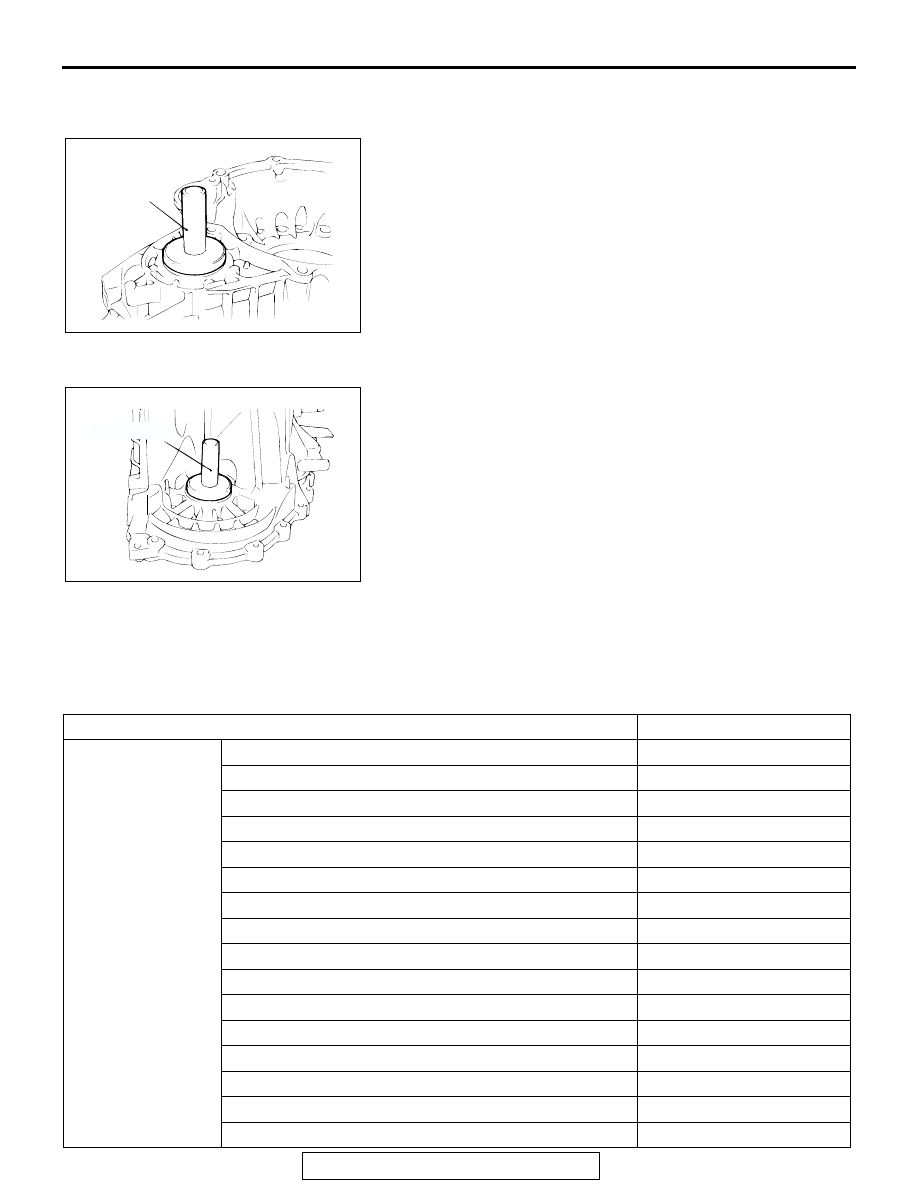

ASSEMBLY SERVICE POINTS

.

>>A<< OIL SEAL INSTALLATION
Use special tool MD998800 to tap the oil seal into the torque
converter housing.

.

>>B<< OIL SEAL INSTALLATION
Use special tool MD998800 to tap the oil seal in the transaxle
case.

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1233023100103

AKX01043

MD998800

AB

AKX01047AB

MD998800

ITEMS

SPECIFICATIONS

Transaxle

Control cable bracket

23

± 3 N⋅m (17 ± 2 ft-lb)

Eye bolt

24

± 3 N⋅m (18 ± 2 ft-lb)

Fluid temperature sensor

11

± 1 N⋅m (95 ± 9 in-lb)

Input shaft speed sensor

11

± 1 N⋅m (95 ± 9 in-lb)

Manual control lever

22

± 3 N⋅m (16 ± 2 ft-lb)

Manual control shaft detent

6.0

± 1.0 N⋅m (52 ± 9 in-lb)

Oil pump

29

± 2 N⋅m (21 ± 1 ft-lb)

Output shaft bearing retainer <F4A42>

29

± 2 N⋅m (21 ± 1 ft-lb)

Output shaft bearing retainer<F4A51>

54

± 5 N⋅m (40 ± 4 ft-lb)

Output shaft jam nut

167

± 10 N⋅m (123 ± 7 ft-lb)

Output shaft speed sensor

11

± 1 N⋅m (95 ± 9 in-lb)

Park/neutral position switch (PNP switch)

11

± 1 N⋅m (95 ± 9 in-lb)

Rear cover

23

± 3 N⋅m (17 ± 2 ft-lb)

Roll stopper bracket

69

± 10 N⋅m (51 ± 7 ft-lb)

Sealing cap

5.0

± 1.0 N⋅m (43 ± 9 in-lb)

Torque converter housing

48

± 6 N⋅m (35 ± 4 ft-lb)

SPECIFICATIONS

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-80

GENERAL SPECIFICATIONS

M1233000200295

SERVICE SPECIFICATIONS

M1233000300032

Transaxle

Transfer drive gear

34

± 2 N⋅m (25 ± 1 ft-lb)

Valve body cover

11

± 1 N⋅m (95 ± 9 in-lb)

Valve body mounting bolt

11

± 1 N⋅m (95 ± 9 in-lb)

Wiring harness bracket

23

± 3 N⋅m (17 ± 2 ft-lb)

Components

Differential drive gear

135

± 5 N⋅m (100 ± 3 ft-lb)

Plate

6.0

± 1.0 N⋅m (52 ± 9 in-lb)

Solenoid valve support

6.0

± 1.0 N⋅m (52 ± 9 in-lb)

Valve body

11

± 1 N⋅m (95 ± 9 in-lb)

ITEMS

SPECIFICATIONS

ITEMS

SPECIFICATIONS

Model

F4A42-2-JZB

F4A51-2-FZB

F4A51-2-LZP

Type

Electronically controlled 4-speed full-automatic

Torque
converter

Type

3-element with torque converter clutch

Engine stall
speed

2100

− 2600 r/min

Stall torque
ratio

1.9

2.0

Gear ratio

1st

2.842

2.666

2nd

1.529

1.495

1.448

3rd

1.000

4th

0.712

0.731

Reverse

2.480

2.720

Final gear ratio

4.041

3.728

4.011

ITEMS

STANDARD VALUE

Output shaft preload mm (in)

0.01

− 0.09 (0.0004 − 0.0035)

Brake reaction plate end play mm (in)

0

− 0.16 (0 − 0.0063)

Low-reverse brake end play mm (in)

1.65

− 2.11 (0.050 − 0.0831)

Second brake end play mm (in)

F4A42

0.79

− 1.25 (0.0311 − 0.0492)

F4A51

1.09

− 1.55 (0.0429 − 0.0610)

Underdrive sun gear end play mm (in)

0.25

− 0.45 (0.0098 − 0.0177)

Input shaft end play mm (in)

0.70

− 1.45 (0.028 − 0.057)

Differential case preload mm (in)

0.045

− 0.105 (0.0018 − 0.0041)

Underdrive clutch end play mm (in)

1.6

− 1.8 (0.0630 − 0.0709)

Reverse and overdrive clutch return spring retainer end play mm (in)

0

− 0.09 (0 − 0.0035)

Overdrive clutch end play mm (in)

1.6

− 1.8 (0.0630 − 0.0709)

Reverse clutch end play mm (in)

1.5

− 1.7 (0.0591 − 0.0669)

Backlash between differential side gear and pinion mm (in)

0.025

− 0.150 (0.0010 − 0.0059)

SPECIFICATIONS

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-81

VALVE BODY SPRING IDENTIFICATION TABLE

M1233022900032

ADJUSTING PLATE, SNAP RING AND SPACERS

M1233023000032

Thrust washer (For adjustment of input shaft end play)

Snap ring <F4A42> (For adjustment of underdrive clutch and overdrive clutch end play)

SPRING

WIRE
DIAMETER
mm (in)

OUTSIDE
DIAMETER
mm (in)

FREE LENGTH
mm (in)

NUMBER OF
LOOPS

Regulator valve spring

1.8 (0.071)

15.7 (0.618)

86.7 (3.413)

24

Underdrive pressure control valve
spring

0.7 (0.028)

7.6 (0.299)

37.7 (1.484)

25

Overdrive pressure control valve
spring

0.7 (0.028)

7.6 (0.299)

37.7 (1.484)

25

Low-reverse pressure control
valve spring

0.7 (0.028)

7.6 (0.299)

37.7 (1.484)

25

Second pressure control valve
spring

0.7 (0.028)

7.6 (0.299)

37.7 (1.484)

25

Torque converter spring

1.6 (0.063)

11.2 (0.441)

34.4 (1.354)

12.5

Torque converter clutch control
valve spring

0.7 (0.028)

5.9 (0.232)

28.1 (1.106)

19

Fail-safe valve spring

0.7 (0.028)

8.9 (0.350)

21.9 (0.862)

9.5

Damping valve spring

1.0 (0.039)

7.7 (0.303)

35.8 (1.409)

17

Line relief valve spring

1.0 (0.039)

7.0 (0.276)

17.3 (0.681)

10

Orifice check ball spring

0.5 (0.020)

4.5 (0.177)

17.2 (0.677)

15

THICKNESS
mm (in)

IDENTIFICATION
SYMBOL

PART NO.

THICKNESS
mm (in)

IDENTIFICATION
SYMBOL

PART NO.

1.8 (0.071)
2.0 (0.079)
2.2 (0.087)

18
20
22

MD754509
MD754508
MD754507

2.4 (0.094)
2.6 (0.102)
2.8 (0.110)

24
26
28

MD753793
MD753794
MD753795

THICKNESS
mm (in)

IDENTIFICATION
SYMBOL

PART NO.

THICKNESS
mm (in)

IDENTIFICATION
SYMBOL

PART NO.

1.6 (0.063)
1.7 (0.067)
1.8 (0.071)
1.9 (0.075)
2.0 (0.079)
2.1 (0.083)
2.2 (0.087)
2.3 (0.091)

None
Blue
Brown
None
Blue
Brown
None
Blue

MD759666
MD759667
MD759668
MD752124
MD752125
MD752126
MD752127
MD752128

2.4 (0.094)
2.5 (0.098)
2.6 (0.102)
2.7 (0.106)
2.8 (0.110)
2.9 (0.114)
3.0 (0.118)

Brown
None
Blue
Brown
None
Blue
Brown

MD752129
MD752130
MD752131
MD752132
MD752133
MD752134
MD754680

SPECIFICATIONS

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-82

Snap ring <F4A51> (For adjustment of underdrive clutch and overdrive clutch end play)

Snap ring <F4A42> (For adjustment of low-reverse brake and second brake reaction plates end play)

Snap ring <F4A51> (For adjustment of low-reverse brake and second brake reaction plates end play)

Pressure plate <F4A42> (For adjustment of low-reverse brake and second brake end play)

Pressure plate <F4A51> (For adjustment of low-reverse brake and second brake end plays)

Snap ring <F4A42> (For adjustment of reverse clutch end play)

THICKNESS
mm (in)

IDENTIFICATION
SYMBOL

PART NO.

THICKNESS
mm (in)

IDENTIFICATION
SYMBOL

PART NO.

1.6 (0.063)
1.7 (0.067)
1.8 (0.071)
1.9 (0.075)
2.0 (0.079)
2.1 (0.083)
2.2 (0.087)
2.3 (0.091)

Brown
None
Blue
Brown
None
Blue
Brow
 None

MD759960
MD759961
MD759962
MD759963
MD750841
MD750842
MD750843
MD750844

2.4 (0.094)
2.5 (0.098)
2.6 (0.102)
2.7 (0.106)
2.8 (0.110)
2.9 (0.114)
3.0 (0.118)

Blue
Brown
None
Blue
Brown
None
Blue

MD750845
MD750846
MD750847
MD750848
MD750849
MD750850
MD750851

THICKNESS
mm (in)

IDENTIFICATION
SYMBOL

PART NO.

THICKNESS
mm (in)

IDENTIFICATION
SYMBOL

PART NO.

2.2 (0.087)
2.3 (0.091)

Blue
Brown

MD754786
MD754787

2.4 (0.094)
2.5 (0.098)

None
Blue

MD758240
MD758241

THICKNESS
mm (in)

IDENTIFICATION
SYMBOL

PART NO.

THICKNESS
mm (in)

IDENTIFICATION
SYMBOL

PART NO.

2.2 (0.087)
2.3 (0.091)

None
Blue

MD756784
MD756785

2.4 (0.094)
2.5 (0.098)

Brown
None

MD758552
MD758553

THICKNESS
mm (in)

IDENTIFICATION
SYMBOL

PART NO.

THICKNESS
mm (in)

IDENTIFICATION
SYMBOL

PART NO.

1.6 (0.063)
1.8 (0.071)
2.0 (0.079)
2.2 (0.087)

L
1
0
2

MD759567
MD759414
MD759415
MD759416

2.4 (0.094)
2.6 (0.102)
2.8 (0.110)
3.0 (0.118)

4
6
8
D

MD759417
MD759418
MD759419
MD759420

THICKNESS
mm (in)

IDENTIFICATION
SYMBOL

PART NO.

THICKNESS
mm (in)

IDENTIFICATION
SYMBOL

PART NO.

1.6 (0.063)
1.8 (0.071)
2.0 (0.079)
2.2 (0.087)

F
E
D
C

MD759568
MD759425
MD759426
MD759427

2.4 (0.094)
2.6 (0.102)
2.8 (0.110)
3.0 (0.118)

B
A
0
1

MD759428
MD759429
MD759430
MD759431

THICKNESS
mm (in)

IDENTIFICATION
SYMBOL

PART NO.

THICKNESS
mm (in)

IDENTIFICATION
SYMBOL

PART NO.

1.6 (0.063)
1.7 (0.067)
1.8 (0.071)
1.9 (0.075)
2.0 (0.079)
2.1 (0.083)
2.2 (0.087)

None
Blue
Brown
None
Blue
Brown
None

MD761085
MD761086
MD761087
MD752137
MD752138
MD752139
MD752140

2.3 (0.091)
2.4 (0.094)
2.5 (0.098)
2.6 (0.102)
2.7 (0.106)
2.8 (0.110)

Blue
Brown
None
Blue
Brown
None

MD752141
MD752142
MD752143
MD752144
MD752145
MD752146
