Mitsubishi Eclipse. Manual - part 922





DIFFERENTIAL

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-71

Required Special Tools:

• MD998801: Bearing Remover

• MD998812: Installer Cap

• MD998820: Installer Adapter (42)

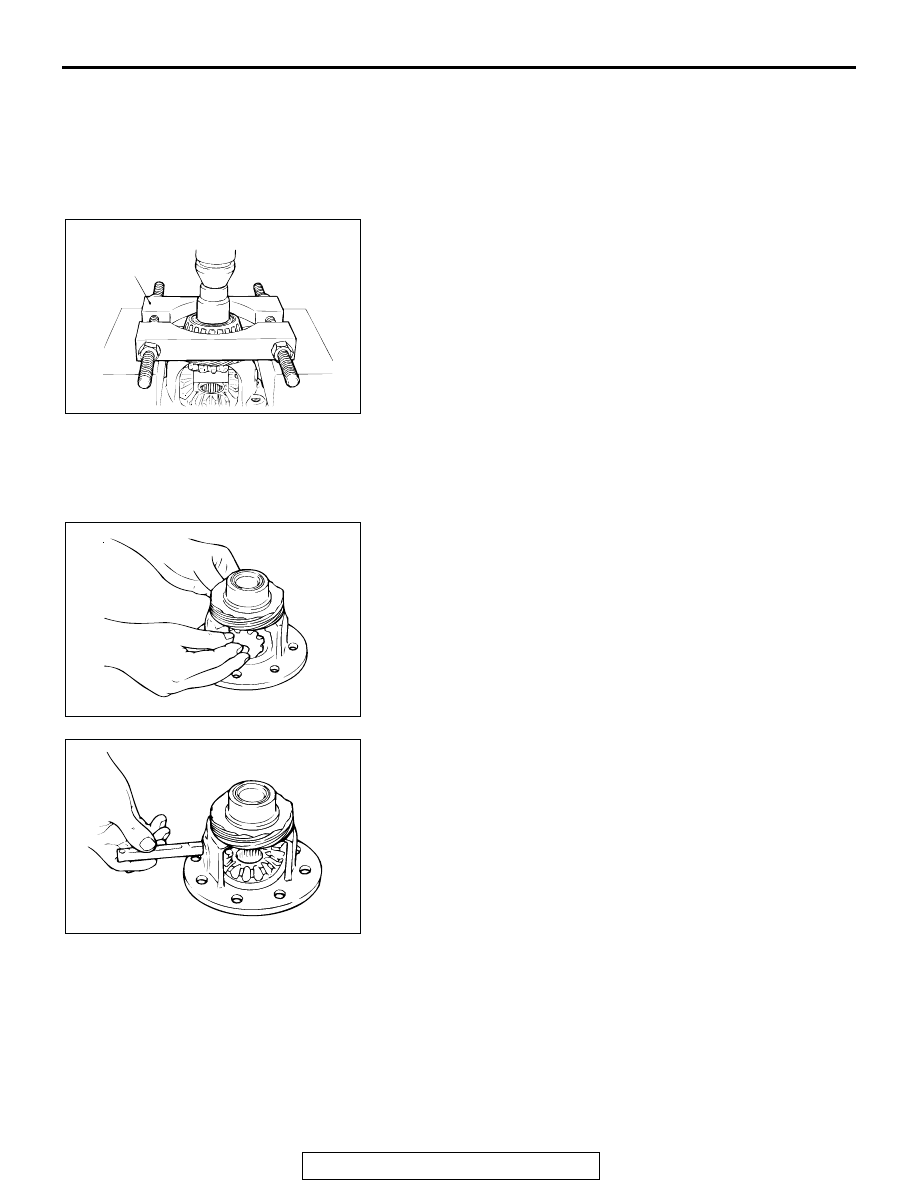

DISASSEMBLY SERVICE POINT

.

<<A>> TAPER ROLLER BEARING REMOVAL
1. Support the taper roller bearing with special tool MD998801,

and then set them on the press.

2. Push down on the differential case with the press to remove

the bearing.

ASSEMBLY SERVICE POINTS

.

>>A<< SPACER, SIDE GEAR, WASHER, PINION AND PIN-
ION SHAFT INSTALLATION
1. Mount a spacer on the back surface of the side gear, and

then install the side gear in the differential case.
NOTE: When a new side gear is to be installed, use a
medium thickness spacer [0.93 to 1.00 mm (0.0366 to
0.0395 inch)].

2. Set the washer on the back of each pinion, and put both

pinions simultaneously in mesh with the side gears. While
rotating them, install them into position.

3. Insert the pinion shaft.

AKX01140

MD998801

AB

AKX00957

AKX00959

DIFFERENTIAL

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-72

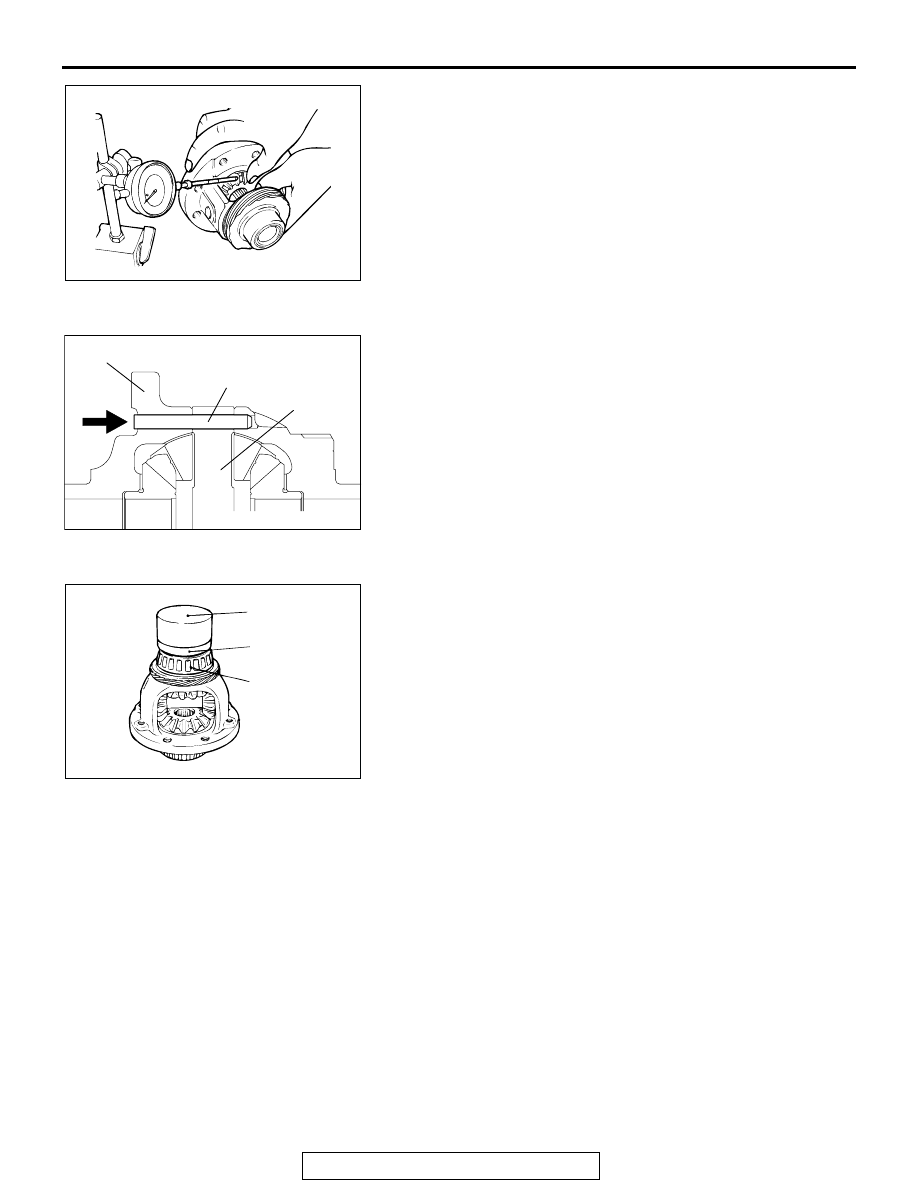

4. Measure the backlash between the side gear and pinion.

Standard value:
0.025

 0.150 mm (0.0010 - 0.0059 inch)

5. If the backlash is out of the standard value, select a spacer

and re-measure the backlash.
NOTE: Adjust until the backlash on both sides are equal.

.

>>B<<LOCK PIN INSTALLATION
Install the lock pin so that it will be oriented in the direction
shown.

.

>>C<< TAPER ROLLER BEARING INSTALLATION
Using special tools MD998812 and MD998820, press in the
taper roller bearing with the press.

.

AKX01143

AKX01141

PINION SHAFT

DIFFERENTIAL CASE

LOCK PIN

AB

AKX00964

MD998812

MD998820

TAPER ROLLER
BEARING

AB

DIFFERENTIAL

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-73

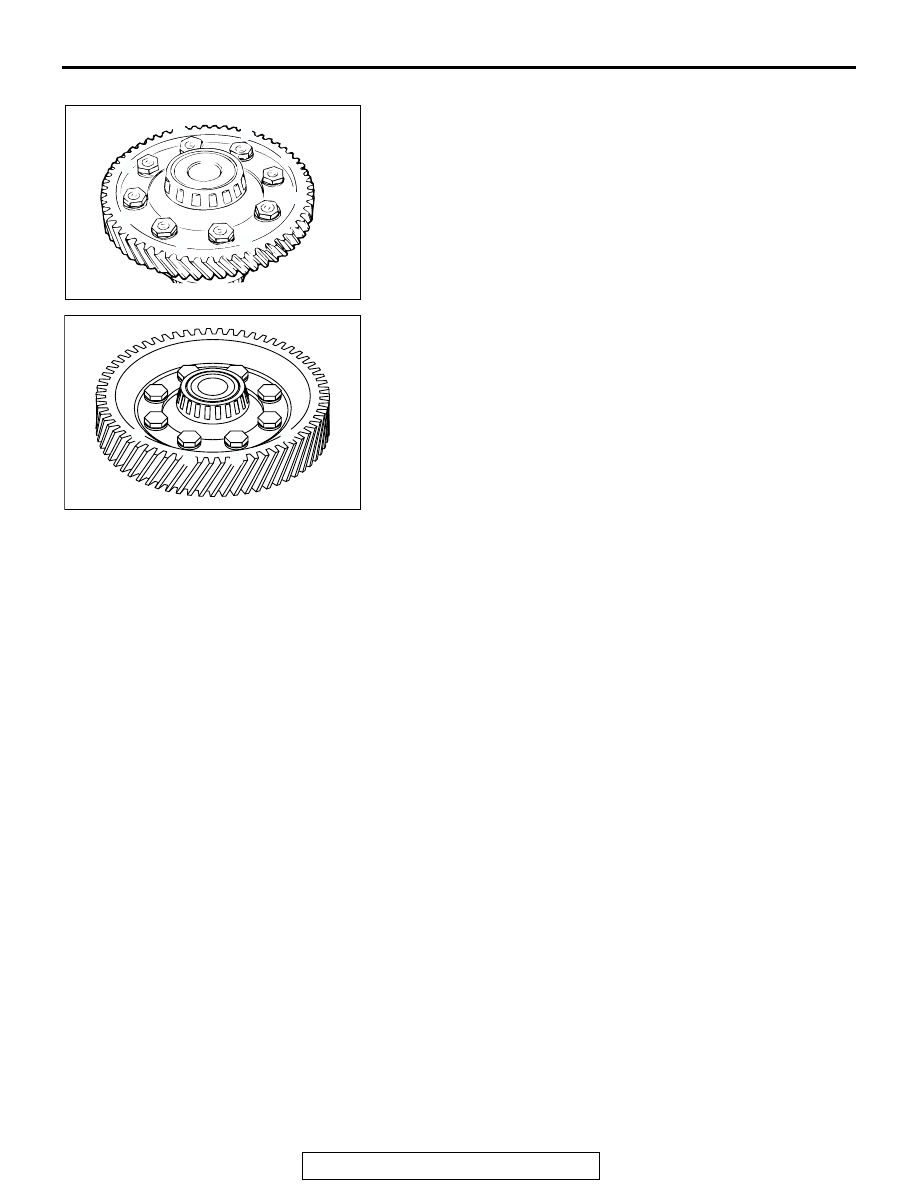

>>D<< DIFFERENTIAL DRIVE GEAR INSTALLATION
Apply ATF to the bolt, and then tighten the bolts to the specified
torque in the sequence shown.

Tightening torque: 132

± 5 Nm (98 ± 4 ft-lb)

AKX01099

<F4A42>

2

7

5

3

1

8

6

4

AB

AK302681AB

<F4A51>

2

3

1

4

5

6

7

8

VALVE BODY

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-74

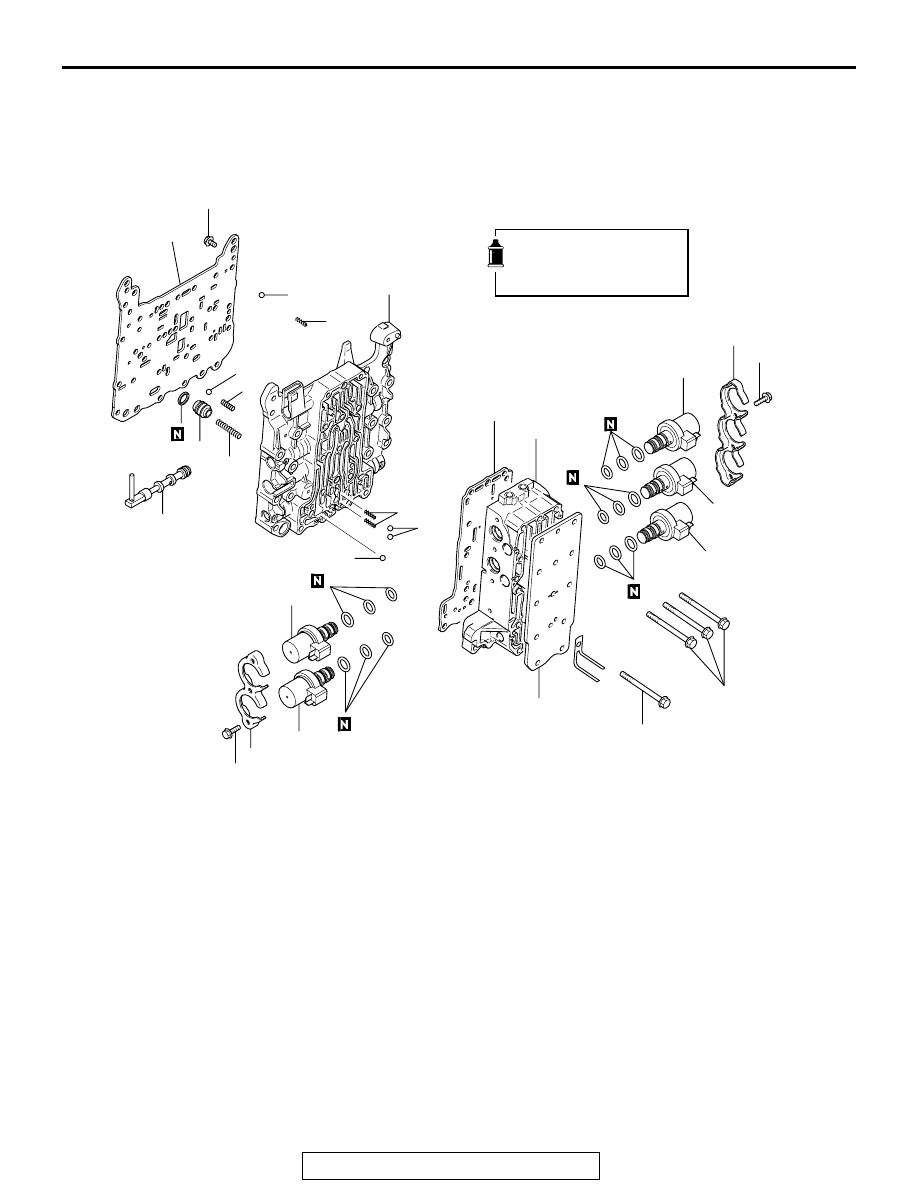

VALVE BODY

DISASSEMBLY AND ASSEMBLY

M1233005500020

AKX01001

6 ± 1 N·m
52 ± 9 in-lb

13

18

16

17

15

12

11

10

11

7

5

6

9

2

3

4

8

1

1

14

19

20

6 ± 1 N·m
52 ± 9 in-lb

6 ± 1 N·m
52 ± 9 in-lb

11 ± 1 N·m
95 ± 9 in-lb

11 ± 1 N·m
95 ± 9 in-lb

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

AB

DISASSEMBLY STEPS

1.

SOLENOID VALVE SUPPORT

<<A>>

>>C<<

2.

UNDERDRIVE SOLENOID VALVE

<<A>>

>>C<<

3.

SECOND SOLENOID VALVE

<<A>>

>>C<<

4.

TORQUE CONVERTER CLUTCH
CONTROL SOLENOID VALVE

<<A>>

>>C<<

5.

OVERDRIVE SOLENOID VALVE

<<A>>

>>C<<

6.

LOW-REVERSE SOLENOID
VALVE

7.

MANUAL VALVE

8.

COVER

9.

PLATE

10. OUTSIDE VALVE BODY

ASSEMBLY

>>B<<

11. STEEL BALL (ORIFICE CHECK

BALL)

>>B<<

12. SPRING
13. PLATE

>>A<<

14. DAMPING VALVE

>>A<<

15. DAMPING VALVE SPRING

>>A<<

16. STEEL BALL (LINE RELIEF)

>>A<<

17. SPRING

>>A<<

18. STEEL BALL (ORIFICE CHECK

BALL)

>>A<<

19. SPRING
20. INSIDE VALVE BODY ASSEMBLY

DISASSEMBLY STEPS
