CLUTCH

TSB Revision

CLUTCH OVERHAUL

21B-3

 <3.0L ENGINE>

AKX00761

19 ± 3 N·m
14 ± 2 ft-lb

9.8 ± 2 N·m
87 ± 17 in-lb

19 ± 3 N·m
14 ± 2 ft-lb

15 ± 2 N·m
11 ± 1 ft-lb

19 ± 3 N·m
14 ± 2 ft-lb

23 ± 2 N·m
17 ± 1 ft-lb

3

2

13

10

1

9

14

8

7

5

6

4

22

23

21

20

16

15

17

19

11

12

AB

18

18

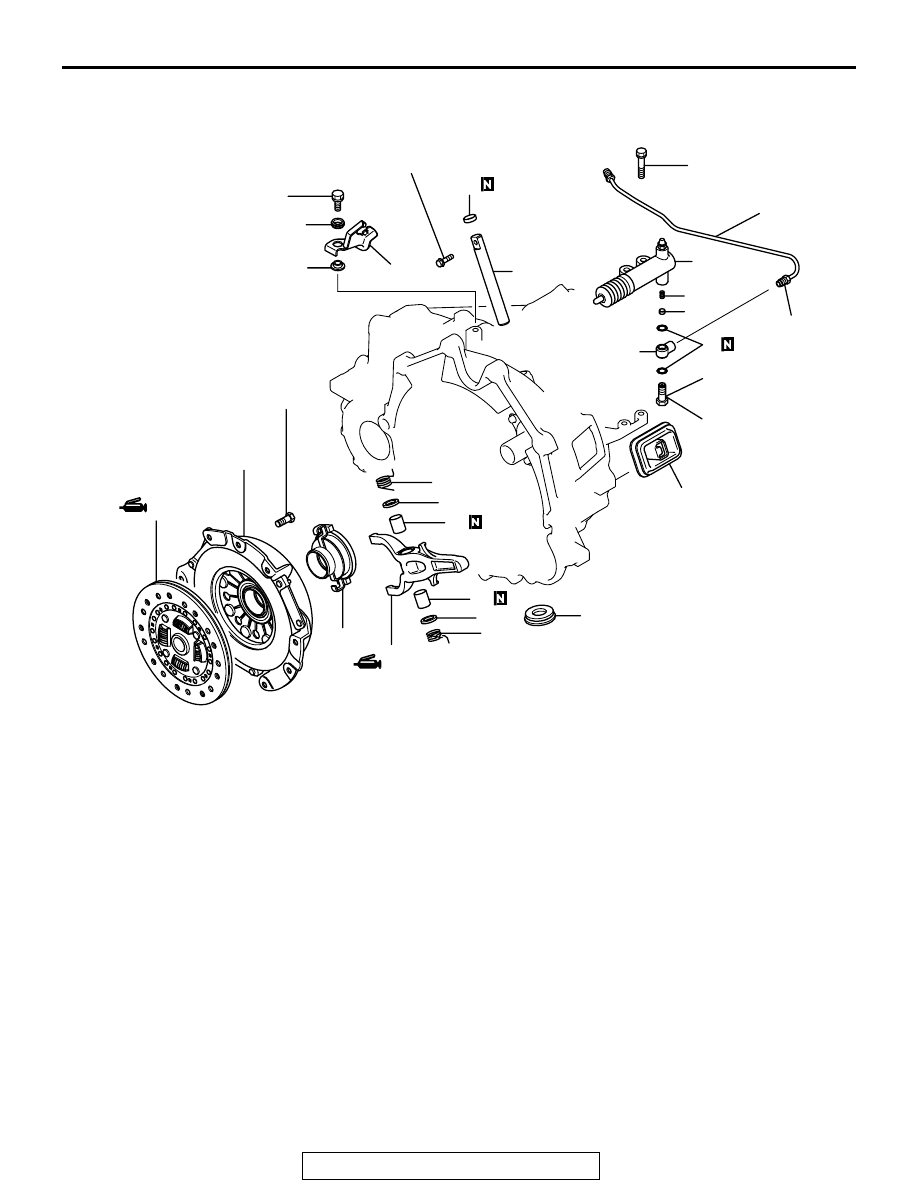

REMOVAL STEPS

1.

CLUTCH FLUID LINE BRACKET

2.

INSULATOR

3.

WASHER

4.

CLUTCH TUBE

5.

UNION BOLT

6.

UNION

7.

GASKET

8.

VALVE

9.

VALVE SPRING

10. CLUTCH RELEASE CYLINDER

>>B<<

11. CLUTCH COVER

>>B<<

12. CLUTCH DISC

>>E<<

13. SEALING CAP
14. RELEASE FORK SHAFT
15. SUPPORT SPRING (L)
16. PACKING

>>D<<

17. RELEASE FORK

>>C<<

18. BUSHING
19. CLUTCH RELEASE BEARING
20. PACKING
21. SUPPORT SPRING (R)
22. RELEASE FORK BOOT
23. MAINTENANCE HOLE COVER

REMOVAL STEPS (Continued)

CLUTCH

TSB Revision

CLUTCH OVERHAUL

21B-4

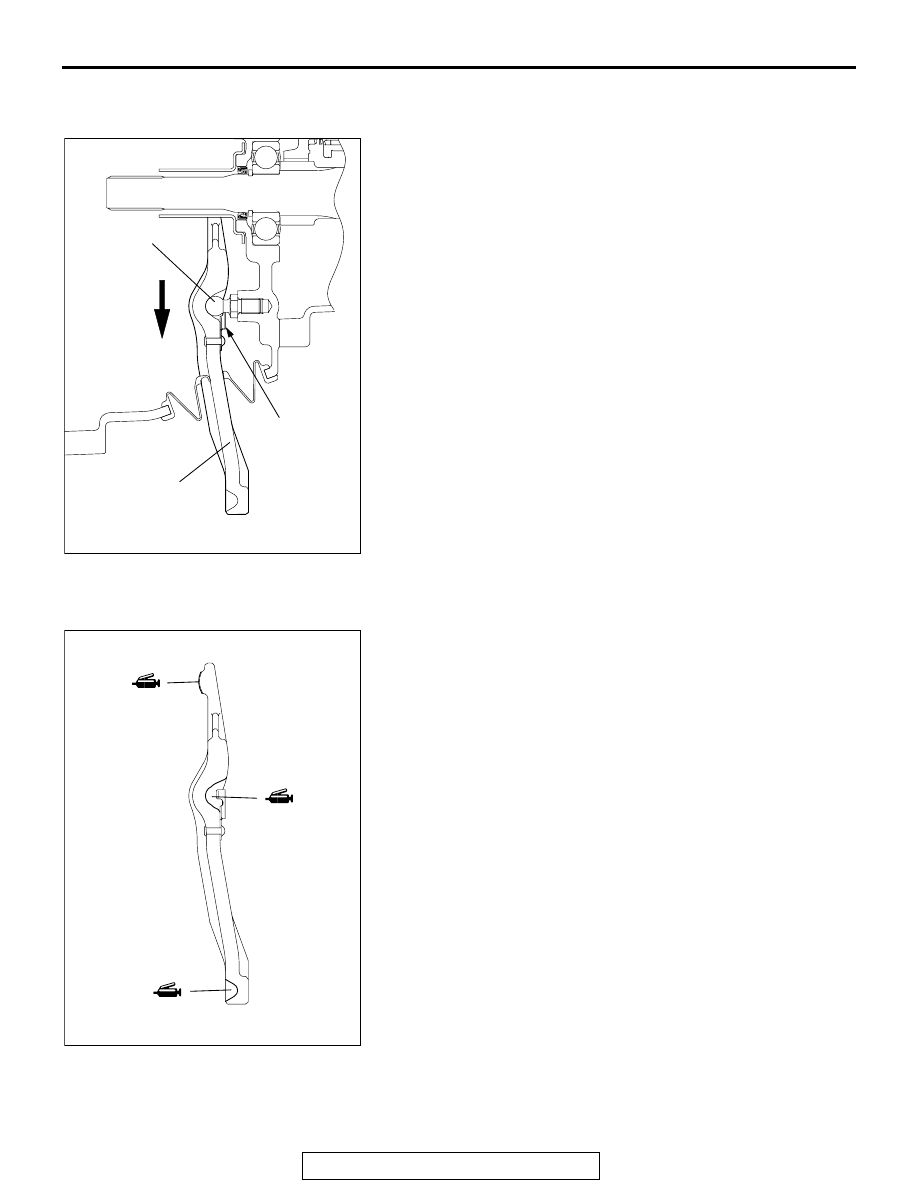

REMOVAL SERVICE POINT

.

<<A>> RELEASE FORK REMOVAL
Move the release fork in the direction shown to remove the clip
from the fulcrum.

INSTALLATION SERVICE POINTS

.

>>A<< RELEASE FORK INSTALLATION
1. Apply Mitsubishi genuine grease part number 0101011 or

equivalent to the illustrated positions of the release fork.

2. Install the release fork to the fulcrum.

.

AKX00752

FULCRUM

CLIP

RELEASE FORK

AB

AKX00753

APPLY
GREASE

APPLY
GREASE

APPLY
GREASE

AB

CLUTCH

TSB Revision

CLUTCH OVERHAUL

21B-5

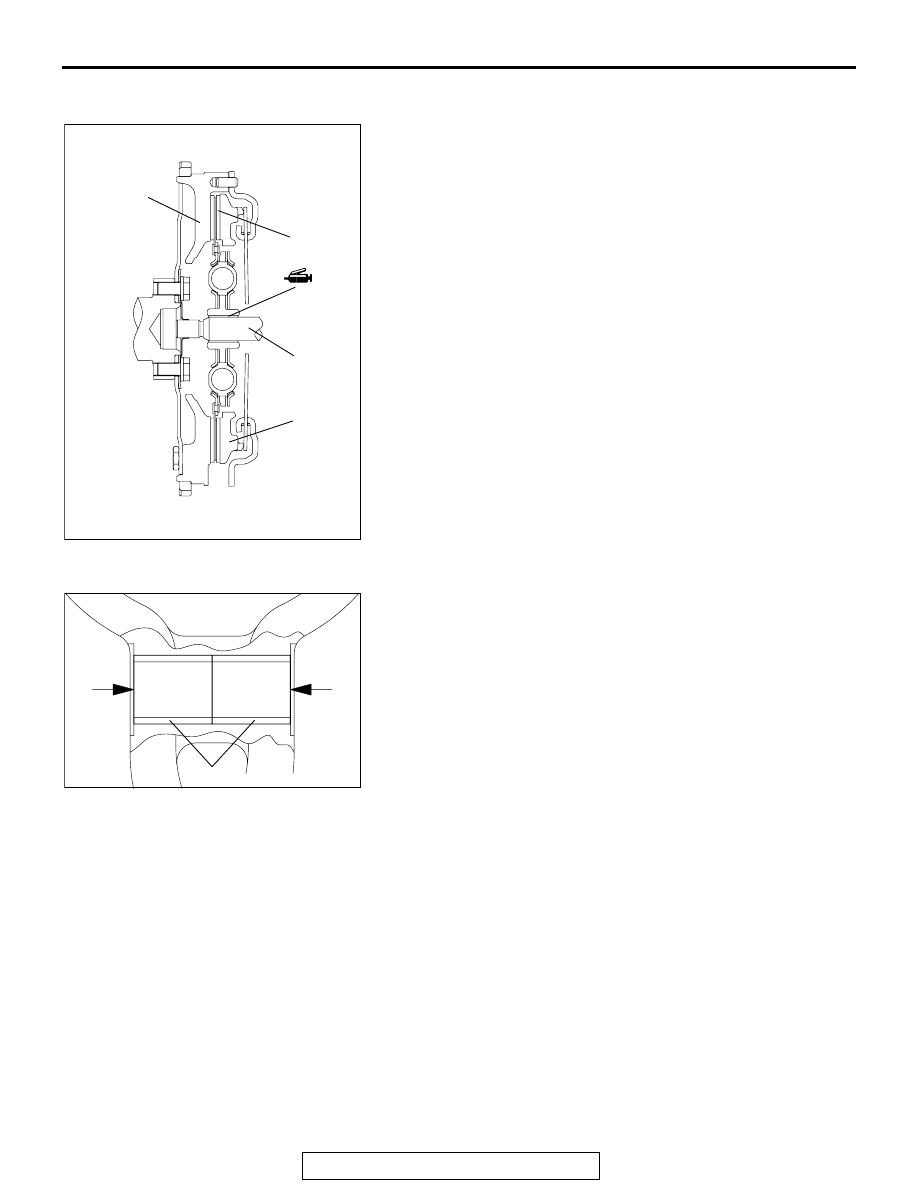

>>B<< CLUTCH DISC AND CLUTCH COVER
INSTALLATION
1. Apply Mitsubishi genuine grease part number 0101011 or

equivalent to the clutch disc splines and rub it in the splines
with a brush.

2. Using the clutch disc guide to position the clutch disc on the

flywheel.

3. Install the clutch cover onto the flywheel.

.

>>C<< OUTER RACE INSTALLATION
Press in the bushing into the release fork to the position shown
in the illustration.

.

AKX00759

FLYWHEEL

CLUTCH DISC

CLUTCH
DISC
GUIDE

CLUTCH
COVER

AB

AKX00755

BUSHING

AB

CLUTCH

TSB Revision

CLUTCH OVERHAUL

21B-6

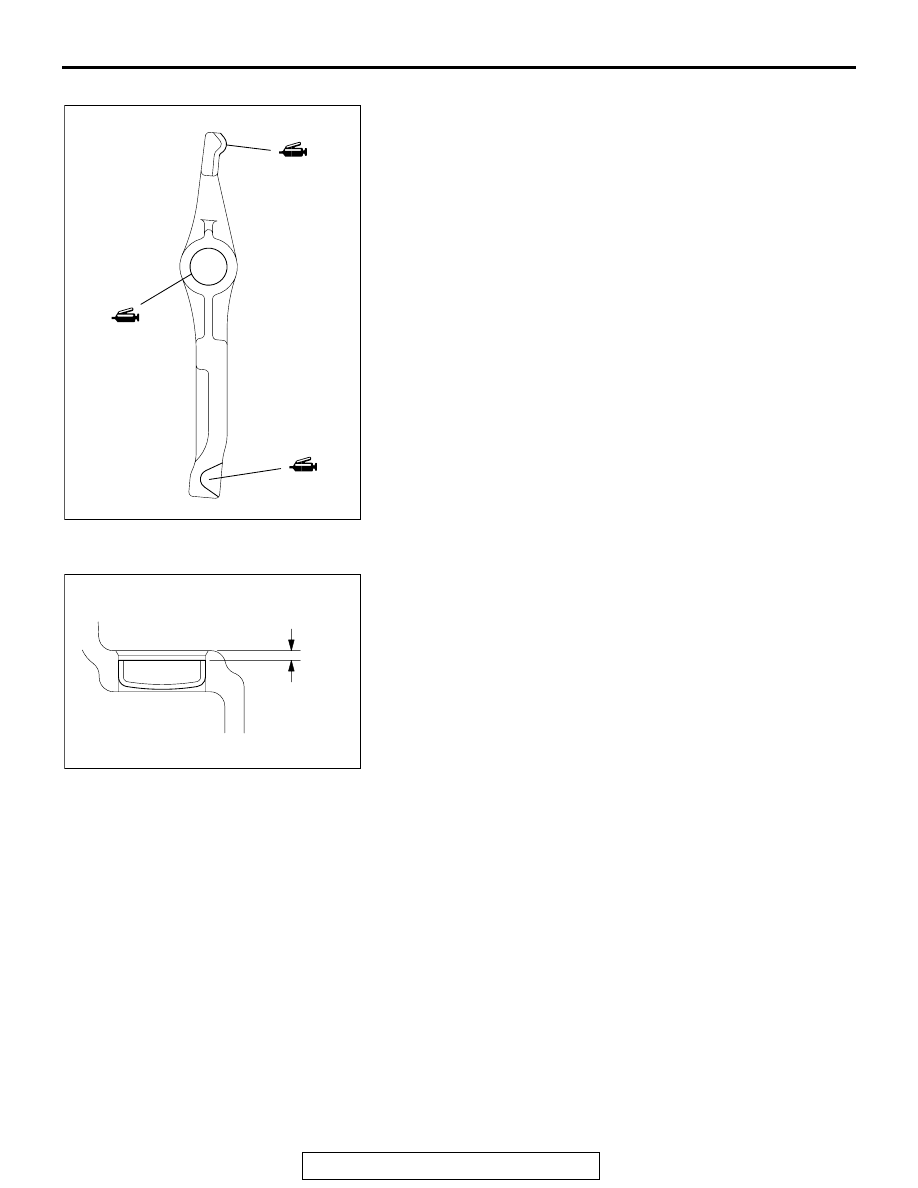

>>D<< RELEASE FORK INSTALLATION
Apply Mitsubishi genuine grease part number 0101011 or
equivalent to the illustrated positions of the release fork.

.

>>E<< SEALING CAP INSTALLATION
Press in the sealing cap to the position shown in the illustration.
Be sure that it is not installed in a slanted position.

CLUTCH INSPECTION

M1212001100036

.

CLUTCH COVER
1. Check the diaphragm spring end for wear and uneven

height. Replace if wear is evident or height difference
exceeds the limit.

Limit: 0.5 mm (0.020 inch)

2. Check the pressure plate surface for wear, cracks and

discoloration.

3. Check the rivets of the strap plate for looseness. If loose,

replace the clutch cover.

.

AKX00757

APPLY
GREASE

APPLY
GREASE

PACK
GREASE

AB

AKX00756

2 mm (0.08 in)

AB
