CLUTCH CONTROL

TSB Revision

CLUTCH

21A-11

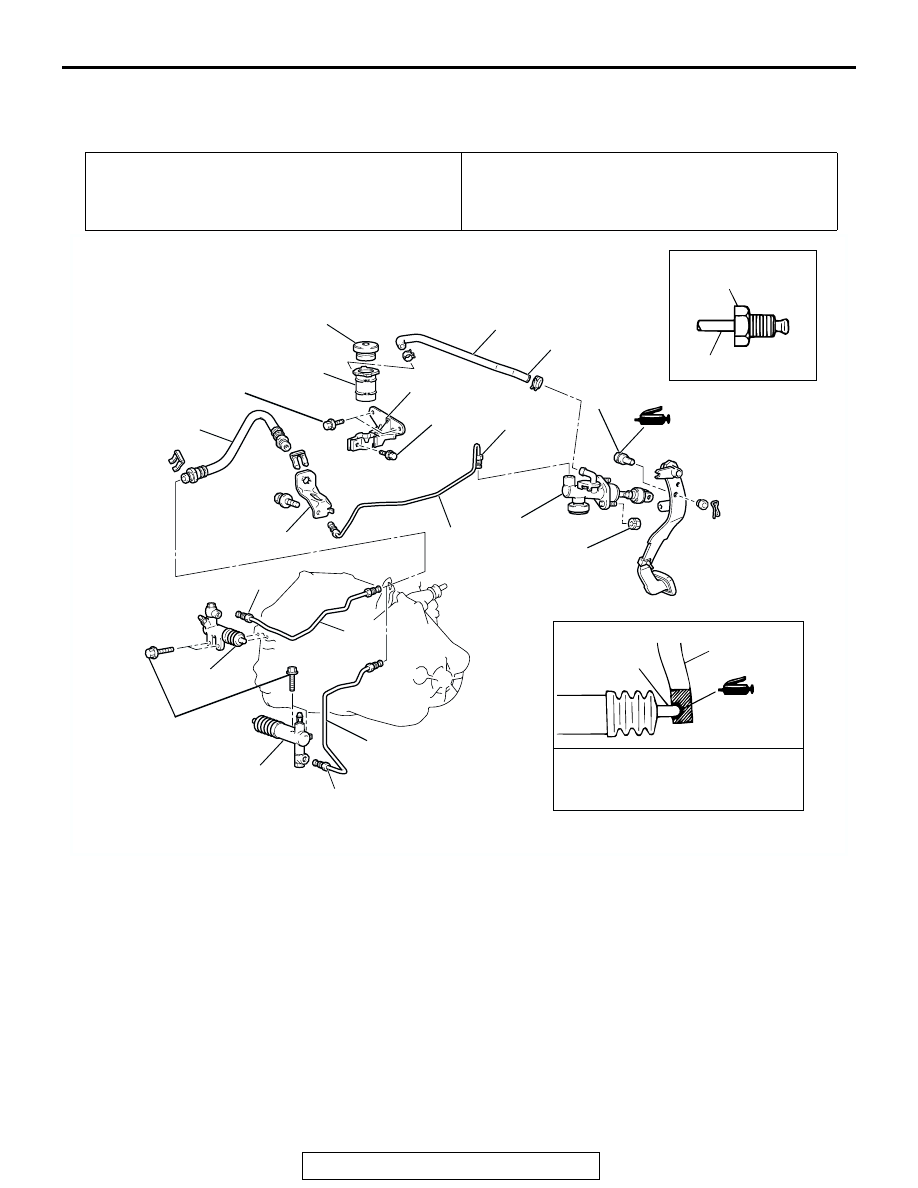

CLUTCH CONTROL

REMOVAL AND INSTALLATION

M1211001900125

Pre-removal Operation
Clutch Fluid Draining

Post-installation Operation
• Clutch Fluid Supplying

• Clutch Line Bleeding (Refer to

P.21A-8

.)

• Clutch Pedal Adjustment (Refer to

P.21A-6

.)

AC001614

15 ± 2 N·m
12 ± 1 ft-lb

11

1

3

5

4

6

7

8

5.0 ± 1.0 N·m
44 ± 9 in-lb

2

13

12

11

<2.4L ENGINE>

9

10

19 ± 3 N·m
14 ± 2 ft-lb

10

<3.0L ENGINE>

9

11

11

RELEASE
CYLINDER
PUSH ROD

RELEASE
FORK

GREASE:
       MITSUBISHI GENUINE
       GREASE PART NO. 0101011
       OR EQUIVALENT

AC

13 ± 2 N·m
111 ± 22 in-lb

11 ± 1 N·m
98 ± 8 in-lb

CLUTCH MASTER CYLINDER
REMOVAL STEPS

1.

CLEVIS PIN

2.

CLUTCH TUBE CONNECTION

3.

RESERVOIR HOSE
CONNECTION

4.

CLUTCH MASTER CYLINDER
CLUTCH RESERVOIR TANK
REMOVAL STEPS

5.

RESERVOIR HOSE

6.

RESERVOIR CAP

7.

RESERVOIR TANK

8.

RESERVOIR BRACKET

CLUTCH RELEASE CYLINDER
REMOVAL STEPS

9.

CLUTCH TUBE CONNECTION

10. CLUTCH RELEASE CYLINDER

CLUTCH LINE REMOVAL
STEPS

>>A<<

11. CLUTCH TUBE
12. BRACKET

<<A>>

>>A<<

13. CLUTCH HOSE

CLUTCH CONTROL

TSB Revision

CLUTCH

21A-12

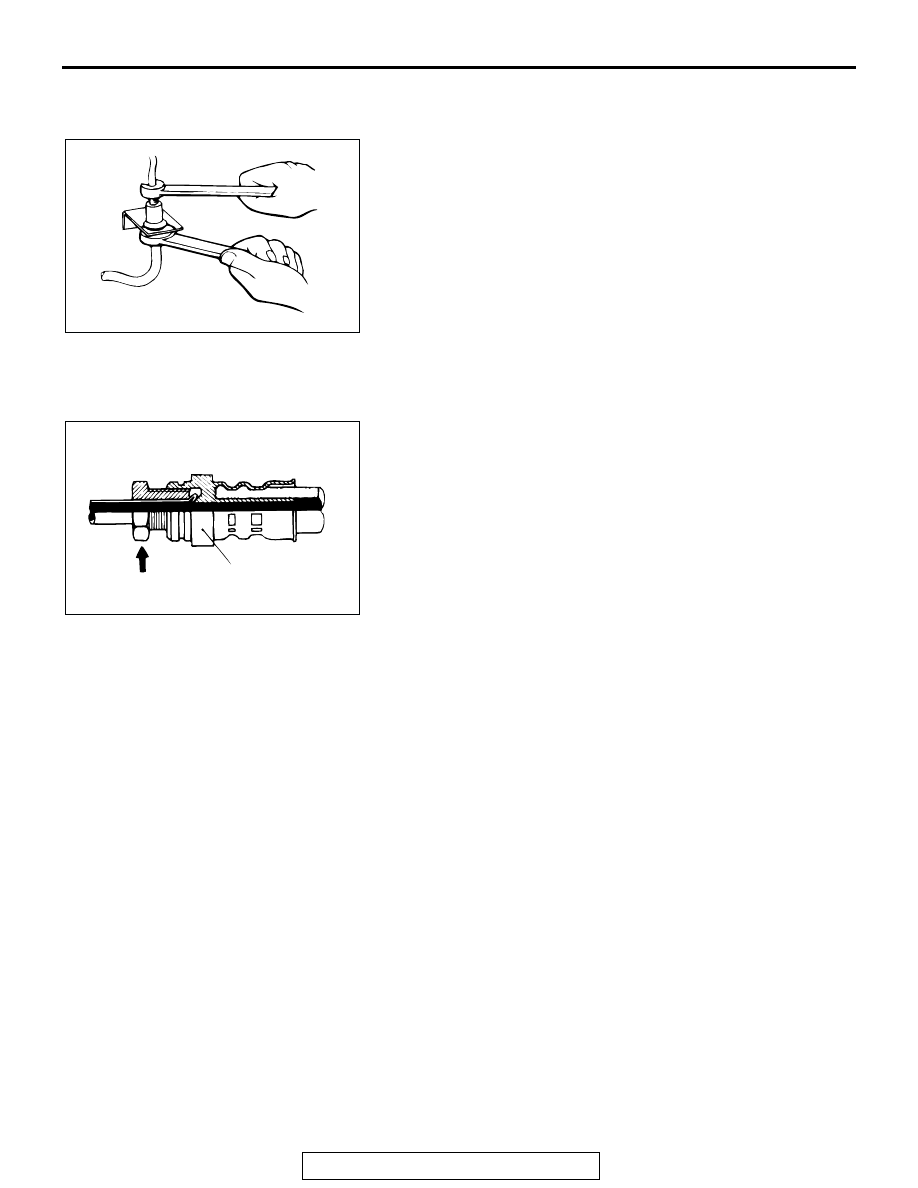

REMOVAL SERVICE POINT

.

<<A>> CLUTCH HOSE REMOVAL
Holding the nut at the clutch hose side, loosen the flare nut on
the clutch tube.

INSTALLATION SERVICE POINT

.

>>A<< CLUTCH HOSE/CLUTCH TUBE INSTALLATION
1. Temporarily tighten the clutch tube flare nut by hand, and

then tighten it to the specified torque, being careful that the
clutch hose does not become twisted.

Tightening torque: 15

± 2 Nm (12 ± 1 ft-lb)

2. After tightening the clutch tube flare nut, check to be sure

there is no leakage of the clutch fluid.

INSPECTION

M1211002000095

• Check the master cylinder or clutch hose for fluid leakage.

• Check the clutch hose or tube for cracks or clogging.

AC001141

AC001142

SECURING SIDE

AB

CLUTCH CONTROL

TSB Revision

CLUTCH

21A-13

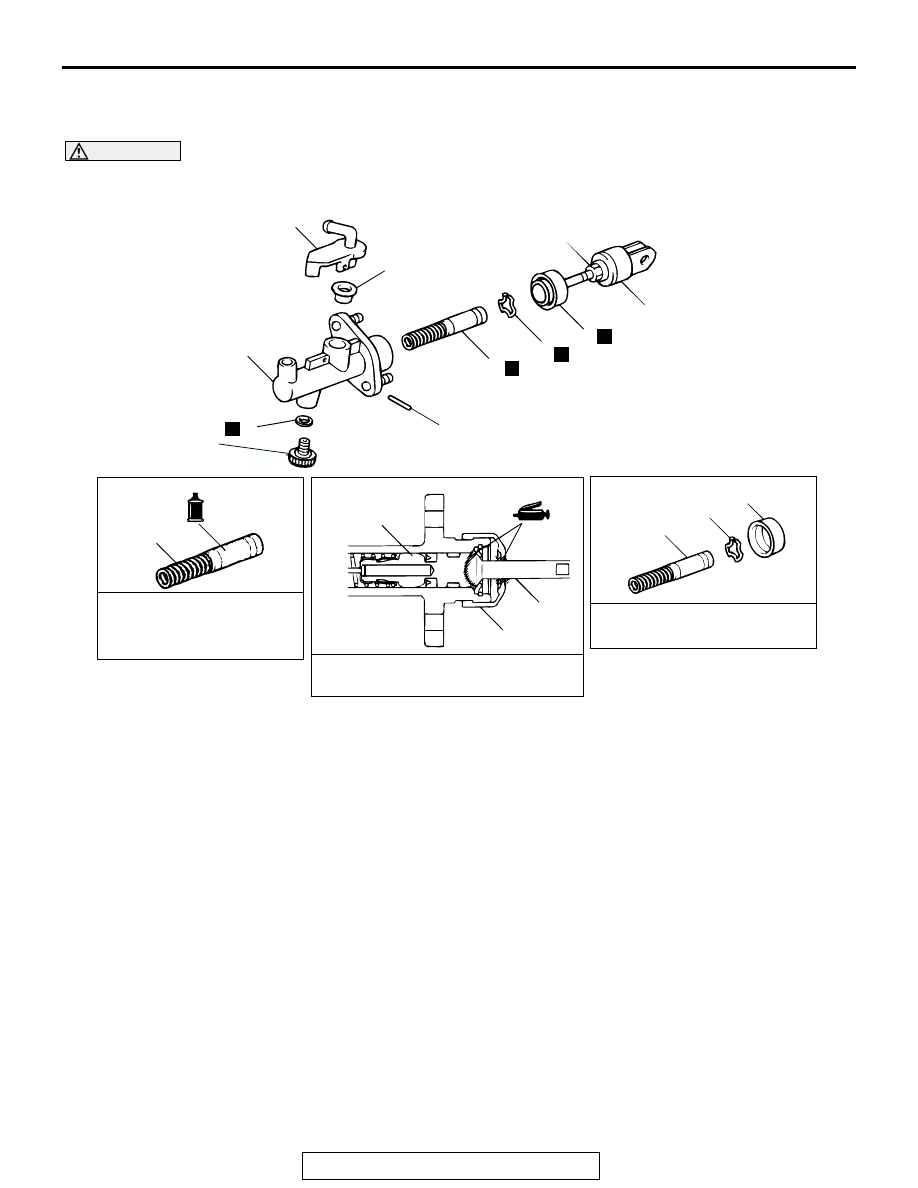

CLUTCH MASTER CYLINDER

M1211002100100

DISASSEMBLY AND ASSEMBLY

CAUTION

Do not disassemble the piston assembly.

AC001143

6

7

13 ± 2 N·m
111 ± 22 in-lb

N

3

4

N

1

2

N

5

10

8

N

9

2

CLUTCH FLUID:
       BRAKE FLUID
       DOT 3 OR DOT 4

2

3

4

GREASE: RUBBER GREASE

2

1

4

PISTON REPAIR KIT

AC

DISASSEMBLY STEPS

1.

PISTON STOPPER RING

2.

PISTON ASSEMBLY

>>A<<

3.

DAMPER AND PUSHROD

4.

BOOT

5.

SPRING PIN

6.

NIPPLE

7.

RESERVOIR SEAL

8.

GASKET <3.0L ENGINE>

9.

DAMPER ASSEMBLY <3.0L
ENGINE>

10. CLUTCH MASTER CYLINDER

ASSEMBLY

DISASSEMBLY STEPS

CLUTCH CONTROL

TSB Revision

CLUTCH

21A-14

ASSEMBLY SERVICE POINT

.

>>A<< DAMPER AND PUSHROD INSTALLATION
Set the length of the push rod assembly to the dimension
shown to make the adjustment of the clutch pedal easier.

INSPECTION

M1211002200099

• Check inside the cylinder body for rust and scars.

• Check the piston cup for wear and deformation.

• Check the piston for rust and scars.

• Check the pipe connection for clogging.

AC001144AD

119.3 mm (4.7 in)
