SPECIFICATIONS
TSB Revision

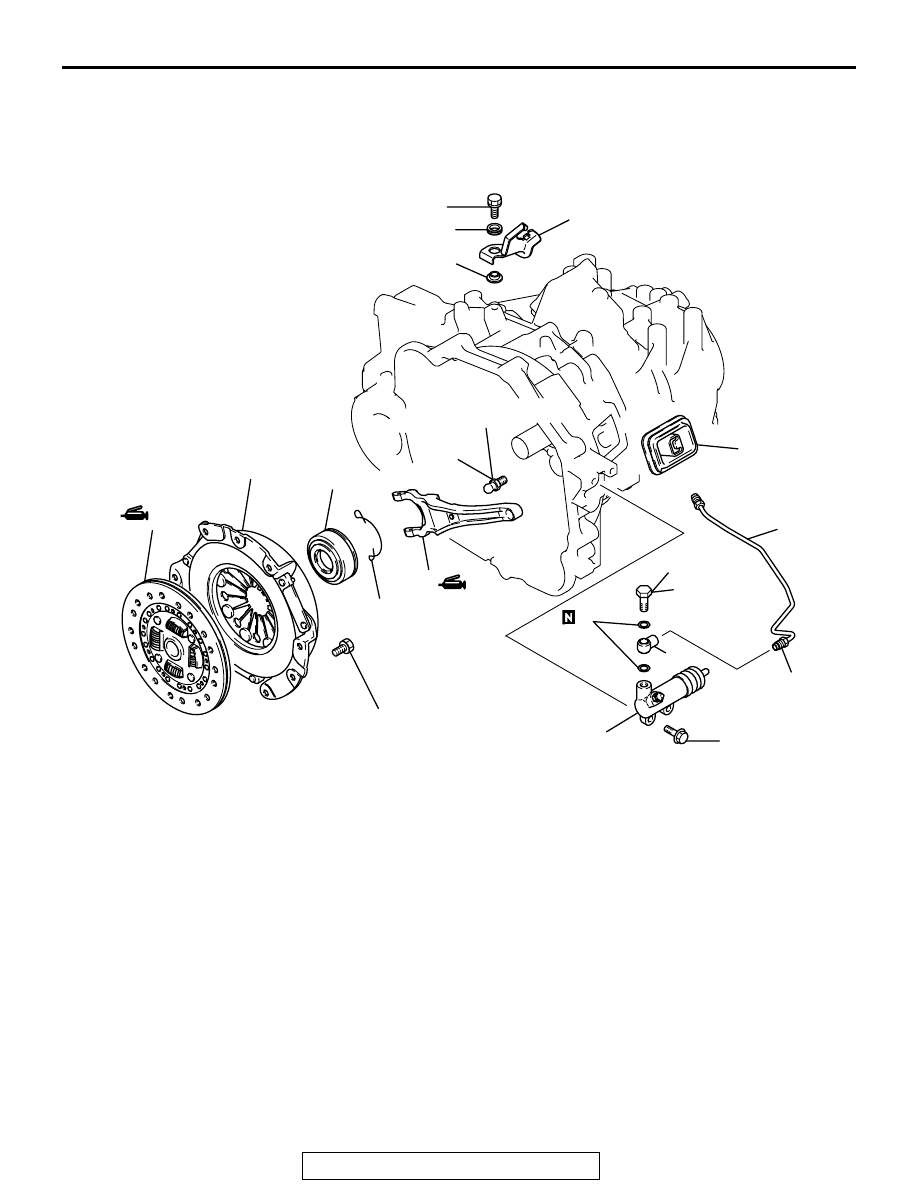

CLUTCH
21A-15
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS
M1211003300118
GENERAL SPECIFICATION
M1211000200101
SERVICE SPECIFICATIONS
M1211000300108
LUBRICANTS
M1211000400097
ITEM
SPECIFICATION
Clutch control
Clutch master cylinder mounting nut
13
± 2 N⋅m (111 ± 22 in-lb)
Clutch release cylinder mounting bolt
19
± 3 N⋅m (14 ± 2 ft-lb)
Clutch tube flare nut
15
± 2 N⋅m (12 ± 1 ft-lb)
Push rod jam nut
13
± 2 N⋅m (111 ± 22 in-lb)
Reservoir bracket bolt
5.0
± 1.0 N⋅m (44 ± 9 in-lb)
Reservoir bracket mounting bolt
11
± 1 N⋅m (98 ± 8 in-lb)
Clutch pedal
Clutch master cylinder mounting nut
13
± 2 N⋅m (111 ± 22 in-lb)
Pedal support member mounting bolt
12
± 2 N⋅m (102 ± 22 in-lb)
ITEM
SPECIFICATION
Clutch master cylinder ID mm (in)
15.87 (5/8)
ITEM
STANDARD VALUE
Clutch pedal height mm (in)
175.3
− 178.3 (6.90 − 7.02)
Clutch pedal clevis pin play mm (in)
1
− 3 (0.04 − 0.12)
Clutch pedal free play mm (in)
6
− 13 (0.2 − 0.5)
Distance between the clutch pedal and the floorboard when the
clutch pedal is released mm (in)
76.4 (3.0) or more
ITEM
SPECIFIED LUBRICANT
QUANTITY
Clutch fluid
Brake Fluid DOT 3 or DOT 4
As required
Push rod assembly
Rubber grease
As required
Boot
Rubber grease
As required
Release cylinder push rod
MITSUBISHI genuine grease Part No.
0101011 or equivalent
As required
