TIMING BELT

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-13

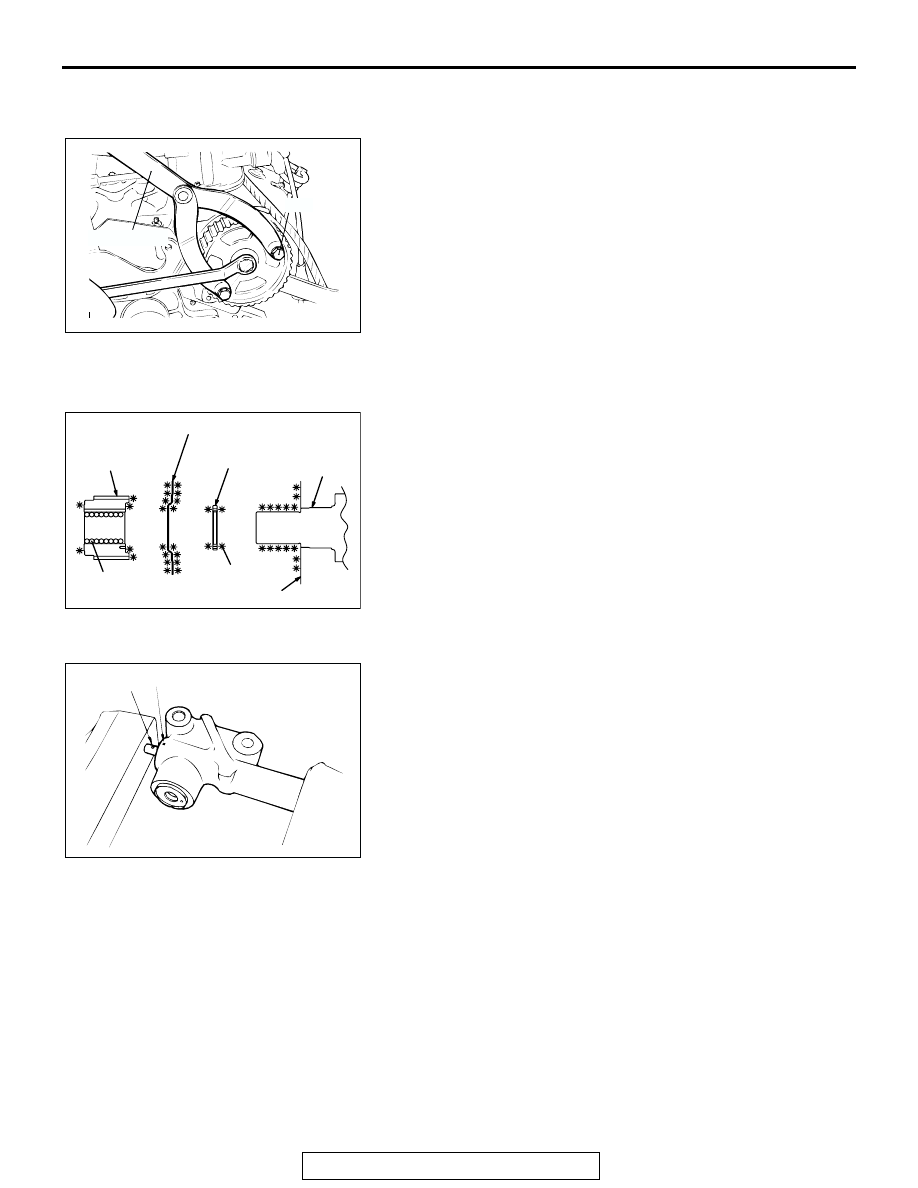

INSTALLATION SERVICE POINT

.

>>A<< CAMSHAFT SPROCKET INSTALLATION
1. Fit the camshaft sprocket to the front end of the camshaft.
2. While holding the camshaft sprocket with special tools

MB990767 and MD998715, tighten the camshaft sprocket
bolt.

Tightening torque: 88

± 10 Nm (65 ± 7 ft-lb)

.

>>B<< CRANKSHAFT SENSING BLADE/CRANKSHAFT
SPACER/CRANKSHAFT SPROCKET INSTALLATION
1. Clean the hole in the crankshaft sprocket.
2. Clean and degrease the mating surfaces of the crankshaft

sprocket, sensing blade, and spacer

NOTE: Degreasing is necessary to prevent decrease in friction
between the mating surface due to presence of oil.

.

>>C<< AUTO-TENSIONER INSTALLATION
If the auto-tensioner rod is fully extended, reset it as follows:
1. Clamp the auto-tensioner in the vise with soft jaws.
2. Push in the rod little by little with the vise until the set hole A

in the rod is aligned with the hole B in the cylinder.

3. Insert a wire [1.4 mm (0.055 inch) in diameter] into the set

holes. This auto-tensioner setting wire will be used during
timing belt alignment.

4. Unclamp the auto-tensioner from the vise.

.

AKX00720

AB

MB990767

MD998715

AK101687

CLEAN

DEGREASE

CRANKSHAFT
SPECER

CRANKSHAFT

CRANKSHAFT SENSING BLADE

CRANKSHAFT
SPROCKET

OIL PUMP CASE

AB

AKX00653

A

B

AB

TIMING BELT

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-14

>>D<< TIMING BELT INSTALLATION

CAUTION

Do not turn the camshaft when the piston in No.1 cylinder
is at the top dead center on the compression stroke. Doing
so can cause the lifted valve to hit against the piston,
resulting in damaging parts.
1. Install special tool MD998769 and the crankshaft pulley

washer, and then tighten the crankshaft bolt.

2. Align the timing mark on the crankshaft sprocket with the

timing mark on the oil pump case, and then rotate the
sprocket three teeth counterclockwise.

3. Align the timing mark on the left bank camshaft sprocket

with the timing mark on the rocker cover.

4. Align the timing mark on the right bank camshaft sprocket

with the timing mark on the rocker cover.

5. Align the timing mark on the crankshaft sprocket with the

timing mark on the oil pump case.

6. Install the timing belt on each sprocket and pulley in the

following sequence. Do not leave the belt slack between
each sprocket and pulley.

(1) Crankshaft sprocket
(2) Idler pulley
(3) Left bank camshaft sprocket
(4) Water pump pulley
(5) Right bank camshaft sprocket
(6) Tensioner pulley

7. Install special tool MD998767 to the tensioner pulley. While

pushing the pulley lightly against the belt using the special
tool, tighten the flange bolt.

Tightening torque: 48

± 6 Nm (35 ± 4 ft-lb)

AKX00632

MD998769

CRANKSHAFT
SPROCKET

AB

TIMING MARK

AKX00640

TIMING MARKS

LEFT
BANK

RIGHT
BANK

CAMSHAFT SPROCKET

AB

AKX00681AB

TIMING MARK

CRANKSHAFT
SPROCKET

MD998769

AKX00654AB

MD998767

TIMING BELT

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-15

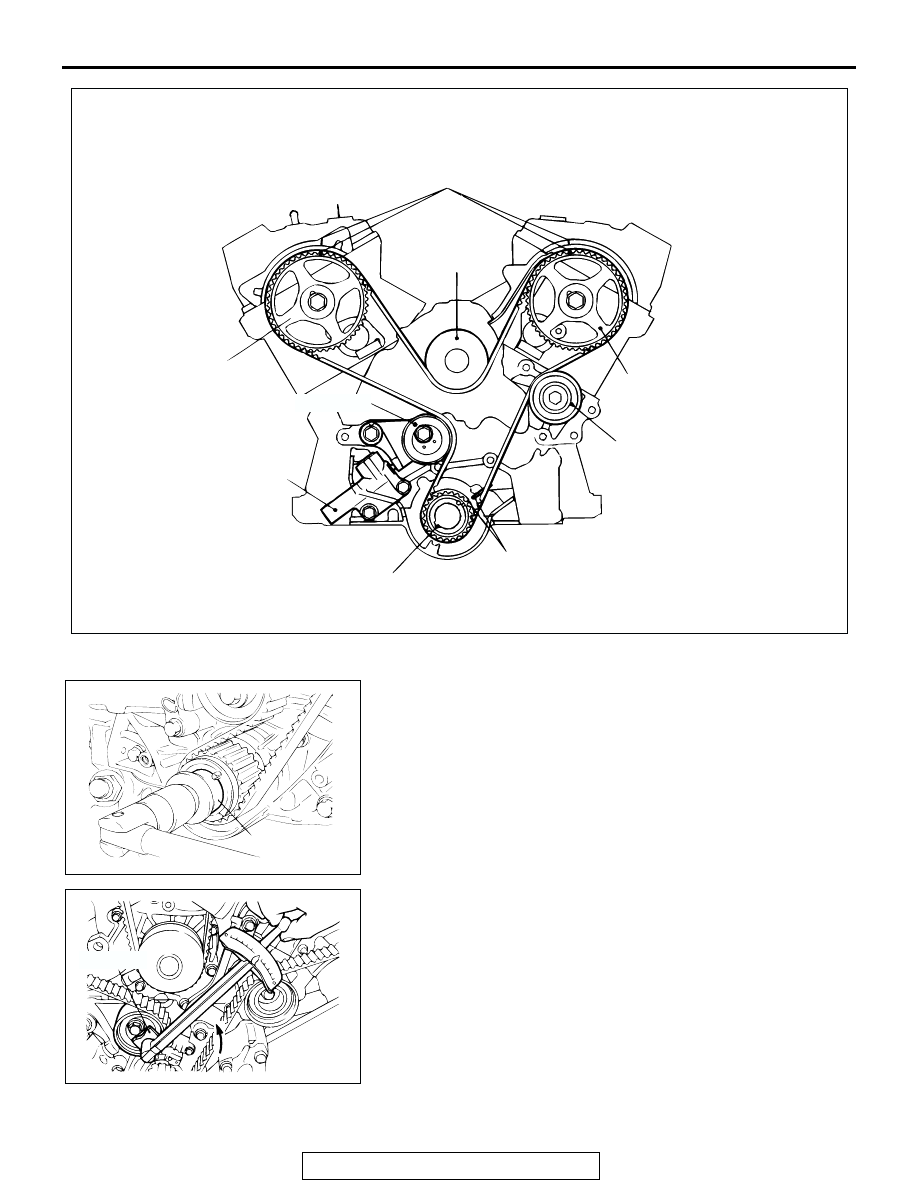

8. Check to see that the timing marks of all the sprockets are in

a alignment.

9. Rotate the crankshaft a quarter turn counterclockwise. Then

rotate it back clockwise to verify that all the timing marks are
aligned.

10.Loosen the flange bolt securing the tensioner pulley, and

then mount special tool MD998767 and a torque wrench on
the tensioner pulley.

11.Torque it to 4.4 N

⋅m (39 in-lb) with the torque wrench.

12.While holding the tensioner pulley in position, tighten the

flange bolt to the specified torque.

Tightening torque: 48

± 6 Nm (35 ± 4 ft-lb)

13.Rotate the crankshaft two turns clockwise and leave it alone

for approximately five minutes.

AKX00641

CRANKSHAFT SPROCKET

RIGHT BANK

LEFT BANK

TIMING MARK

WATER PUMP
PULLEY

CAMSHAFT SPROCKET

CAMSHAFT
SPROCKET

IDLER PULLEY

AUTO-TENSIONER

TIMING MARK

AB

TENSIONER PULLEY

AKX00728

MD998769

AB

AKX00655AB

MD998767

TIMING BELT

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-16

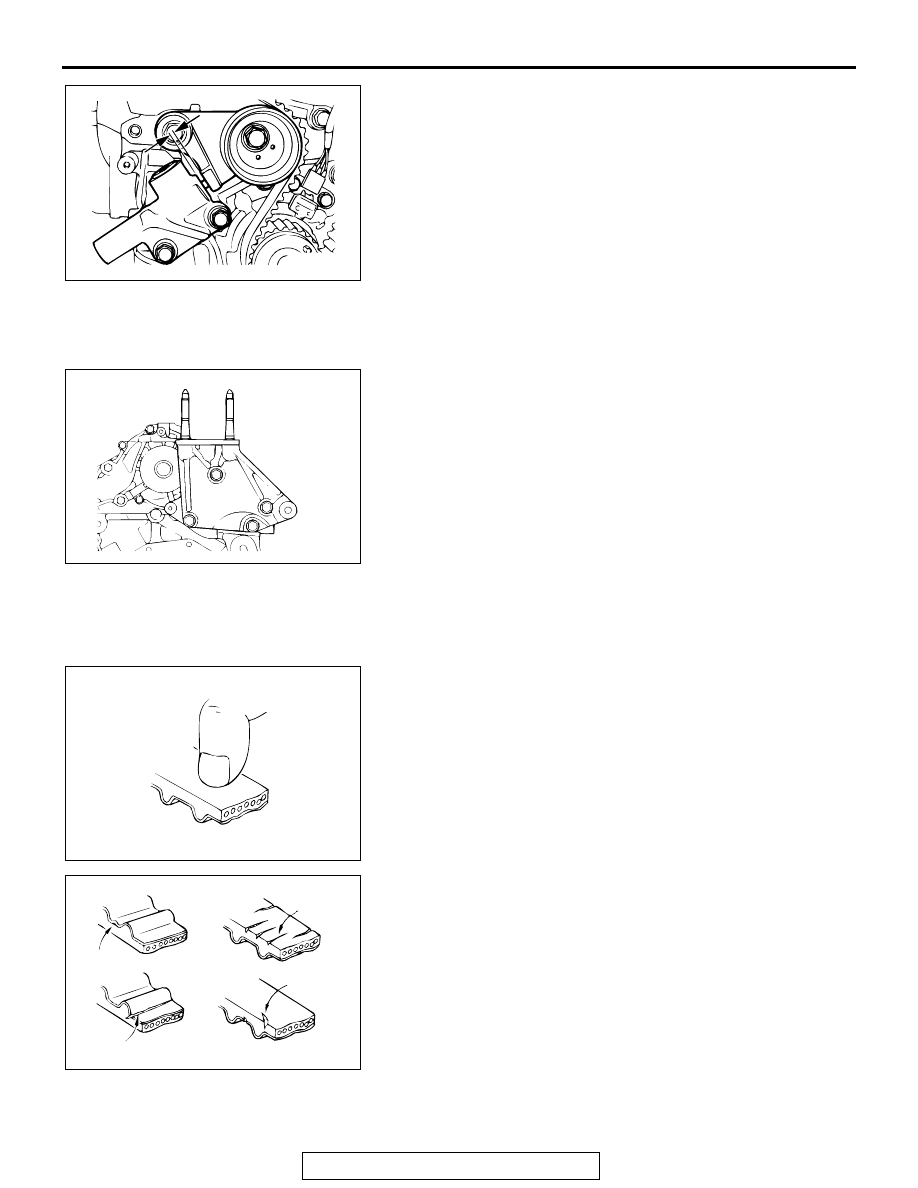

14.Check to see whether the metal wire inserted when the

auto-tensioner was installed can be removed without any
resistance.
If the metal wire can be removed without any resistance, it
means that the belt has a proper tension. Therefore, remove
the metal wire. In this condition, check that the rod
protrusion of the auto-tensioner is within the standard value.

Standard value: 3.8

 5.0 mm (0.15  0.20 inch)

15.If the metal wire offers resistance when removed, repeat the

previous steps (10) through (13) until proper belt tension is
obtained.

.

>>E<< ENGINE SUPPORT BRACKET, RIGHT
INSTALLATION
The mounting bolts of the right engine support bracket must be
tightened in the order shown in the illustration.

Tightening torque: 44

± 5 Nm (33 ± 4 ft-lb)

Bolt length
85 mm (33.5 inch)

− Bolt 3

95 mm (37.4 inch)

− Other bolts

INSPECTION

M1113002000049

.

TIMING BELT
Replace the belt if any of the following conditions exist.
1. Hardening of rubber backing.

Back side is glossy without resilience and leaves no indent
when pressed with fingernail.

2. Cracks on rubber back
3. Cracks or peeling of canvas
4. Cracks on tooth bottom
5. Cracks on belt

AKX00656

ROD PROTRUSION

AB

AKX00667

1

4

3

2

AB

AKX00749

AKX00713

CRACKS

CRACKS

PEELING

CRACKS

AB
