TIMING BELT

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-17

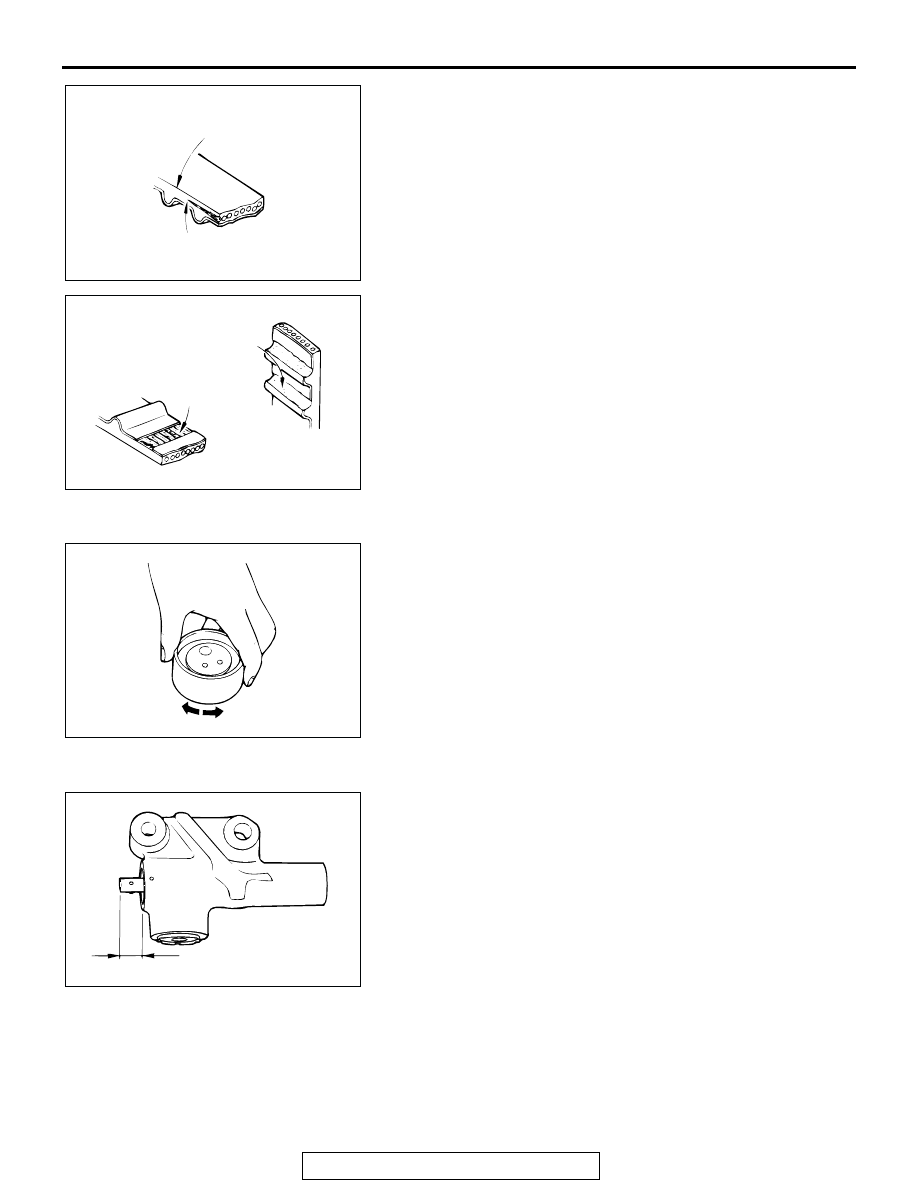

6. Abnormal wear of belt sides. Normal wear is indicated if the

sides are sharp as if cut by a knife. Abnormal wear is
indicated if the sides are ragged.

7. Abnormal wear on teeth.
8. Missing tooth.

.

TENSIONER PULLEY AND IDLER PULLEY
Turn the pulley. If it does not rotate smoothly, or develops noise
or excessive play, replace the pulley.

.

AUTO-TENSIONER
1. Check for oil leaks. If oil leaks are evident, replace the

auto-tensioner.

2. Check the rod end for wear or damage and replace the

auto-tensioner if necessary.

3. Measure the rod protrusion. If it is out of specification,

replace the auto-tensioner.

Standard value: 12 mm (0.5 inch)

AKX00750

ROUNDED EDGE

ABNORMAL WEAR
(RAGGED)

AB

AKX00751

RUBBER EXPOSED

TOOTH
MISSING

AB

AKX00650

AKX00651

12 mm (0.5 in)

AB

TIMING BELT

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-18

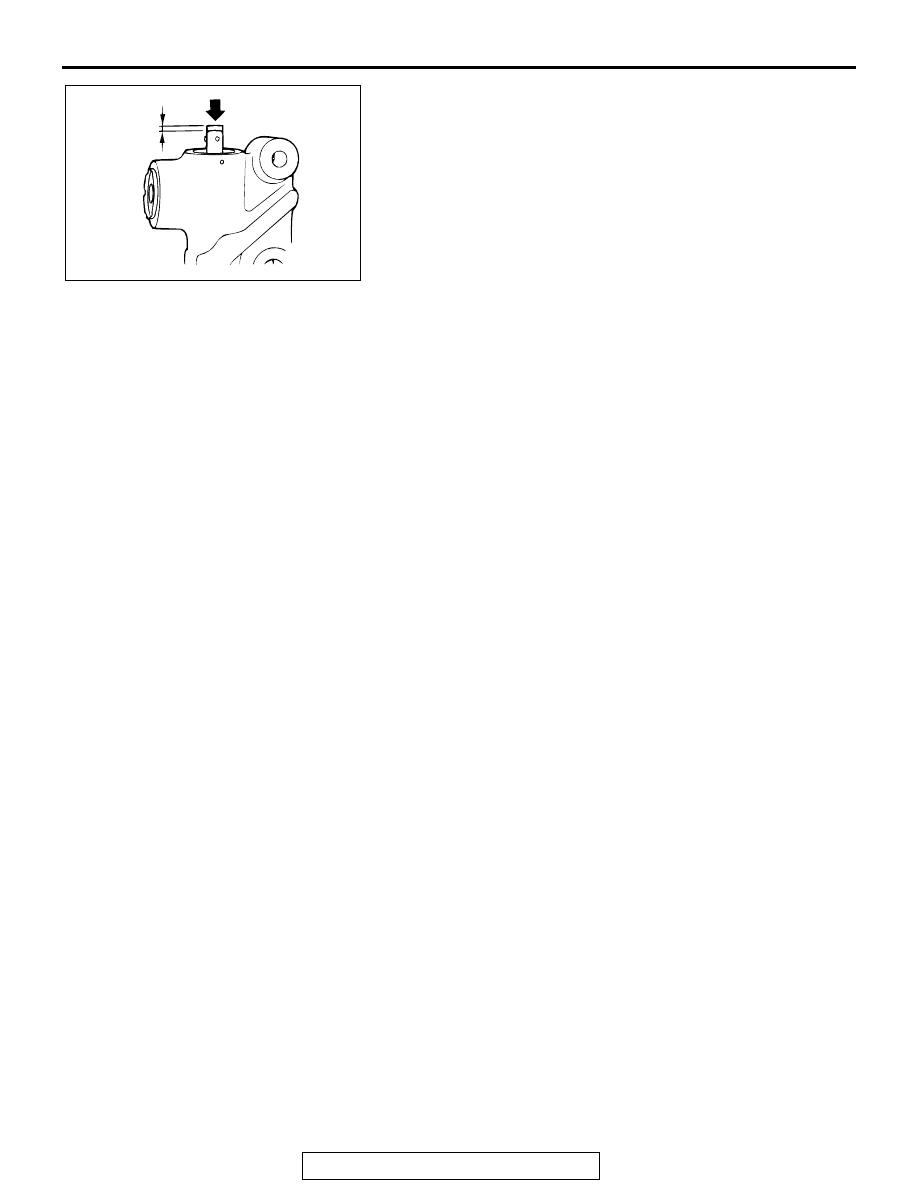

4. Press the rod with a force of 98 to 196 N (22 to 44 pounds)

and measure the movement of the rod.
If the measured value is out of the standard value, replace
the auto-tensioner.

Standard value: 1.0 mm (0.03 inch) or less

AKX00652

MOVEMENT

98 TO 196 N
(22 TO 44 lb)

AB

INTAKE MANIFOLD AND FUEL PARTS

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-19

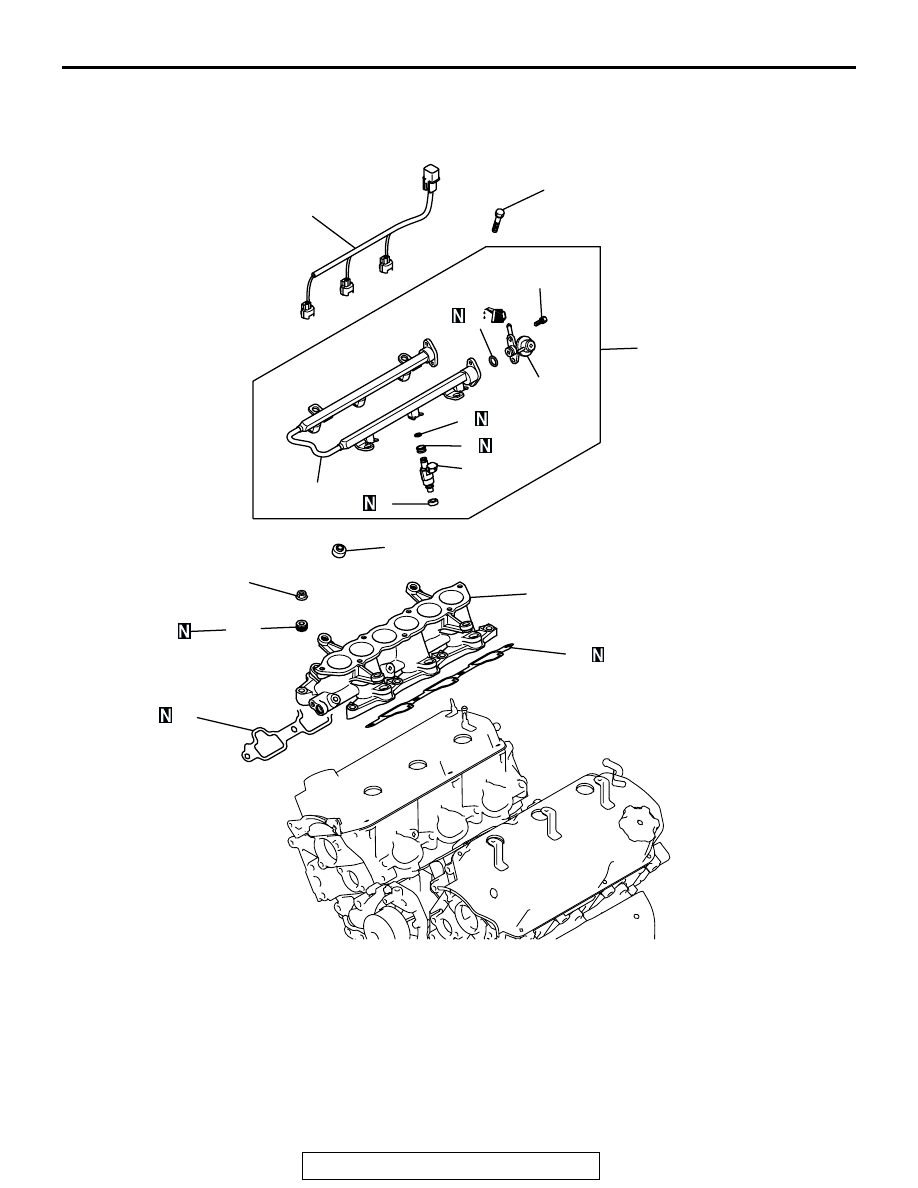

INTAKE MANIFOLD AND FUEL PARTS

REMOVAL AND INSTALLATION

M1113004300110

AK103318

12 ± 1 N·m
104 ± 9 in-lb

8.8 ± 1 N·m
78 ± 9 in-lb

22 ± 1 N·m
16 ± 1 ft-lb

1

5

2

4

8

9

7

10

6

3

12

11

13

13

AB

REMOVAL STEPS

1. INJECTOR HARNESS
2. INJECTOR AND FUEL RAIL
3. INSULATOR

>>C<<

4. FUEL PRESSURE REGULATOR
5. O-RING
6. INSULATOR

>>B<<

7. INJECTOR

8. O-RING
9. GROMMET
10. FUEL RAIL
11. CONED DISC SPRING

>>A<<

12. INTAKE MANIFOLD
13. INTAKE MANIFOLD GASKET

REMOVAL STEPS (Continued)

INTAKE MANIFOLD AND FUEL PARTS

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-20

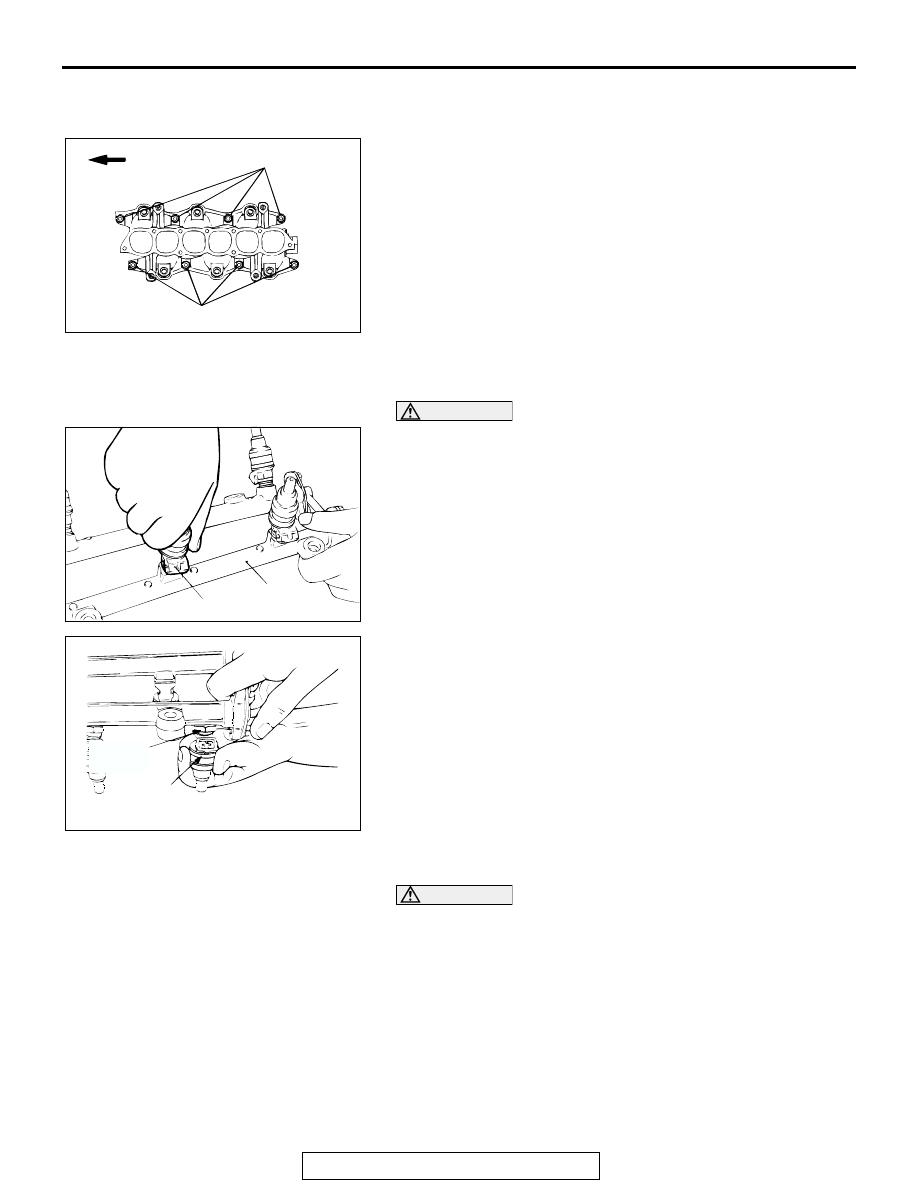

INSTALLATION SERVICE POINTS

.

>>A<< INTAKE MANIFOLD INSTALLATION
1. Tighten the nuts "R" to 6.4

± 1.5 N⋅m (57 ± 13 in-lb).

2. Tighten the nuts "L" to the specified torque.

Tightening torque: 22

± 1 Nm (16 ± 1 ft-lb)

3. Tighten the nuts "R" to the specified torque.

Tightening torque: 22

± 1 Nm (16 ± 1 ft-lb)

4. Tighten the nuts "L" to the specified torque.

Tightening torque: 22

± 1 Nm (16 ± 1 ft-lb)

5. Tighten the nuts "R" to the specified torque.

Tightening torque: 22

± 1 Nm (16 ± 1 ft-lb)

.

>>B<< INJECTOR INSTALLATION

CAUTION

Use care not to let engine oil enter the fuel rail.
1. Apply clean engine oil to the O-ring.
2. Insert the injector into the fuel rail.
3. Make sure the injector rotates smoothly. If not, remove the

injector to check the O-ring for damage, and replace the
O-ring if necessary. Then reinsert the injector and check that
it rotates smoothly.

4. Align the projection on the injector connector with the mating

mark on the fuel rail.

.

>>C<< FUEL PRESSURE REGULATOR INSTALLATION

CAUTION

Do not let engine oil enter the fuel rail.
1. Apply clean engine oil to the O-ring.
2. Insert the fuel pressure regulator into the fuel rail.
3. Make sure the regulator rotates smoothly. If not, remove the

fuel pressure regulator to check the O-ring for damage, and
replace the O-ring if necessary. Then reinsert the fuel
pressure regulator and check that it rotates smoothly.

4. Tighten the two bolts to the specified torque.

Tightening torque: 8.8

± 1 Nm (78 ± 9 in-lb)

AKX00680

TIMING
BELT SIDE

NUT "R"

NUT "L"

AB

AKX00748

FUEL RAIL

INJECTOR

AB

AKX00690

PROJECTION

AB

MATING
MARK
