GENERATOR AND DRIVE BELT

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-5

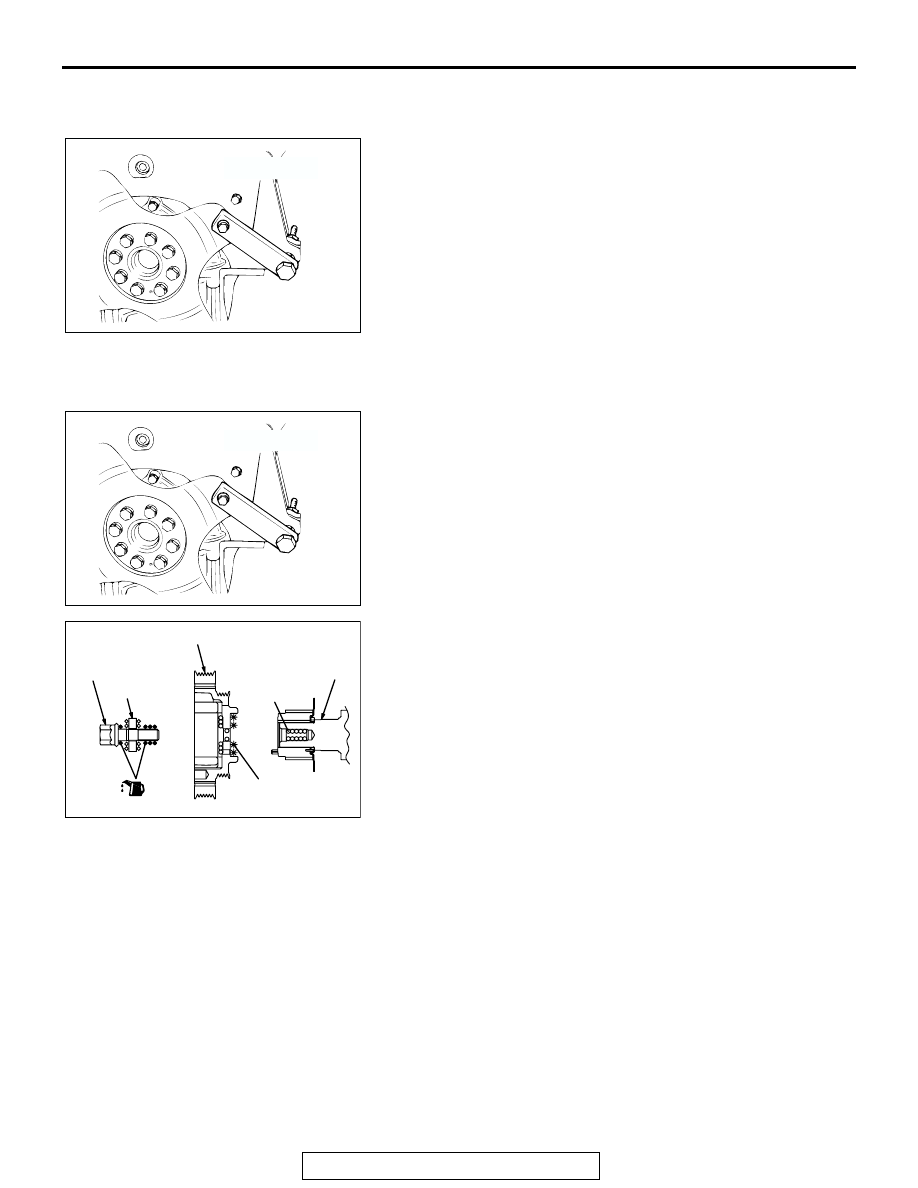

REMOVAL SERVICE POINT

.

<<A>> CRANKSHAFT BOLT LOOSENING
1. Install special tool MD998781 to hold the flywheel or drive

plate.

2. Loosen and remove the crankshaft bolt and washer.

INSTALLATION SERVICE POINT

.

>>A<< CRANKSHAFT BOLT TIGHTENING
1. Install special tool MD998781 to hold the flywheel or drive

plate.

2. Clean the bolt hole in crankshaft bolt and damper pulley’s

seating surface.

3. Degrease the cleaned seating surface of the damper pulley.
4. Install the damper pulley.
5. Apply oil to the threads of crankshaft bolt and the outer

surface of washer.

6. Tighten the crankshaft bolt to the specified torque.

Tightening torque: 185

± 5 N⋅m (139 ± 4 ft-lb)

AKX00643AB

MD998781

AKX00643AB

MD998781

AK101658

CLEAN

DEGREASE

WASHER

CRANKSHAFT

DAMPER PULLEY

CRANKSHAFT
BOLT

AB

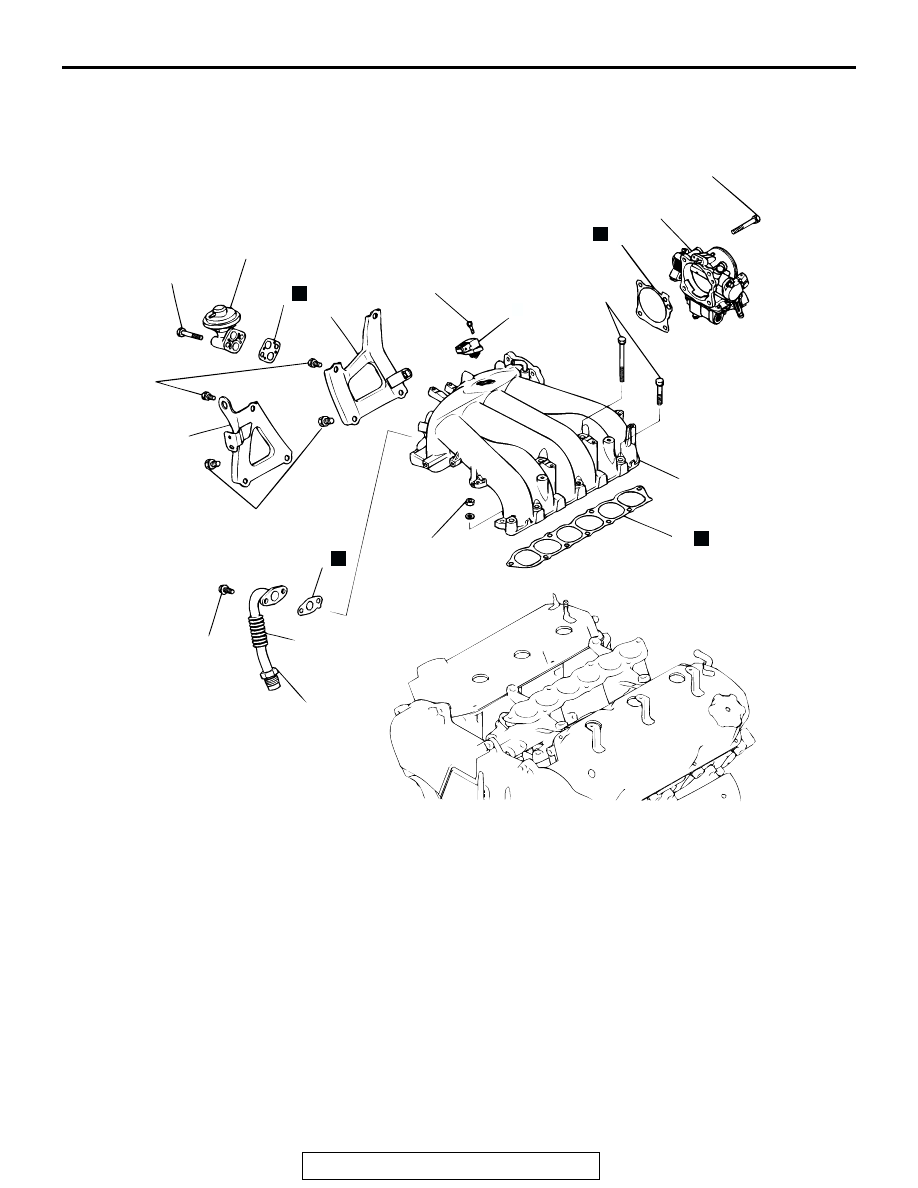

INTAKE MANIFOLD PLENUM AND THROTTLE BODY ASSEMBLY

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-6

INTAKE MANIFOLD PLENUM AND THROTTLE BODY

ASSEMBLY

REMOVAL AND INSTALLATION

M1113003300140

<WITH INDUCTION CONTROL VALVE>

AK103112

5

12 ± 1 N·m
104 ± 9 in-lb

22 ± 4 N·m
16 ± 3 ft-lb

4.9 ± 1 N·m
43 ± 9 in-lb

18 ± 2 N·m
13 ± 1 ft-lb

18 ± 2 N·m
13 ± 1 ft-lb

35 ± 6 N·m
26 ± 4 ft-lb

18 ± 2 N·m
13 ± 1 ft-lb

18 ± 2 N·m
13 ± 1 ft-lb

59 ± 10 N·m
43 ± 7 ft-lb

8

9

3

4

2

1

11

12

6

7

AB

13

9 ± 1 N·m
80 ± 9 in-lb

10

REMOVAL STEPS

1. INTAKE MANIFOLD PLENUM

STAY, FRONT

2. INTAKE MANIFOLD PLENUM

STAY, REAR

3. EGR VALVE
4. EGR VALVE GASKET
5. EGR PIPE
6. EGR PIPE GASKET
7. MANIFOLD ABSOLUTE

PRESSURE SENSOR

8. THROTTLE BODY

>>B<<

9. THROTTLE BODY GASKET
10. INDUCTION CONTROL VALVE

ASSEMBLY

>>A<<

11. INTAKE MANIFOLD UPPER
12. INDUCTION CONTROL VALVE
13. INTAKE MANIFOLD PLENUM

GASKET

REMOVAL STEPS (Continued)

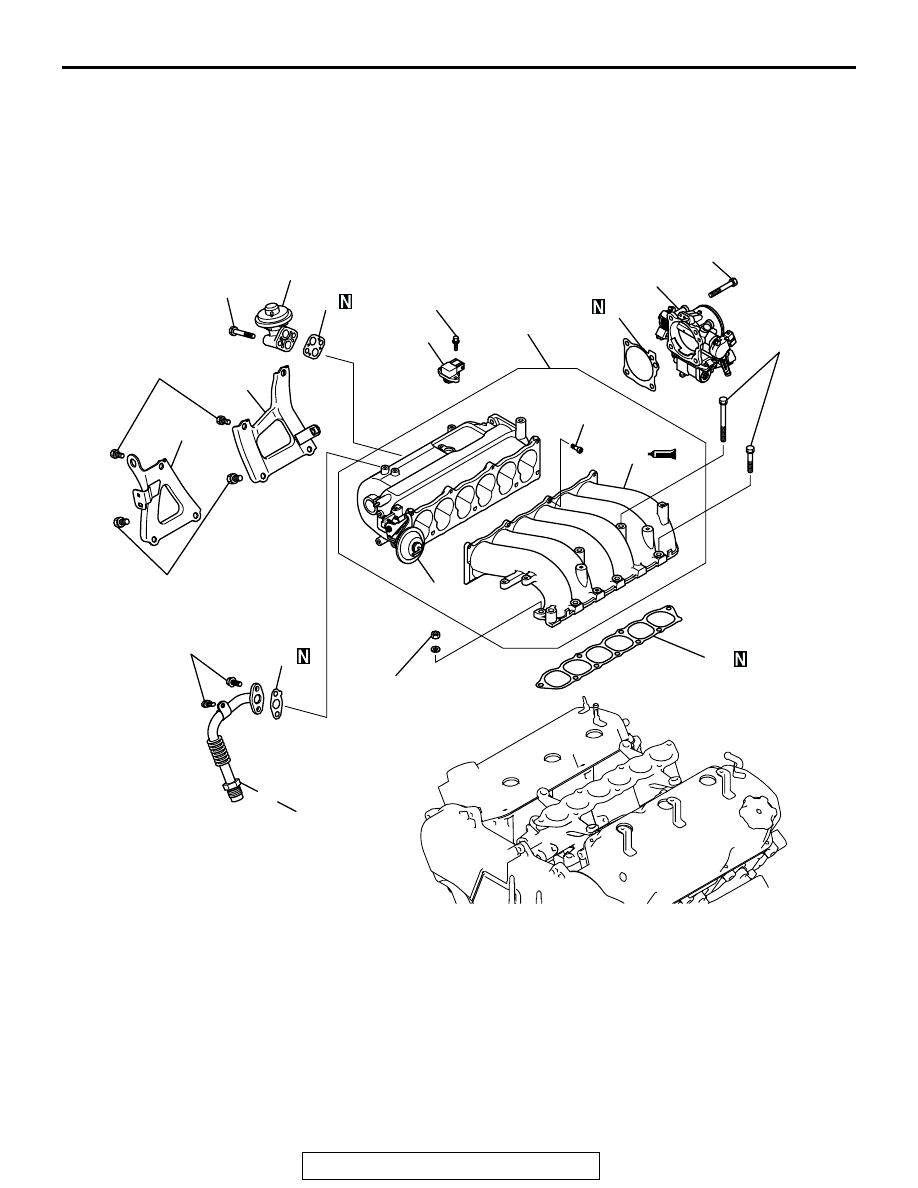

INTAKE MANIFOLD PLENUM AND THROTTLE BODY ASSEMBLY

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-7

<WITHOUT INDUCTION CONTROL VALVE>

AKX00662

5

12 ± 1 N·m
104 ± 9 in-lb

22 ± 4 N·m
16 ± 3 ft-lb

4.9 ± 1 N·m
43 ± 9 in-lb

18 ± 2 N·m
13 ± 1 ft-lb

18 ± 2 N·m
13 ± 1 ft-lb

35 ± 6 N·m
26 ± 4 ft-lb

18 ± 2 N·m
13 ± 1 ft-lb

18 ± 2 N·m
13 ± 1 ft-lb

59 ± 10 N·m
43 ± 7 ft-lb

8

9

3

4

2

7

1

10

11

6

N

N

N

N

AB

7

REMOVAL STEPS

1. INTAKE MANIFOLD PLENUM

STAY, FRONT

2. INTAKE MANIFOLD PLENUM

STAY, REAR

3. EGR VALVE
4. EGR VALVE GASKET
5. EGR PIPE
6. EGR PIPE GASKET

7. MANIFOLD ABSOLUTE

PRESSURE SENSOR

8. THROTTLE BODY

>>B<<

9. THROTTLE BODY GASKET
10. INTAKE MANIFOLD PLENUM
11. INTAKE MANIFOLD PLENUM

GASKET

REMOVAL STEPS (Continued)

INTAKE MANIFOLD PLENUM AND THROTTLE BODY ASSEMBLY

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-8

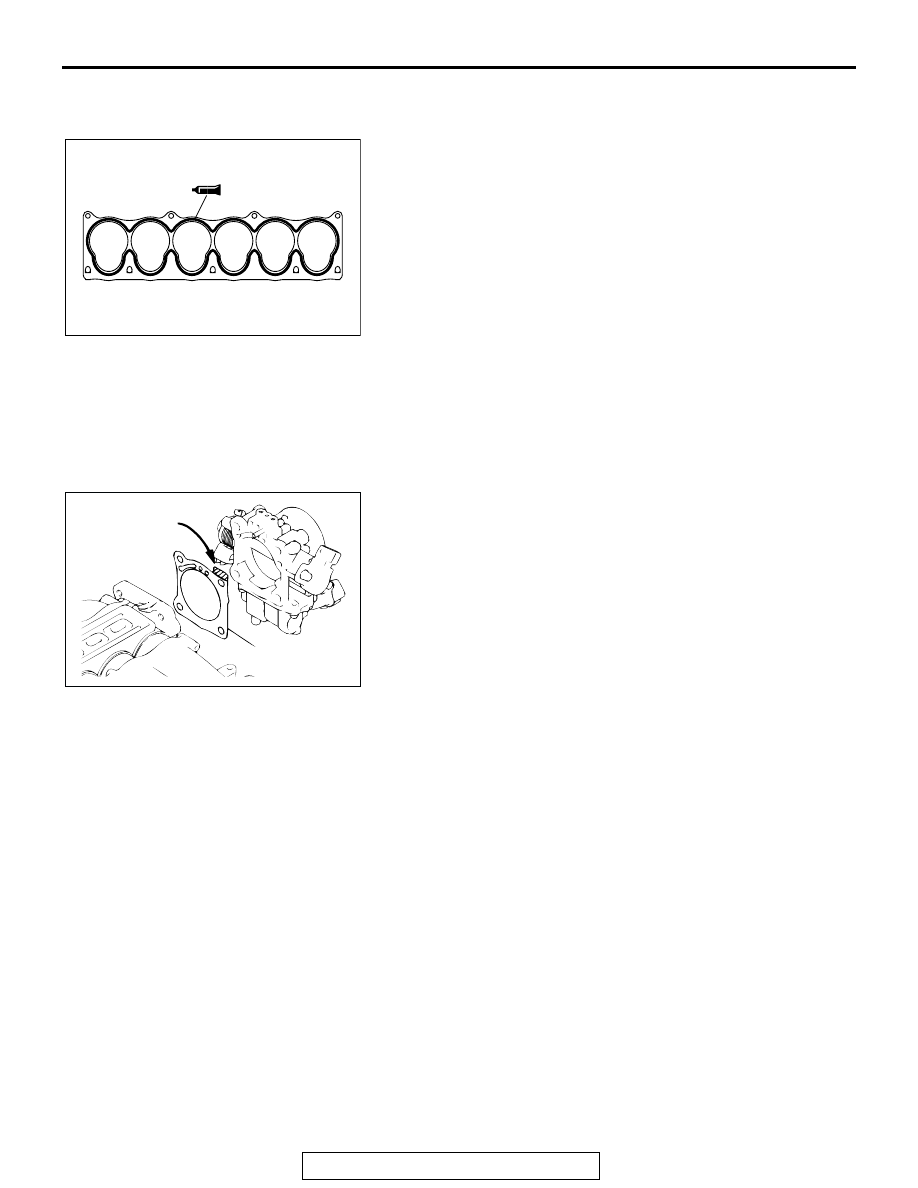

INSTALLATION SERVICE POINT

.

>>A<< INTAKE MANIFOLD UPPER INSTALLATION
1. Clean the contacting surfaces of induction control system

and intake manifold upper.

2. Apply Mitsubishi Genuine Parts number MD970389, 3M



AAD Part number 8660 or equivalent to the intake manifold
upper.

3. Install the intake manifold upper to the intake manifold

upper.
NOTE: Be sure to install the intake manifold upper quickly
while the sealant is wet (within 15 minutes).

4. Tighten the intake manifold upper mounting bolts to the

specified torque.

Tightening torque:

9

± 1 N⋅m (80 ± 9 in-lb)

NOTE: After installation, keep the sealed area away from oil
and coolant for approximately one hour.

.

>>B<< THROTTLE BODY GASKET INSTALLATION
Install the gasket so that the tab is positioned as shown in the
illustration.

AK103008

INTAKE MANIFOLD UPPER FLANGE

AB

AKX00691

TAB

GASKET

AB
