TRANSAXLE ASSEMBLY

TSB Revision

AUTOMATIC TRANSAXLE

23A-429

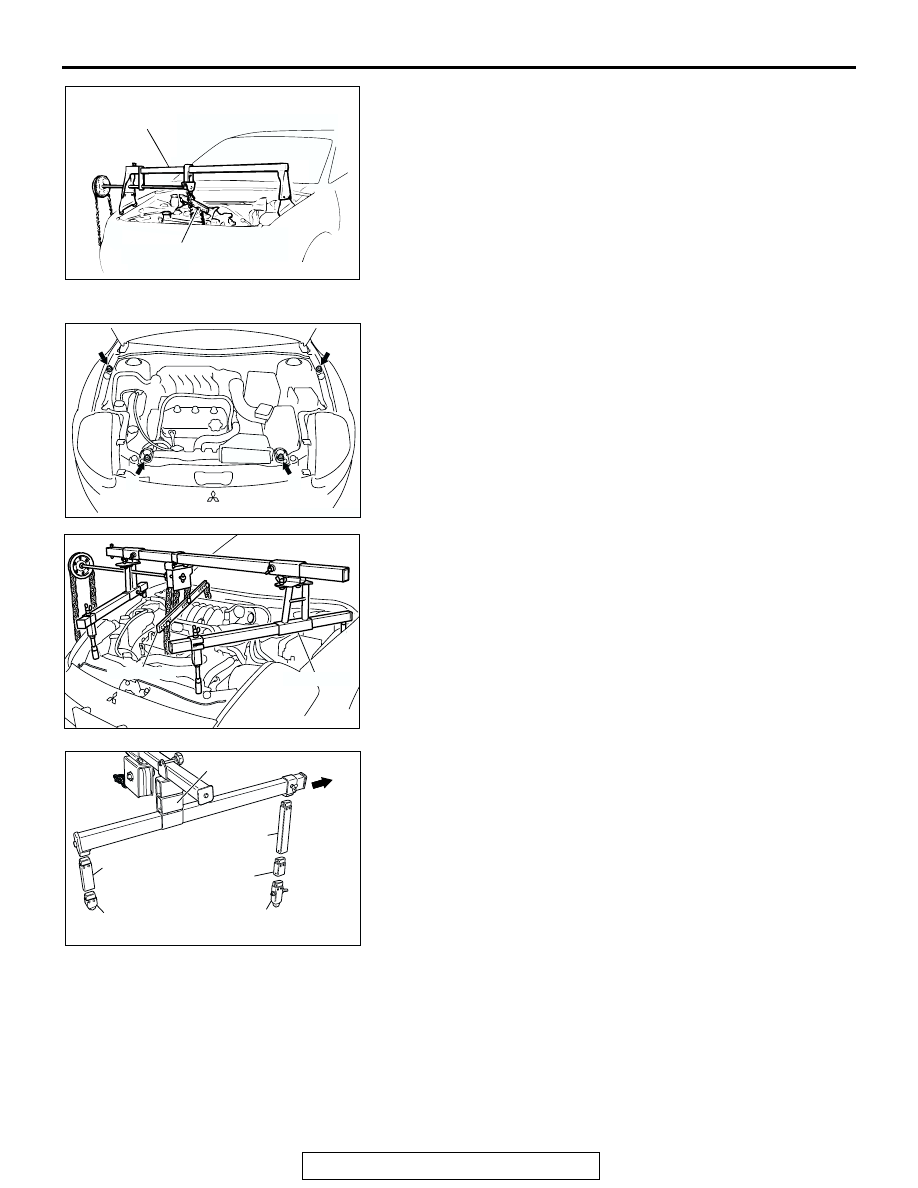

Set special tool MB991453 and MZ203827 to the vehicle
to support the engine assembly.

2. <Engine hanger MB991895 is used>

(1) Set special tool MB991895 to the front fender mounting

bolts (A and B) and the radiator support upper insulator
mounting bolts (C and D), which are located in the engine
compartment, as shown.

(2) Set special tool MB991454 to hold the engine/transaxle

assembly.

3. <Engine hanger MB991928 is used>

(1) Assemble the engine hanger (special tool MB991928).

Set following parts to the base hanger.

• Slide bracket (HI)

• Foot (standard) (MB991932)

• Foot (short) (MB991933)

• Joint (50) (MB991929)

• Joint (90) (MB991930)

• Joint (140) (MB991931)

ACX00406

MZ203827

AD

MB991453

AC106454AB

A

B

C

D

AC106164

MB991454

MB991895

AB

AC302468

FOOT (SHORT)
(MB991933)

JOINT (90)
(MB991930)

FOOT (STANDARD)
(MB991932)

JOINT (50)
(MB991929)

JOINT (140)
(MB991931)

FRONT
SIDE

SLIDE BRACKET (HI)

AB

TRANSAXLE ASSEMBLY

TSB Revision

AUTOMATIC TRANSAXLE

23A-430

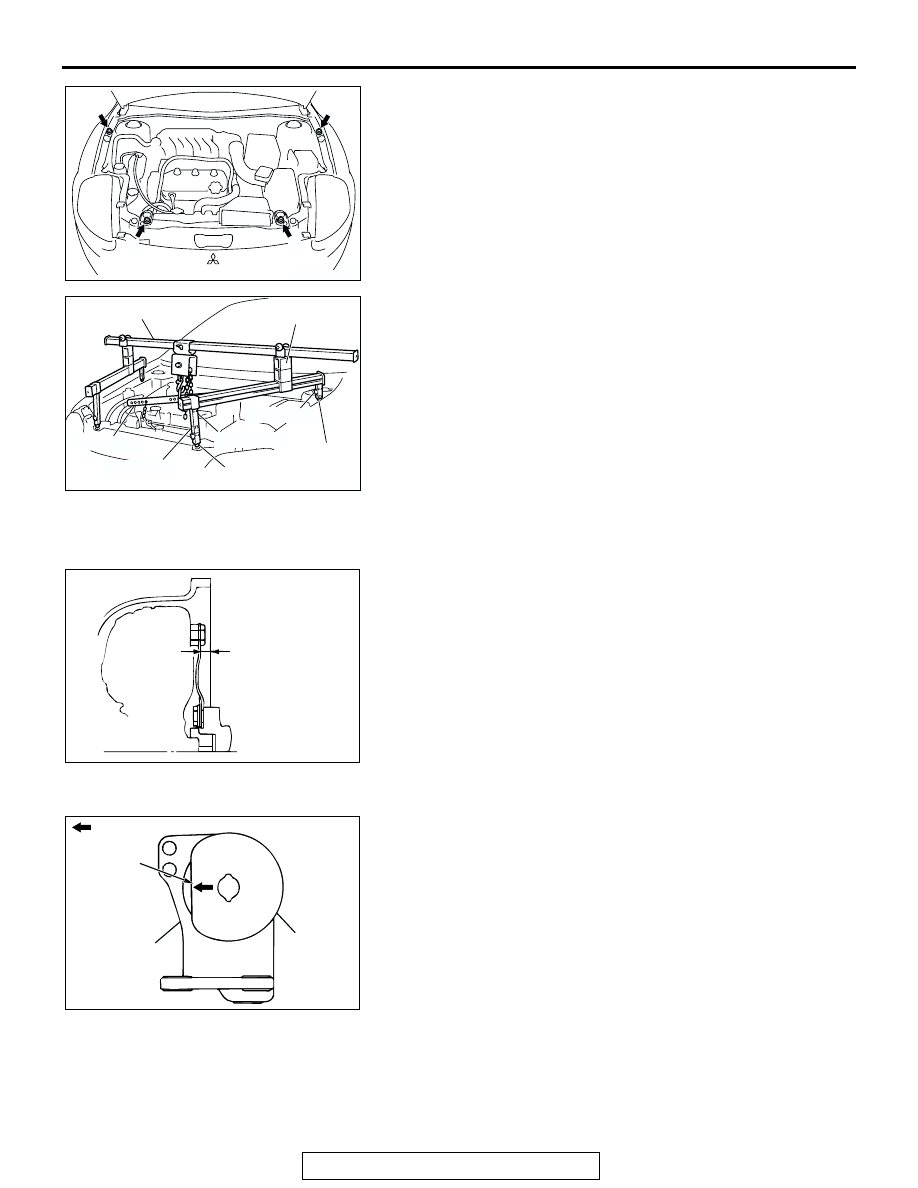

(2) Set the engine hanger (special tool MB991928) to the

front fender mounting bolts (A and B) and the radiator
support upper insulator mounting bolts (C and D), which
are located in the engine compartment, as shown.
NOTE: Adjust the engine hanger balance by sliding the
slide bracket (HI).

(3) Set special tools MB991454 to hold the engine/transaxle

assembly.

INSTALLATION SERVICE POINTS

.

>>A<< TRANSAXLE ASSEMBLY INSTALLATION
Insert the torque converter into the transaxle oil pump until the
dimension is approximately 12.2 mm (0.48 inch) <2.4L
ENGINE>, approximately 9.4 mm (0.37 inch) <3.0L ENGINE>.
Install the transaxle assembly to the engine.

.

>>B<< TRANSAXLE MOUNT STOPPER INSTALLATION
Install the transaxle mount stopper so that the arrow mark
points as shown in the illustration.

AC106454AB

A

B

C

D

AC302400AC

MB991928

SLIDE BRACKET (HI)

MB991454

MB991932

MB991931

MB991933

MB991929

MB991930

AC100110AC

APPROXMATELY
12.2 mm (0.48 in)
<2.4L ENGINE>
9.4 mm (0.37 in)
<3.0L ENGINE>

AC001647AB

TRANSAXLE
MOUNT
STOPPER

ENGINE SIDE

ARROW

TRANSAXLE
MOUNT
BRACKET

SPECIFICATIONS

TSB Revision

AUTOMATIC TRANSAXLE

23A-431

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1231012400223

ITEM

SPECIFICATION

Key interlock and shift lock mechanisms
Key interlock cable

12

± 2 N⋅m (102 ± 22 in-lb)

Shift lock cable

12

± 2 N⋅m (102 ± 22 in-lb)

Transaxle assembly
Bell housing cover <2.4L engine>

To engine

8.8

± 1.0 N⋅m (78 ± 8 in-lb)

To transaxle

26

± 4 N⋅m (19 ± 3 ft-lb)

Centermember assembly

Front

93

± 15 N⋅m (69 ± 11 ft-lb)

Front roll stopper

45

± 10 N⋅m (33 ± 7 ft-lb)

Rear

74

± 4 N⋅m (53 ± 3 ft-lb)

Drive plate bolt

49

± 3 N⋅m (37 ± 2 ft-lb)

Drive shaft and inner shaft <3.0L engine>

40

± 5 N⋅m (30 ± 3 ft-lb)

Lower arm connection

108

± 10 N⋅m (80 ± 7 ft-lb)

Rear roll stopper bracket

45

± 5 N⋅m (34 ± 3 ft-lb)

Starter motor

30

± 3 N⋅m (23 ± 2 ft-lb)

Starter cover mounting bolt <2.4L engine>

4.9

± 1.0 N⋅m (44 ± 8 in-lb)

Stabilizer link connection

44

± 10 N⋅m (33 ± 7 ft-lb)

Tie rod end connection

29

± 4 N⋅m (21 ± 4 ft-lb)

Transaxle assembly lower part
coupling bolt

2.4L engine

48

± 6 N⋅m (36 ± 4 ft-lb)

3.0L engine

73

± 10 N⋅m (54 ± 7 ft-lb)

Transaxle assembly upper part
coupling bolt

2.4L engine

48

± 6 N⋅m (36 ± 4 ft-lb)

3.0L engine

Bolt, flange

73

± 10 N⋅m (54 ± 7 ft-lb)

Bolt, washer assembled 88

± 10 N⋅m (65 ± 7 ft-lb)

Transaxle control cable connection

12

± 2 N⋅m (102 ± 22 in-lb)

Transaxle mount bracket

57

± 7 N⋅m (42 ± 5 ft-lb)

Transaxle mount stopper

83

± 12 N⋅m (61 ± 9 ft-lb)

Transmission fluid drain plug

32

± 2 N⋅m (24 ± 1 ft-lb)

Transaxle control
Cable arm <vehicles with sport mode>

12

± 2 N⋅m (102 ± 22 in-lb)

Detente spring <vehicles without sport mode>

1.5

± 0.5 N⋅m (14 ± 4 in-lb)

Indicator panel assembly

1.5

± 0.5 N⋅m (14 ± 4 in-lb)

Key interlock cable connection

12

± 2 N⋅m (102 ± 22 in-lb)

Lever assembly <vehicles without sport mode>

12

± 2 N⋅m (102 ± 22 in-lb)

Nut

12

± 2 N⋅m (102 ± 22 in-lb)

Shift lock cable connection

12

± 2 N⋅m (102 ± 22 in-lb)

Shift knob

1.8

± 0.2 N⋅m (16 ± 2 in-lb)

Shift switch <vehicles with sport mode>

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Select lever <vehicles with sport mode>

12

± 2 N⋅m (102 ± 22 in-lb)

SPECIFICATIONS

TSB Revision

AUTOMATIC TRANSAXLE

23A-432

SERVICE SPECIFICATIONS

M1231000300326

LUBRICANTS

M1231000400389

Selector lever assembly

12

± 2 N⋅m (102 ± 22 in-lb)

Transaxle control cable assembly

12

± 2 N⋅m (102 ± 22 in-lb)

Transmission range switch mounting bolt

11

± 1 N⋅m (96 ± 8 in-lb)

ITEM

SPECIFICATION

ITEM

STANDARD VALUE

Line pressure MPa (psi)

1.01

− 1.05 (147 − 152)

Transmission fluid temperature sensor k

Ω

at 0

°C (32°F)

16.7

− 20.5

at 20

°C (68°F)

7.3

− 8.9

at 40

°C (104°F)

3.4

− 4.2

at 60

°C (140°F)

1.9

− 2.2

at 80

°C (176°F)

1.0

− 1.2

at 100

°C (212°F)

0.57

− 0.69

Resistance of torque converter clutch control solenoid valve coil [at
20

°C (68°F)] Ω

2.7

− 3.4

Resistance of low-reverse solenoid valve coil [at 20

°C (68°F)] Ω

2.7

− 3.4

Resistance of second solenoid valve coil [at 20

°C (68°F)] Ω

2.7

− 3.4

Resistance of underdrive solenoid valve coil [at 20

°C (68°F)] Ω

2.7

− 3.4

Resistance of overdrive solenoid valve coil [at 20

°C (68°F)] Ω

2.7

− 3.4

Stall speed r/min

2,100

− 2,600

ITEM

SPECIFIED LUBRICANT

QUANTITY

Transmission fluid dm

3

 (qt)

F4A42

DIAMOND ATF SP III or equivalent

7.7 (8.1)

F4A51

8.4 (8.9)
