Mitsubishi Eclipse. Manual - part 749





GENERAL DESCRIPTION

TSB Revision

AUTOMATIC TRANSAXLE

23A-5

FUNCTION ELEMENT TABLE

<Vehicles without sport mode>

×: Function element
NOTE: * operates only when the vehicle is stationary [at approximately 10 km/h (6.2 mph) or less].
<Vehicles with sport mode>

×: Function element
NOTE: *: operates only when the vehicle is stationary [at approximately 10 km/h (6.2 mph) or less].

OPERATING ELEMENT ENGINE

START

PARKING
MECHANISM

UNDERDRIVE
CLUTCH (UD)

REVERSE
CLUTCH
(REV)

OVER-DRIVE
CLUTCH
(OD)

LOW-
REVERSE
BRAKE (LR)

SECOND
BRAKE
(2ND)

SELECTOR LEVER
POSITION

P

Parking

OK

×

×

R

Reverse −

×

×

N

Neutral

OK

×

D

1st

×

×*

2nd

×

×

3rd

×

×

4th

×

×

3

1st

×

×*

2nd

×

×

3rd

×

×

2

1st

×

×*

2nd

×

×

L

1st

×

×

OPERATING ELEMENT ENGINE

START

PARKING
MECHANISM

UNDERDRIVE
CLUTCH (UD)

REVERSE
CLUTCH
(REV)

OVER-DRIVE
CLUTCH
(OD)

LOW-
REVERSE
BRAKE (LR)

SECOND
BRAKE
(2ND)

SELECTOR LEVER
POSITION

P

Parking

OK

×

×

R

Reverse −

×

×

N

Neutral

OK

×

D

1st

×

×*

2nd

×

×

3rd

×

×

4th

×

×

Sport
mode

1st

×

×

2nd

×

×

3rd

×

×

4th

×

×

GENERAL DESCRIPTION

TSB Revision

AUTOMATIC TRANSAXLE

23A-6

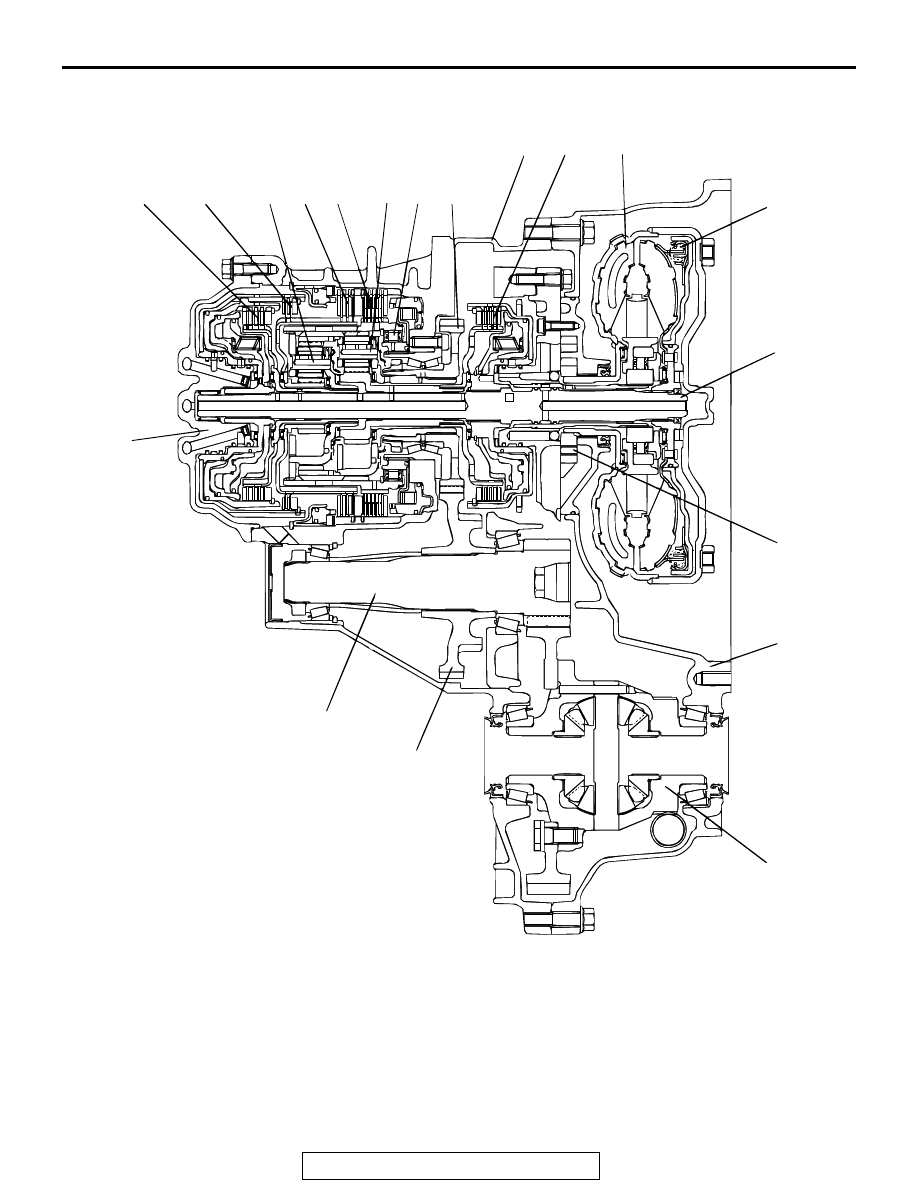

SECTIONAL VIEW <F4A42>

AC001814

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

AB



 1.

REVERSE

CLUTCH





2.  OVERDRIVE PLANETARY CARRIER





3. SECOND

BRAKE





4. LOW-REVERSE

BRAKE





5.  OUTPUT PLANETARY CARRIER





6. ONE-WAY

CLUTCH





7. TRANSFER

DRIVE

GEAR





8. TRANSAXLE

CASE





9. UNDERDRIVE

CLUTCH





10. TORQUE CONVERTER





11.  TORQUE CONVERTER CLUTCH





12. INPUT SHAFT





13. OIL PUMP





14. TORQUE CONVERTER HOUSING





15. DIFFERENTIAL





16. TRANSFER DRIVEN GEAR
17. OUTPUT SHAFT
18. REAR COVER
19. OVERDRIVE CLUTCH

GENERAL DESCRIPTION

TSB Revision

AUTOMATIC TRANSAXLE

23A-7

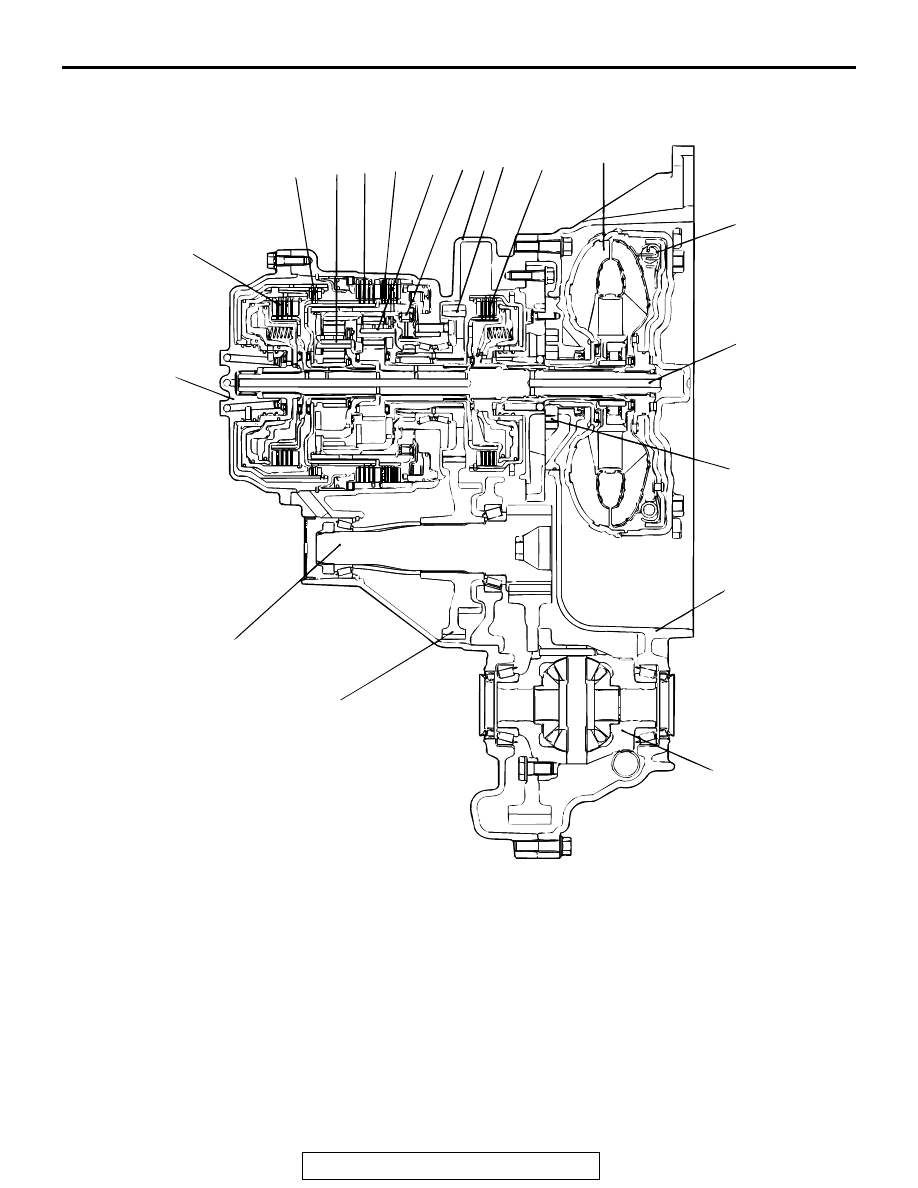

<F4A51>

AC004893AB

1

2

3

4

5

6

7 8

9

10

11

12

13

14

15

16

17

18

19



 1.

REVERSE

CLUTCH





2.  OVERDRIVE PLANETARY CARRIER





3. SECOND

BRAKE





4. LOW-REVERSE

BRAKE





5.  OUTPUT PLANETARY CARRIER





6. ONE-WAY

CLUTCH





7. TRANSFER

DRIVE

GEAR





8. TRANSAXLE

CASE





9. UNDERDRIVE

CLUTCH





10. TORQUE CONVERTER





11.  TORQUE CONVERTER CLUTCH





12. INPUT SHAFT





13. OIL PUMP





14. TORQUE CONVERTER HOUSING





15. DIFFERENTIAL





16. TRANSFER DRIVEN GEAR
17. OUTPUT SHAFT
18. REAR COVER
19. OVERDRIVE CLUTCH

GENERAL DESCRIPTION

TSB Revision

AUTOMATIC TRANSAXLE

23A-8

ELECTRONICALLY-CONTROLLED SYSTEM

.

INVECS-II

• When in drive ("D" range), the new automatic transmission

employs an innovative shift schedule to provide a high level
of comfort and "easy driving style" that matches all driving
conditions as well as the driver's driving style.

• INVECS-II features "Optimum Shift Control", which provides

shift timing the average driver perceives to be the optimum
timing under any road conditions. "Adaptive Shift Control"
adjusts shift timing to match the driving habits and prefer-
ences of individual drivers.

.

FEATURES

OPTIMUM SHIFT CONTROL

1. The shift patterns found satisfying by the typical driver for all

ranges of driving are stored in the computer's memory. The
computer uses this data to analyze road conditions and the
driver's style of operation, and then outputs the optimal shift
patterns stored in its memory to best match the conditions.

2. We introduce the latest in control technologies with an inno-

vative new algorithm called the "neutral network" that works
to imitate the decision-making processes of the human
brain. The neural network links a wide variety of input data
regarding road and operating conditions, and instantly
makes accurate shift control decisions.

.

ADAPTIVE SHIFT CONTROL

1. The computer learns the driving habits and pref-

erences of each individual driver by processing
driving data on engine output, tire load, foot brake
operation, etc. It then uses this data to adjust shift
timing to best suit the driver's style.

2. If the computer determines from the driving pat-

terns that the driver is one who enjoys a relaxed,
unhurried style, it adjusts timing to execute
up-shifts at a lower engine speed to provide a
smooth, quiet ride. On the other hand, if the com-
puter determines the driver to prefer a sporty ride,
it adjusts timing to shift up at a higher engine
speed to provide more powerful response.

AC000841AB

WITH INVECS-II

WITHOUT
INVECS-II

OPTIMUM SELECTION OF GEARS

LEVEL ROAD

ALL DRIVING CONDITIONS

DRIVER'S HABITS AND
PREFERENCE

AC000842

ACCELERATOR
POSITION

VEHICLE SPEED

FOOT BRAKE

OPTIMUM
GEAR
SELECTION

MANUAL SHIFT
OPERATION
DATA OF A
NUMBER
DRIVER'S

DECISION

ROAD
CONDITION
AND DRIVING
OPERATION

COMPUTER

OPTIMUM CONTROL

AB

AC000843

ACCELERATOR
POSITION

VEHICLE SPEED

FOOT BRAKE

OPTIMUM
GEAR
SELECTION

DATA
PROCESSED

INTERRE-
LATED

DECI-
SION

COMPUTER

NEURAL NETWORK

AB
