GENERAL DESCRIPTION

TSB Revision

AUTOMATIC TRANSAXLE

23A-9

3. If the computer determines that the driver tends

to apply the brakes often on a descending road-
way, it adjusts timing to down shift sooner so that
engine braking is more effectively applied. Con-
versely, if the computer determines that the driver
does not brake much while driving downhill, it
delays downshifting to minimize the effect of
engine braking.

.

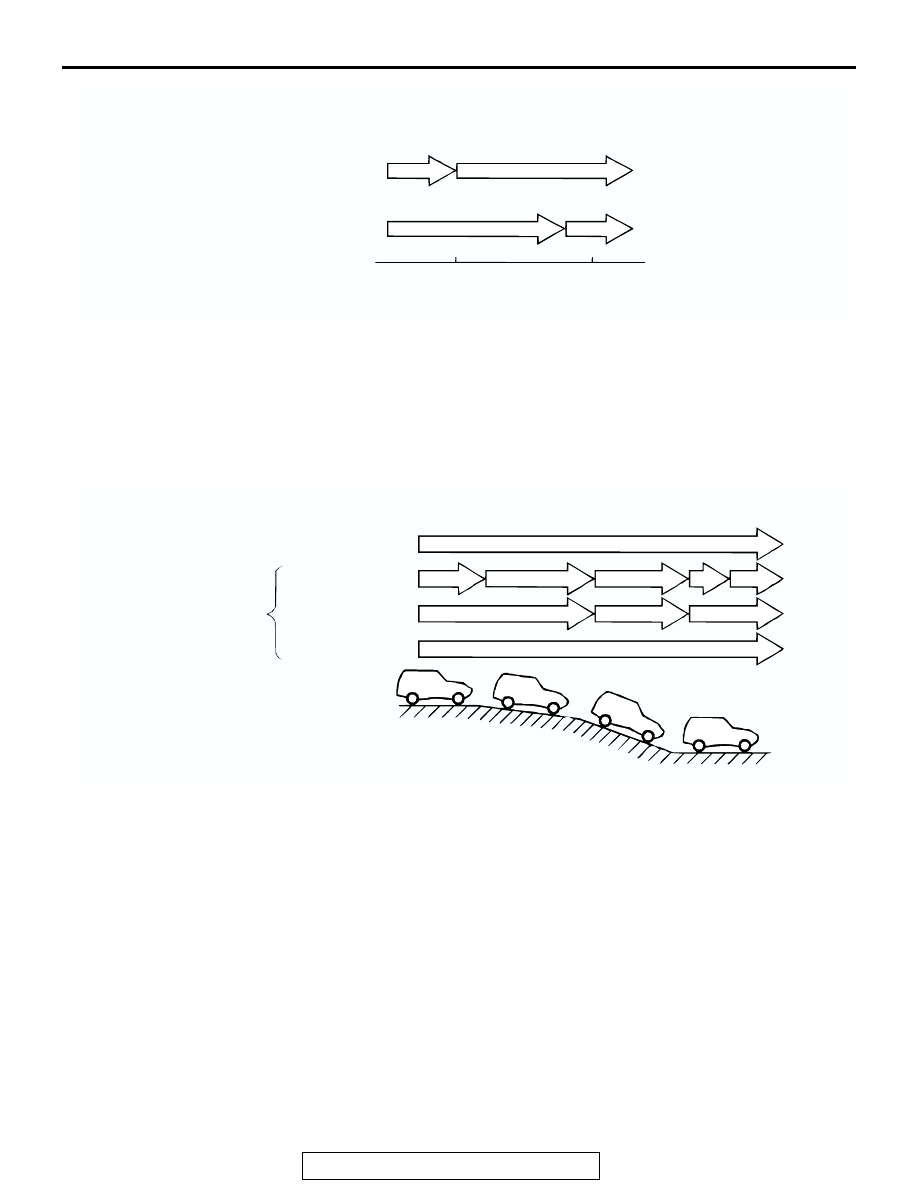

AC000844

DRIVER WHO PREFERS
RELAXING RIDE

DRIVER WHO PREFERS
SPORTIER RIDE

50 (31)

4TH

3RD

100 (62)

VEHICLE SPEED [km/h (mph)]

ADAPTIVE SHIFT CONTROL DURING ACCELERATION

AB

4TH

3RD

AC000845

DRIVER WHO PRESSES
BRAKE PEDAL OFTEN

AVERAGE DRIVER

4TH

3RD

ADAPTIVE SHIFT CONTROL ON DOWNGRADES

AB

4TH

3RD

4TH

4TH

4TH

4TH

3RD

2ND

DRIVER WHO RARELY
PRESSES THE BRAKE

CONVENTIONAL A/T (NO DOWN SHIFT)

NEW A/T WITH
INVECS-II

GENERAL DESCRIPTION

TSB Revision

AUTOMATIC TRANSAXLE

23A-10

SYSTEM CONSTRUCTION DIAGRAM

Powertrain control module (PCM)

Ignition switch

Input shaft speed sensor

Output shaft speed sensor

Crankshaft position sensor

Throttle position sensor

A/T fluid temperature sensor

Park/Neutral position switch

Dual pressure switch

Stoplight switch

Cruise control unit (OD OFF Signal)

Select switch
<Vehicles with sport mode>

Shift switch (up, down)
<Vehicles with sport mode>

Scan tool (MUT-II)

Serial communication

A/T control relay

Torque converter clutch solenoid valve

Low-reverse solenoid valve

Second solenoid valve

Underdrive solenoid valve

Overdrive solenoid valve

Fail-safe operation
("N" range light flashing)
<Vehicles with sport mode>

SENSE

DECIDE

ACT

AC102750

Transmission fluid temperature sensor

Transmission range switch

AD

Scan tool (MUT-III)

GENERAL DESCRIPTION

TSB Revision

AUTOMATIC TRANSAXLE

23A-11

SHIFT PATTERN CONTROL

.

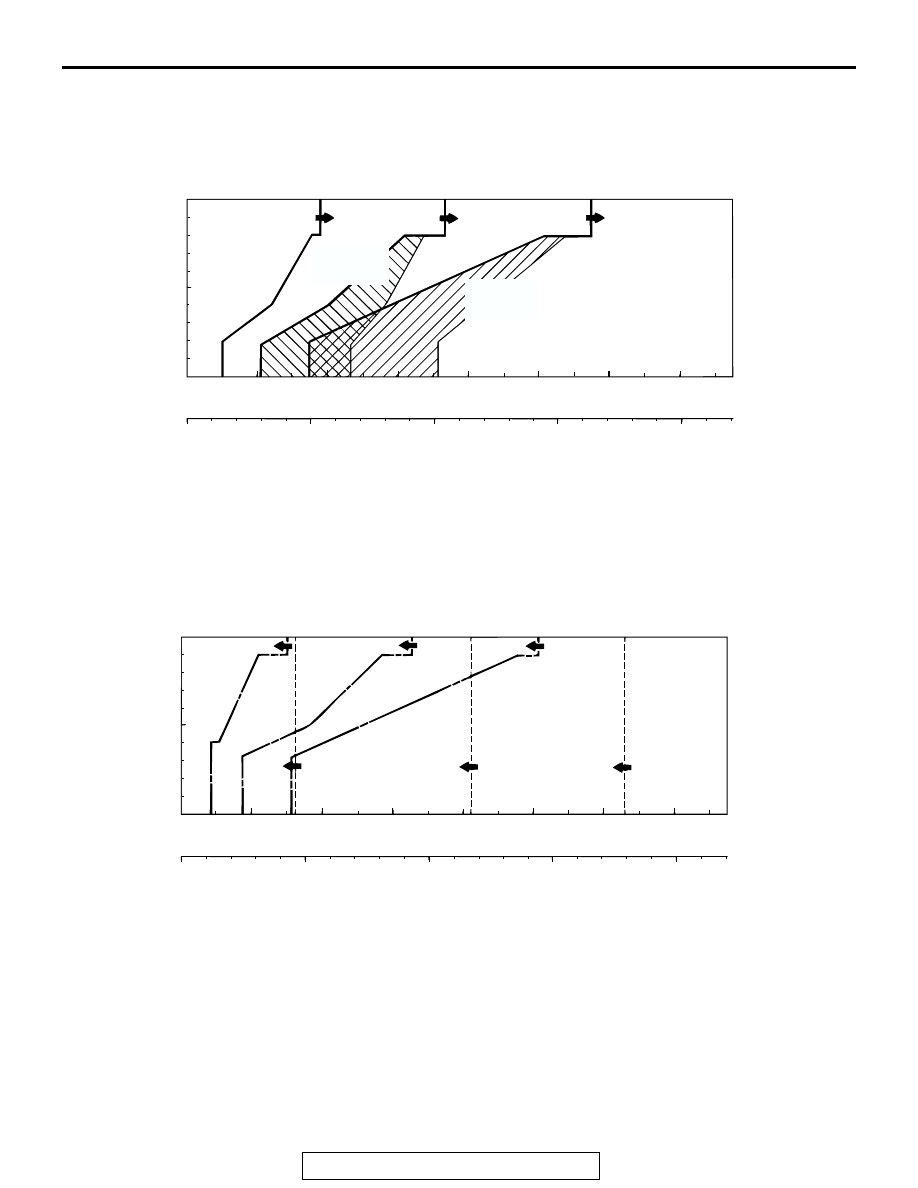

<2.4L ENGINE> UPSHIFT PATTERN

NOTE: Within 2 -to- 3 and 3 -to- 4 movement ranges, the PCM adjusts shift points according to the driving
conditions by memorizing the accelerator pedal stroke and braking timing.

.

<2.4L ENGINE> DOWNSHIFT PATTERN

.

AC001949AC

100

50

0

1,000

2,000

3,000

4,000

5,000

6,000

7,000

1

2

2

3

3

4

THROTTLE
OPENING (%)

2

→ 3

MOVEMENT
RANGE

3

→4

MOVEMENT
RANGE

0 (0)

50 (31)

100 (62)

150 (93)

200 (124)

OUTPUT SHAFT SPEED (r/min)

VEHICLE SPEED [km/h (mph)]

THICK LINE: STANDARD SHIFT PATTERN

AC001950

100

50

0

0(0)

1,000

2,000

3,000

4,000

5,000

6,000

7,000

50 (31)

100 (62)

150 (93)

200 (124)

1

2

2

3

3

4

1

2 (L OR
   SPORT MODE)

2

3 (2,L OR
   SPORT MODE)

3

4 (3,2,L OR
   SPORT
   MODE)

THROTTLE
OPENING (%)

OUTPUT SHAFT SPEED (r/min)

VEHICLE SPEED [km/h (mph)]

AD

GENERAL DESCRIPTION

TSB Revision

AUTOMATIC TRANSAXLE

23A-12

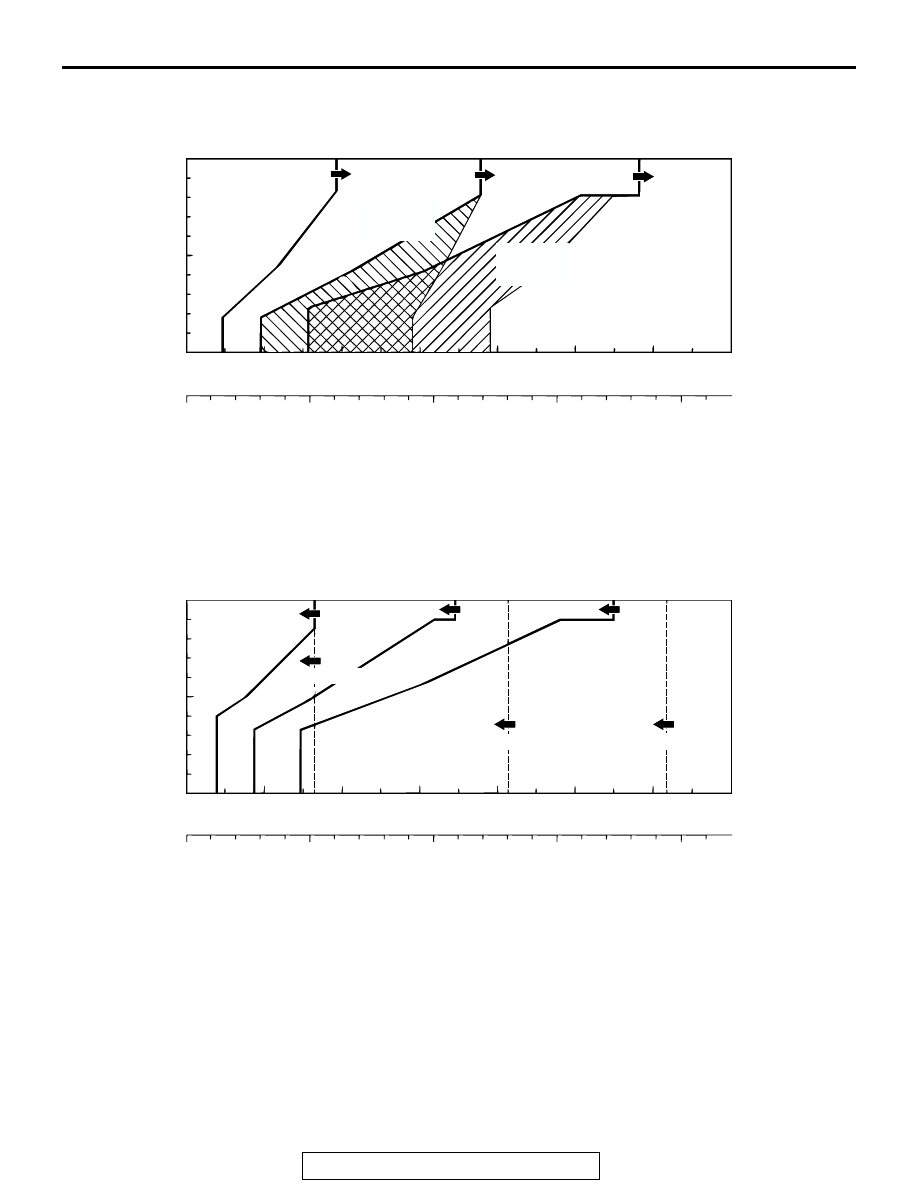

<3.0L ENGINE (VEHICLES WITHOUT VARIABLE INDUCTION SYSTEM) > UPSHIFT PATTERN

NOTE: Within 2 -to- 3 and 3 -to- 4 movement ranges, the PCM adjusts shift points according to the driving
conditions by memorizing the accelerator pedal stroke and braking timing.

.

<3.0L ENGINE (VEHICLES WITHOUT VARIABLE INDUCTION SYSTEM) > DOWNSHIFT PATTERN

.

AC100311

THROTTLE OPENING (%)

100

50

0

0 (0)

50 (31)

100 (62)

150 (93)

VEHICLE SPEED [km/h (mph)]

1,000

2,000

3,000

4,000

5,000

6,000

7,000

OUTPUT SHAFT SPEED (r/min)

AB

THICK LINE: STANDARD SHIFT PATTERN

2

→ 3

MOVEMENT
RANGE

3

→4

MOVEMENT
RANGE

1

2

2

3

3

4

200 (124)

AC100312

THROTTLE OPENING (%)

100

50

0

0 (0)

50 (31)

100 (62)

150 (93)

VEHICLE SPEED [km/h (mph)]

1,000

2,000

3,000

4,000

5,000

6,000

7,000

OUTPUT SHAFT SPEED (r/min)

AB

1

2

2

3

3

4

1

2

2

3

3

4

200 (124)

(SPORT MODE)

(SPORT MODE)

(SPORT MODE)
