TRANSAXLE ASSEMBLY

TSB Revision

MANUAL TRANSAXLE

22A-23

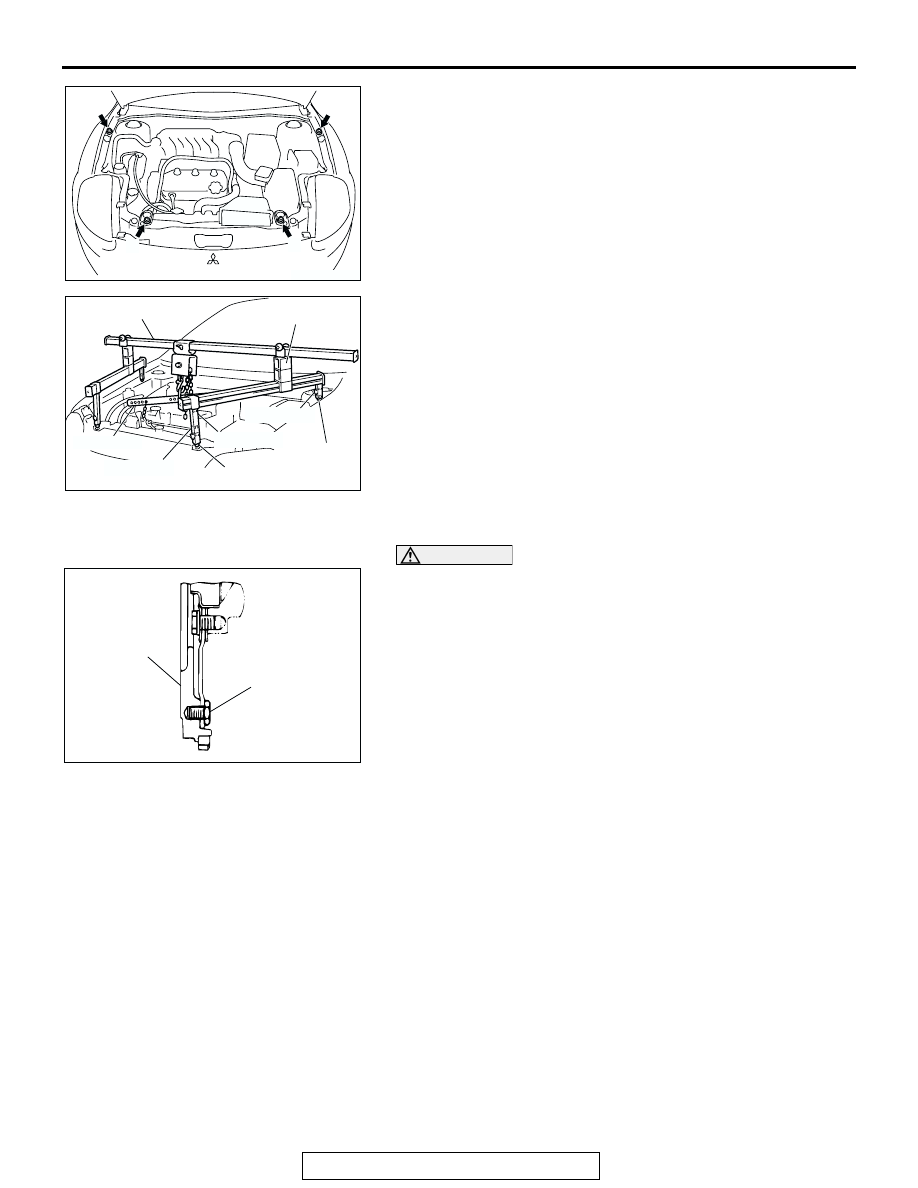

(2) Set the engine hanger (special tool MB991928) to the

front fender mounting bolts (A and B) and the radiator
support upper insulator mounting bolts (C and D), which
are located in the engine compartment, as shown.
NOTE: Adjust the engine hanger balance by sliding the
slide bracket (HI).

(3) Set special tools MB991454 to hold the engine/transaxle

assembly.

<<I>> TRANSAXLE ASSEMBLY REMOVAL

CAUTION

Do not remove the flywheel mounting bolt shown by the
arrow. If this bolt is removed, the flywheel will become out
of balance and damaged.

AC106454AB

AC302400AC

MB991928

SLIDE BRACKET (HI)

MB991454

MB991932

MB991931

MB991933

MB991929

MB991930

AC001669

BOLT

FLYWHEEL

TRANSAXLE ASSEMBLY

TSB Revision

MANUAL TRANSAXLE

22A-24

INSTALLATION SERVICE POINTS

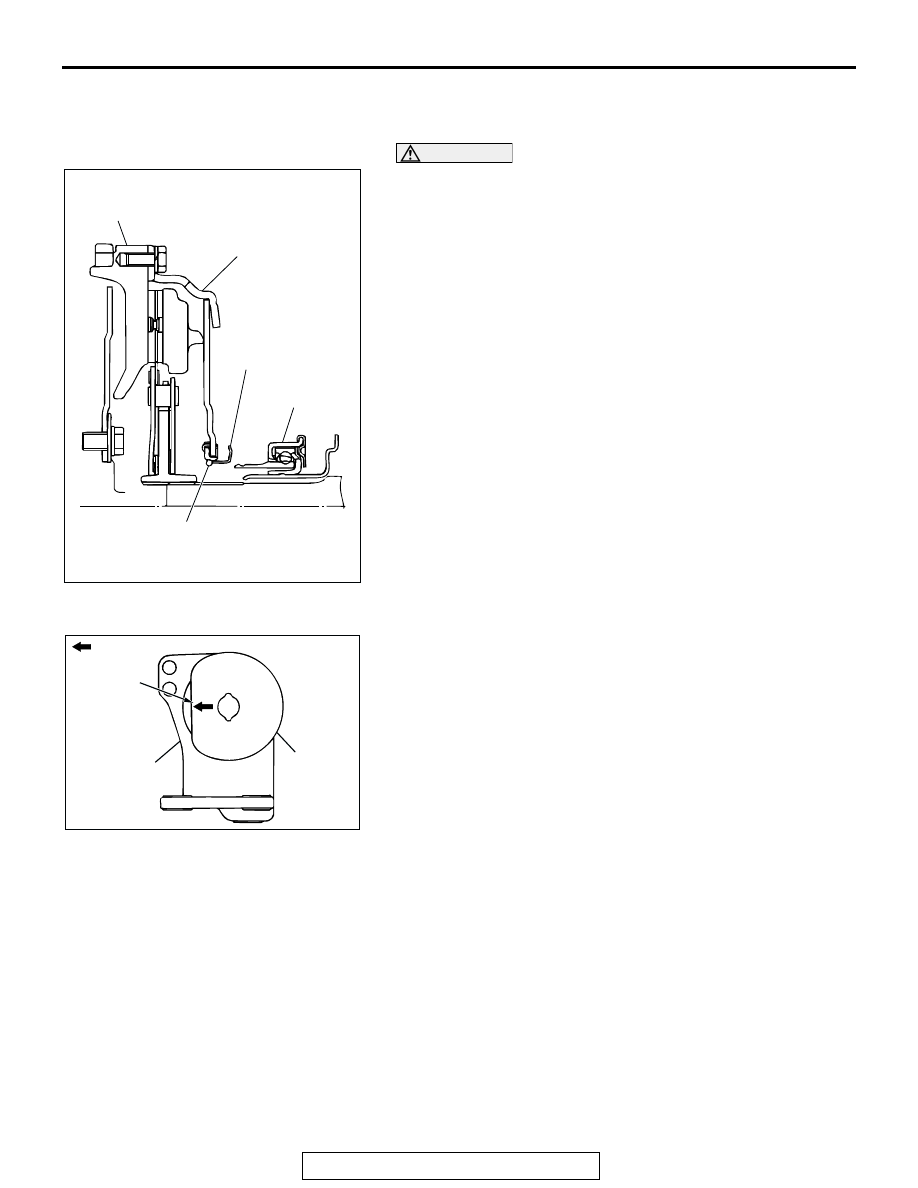

>>A<< TRANSAXLE ASSEMBLY INSTALLATION

CAUTION

On the pull-type clutch, do not roll the transaxle assembly
when installing it to the engine. If the transaxle assembly
is rolled, the wedge collar and the wire ring will be
deformed, causing a clutch malfunction due to improper
engagement of the wedge collar and the wire ring.

>>B<< TRANSAXLE MOUNT STOPPER INSTALLATION
Install the transaxle mount stopper so that the arrow mark
points as shown in the illustration.

AC001670

ENGINE SIDE

TRANSAXLE SIDE

FLYWHEEL

CLUTCH COVER

WEDGE
COLLAR

RELEASE
BEARING

WIRE RING

AC001647AB

TRANSAXLE
MOUNT
STOPPER

ENGINE SIDE

ARROW

TRANSAXLE
MOUNT
BRACKET

TRANSAXLE ASSEMBLY

TSB Revision

MANUAL TRANSAXLE

22A-25

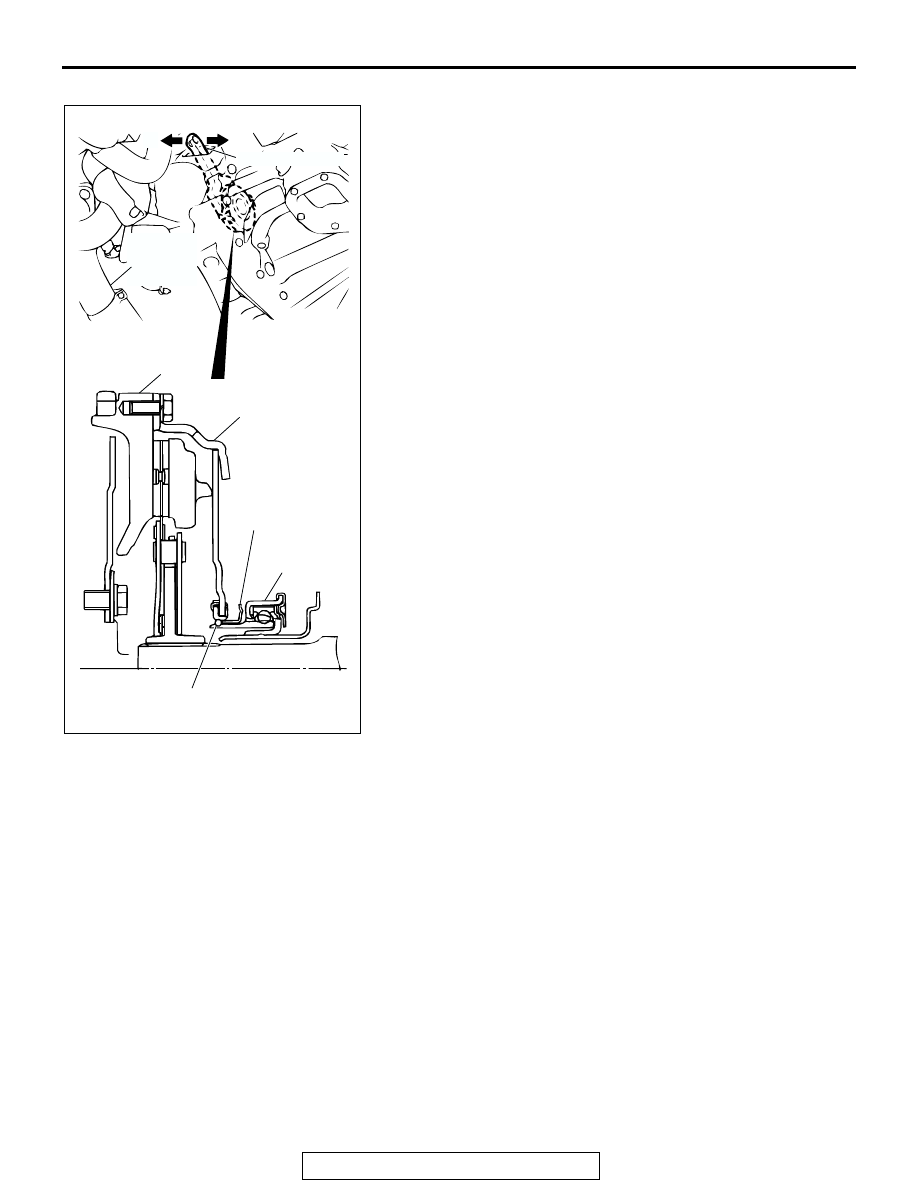

>>C<< CLUTCH RELEASE BEARING CONNECTION
1. Move the release fork to the "A" direction, and engage the

release bearing with the wedge collar.

2. When the release fork is moved to the "B" direction, the

release fork should drag.

AC001671AC

FLYWHEEL

CLUTCH COVER

RELEASE
BEARING

WIRE RING

RELEASE FORK

WEDGE
COLLAR

FRONT
EXHAUST
PIPE

SPECIFICATIONS

TSB Revision

MANUAL TRANSAXLE

22A-26

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1221006600164

LUBRICANT

M1221000400173

ITEM

SPECIFICATION

Transaxle assembly
Bell housing cover (to engine)

8.8

± 1.0 N⋅m (78 ± 9 in-lb)

Bell housing cover (to transaxle)

± 4 N⋅m (19 ± 3 ft-lb)

Center bearing bolt

± 5 N⋅m (30 ± 3 ft-lb)

Centermember attaching bolt

front side

± 15 N⋅m (69 ± 11 ft-lb)

rear side

± 4 N⋅m (55 ± 3 ft-lb)

Clutch release cylinder

± 3 N⋅m (13 ± 2 ft-lb)

Front roll stopper bracket nut

± 10 N⋅m (34 ± 7 ft-lb)

Lower arm nut

108

± 10 N⋅m (80 ± 7 ft-lb)

Rear roll stopper bracket attaching bolt

± 5 N⋅m (34 ± 3 ft-lb)

Rear roll stopper bracket nut

± 5 N⋅m (34 ± 3 ft-lb)

Shift cable and select cable assembly bracket bolt

± 3 N⋅m (13 ± 2 ft-lb)

Stabilizer link nut

± 10 N⋅m (33 ± 7 ft-lb)

Starter motor

± 3 N⋅m (23 ± 2 ft-lb)

Tie rod end nut

± 4 N⋅m (21 ± 4 ft-lb)

Transaxle assembly lower part coupling bolt

2.4L ENGINE

± 5 N⋅m (36 ± 4 ft-lb)

3.0L ENGINE

± 10 N⋅m (65 ± 7 ft-lb)

Transaxle assembly upper part coupling bolt

2.4L ENGINE

± 5 N⋅m (36 ± 3 ft-lb)

Transaxle assembly upper part coupling bolt (bolt, flange) 3.0L ENGINE

± 9 N⋅m (54 ± 7 ft-lb)

Transaxle assembly upper part coupling bolt (bolt, washer
assembly)

3.0L ENGINE

± 10 N⋅m (65 ± 7 ft-lb)

Transaxle mount bracket attaching nut

± 7 N⋅m (42 ± 5 ft-lb)

Transaxle mount stopper attaching nut

± 12 N⋅m (60 ± 9 ft-lb)

Transmission oil drain plug

± 2 N⋅m (24 ± 1 ft-lb)

Transmission oil filler plug

± 2 N⋅m (24 ± 1 ft-lb)

Upper oil pan connecting bolt

± 6 N⋅m (26 ± 4 ft-lb)

Transaxle control
Lever base bracket attaching bolt

± 2 N⋅m (102 ± 22 in-lb)

M/T cable attaching bolt

± 2 N⋅m (102 ± 22 in-lb)

Retainer nut

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Select lever attaching bolt

6.0

± 2.0 N⋅m (53 ± 18 in-lb)

ITEM

SPECIFIED LUBRICANTS

QUANTITY

Transaxle oil dm

(qt)

F5M42

Gear oil API classification GL-4 SAE
75W

− 85W or 75W − 90

2.2 (2.3)

F5M51

2.8 (3.0)
