MANUAL TRANSAXLE DIAGNOSIS
TSB Revision
MANUAL TRANSAXLE
22A-7
STEP 2. Visual check at the clutch housing.
Q: Do oil leaks appear around the joint between the
engine and the clutch housing?
YES :
Remove the transaxle. Check the input
shaft oil seal, and replace if necessary.
Then go to Step 4.
NO :
Go to Step 3.
STEP 3. Check the oil seal or O-ring for damage.
Q: Is the oil seal or O-ring damaged?
YES :
Replace the oil seal or the O-ring. Then go
to Step 4.
NO :
Go to Step 4.
STEP 4. Check trouble symptoms.
Q: Is the oil still leaking?
YES :
Return to Step 1.
NO :
This diagnosis is complete.
INSPECTION PROCEDURE 3: Hard Shifting
DIAGNOSIS
STEP 1. Check the transaxle control
Q: Are the shift cable and the select cable in good
condition?
YES :
Go to Step 2.
NO :
Repair or replace the shift cable and the
select cable. Refer to
. Then go to
Step 7.

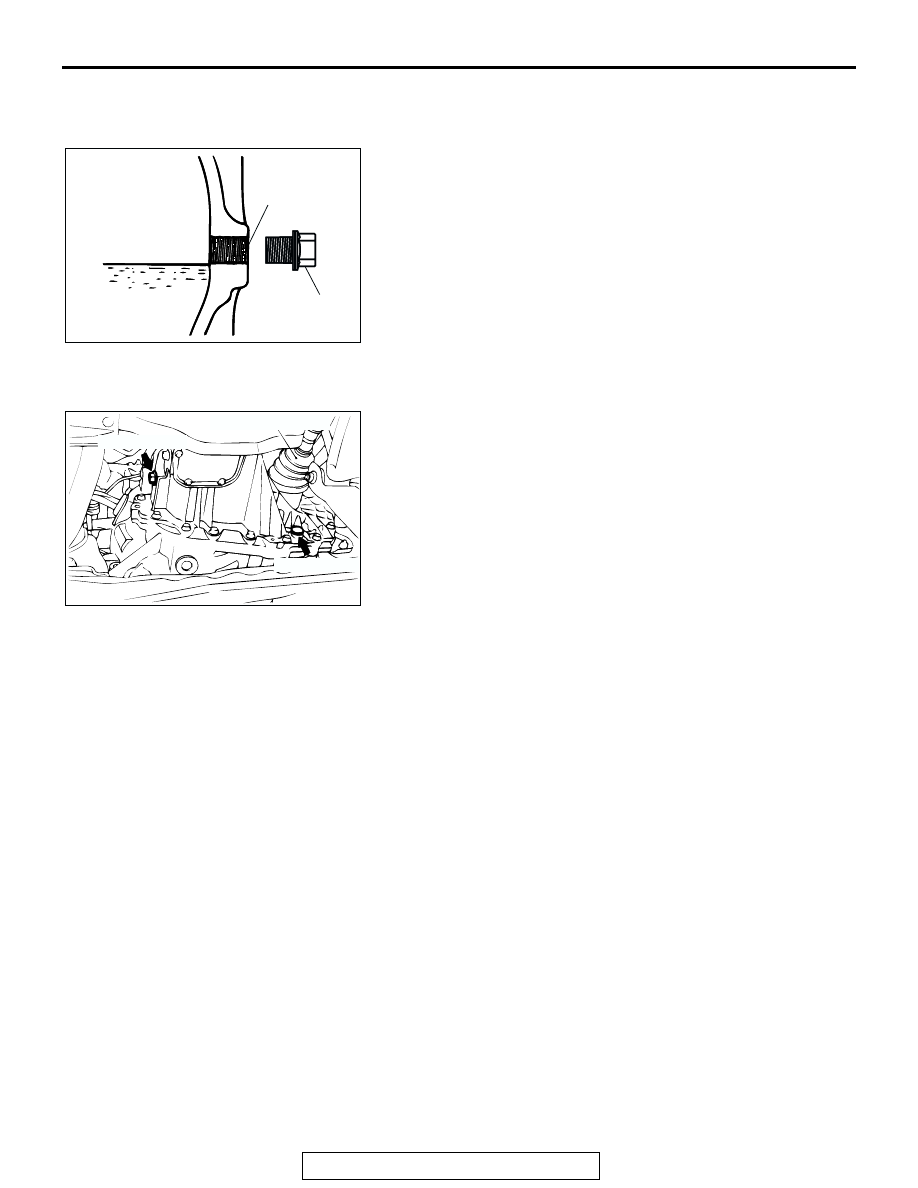

STEP 2. Check the transaxle oil.
Q: Is the oil dirty?
YES :
Replace the oil. Refer to
. Then go
to Step 7 .
NO :
Go to Step 3.
STEP 3. Check the clutch system.
Q: Is the clutch system normal?
YES :
Go to Step 4.
NO :
Repair or replace the clutch system. Refer
to
. Then go to Step 7.
STEP 4. Remove and disassemble the transaxle.
Check the control housing.
Q: Is the control housing in good condition?
YES :
Go to Step 5.
NO :
Repair or replace the control housing. Refer
to GROUP 22B, Transaxle
. Then
go to Step 7.
STEP 5. Check for poor meshing of worn
synchronizer ring and gear cone.
Q: Is poor meshing or worn synchronizer ring and
gear cone found?
YES :
Repair or replace the synchronizer ring and
gear cone. Then go to Step 7.
NO :
Go to Step 6.
STEP 6. Check the synchronizer spring for
weakness.
Q: Is the synchronizer spring weak?
YES :
Replace the synchronizer spring. Then go
to Step 7.
NO :
Go to Step 7.
STEP 7. Check trouble symptoms.
Q: Is the shifting of the gears still hard?
YES :
Return to Step 1.
NO :
This diagnosis is complete.
