GENERAL INFORMATION

TSB Revision

MANUAL TRANSAXLE

22A-3

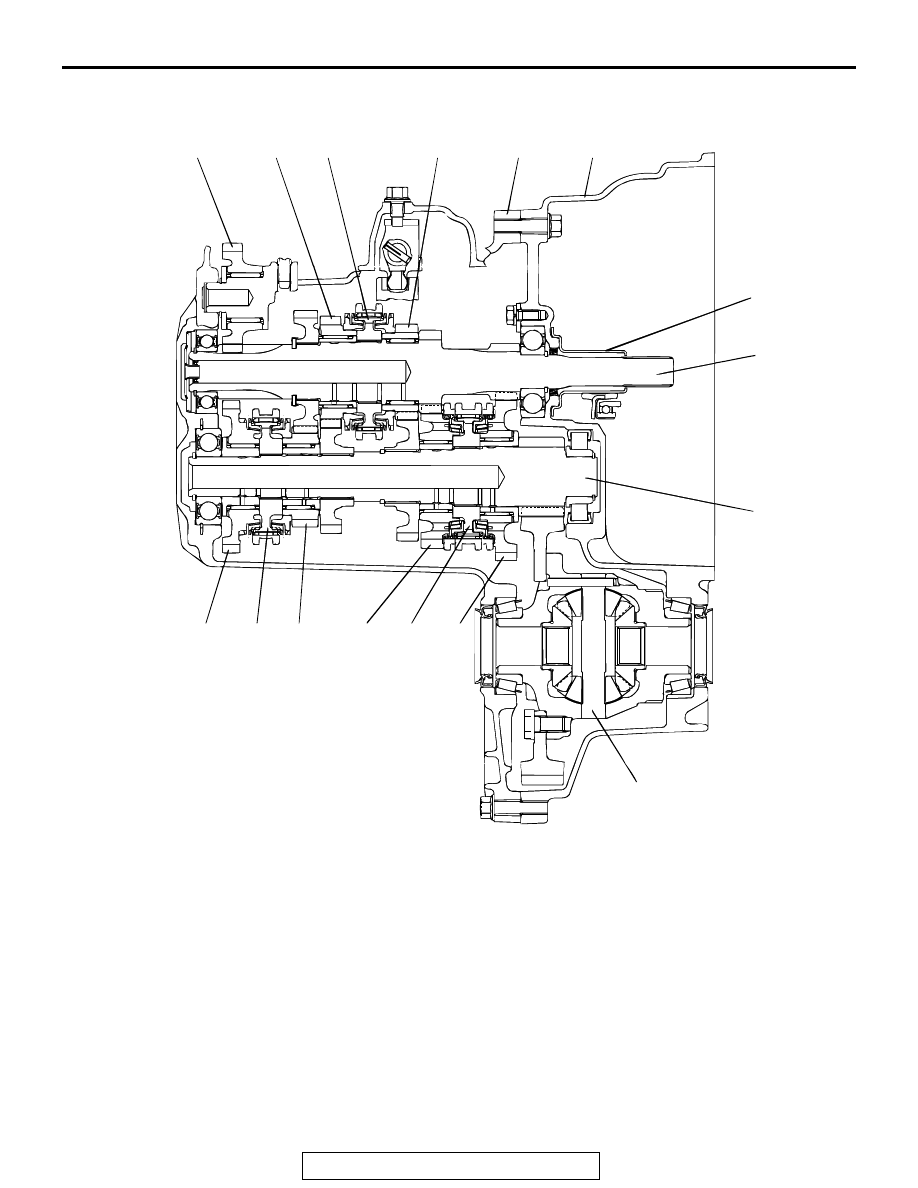

SECTIONAL VIEW <F5M42>

AC001599

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

AB





1.  REVERSE IDLER GEAR





2. 4TH

SPEED

GEAR





3.  3RD-4TH SPEED SYNCHRONIZER

HUB





4.  3RD SPEED GEAR





5. TRANSAXLE

CASE





6. CLUTCH

HOUSING





7.  RELEASE BEARING RETAINER





8. INPUT

SHAFT





9. OUTPUT

SHAFT





10. DIFFERENTIAL





11.  1ST SPEED GEAR





12.  1ST-2ND SPEED SYNCHRONIZER

HUB





13. 2ND SPEED GEAR





14. 5TH SPEED GEAR





15. 5TH-REVERSE SPEED

 SYNCHRONIZER HUB





16. REVERSE GEAR

GENERAL INFORMATION

TSB Revision

MANUAL TRANSAXLE

22A-4

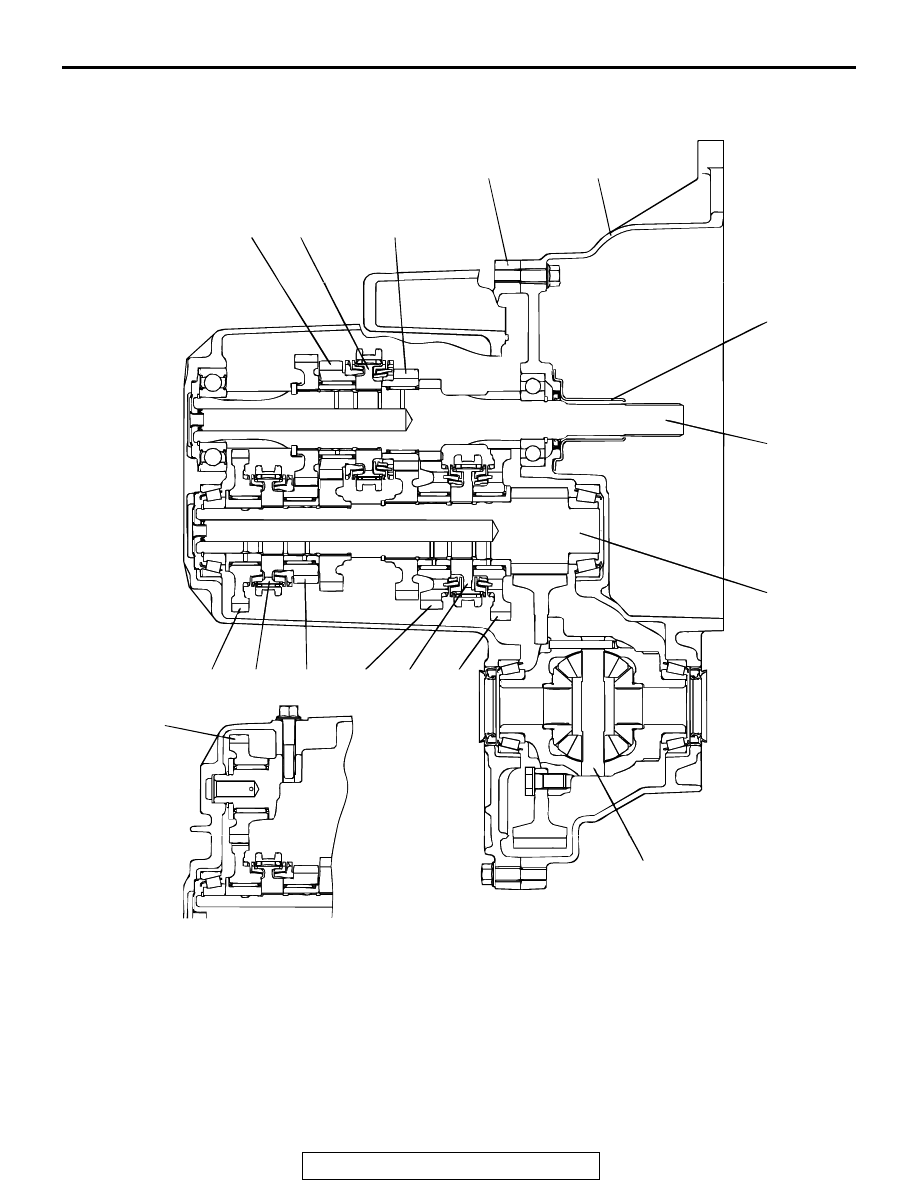

<F5M51>

AC001600

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

AB



 1.

4TH

SPEED

GEAR





2.  3RD-4TH SPEED SYNCHRONIZER

HUB





3.  3RD SPEED GEAR





4. TRANSAXLE

CASE





5. CLUTCH

HOUSING





6.  RELEASE BEARING RETAINER





7. INPUT

SHAFT





8. OUTPUT

SHAFT





9. DIFFERENTIAL





10.  1ST SPEED GEAR





11.  1ST-2ND SPEED SYNCHRONIZER

HUB





12.  1ST-2ND SPEED SYNCHRONIZER

HUB





13. 5TH SPEED GEAR





14. 5TH-REVERSE SPEED

SYNCHRONIZER HUB





15. REVERSE GEAR





16.  REVERSE IDLER GEAR

MANUAL TRANSAXLE DIAGNOSIS

TSB Revision

MANUAL TRANSAXLE

22A-5

MANUAL TRANSAXLE DIAGNOSIS

INTRODUCTION

M1221006900615

The manual transaxle can exhibit any of the following
symptoms: noise or vibration is generated, oil leaks,
shifting gears is hard or troublesome, or the
transaxle jumps out of gear.

The causes of these symptoms could come from:
incorrect mounting, the oil level may be low, or a
component of the transaxle may be faulty.

TROUBLESHOOTING STRATEGY

M1221007000529

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
manual transaxle fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

SYMPTOM CHART

M1221007100560

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Noise, Vibration

DIAGNOSIS

STEP 1. Check the idle speed.
Q: Does the idle speed meet the standard values?

YES : Go to Step 2.
NO :  Refer to GROUP 11A, On-vehicle Service

− Curb Idle

Speed Check <2.4L ENGINE>

P.11A-9

  or GROUP

11C, On-vehicle Service

− Curb Idle Speed Check

<3.0L ENGINE>

P.11C-9

 .

STEP 2. Check whether the transaxle and engine mount is
loose or damaged.
Q: Are the transaxle and engine mount loose or damaged?

YES : Tighten or replace the part. Then go to Step 7.
NO :  Go to Step 3.

SYMPTOM

INSPECTION PROCEDURE

REFERENCE PAGE

Noise, vibration

1

P.22A-5



Oil leaks

2

P.22A-6



Hard shifting

3

P.22A-7



Jumps out of gear

4

P.22A-8



MANUAL TRANSAXLE DIAGNOSIS

TSB Revision

MANUAL TRANSAXLE

22A-6

STEP 3. Check that the oil level is up to the lower edge of
the filler plug hole.
Q: Is the oil level up to the lower edge of the filler plug

hole?
YES : Go to Step 4.
NO :  Refill gear oil API classification GL-4 SAE 75W

− 85W

or 75W

− 90. Then go to Step 7.

STEP 4. Check for the specified oil.
Q: Is the specified oil gear oil API classification GL-4 SAE

75W

− 85W or 75W − 90?

YES : Go to Step 5.
NO :  If in doubt, replace the oil. Refer to

P.22A-10

. Then go

to Step 7.

STEP 5. Remove the transaxle. Check the end play of the
input and output shafts.
Q: Does the end play of the input and output shafts meet

the standard value?
YES : Go to Step 6.
NO :  Adjust the end play of the input and output shafts.

Then go to Step 7.

STEP 6. Disassemble the transaxle. Check the gears for
wear and damage.
Q: Are the gears worn or damaged?

YES : Replace the gears. Then go to Step 7.
NO :  Go to Step 7.

STEP 7. Check trouble symptoms.
Q: Is the noise or vibration still there?

YES : Return to Step 1.
NO :  This diagnosis is complete.

INSPECTION PROCEDURE 2: Oil Leaks

DIAGNOSIS

STEP 1. Visual check.
Raise the vehicle, and check for oil leaks. If oil leak is
difficult to locate, steam clean the transaxle and drive
the vehicle for at 10 minutes. Then check the leak
again.

Q: Is the oil leak(s) found?

YES :

Go to Step 2.

NO :

Check for the oil leak(s) around the engine.
Then go to Step 4.

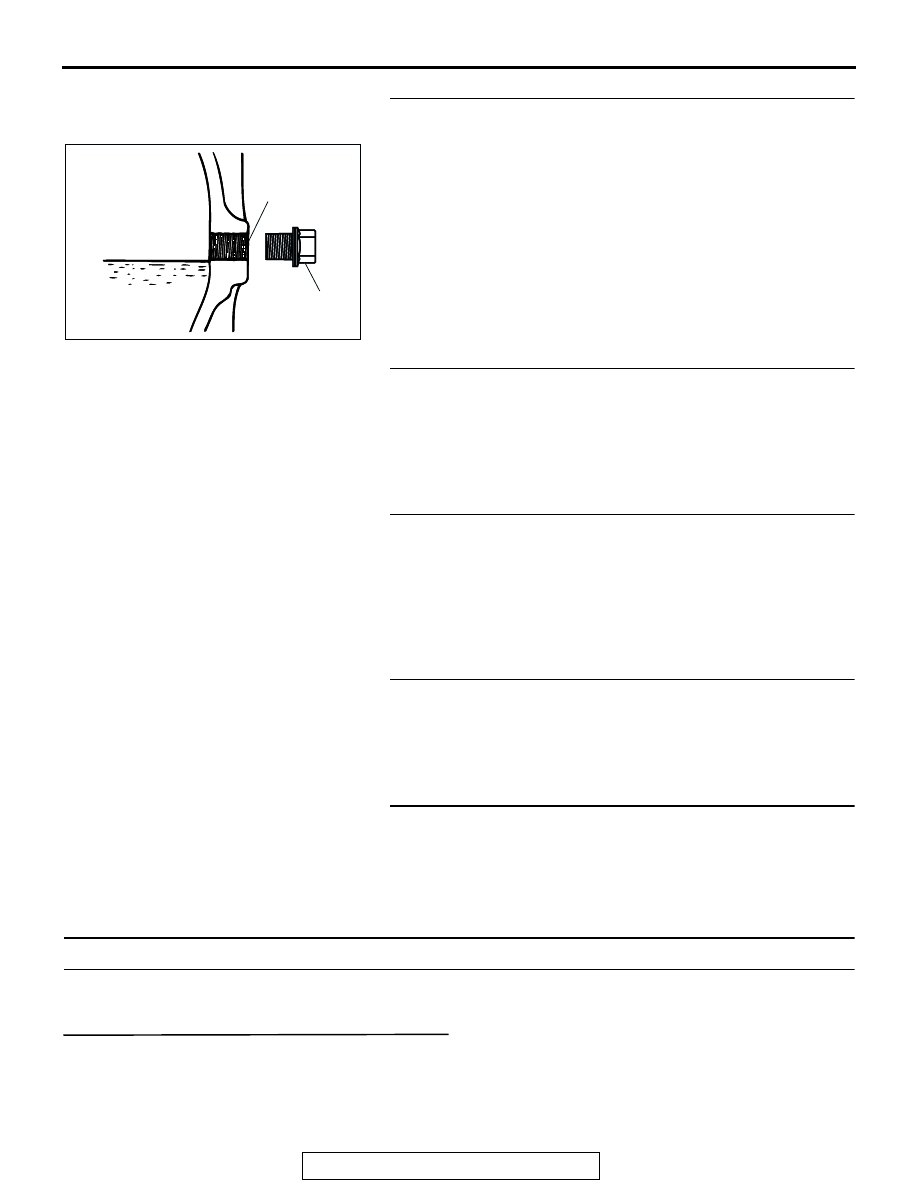

AC102278

AC102278AC

FILLER PLUG

TRANSAXLE
OIL

FILLER PLUG
HOLE
