AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-65

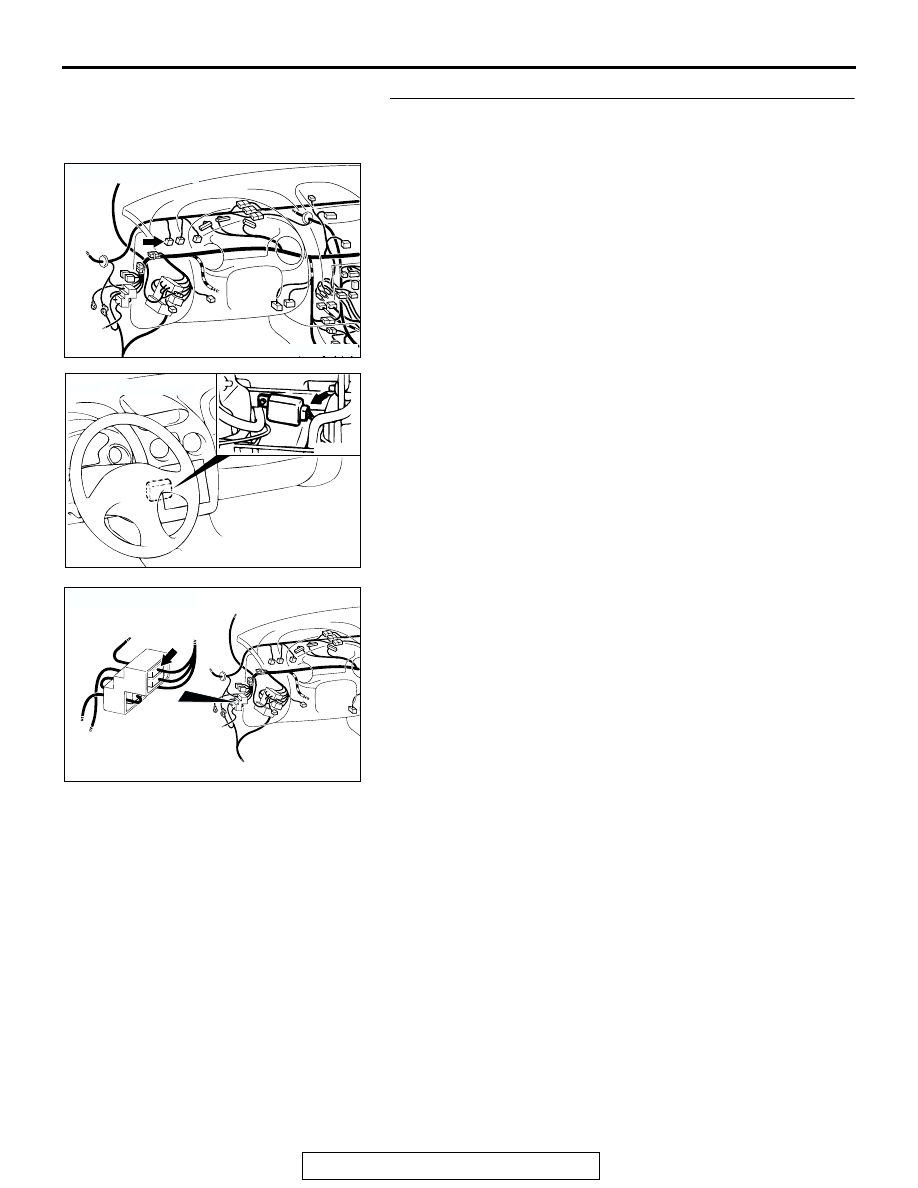

STEP 3. Check clutch pedal position switch connector
C-01, auto-cruise control-ECU connector C-20 and
intermediate connector C-89.
Q: Is any connector damaged?

YES : Repair or replace connector. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

. Then check

that the malfunction is eliminated.

NO :  Go to Step 4.

AC101196AF

CONNECTOR: C-01

AC001451

CONNECTOR: C-20

AB

AC103104AD

CONNECTOR: C-89

CONNECTOR
BLOCK (LH)

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-66

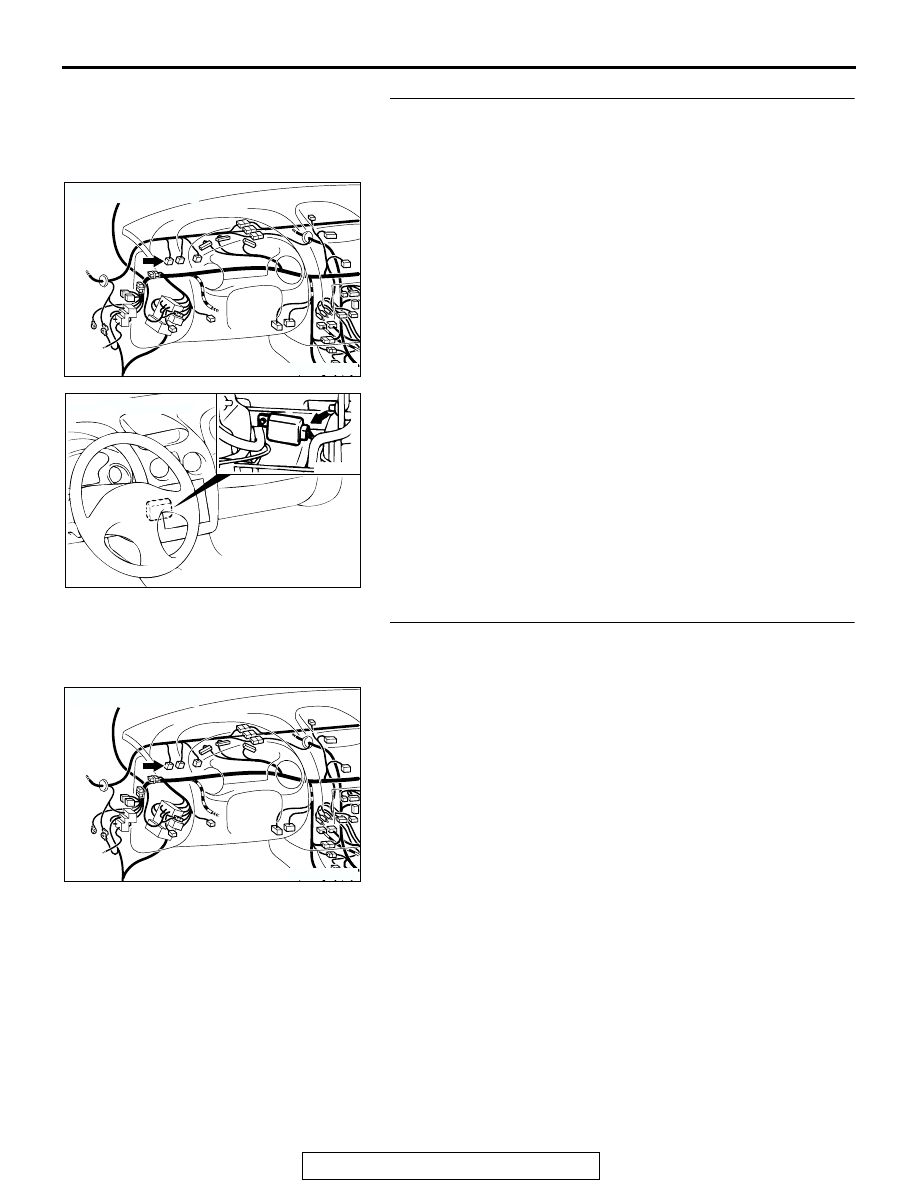

STEP 4. Check the harness wire between clutch pedal
position switch connector C-01 (terminal number 2) and
auto-cruise control-ECU connector C-20 (terminal number
13).
Q: Is any harness wire between clutch pedal position

switch connector C-01 (terminal number 2) and
auto-cruise control-ECU connector C-20 (terminal
number 13) damaged?
YES : Repair the harness wire and then check that the

malfunction is eliminated.

NO :  Go to Step 5.

STEP 5. Check the harness wire between clutch pedal
position switch connector C-01 (terminal number 1) and
ground wire.
Q: Is any harness wire between clutch pedal position

switch connector C-01 (terminal number 1) and ground
wire damaged?
YES : Repair the harness wire and then check that the

malfunction is eliminated.

NO :  Check that the malfunction is eliminated. If the

malfunction is not eliminated, replace the auto-cruise
control-ECU (Refer to

P.17-92

.). Then check that the

malfunction is eliminated.

AC101196AF

CONNECTOR: C-01

AC001451

CONNECTOR: C-20

AB

AC101196AF

CONNECTOR: C-01

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-67

INSPECTION PROCEDURE 4: When the Selector Lever is Moved to "N" Range, Auto-cruise Control is
not Cancelled. <A/T>

AC106580

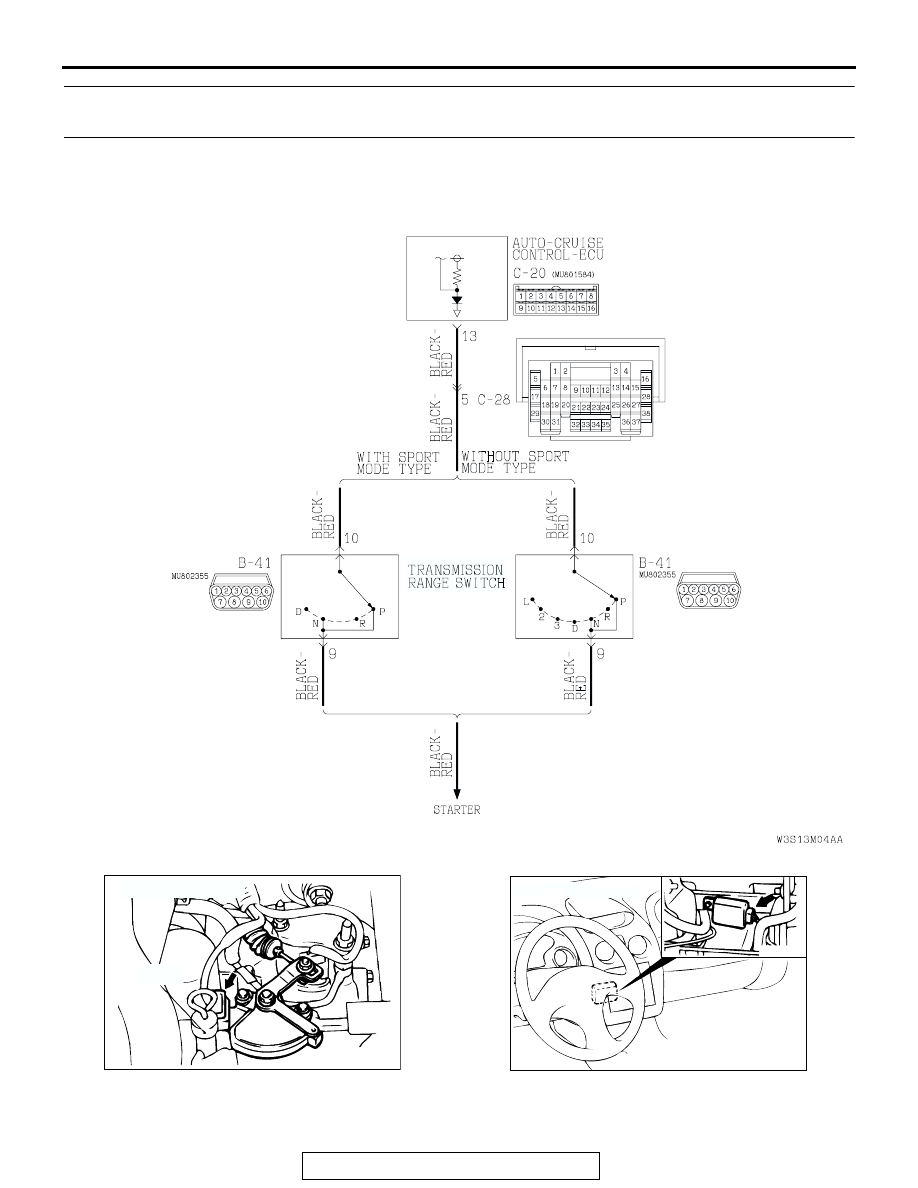

Transmission Range Switch System Circuit

AC

AC001482

CONNECTOR: B-41

DIPSTICK

AB

AC001451

CONNECTOR: C-20

AB

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-68

.

CIRCUIT OPERATION
This circuit transmits the "N" or "P" position signal of
the transmission range switch to the auto-cruise con-
trol-ECU. When the transmission range switch is at
the "N" or "P" position, auto-cruise control-ECU ter-
minal number 13 will receives 0 volt.

.

TECHNICAL DESCRIPTION (COMMENT)
The cause is probably an open-circuit in the output
signal circuit in "N" range.

.

TROUBLESHOOTING HINTS

• Malfunction of the transmission range switch.

• Damaged harness or connector.

• Malfunction of the auto-cruise control-ECU.

DIAGNOSIS

Required Special Tool:

• MB991223: Harness Set

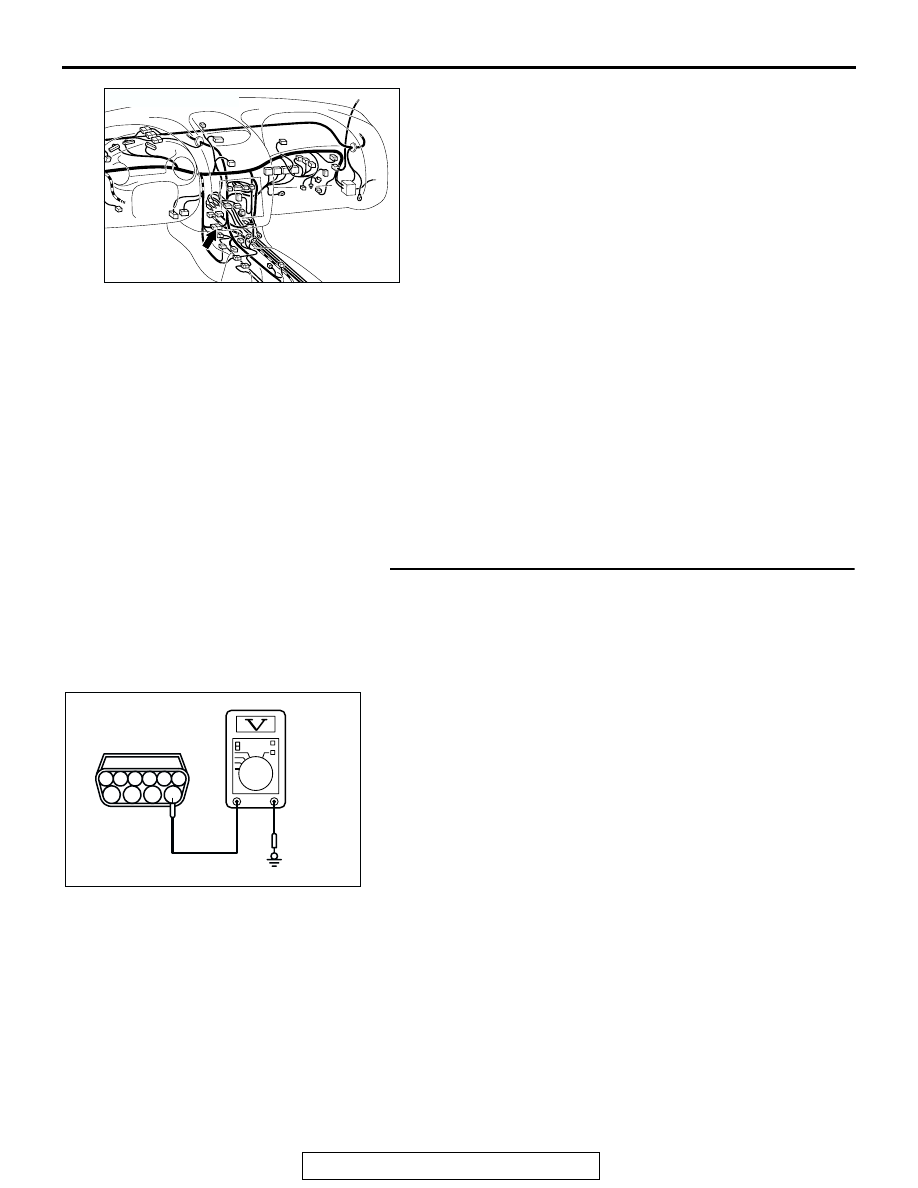

STEP 1. Check the output circuit voltage at transmission
range switch connector B-41 (terminal number 10) by
backprobing.
(1) Do not disconnect transmission range switch connector

B-41.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 10 and ground by

backprobing.

• Voltage should be battery positive voltage. (When select

lever is in a position other than "N" range.)

• Voltage should be 0.5 volt or less. (When select lever is

in "N" range.)

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the voltage within specifications?

YES : Check that the malfunction is eliminated. If the

malfunction is not eliminated, replace the auto-cruise
control-ECU (Refer to

P.17-92

.). Then check that the

malfunction is eliminated.

NO :  Go to Step 2.

AC101201AB

CONNECTOR: C-28

1 2 3 4 5 6

7

8

9 10

AC002393

B-41 CONNECTOR
HARNESS SIDE VIEW
