AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-57

.

CIRCUIT OPERATION
This is the stoplight switch input signal circuit. The
signal is sent to the stoplight switch from dedicated
fuse 5, and is then sent to the auto-cruise con-
trol-ECU.

.

TECHNICAL DESCRIPTION (COMMENT)
The cause is probably a malfunction of the stoplight
switch circuit.

.

TROUBLESHOOTING HINTS

• Malfunction of the stoplight switch.

• Damaged harness or connector.

• Malfunction of the auto-cruise control-ECU.

DIAGNOSIS

Required Special Tool:

• MB991223: Harness Set

STEP 1. Check if the stoplight illuminates.
Q: Is the stoplight illuminated?

YES : Go to Step 8.
NO :  Go to Step 2.

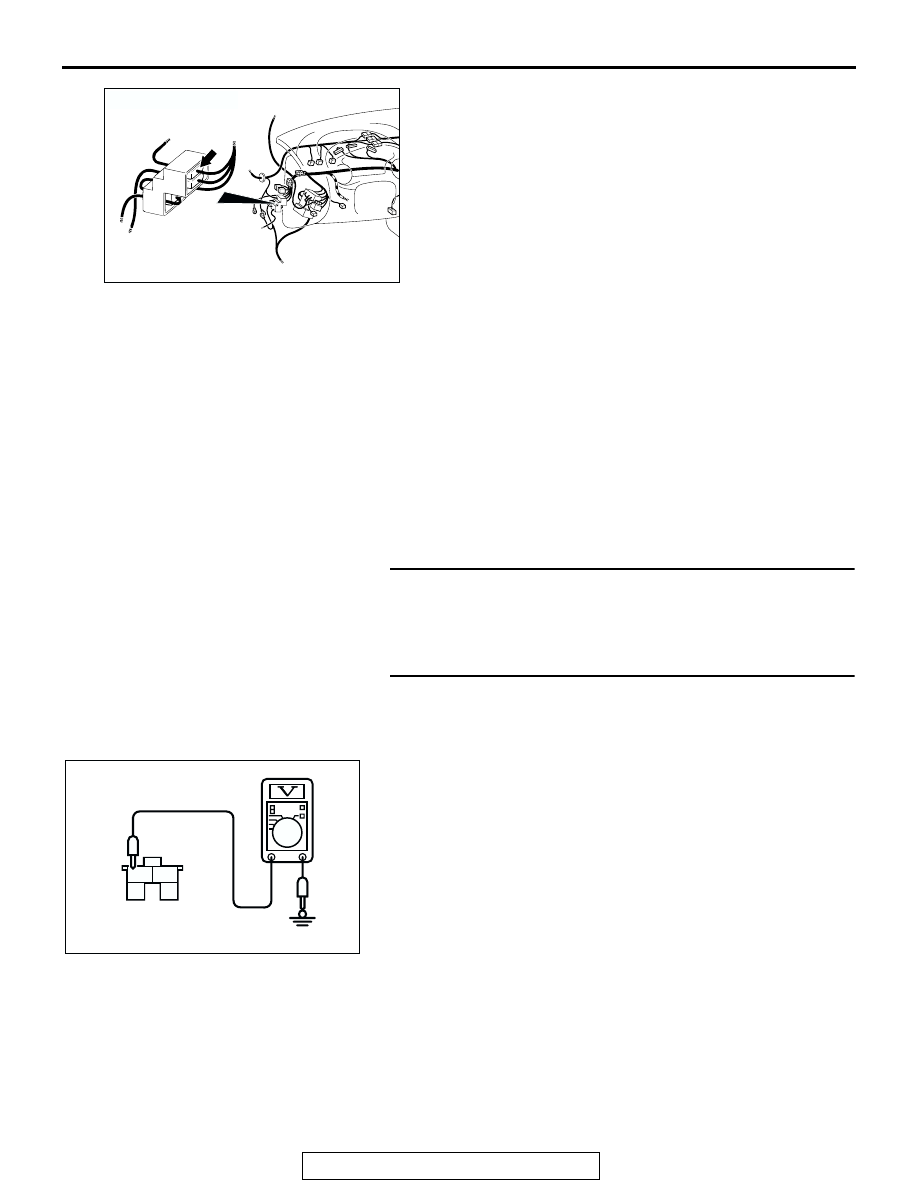

STEP 2. Check the 12-Volt supply circuit voltage at
stoplight switch connector C-03 (terminal number 2).
(1) Disconnect stoplight switch connector C-03 and measure at

the harness side.

(2) Measure the voltage between terminal 2 and ground.
Q: Is the voltage approximately battery positive voltage?

YES : Go to Step 5.
NO :  Go to Step 3.

AC103104AD

CONNECTOR: C-89

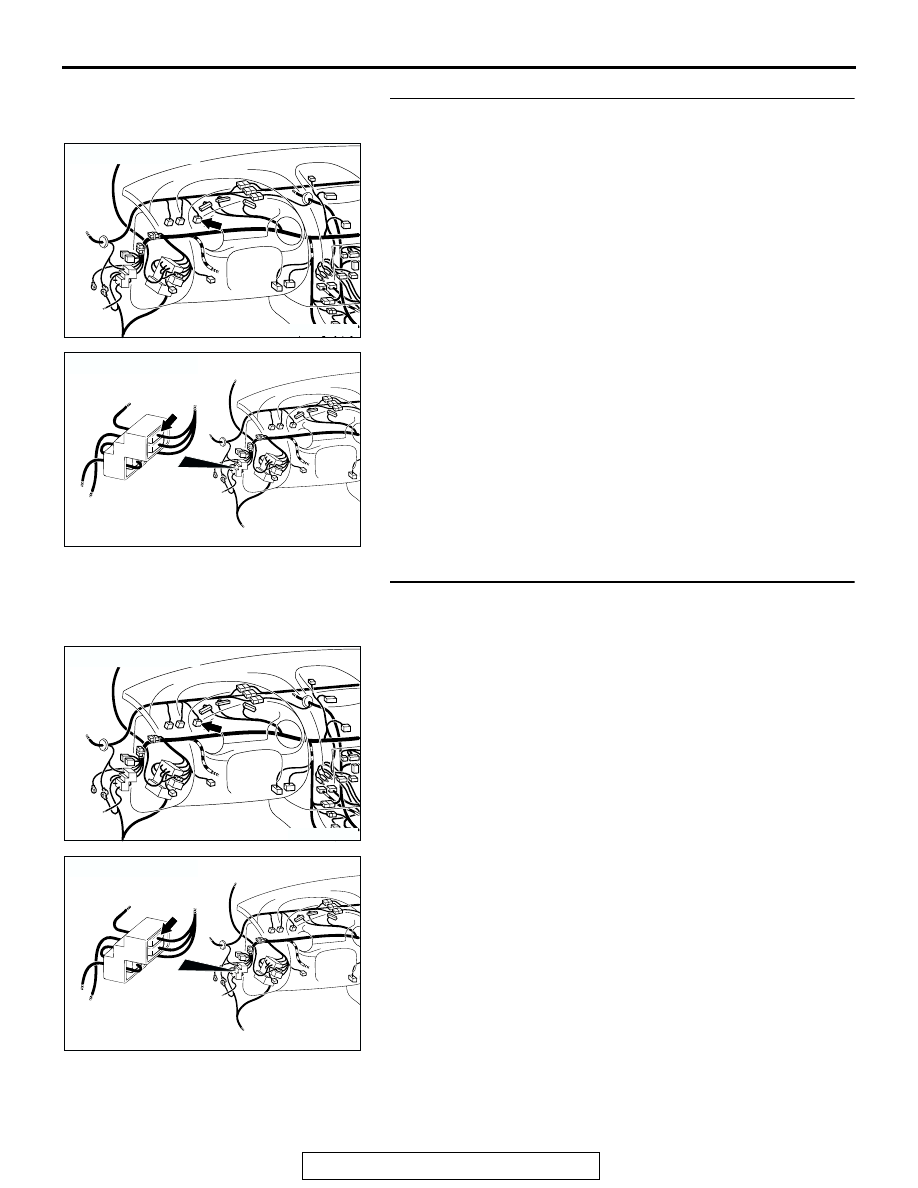

CONNECTOR
BLOCK (LH)

1

2

3

4

ACX01922AC

STOPLIGHT SWITCH
CONNECTOR: C-03

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-58

STEP 3. Check stoplight switch connector C-03.
Q: Is the connector damaged?

YES : Repair or replace connector. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

. Then check

that the malfunction is eliminated.

NO :  Go to Step 4.

STEP 4. Check the harness wire between dedicated fuse
No.5 and stoplight switch connector C-03 (terminal
number 2).
Q: Is any harness wire between dedicated fuse No.5 and

stoplight switch connector C-03 (terminal number 2)
damaged?
YES : Repair the harness wire and then check that the

malfunction is eliminated.

NO :  Check that the malfunction is eliminated. If the

malfunction is not eliminated, replace the auto-cruise
control-ECU (Refer to

P.17-92

.). Then check that the

malfunction is eliminated.

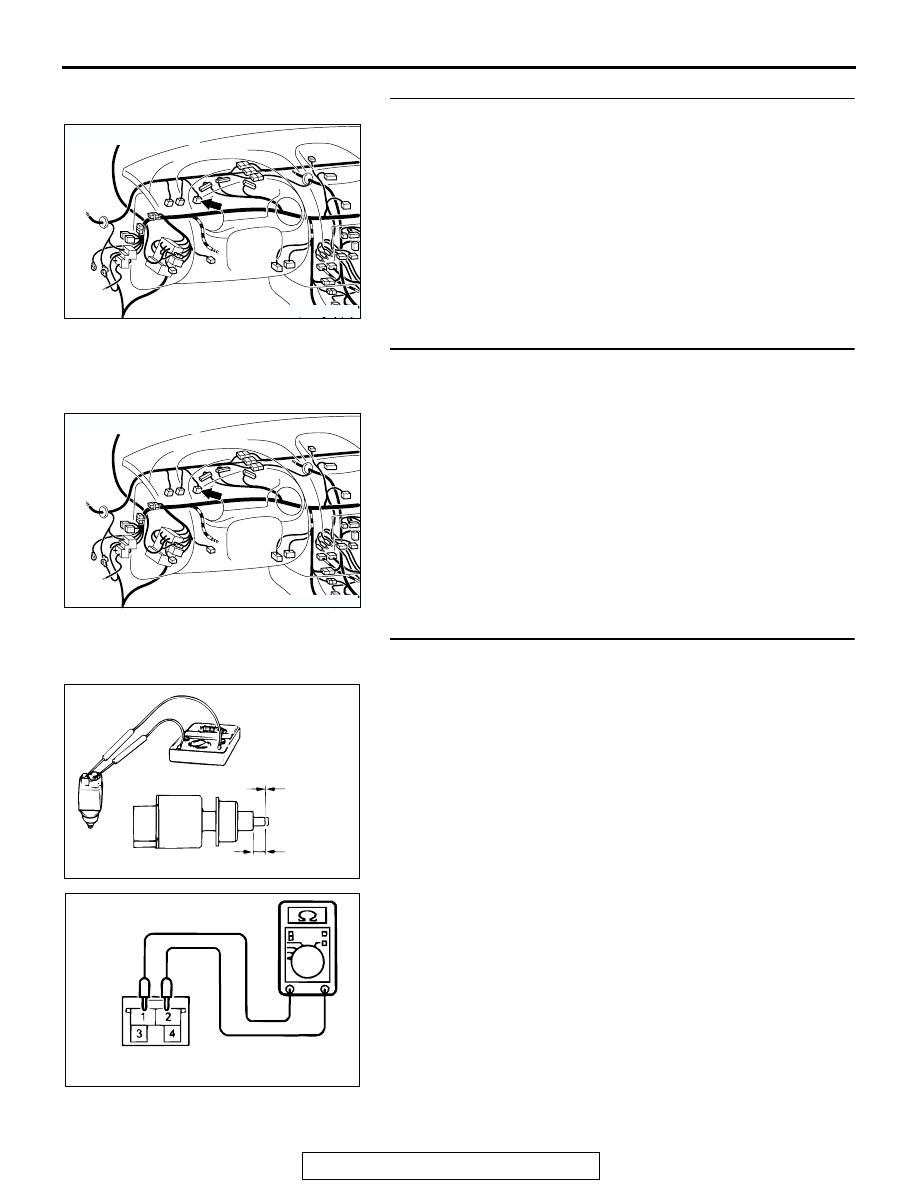

STEP 5. Check the stoplight switch.
(1) Disconnect harness connector C-03 at the stoplight switch.
(2) Connect an ohmmeter to the stoplight switch, and check

continuity when the plunger of the stoplight switch is
pushed in and when it is released.

(3) The stoplight switch is in good condition if the circuit is open

when the plunger is pushed in to a depth of within 4 mm
(0.2 inch) from the outer case edge surface, and if the
resistance value is less than 2 ohm when it is released.

(4) The check for continuity should be made at terminals 1 and

2 of the stoplight switch.

Q: Is the circuit open?

YES : Replace the stoplight switch. Refer to GROUP 35A,

Brake Pedal

P.35A-31

. Then check that the

malfunction is eliminated.

NO :  Go to Step 6.

AC101196AE

CONNECTOR: C-03

AC101196AE

CONNECTOR: C-03

AC001478

NO CONTINUITY CONTINUITY

4 mm (0.2 in)

AB

ACX02256AC

STOPLIGHT SWITCH
CONNECTOR: C-03

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-59

STEP 6. Check stoplight switch connector C-03 and
intermediate connector C-89.
Q: Is any connector damaged?

YES : Repair or replace connector. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

. Then check

that the malfunction is eliminated.

NO :  Go to Step 7.

STEP 7. Check the harness wire between stoplight switch
connector C-03 (terminal number 1) and intermediate
connector C-89 (terminal number 14).
Q: Is any harness wire between stoplight switch connector

C-03 (terminal number 1) and intermediate connector
C-89 (terminal number 14) damaged?
YES : Repair the harness wire and then check that the

malfunction is eliminated.

NO :  Check that the malfunction is eliminated. If the

malfunction is not eliminated, replace the auto-cruise
control-ECU (Refer to

P.17-92

.). Then check that the

malfunction is eliminated.

AC101196AE

CONNECTOR: C-03

AC103104AD

CONNECTOR: C-89

CONNECTOR
BLOCK (LH)

AC101196AE

CONNECTOR: C-03

AC103104AD

CONNECTOR: C-89

CONNECTOR
BLOCK (LH)

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-60

STEP 8. Check the output circuit voltage at auto-cruise
control-ECU connector C-20 (terminal number 4) by
backprobing.
(1) Do not disconnect auto-cruise control switch connector

C-20.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 4 and ground by

backprobing.

• Voltage should be battery positive volts. (When brake

pedal is depressed.)

• Voltage should be 0.5 volts or less. (When brake pedal

is not depressed.)

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the voltage within specifications?

YES : Check that the malfunction is eliminated. If the

malfunction is not eliminated, replace the auto-cruise
control-ECU (Refer to

P.17-92

.). Then check that the

malfunction is eliminated.

NO :  Go to Step 9.

STEP 9. Check auto-cruise control-ECU connector C-20
and intermediate connector C-89.
Q: Is the connector damaged?

YES : Repair or replace connector. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

. Then check

that the malfunction is eliminated.

NO :  Go to Step 10.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

AC103175

C-20 CONNECTOR
HARNESS SIDE VIEW

AB

AC001451

CONNECTOR: C-20

AB

AC103104AD

CONNECTOR: C-89

CONNECTOR
BLOCK (LH)
