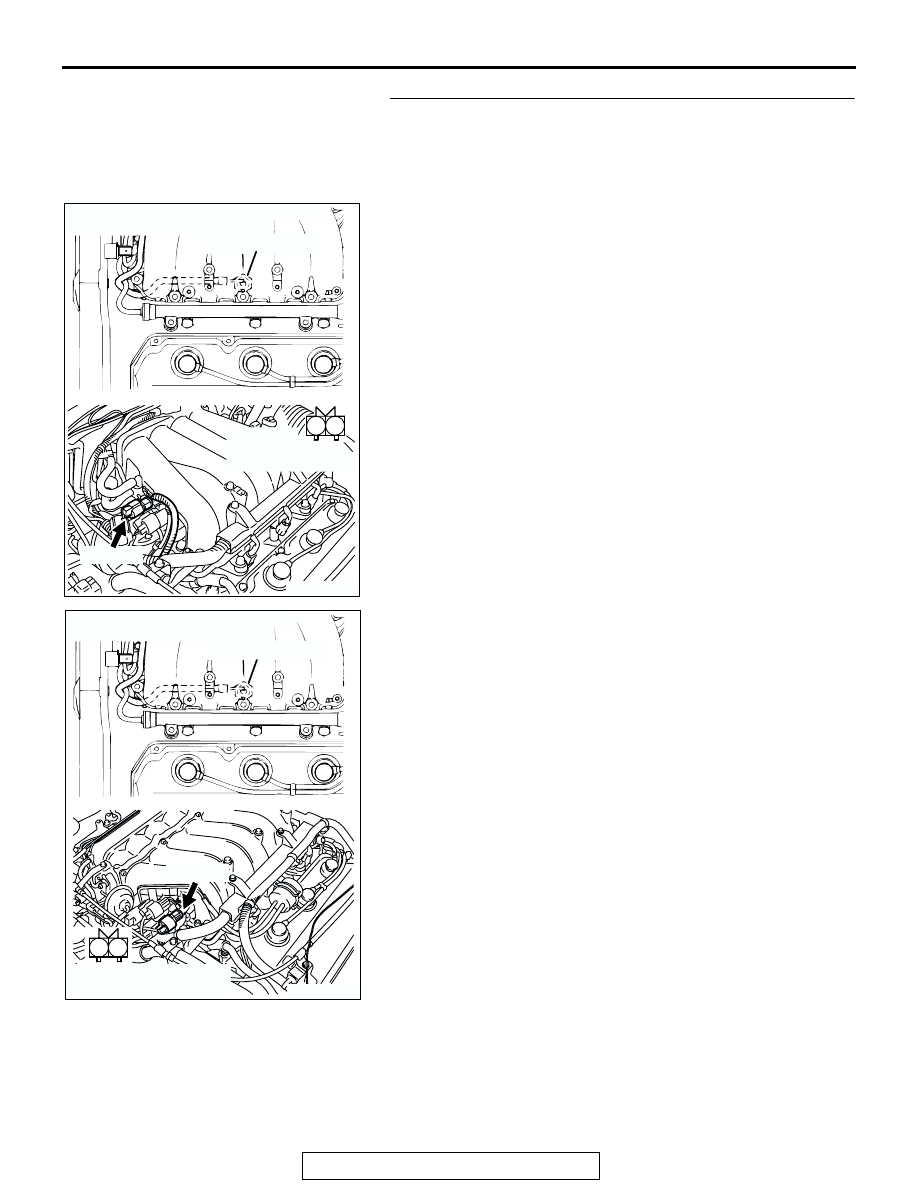

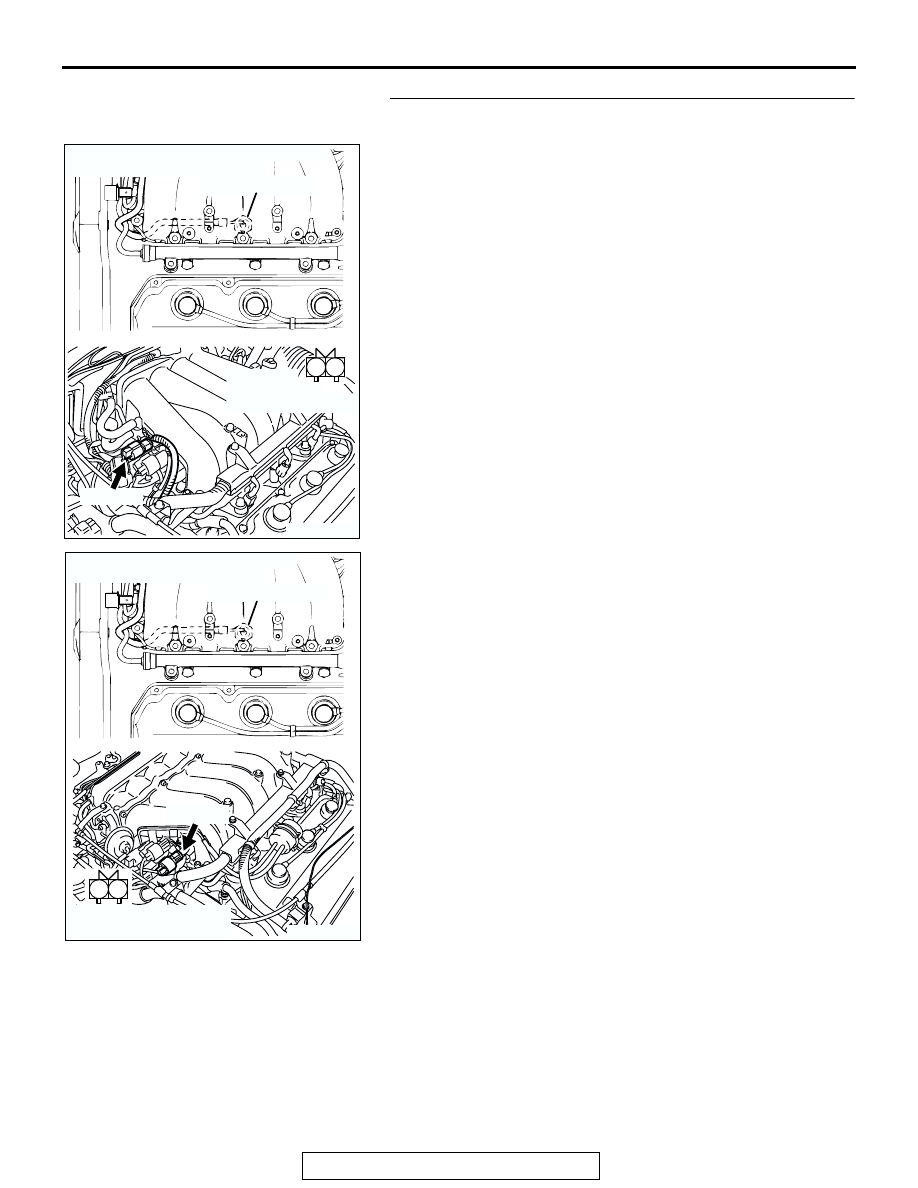

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-551

STEP 2. Check the continuity at knock sensor harness
side connector B-35.
(1) Disconnect the connector B-35 and measure at the harness

side.

AK300444

1

2

AB

B-35 (GR)

CONNECTOR: B-35 <WITHOUT INTAKE
MANIFOLD TUNING  SYSTEM>

KNOCK SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE

AK300749

1

2

KNOCK SENSOR

CONNECTOR: B-35 <WITH INTAKE
MANIFOLD TUNING  SYSTEM>

AB

B-35 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

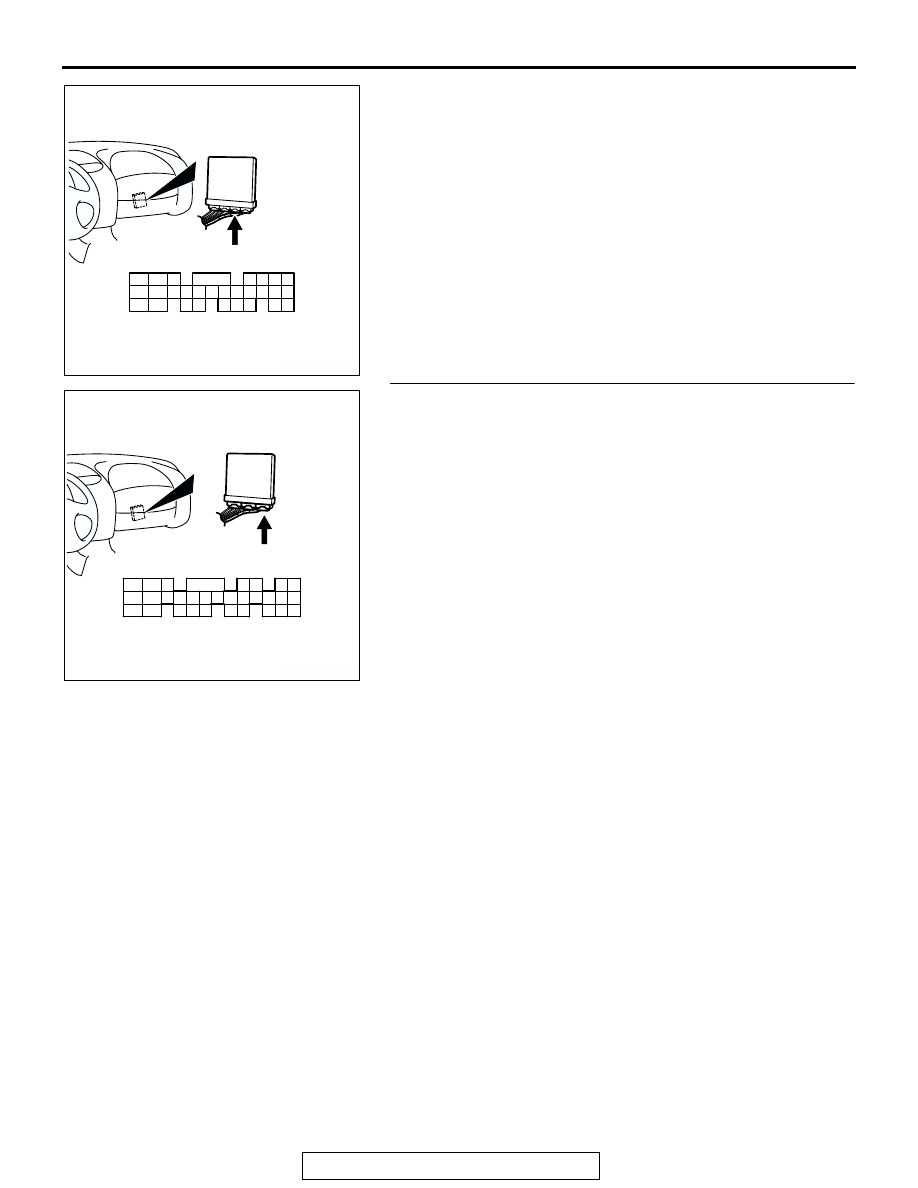

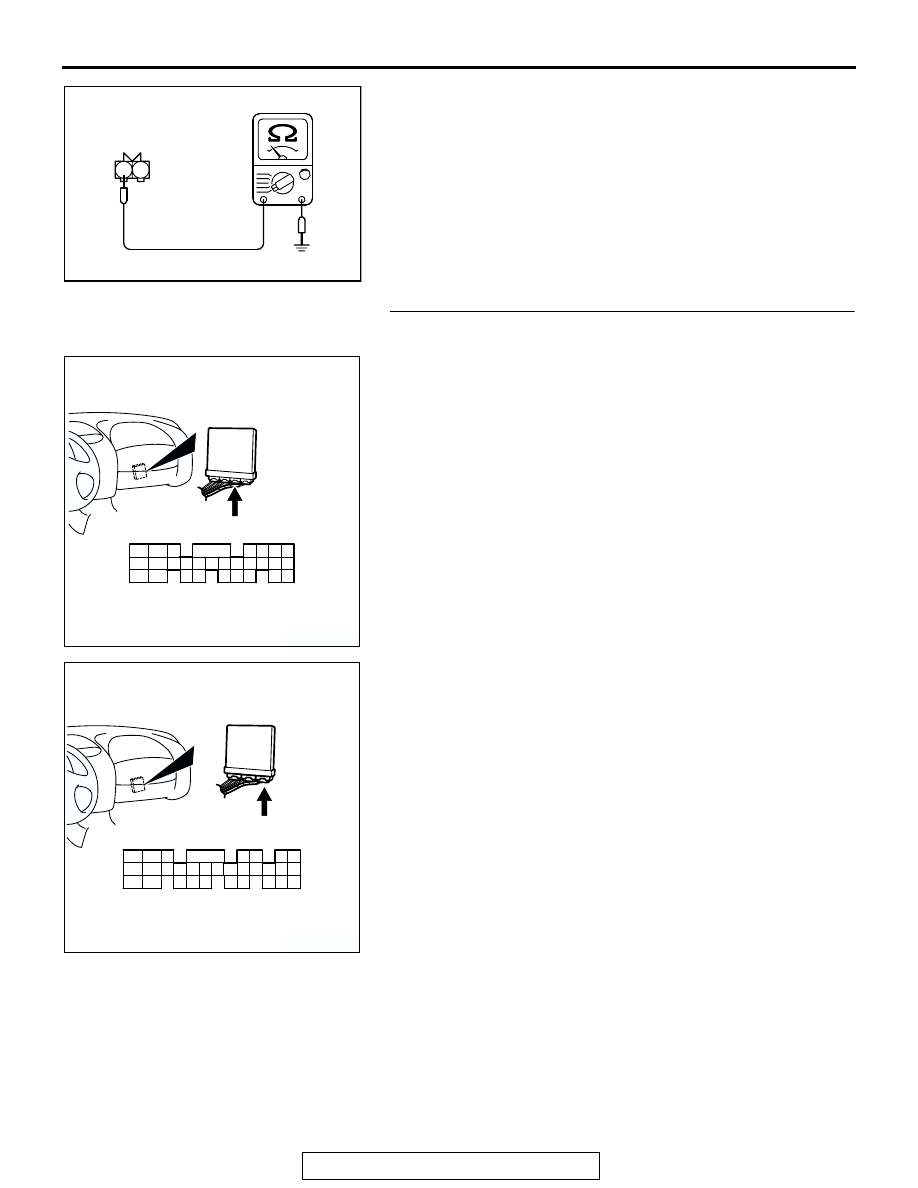

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-552

(2) Check for the continuity between terminal No. 2 and

ground.

• Should be less than 2 ohms.

Q: Is the continuity normal?

YES : Go to Step 3.
NO :  Repair harness wire between knock sensor connector

B-35 (terminal No. 2) and ground because of open
circuit or harness damage. Then go to Step 6.

STEP 3. Check connector C-62 at ECM <M/T> or connector
C-59 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 6.

AKX01415

2 1

B-35 HARNESS
CONNECTOR:
COMPONENT SIDE

AP

AK300460

98

78

71

88

89

76

77

72
79
91

73
80

74

75

81
92

82

83

93

84

85

94

86

87

95

96

90

97

CONNECTOR: C-59 <A/T>

C-59 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300445

80

87

81

94

85

82

84

93

86

98

99

74

92

73

83

88

91

95

97 96

100

89

78

71

90

76

77

75

72
79

CONNECTOR: C-62 <M/T>

C-62 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-553

STEP 4. Check for open circuit and short circuit to ground
and harness damage between knock sensor connector
B-35 (terminal No. 1) and ECM connector C-62 (terminal
No. 91) <M/T> or PCM connector C-59 (terminal No. 90)
<A/T>.
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair it. Then go to Step 6.

AK300444

1

2

AB

B-35 (GR)

CONNECTOR: B-35 <WITHOUT INTAKE
MANIFOLD TUNING  SYSTEM>

KNOCK SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE

AK300749

1

2

KNOCK SENSOR

CONNECTOR: B-35 <WITH INTAKE
MANIFOLD TUNING  SYSTEM>

AB

B-35 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-554

STEP 5. Check the knock sensor.

AK300460

98

78

71

88

89

76

77

72
79
91

73
80

74

75

81
92

82

83

93

84

85

94

86

87

95

96

90

97

CONNECTOR: C-59 <A/T>

C-59 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300445

80

87

81

94

85

82

84

93

86

98

99

74

92

73

83

88

91

95

97 96

100

89

78

71

90

76

77

75

72
79

CONNECTOR: C-62 <M/T>

C-62 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE
