MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-857

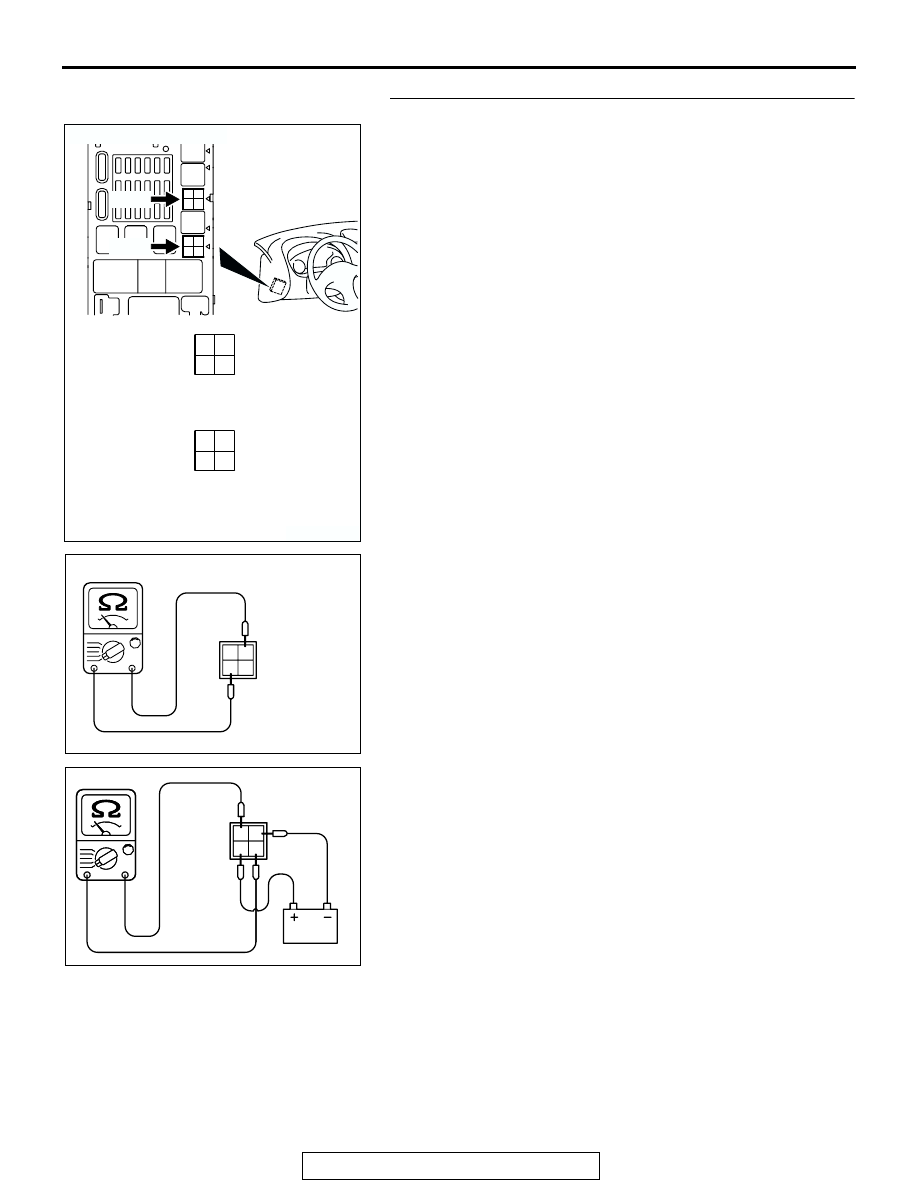

STEP 3. Check the fuel pump relay 1 and 2.
(1) Remove the fuel pump relay.

(2) Check for continuity between the fuel pump relay terminals

No. 2 and No. 3.

• There should be continuity. (approximately 70 ohms)

(3) Use jumper wires to connect fuel pump relay terminal No. 3

to the positive battery terminal and terminal No. 2 to the
negative battery terminal.

(4) Check the continuity between the fuel pump relay terminals

No. 1 and No. 4 while connecting and disconnecting the
jumper wire at the negative battery terminal.

• Should be less than 2 ohms. (Negative battery terminal

connected)

• Should be open loop. (Negative battery terminal discon-

nected)

(5)  Install the fuel pump relay.
Q: Is the resistance normal?

YES : Go to Step 4.
NO :  Replace the fuel pump relay. Then confirm that the

malfunction symptom is eliminated.

3

4

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

1

2

AK300456

2 1

3

4

2 1

3

4

CONNECTORS: C-105, 107

C-105

C-107

AB

C-107 HARNESS CONNECTOR:
COMPONENT SIDE

C-105 HARNESS CONNECTOR:
COMPONENT SIDE

AK103837

2

3 4

1

FUEL PUMP
RELAY SIDE
CONNECTOR

AB

AK103838

1 2
3 4

1 2
3 4

FUEL PUMP
RELAY SIDE
CONNECTOR

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-858

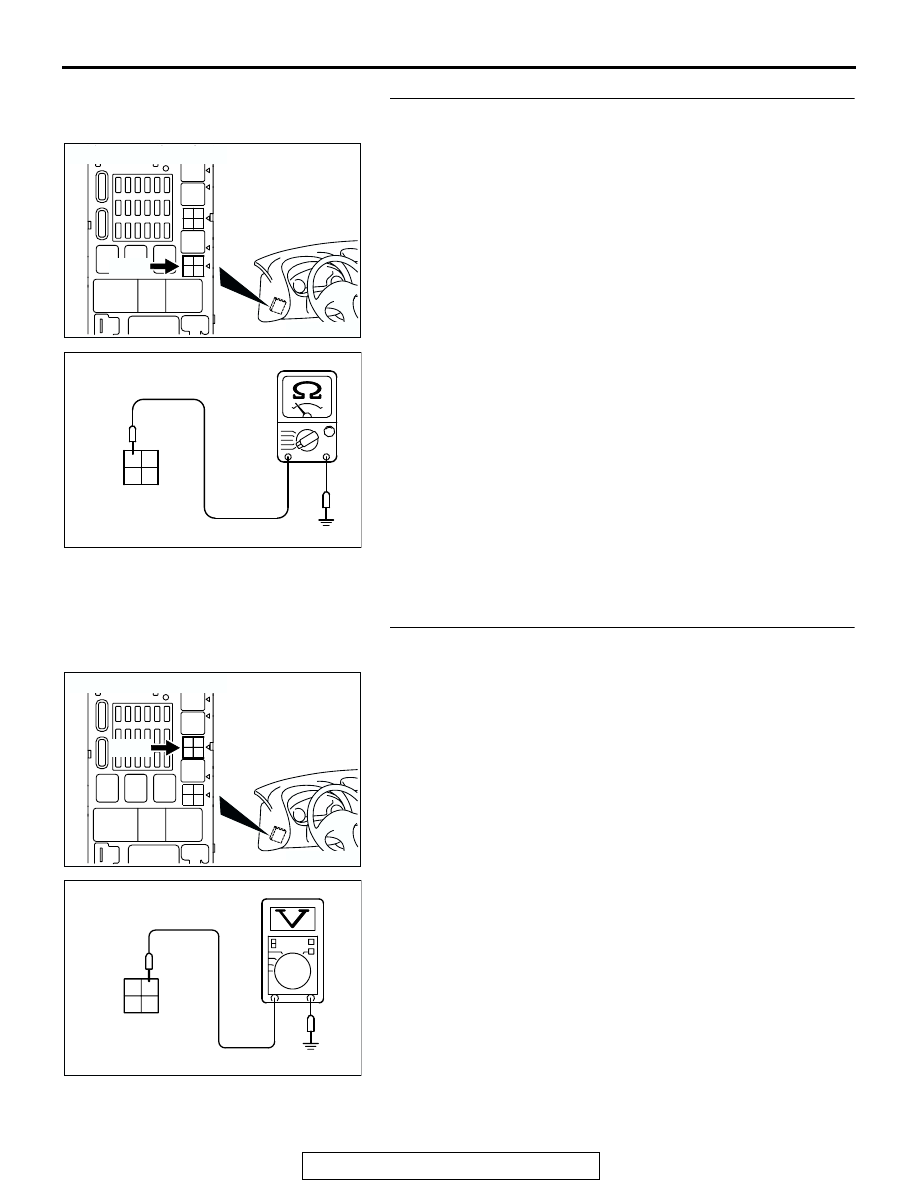

STEP 4. Measure the power supply voltage at fuel pump
relay 1 harness side connector C-107.
(1) Disconnect the connector C-107 and measure at the

harness side.

(2) Measure the voltage between terminal No. 4 and ground.

• Voltage should be battery positive voltage.

Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 5.
NO :  Check harness connectors C-89 and C-112 at

intermediate connector for damage, and repair or
replace as required. Refer to, GROUP 00E, Harness
Connector Inspection

P.00E-2

. If intermediate

connectors are in good condition, repair harness wire
between relay box (24) and fuel pump relay 1
connector C-107 (terminal No. 4) because of open
circuit. Then confirm that the malfunction symptom is
eliminated.

3

4

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

1

2

AK300745

CONNECTOR: C-107

AB

C-107

AK103736

1

2

3

4

1

2

3

4

C-107 HARNESS
CONNECTOR:
COMPONENT SIDE

1

2

3

4

AK

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-859

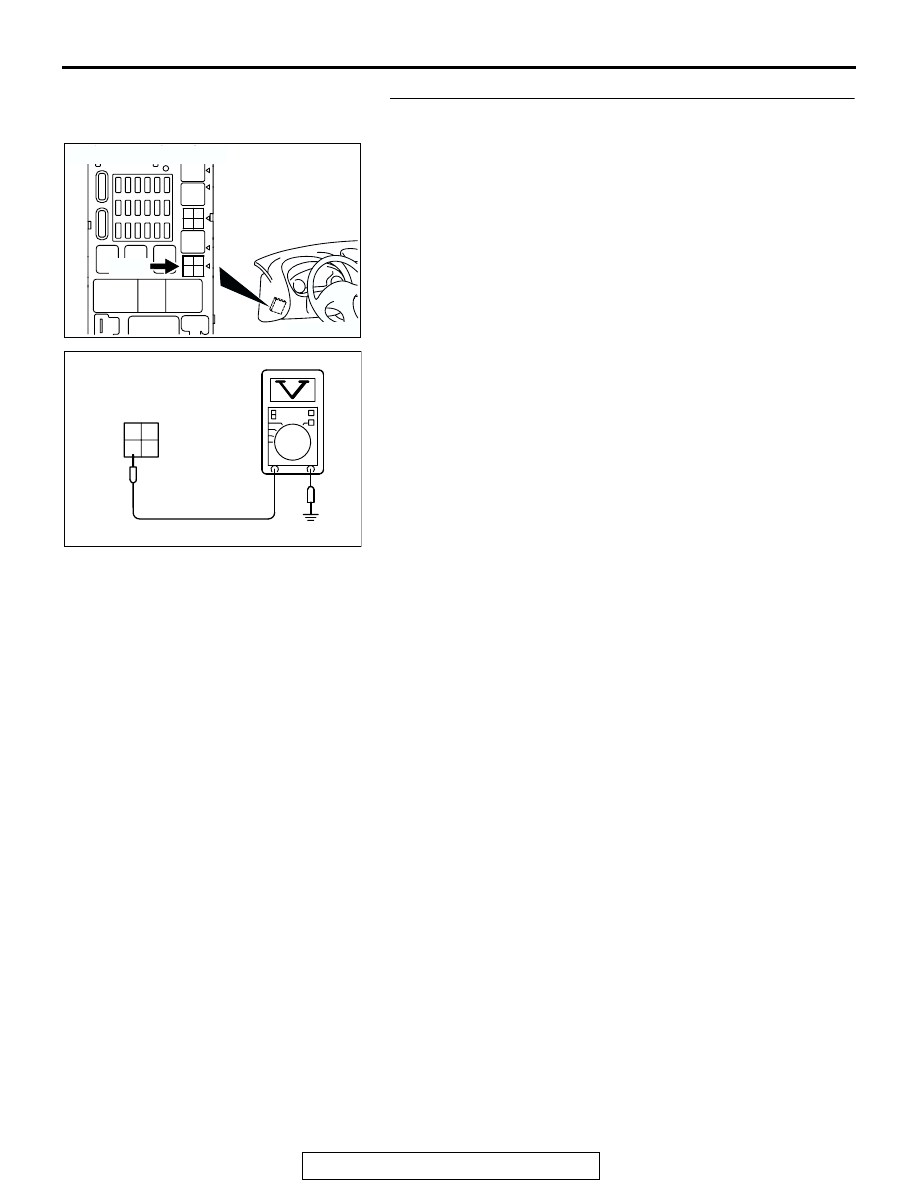

STEP 5. Measure the power supply voltage at fuel pump
