ENGINE AND TRANSAXLE <2.4L ENGINE>

TSB Revision

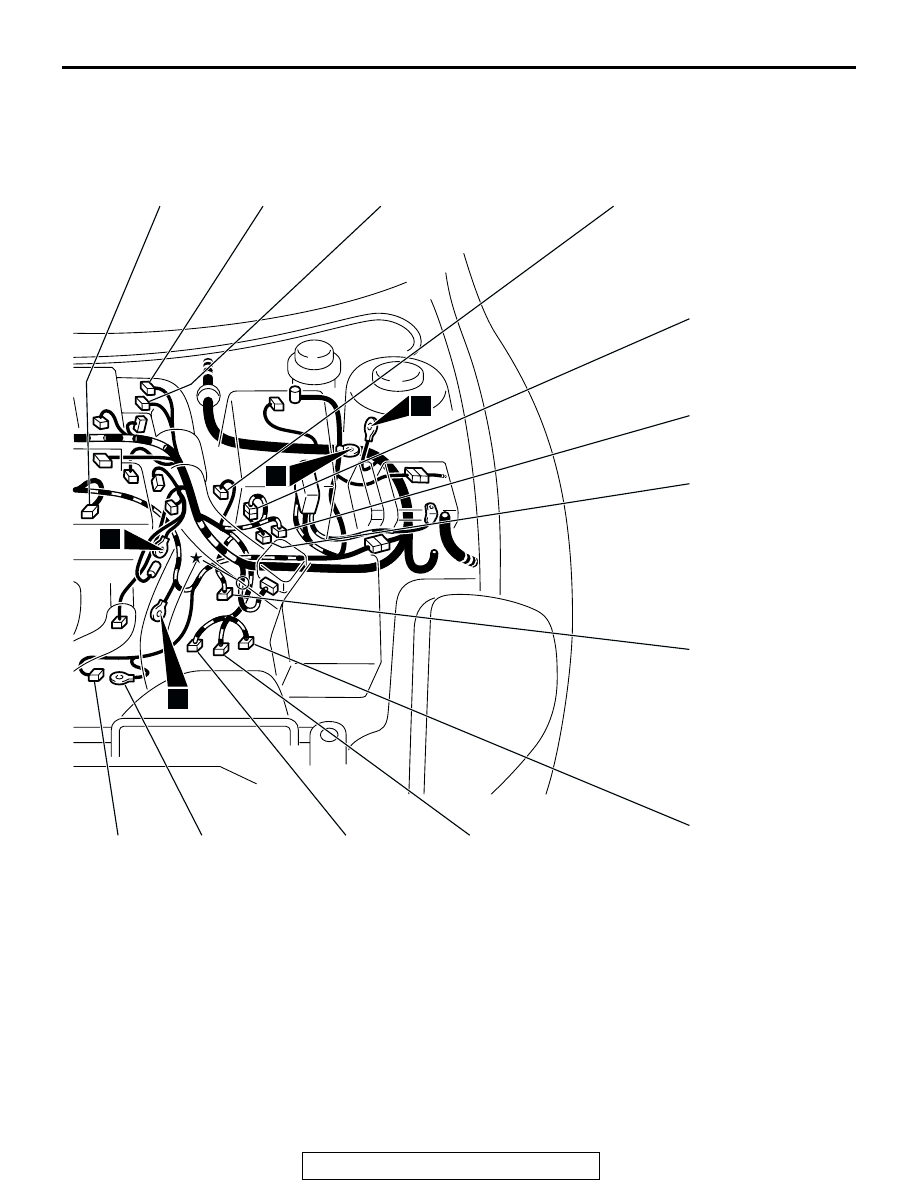

CONFIGURATION DIAGRAMS

80A-11

AC106114 AC

B-32

B-33

B-34

B-35

B-36

B-37

B-39

B-38

B-40

B-41

B-42

B-43

B-44

4

10

12

13

B-40

(10-GR) A/T CONTROL SOLENOID VALVE

ASSEMBLY

B-41

(10-B)

TRANSMISSION RANGE SWITCH
<A/T>

B-42

(3-B)

INPUT SHAFT SPEED SENSOR
<A/T>

B-43

(1)

STARTER

B-44

(1-B)

STARTER

B-45

(4-GR)

GENERATOR

B-46

(1)

GENERATOR

ENGINE AND TRANSAXLE <3.0L ENGINE (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM) >

TSB Revision

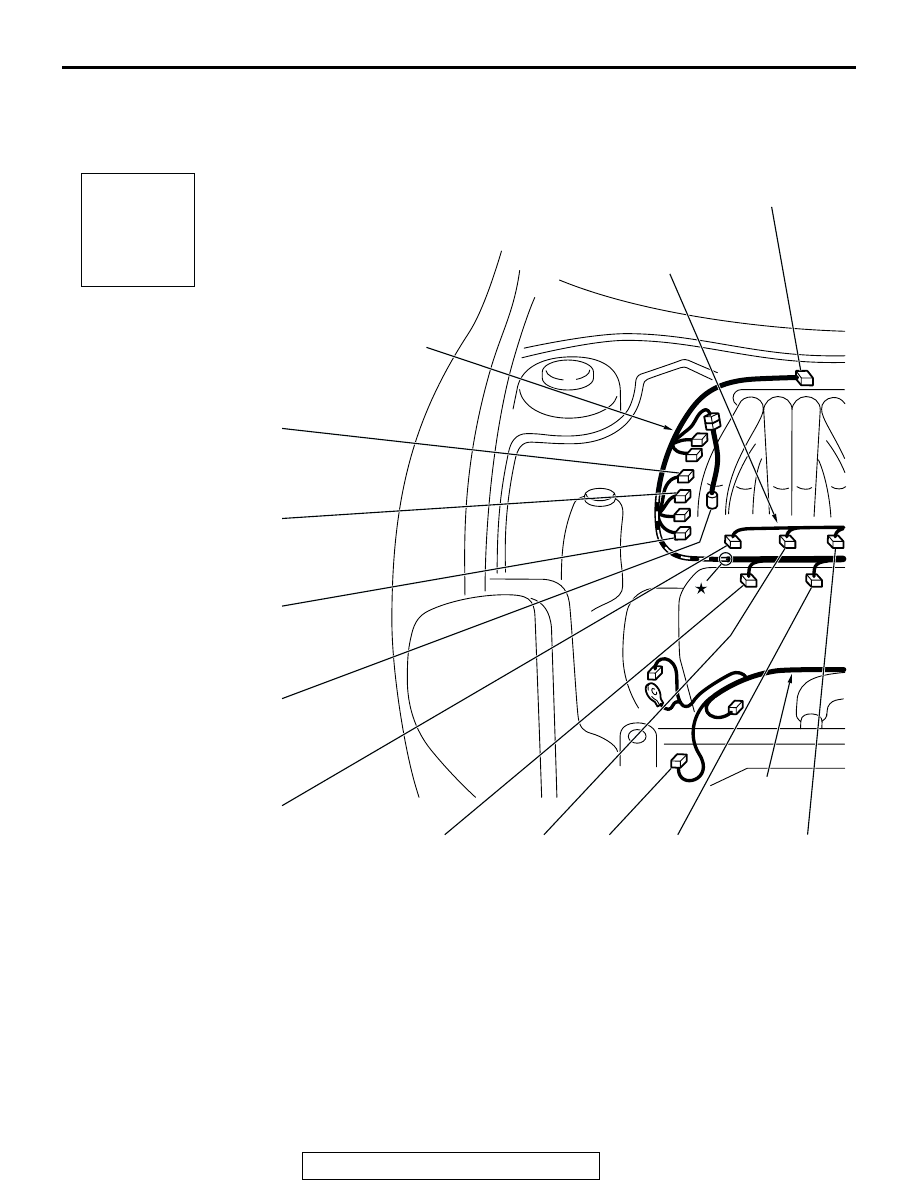

CONFIGURATION DIAGRAMS

80A-12

ENGINE AND TRANSAXLE <3.0L ENGINE (WITHOUT

INTAKE MANIFOLD TUNING (IMT) SYSTEM) >

M1801000400582

AC106136

Connector
symbol

-01
thru
-28

B

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

AB

B-04

B-27

B-28

B-20

B-19

B-01

B-02

B-05

B-18

B-06

B-26

CONTROL
WIRING
HARNESS

BATTERY
WIRING
HARNESS

INJECTOR
WIRING
HARNESS

B-01

(2-GR)

INJECTOR 1

B-02

(2-GR)

INJECTOR 2

B-04

(3-B)

MANIFOLD ABSOLUTE PRESSURE
SENSOR

B-05

(2-GR)

INJECTOR 3

B-06

(2-GR)

INJECTOR 4

B-07

(4-B)

THROTTLE POSITION SENSOR

B-08

(1-B)

ENGINE COOLANT TEMPERATURE
GAUGE UNIT

B-10

(2-B)

BRAKE FLUID LEVEL SWITCH

B-11

(2-B)

ENGINE COOLANT TEMPERATURE
SENSOR

B-12

(4-B)

FRONT WIRING HARNESS (LH)
AND BATTERY WIRING HARNESS
COMBINATION

B-13

(8-B)

CONTROL WIRING HARNESS AND
BATTERY WIRING HARNESS
COMBINATION

ENGINE AND TRANSAXLE <3.0L ENGINE (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM) >

TSB Revision

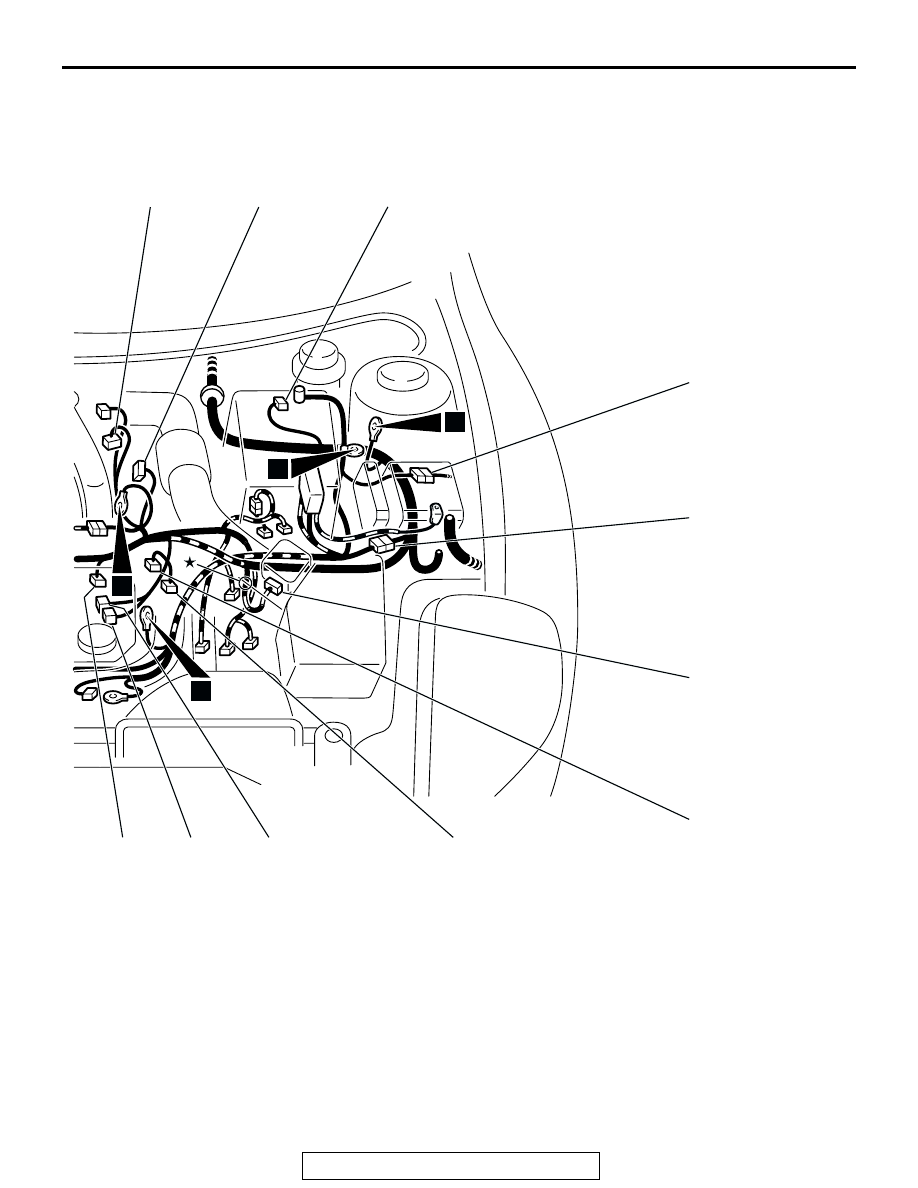

CONFIGURATION DIAGRAMS

80A-13

AC106137AB

B-07

B-22

B-10

B-12

B-13

B-14

B-08

B-11

B-24

B-23

B-25

4

10

12

13

B-14

(7-B)

VOLUME AIR FLOW SENSOR

B-18

(4-B)

A/C COMPRESSOR ASSEMBLY

B-19

(1)

POWER STEERING PRESSURE
SWITCH

B-20

(3-B)

CRANKSHAFT POSITION SENSOR

B-22

(7-B)

DISTRIBUTOR ASSEMBLY

B-23

(4-GR)

LEFT BANK HEATED OXYGEN
SENSOR (REAR)

B-24

(4-B)

LEFT BANK HEATED OXYGEN
SENSOR (FRONT)

B-25

(2-GR)

INJECTOR 6

B-26

(2-GR)

INJECTOR 5

B-27

(4-B)

RIGHT BANK HEATED OXYGEN
SENSOR (FRONT)

B-28

(4-GR)

RIGHT BANK HEATED OXYGEN
SENSOR (REAR)

ENGINE AND TRANSAXLE <3.0L ENGINE (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM) >

TSB Revision

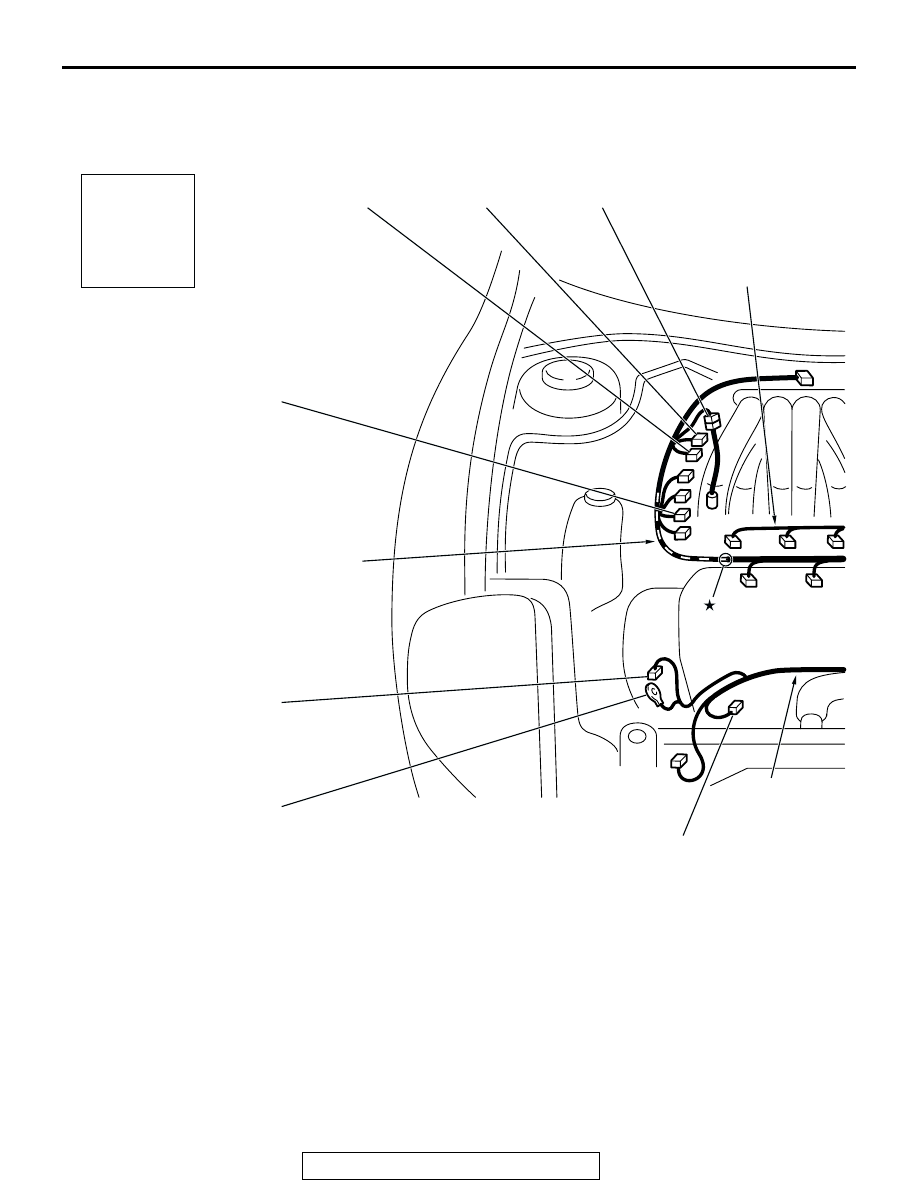

CONFIGURATION DIAGRAMS

80A-14

ENGINE AND TRANSAXLE <3.0L ENGINE (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM) >
(CONTINUED)

AC106136

Connector
symbol

-31
thru
-48

B

AC

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

B-47

B-31

B-33

B-35

B-45

B-46

B-32

CONTROL
WIRING
HARNESS

BATTERY
WIRING
HARNESS

INJECTOR
WIRING
HARNESS

B-31

(2-BR)

EGR SOLENOID VALVE

B-32

(1-B)

ENGINE OIL PRESSURE SWITCH

B-33

(2-B)

EVAPORATIVE EMISSION PURGE
SOLENOID

B-34

(6-B)

IDLE AIR CONTROL MOTOR

B-35

(2-GR)

KNOCK SENSOR

B-36

(3-B)

CONTROL WIRING HARNESS AND
VEHICLE SPEED SENSOR WIRING
HARNESS COMBINATION <M/T>

B-37

(2-B)

BACKUP LIGHT SWITCH <M/T>

B-38

(3-GR)

OUTPUT SHAFT SPEED SENSOR
<A/T>

B-39

(3-B)

VEHICLE SPEED SENSOR <M/T>

B-40

(10-GR) A/T CONTROL SOLENOID VALVE

ASSEMBLY

B-41

(10-B)

TRANSMISSION RANGE SWITCH
<A/T>
