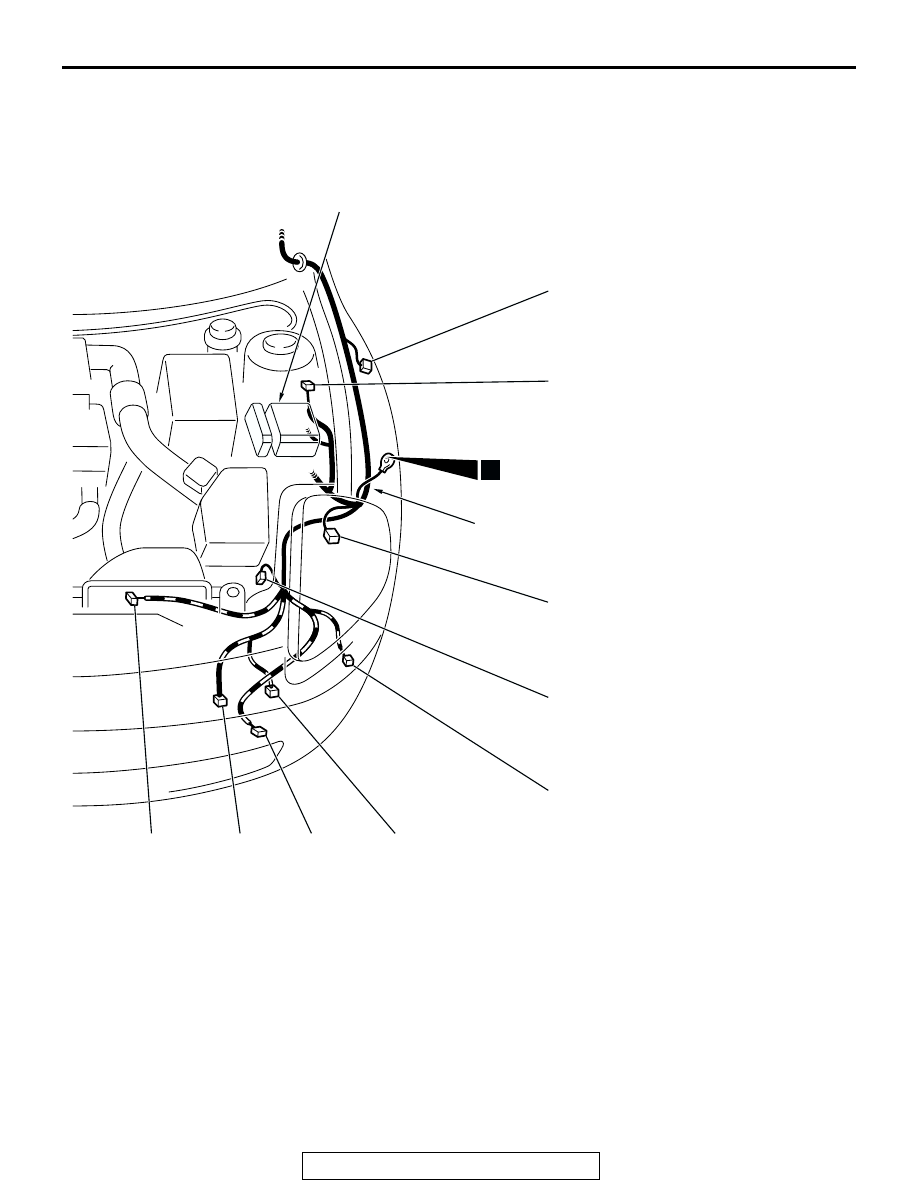

ENGINE COMPARTMENT

TSB Revision

CONFIGURATION DIAGRAMS

80A-7

AC302547AB

A-04X A-05X A-06X A-09X
A-10X A-11X A-12X A-13X
A-17X A-18X A-19X

A-22

A-23

A-24

A-25

A-26

A-27

A-28

A-29

A-30

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

11

FRONT
WIRING
HARNESS
(LH)

A-23

(2)

HOOD SWITCH <THEFT-ALARM
SYSTEM>

A-24

(3-B)

HEADLIGHT (LH)

A-25

(1-B)

THEFT-ALARM HORN
<THEFT-ALARM SYSTEM>

A-26

(3-B)

FRONT COMBINATION LIGHT (LH)

A-27

(1-B)

HORN

A-28

(2-B)

FOG LIGHT (LH)

A-29

(2-B)

AMBIENT TEMPERATURE SENSOR
<MULTI CENTER DISPLAY>

A-30

(3-GR)

FAN CONTROLLER

A-31

(2-B)

FOG LIGHT (RH)

A-32

(3-B)

FRONT COMBINATION LIGHT (RH)

A-33

(2-B)

WINDSHIELD WASHER MOTOR

A-34

(2)

REAR WASHER MOTOR <ECLIPSE>

A-35

(3-B)

HEADLIGHT (RH)

A-36

(2-BR)

DUAL PRESSURE SWITCH <A/C>

A-37

(2-B)

WHEEL SPEED SENSOR (FRONT:
RH) <ABS>

ENGINE AND TRANSAXLE <2.4L ENGINE>

TSB Revision

CONFIGURATION DIAGRAMS

80A-8

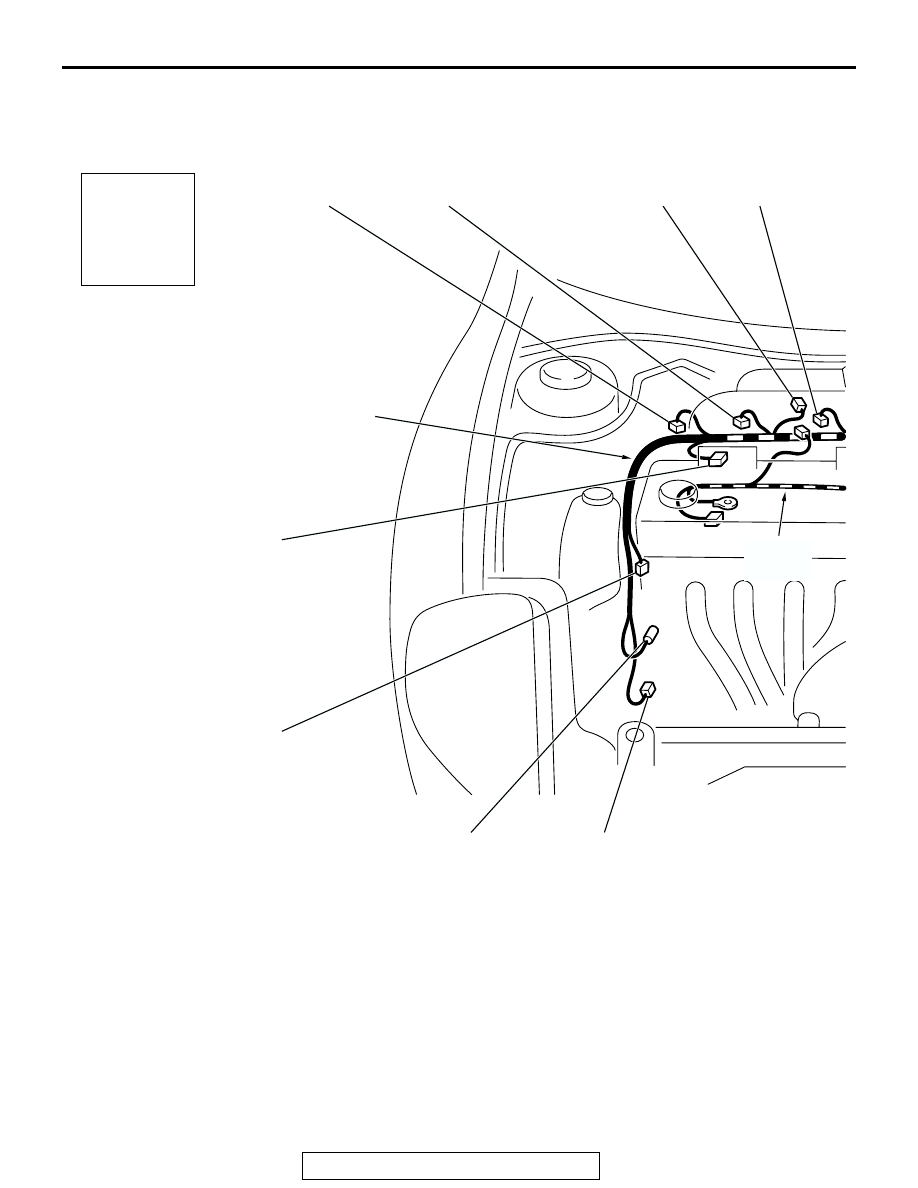

ENGINE AND TRANSAXLE <2.4L ENGINE>

M1801000400571

AC106134

Connector
symbol

-01
thru
-21

B

AB

B-05

B-04

B-02

B-01

B-21

B-20

B-19

B-18

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

CONTROL
WIRING
HARNESS

BATTERY
WIRING
HARNESS

B-01

(2-GR)

INJECTOR 1

B-02

(2-GR)

INJECTOR 2

B-04

(3-B)

MANIFOLD ABSOLUTE PRESSURE
SENSOR

B-05

(2-GR)

INJECTOR 3

B-06

(2-GR)

INJECTOR 4

B-07

(4-B)

THROTTLE POSITION SENSOR

B-08

(1-B)

ENGINE COOLANT TEMPERATURE
GAUGE UNIT

B-09

(3-B)

CAMSHAFT POSITION SENSOR

B-10

(2-B)

BRAKE FLUID LEVEL SWITCH

B-11

(2-B)

ENGINE COOLANT TEMPERATURE
SENSOR

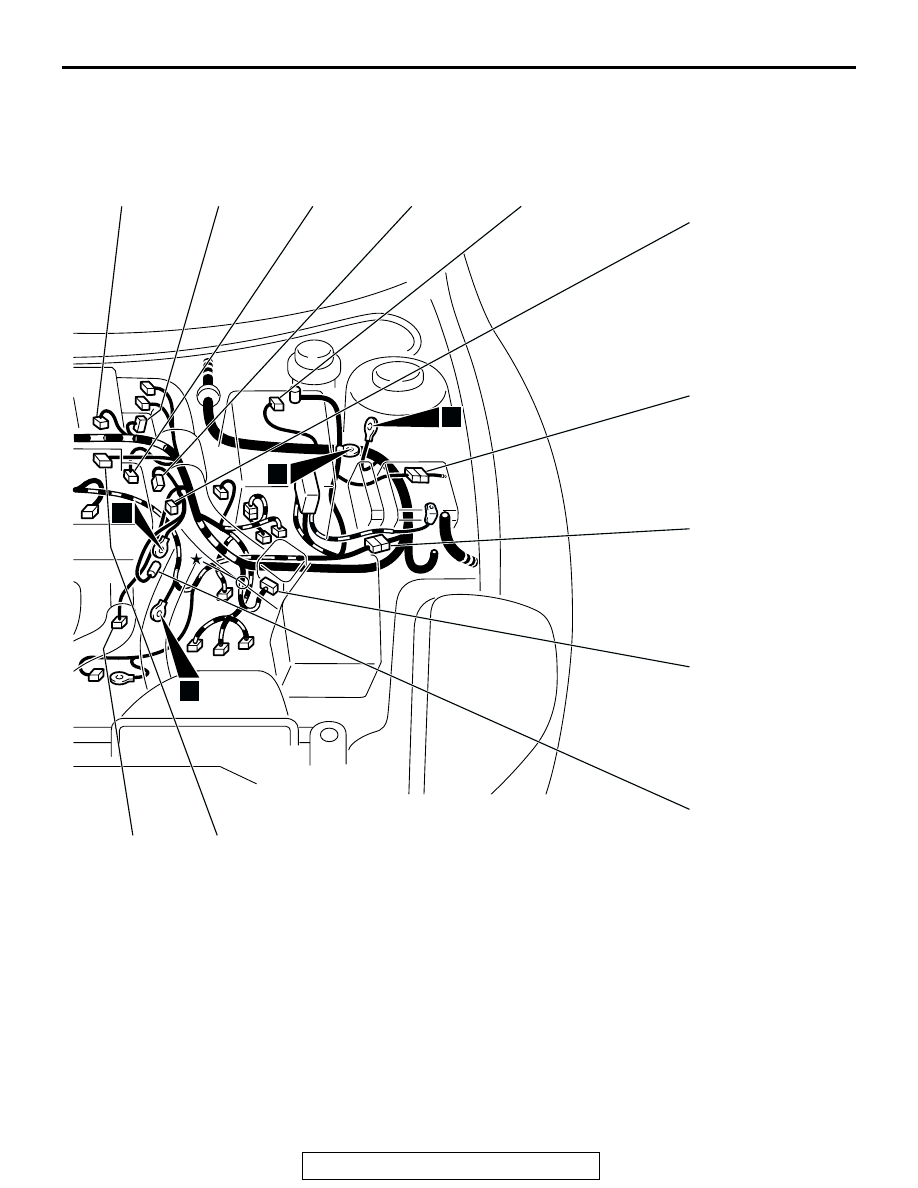

ENGINE AND TRANSAXLE <2.4L ENGINE>

TSB Revision

CONFIGURATION DIAGRAMS

80A-9

AC106114 AB

B-06

B-07

B-08

B-09

B-10

B-11

B-12

B-13

B-14

B-15

B-16

B-17

4

10

12

13

B-12

(4-B)

FRONT WIRING HARNESS (LH)
AND BATTERY WIRING HARNESS
COMBINATION

B-13

(8-B)

CONTROL WIRING HARNESS AND
BATTERY WIRING HARNESS
COMBINATION

B-14

(7-B)

VOLUME AIR FLOW SENSOR

B-15

(1-B)

CAPACITOR

B-16

(3-GR)

IGNITION COIL 1

B-17

(4-B)

HEATED OXYGEN SENSOR
(FRONT)

B-18

(1-B)

A/C COMPRESSOR ASSEMBLY

B-19

(1)

POWER STEERING PRESSURE
SWITCH

B-20

(3-B)

CRANKSHAFT POSITION SENSOR

B-21

(3-GR)

IGNITION COIL 2

ENGINE AND TRANSAXLE <2.4L ENGINE>

TSB Revision

CONFIGURATION DIAGRAMS

80A-10

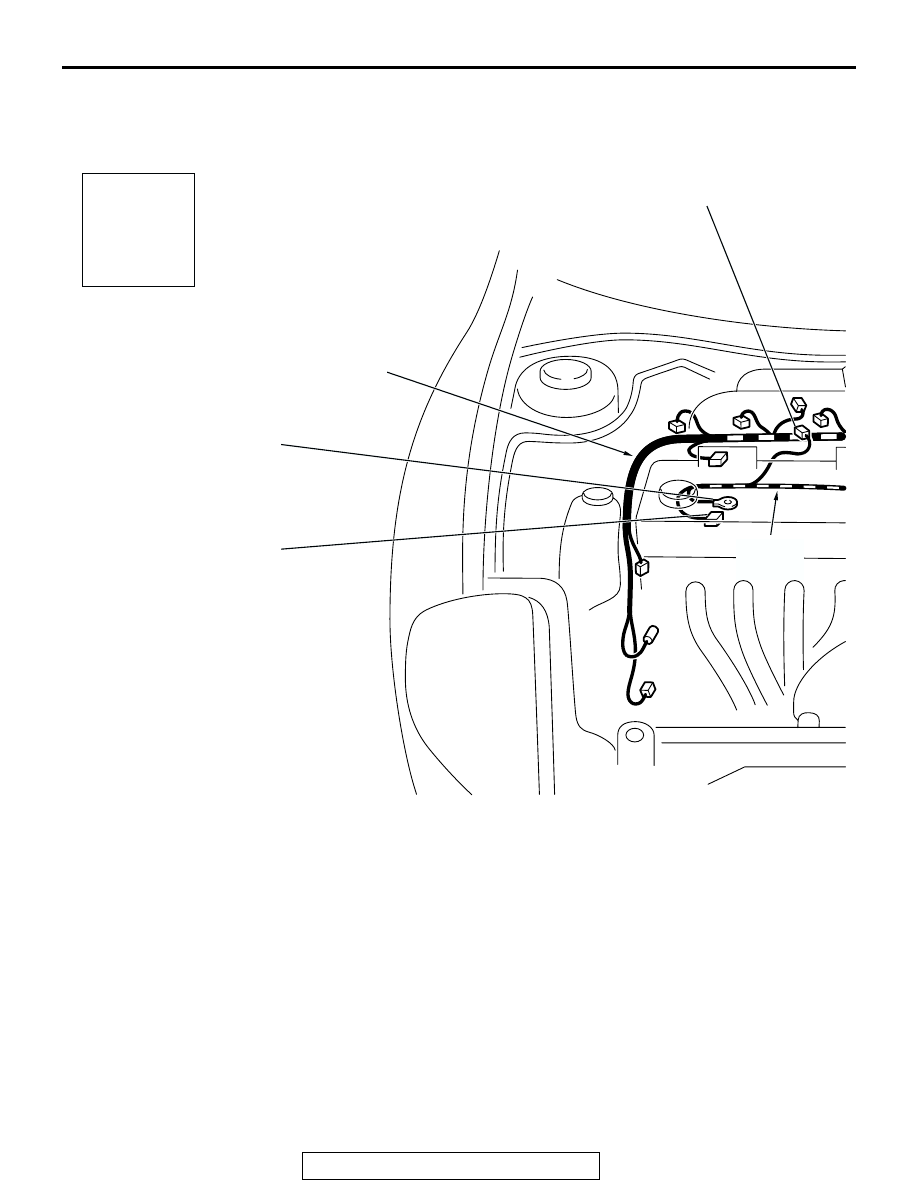

ENGINE AND TRANSAXLE <2.4L ENGINE> (CONTINUED)

AC106134

Connector
symbol

-31
thru
-46

B

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

AC

B-31

B-46

B-45

BATTERY
WIRING
HARNESS

CONTROL
WIRING
HARNESS

B-31

(2-BR)

EGR SOLENOID VALVE

B-32

(1-B)

ENGINE OIL PRESSURE SWITCH

B-33

(2-B)

EVAPORATIVE EMISSION PURGE
SOLENOID

B-34

(6-B)

IDLE AIR CONTROL MOTOR

B-35

(2-GR)

KNOCK SENSOR

B-36

(3-B)

CONTROL WIRING HARNESS AND
VEHICLE SPEED SENSOR WIRING
HARNESS COMBINATION <M/T>

B-37

(2-B)

BACKUP LIGHT SWITCH <M/T>

B-38

(3-GR)

OUTPUT SHAFT SPEED SENSOR
<A/T>

B-39

(3-B)

VEHICLE SPEED SENSOR <M/T>
